part number:
50-00199
description:
Connector, 2.5 x L19.8 mm 4C audio plug,
brass nickel plated, black insulators
date:
unit:
page:
rev:
08/24/11
1 of 2
A1
mm
Materials:
1
2
3
4
5
6
brass, nickel-plated, 2 μm min.
P-bronze, nickel-plated, 2 μm min.
POM, black
P-bronze 2, nickel-plated, 2 μm min.
P-bronze 3, gold-plated, 1 U min.
POM, yellow
Notes:
RoHS compliant

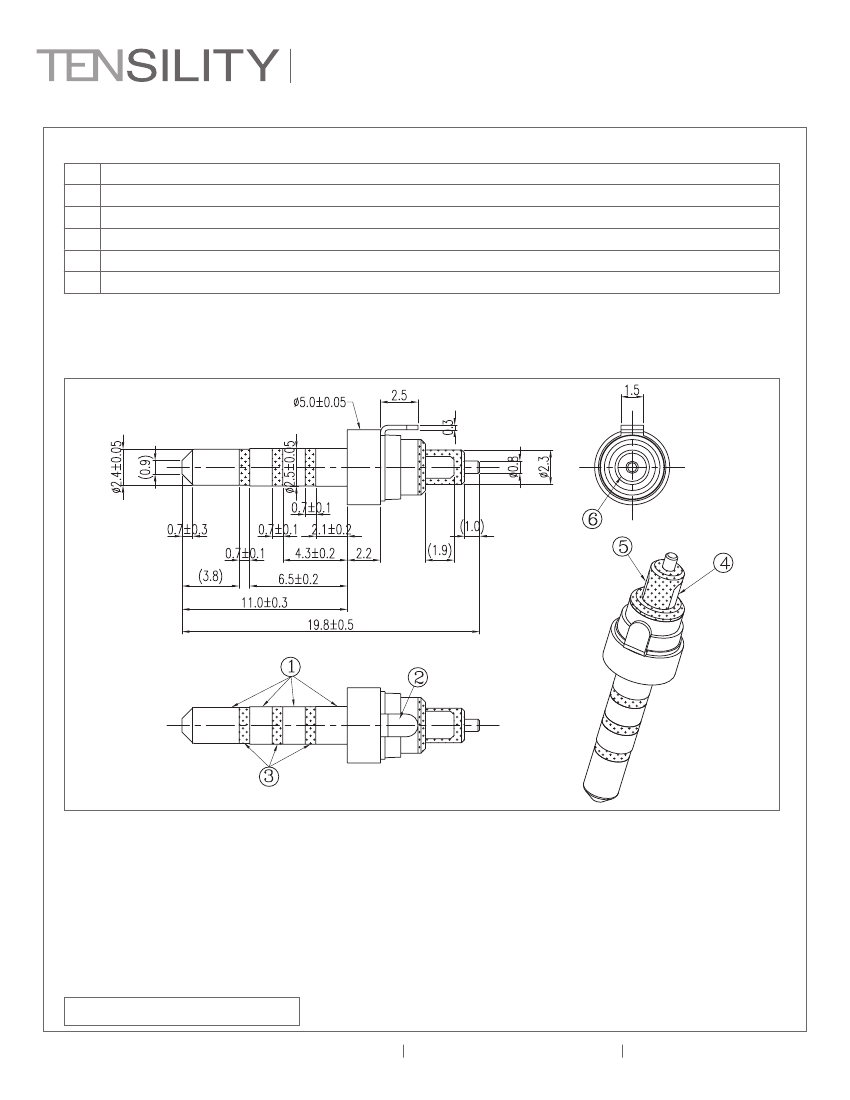

Mechanical drawing:
Initial
Date
20802 Sockeye Place Suite 130 Bend, OR 97701
ph 541.323.3228 fx 541.323.4202
www.tensility.com
part number:
50-00199
description:
Connector, 2.5 x L19.8 mm 4C audio plug,
brass nickel plated, black insulators
date:
unit:
page:
rev:
08/24/11
mm
2 of 2
A1
Revision notes:
Rev
A
A1
Date
August 17, 2011
August 24, 2011
Description
initial release
pin length changed to 2.5 mm
Specification Approval
Spec sign-off verifies that you have reviewed the entire specification, tested a sample of the product, and
confirm that it meets your requirements. This specification reflects the part as it will be ordered. Orders
will not be processed until the specification pages have been initialed and the approval page has been
signed. This specification is confidential and is not to be transmitted without prior approval from Tensility.
Signature
Name
Title
Date
