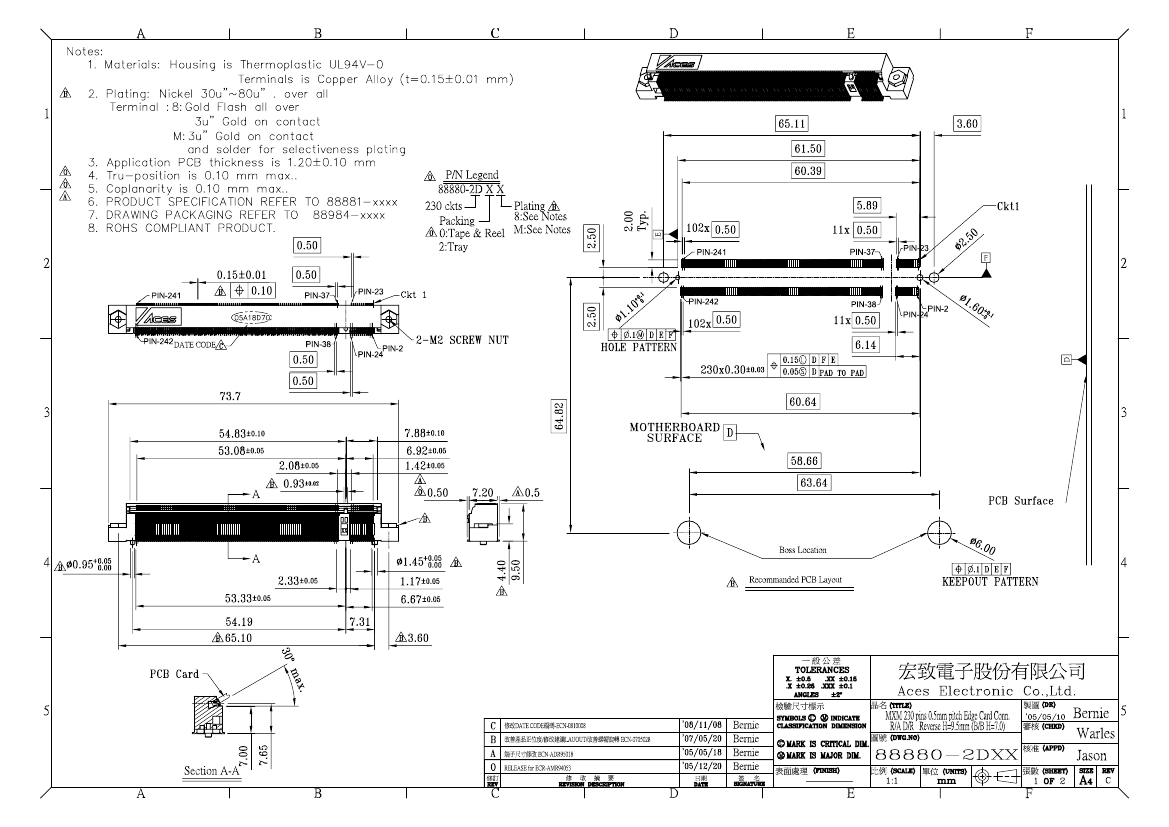

Card Edge Connector, 230 Contact(s), 2 Row(s), Right Angle Reverse, 0.02 inch Pitch, Surface Mount Terminal, M2, Plug

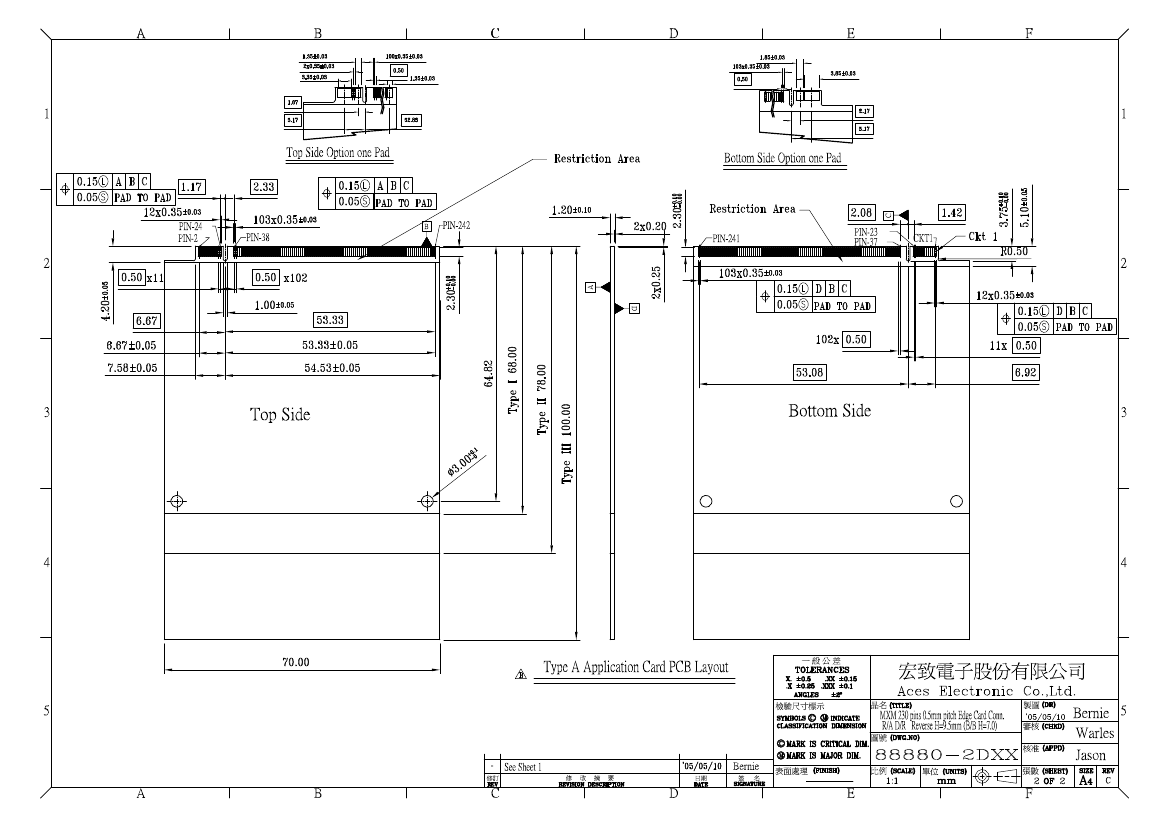

| Parameter Name | Attribute value |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Board mount options | PEG |
| body width | 0.283 inch |
| subject depth | 0.374 inch |
| body length | 2.902 inch |
| Body/casing type | PLUG |
| Connector type | CARD EDGE CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 30 mΩ |
| Contact style | BELLOWED TYPE |
| Dielectric withstand voltage | 250VAC V |
| Durability | 25 Cycles |
| Insulation resistance | 50000000 Ω |
| insulator material | THERMOPLASTIC |
| Manufacturer's serial number | 88880 |
| Plug contact pitch | 0.02 inch |
| Installation option 1 | M2 |
| Installation option 2 | LOCKING |
| Installation method | RIGHT ANGLE REVERSE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 7.0104 mm |
| Plating thickness | 3u inch |
| Rated current (signal) | 0.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal pitch | 0.508 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 230 |
| 88880-2D08 | 88880-2D0M | 88880-2D28 | |
|---|---|---|---|
| Description | Card Edge Connector, 230 Contact(s), 2 Row(s), Right Angle Reverse, 0.02 inch Pitch, Surface Mount Terminal, M2, Plug | Card Edge Connector, 230 Contact(s), 2 Row(s), Right Angle Reverse, 0.02 inch Pitch, Surface Mount Terminal, M2, Plug | Card Edge Connector, 230 Contact(s), 2 Row(s), Right Angle Reverse, 0.02 inch Pitch, Surface Mount Terminal, M2, Plug |
| Reach Compliance Code | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Board mount options | PEG | PEG | PEG |
| body width | 0.283 inch | 0.283 inch | 0.283 inch |
| subject depth | 0.374 inch | 0.374 inch | 0.374 inch |
| body length | 2.902 inch | 2.902 inch | 2.902 inch |
| Body/casing type | PLUG | PLUG | PLUG |
| Connector type | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR |
| Contact to complete cooperation | AU ON NI | AU ON NI | AU ON NI |
| Contact material | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 30 mΩ | 30 mΩ | 30 mΩ |
| Contact style | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE |
| Dielectric withstand voltage | 250VAC V | 250VAC V | 250VAC V |
| Durability | 25 Cycles | 25 Cycles | 25 Cycles |
| Insulation resistance | 50000000 Ω | 50000000 Ω | 50000000 Ω |
| insulator material | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC |
| Manufacturer's serial number | 88880 | 88880 | 88880 |
| Plug contact pitch | 0.02 inch | 0.02 inch | 0.02 inch |
| Installation option 1 | M2 | M2 | M2 |
| Installation option 2 | LOCKING | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE REVERSE | RIGHT ANGLE REVERSE | RIGHT ANGLE REVERSE |
| Installation type | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE |
| PCB row number | 2 | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| PCB contact pattern | STAGGERED | STAGGERED | STAGGERED |
| PCB contact row spacing | 7.0104 mm | 7.0104 mm | 7.0104 mm |
| Plating thickness | 3u inch | 3u inch | 3u inch |
| Rated current (signal) | 0.5 A | 0.5 A | 0.5 A |
| Guideline | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 0.508 mm | 0.508 mm | 0.508 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 230 | 230 | 230 |
