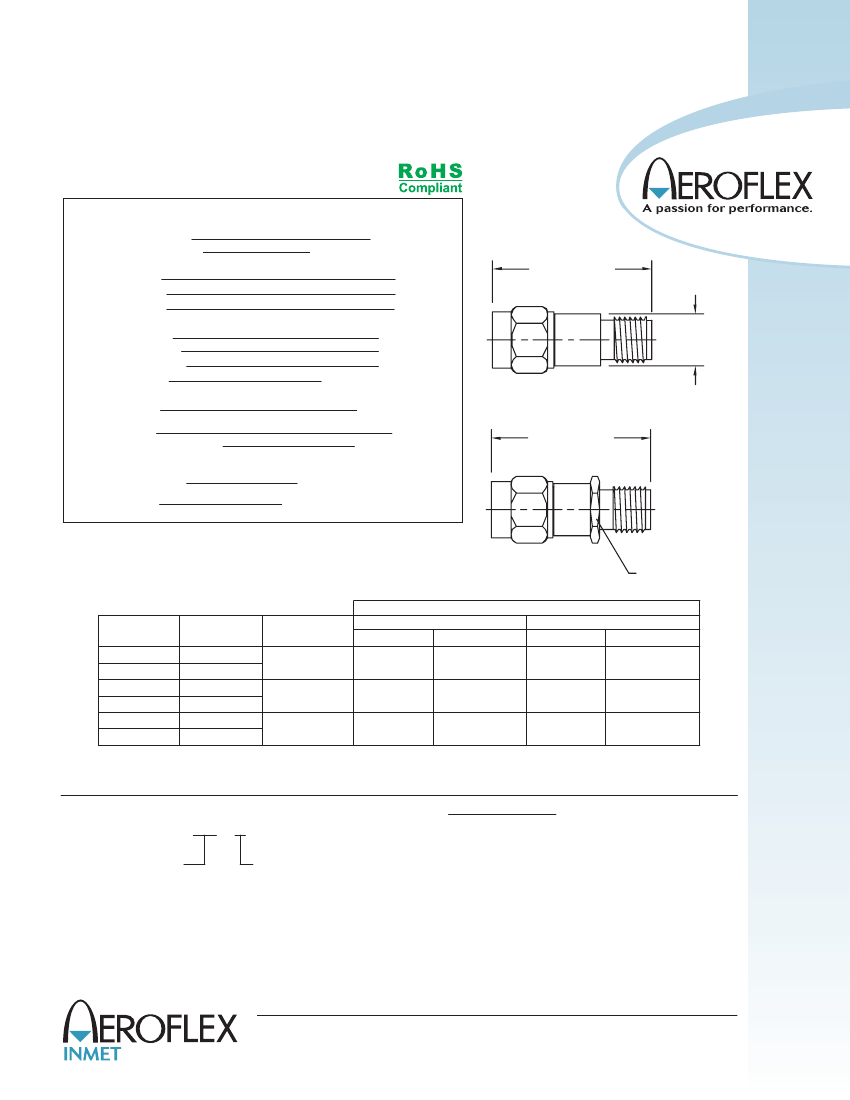

A/AH ATTENUATORS
SMA General Purpose, DC - 18 GHz, 2 Watts
SPECIFICATIONS:
Models: 9026, 9027, 9028, 9029, 9030, 9031
Electrical:
Frequency Range
Standard dB Values*
Attenuation Accuracy
0 - 12 dB
13 - 20 dB
21 - 30 dB
VSWR
DC - 4 GHz
4 - 12.4 GHz
12.4 - 18 GHz
Input Power
Peak Power
Impedance
Operating Temp Range
DC - 18 GHz
0-10, 12, 15, 20 & 30 dB
In 1 dB Increments
±0.75 dB
±1.00 dB
±1.50 dB
1.20:1 Max.
1.40:1 Max.
1.60:1 Max.
2 Watts Avg. @ 25°C
Derated Linearly to 0.5 Watts @ +125
o
C
LENGTH
SEE TABLE
Ø.28
[7.1]
250 Watts Max.
(5uSec Pulse, .05% Duty Cycle)
A STYLE
LENGTH
SEE TABLE
50 Ohms
-65°C to +125°C
Passivated Stainless Steel
Gold Plated Beryllium Copper
Mechanical:
SMA Connectors
Conductors
Mates with MIL-STD-348
AH STYLE
Base Model
Number
9026-XX
9029-XX
9027-XX
9030-XX
9028-XX
9031-XX
Body
Style
A (No-Hex)
AH (Hex)
A (No-Hex)
AH (Hex)
A (No-Hex)
AH (Hex)
Connector
Configuration
Male/Female
Male/Male
Female/Female
5/16 [7.9] Hex
LENGTH
0 - 12 dB
13 - 30 dB
Inches
Millimeters
Millimeters
Inches
Inches
[25.1 ±0.8]
[21.8 ±0.8]
.99 ±.03
.86 ±.03
.98 ±.03
.87 ±.03
[24.9 ±0.8]
[22.1 ±0.8]
1.11 ±.03
1.00 ±.03
[28.2 ±0.8]
[25.4 ±0.8]
HOW TO ORDER:
Model Number:
90YY-XX
Base Number
dB Value
Ordering Examples:
Model Number:
9026-20
20 dB; SMA - Male/Fem; Style A
Model Number:
9031-6
6 dB; SMA - Fem/Fem; Style AH
Model Number:
9027-3
3 dB; SMA - Male/Male; Style A
Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.
*Other dB values are also available.
9026: REV G
Aeroflex / Inmet, Inc.
• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.
888-244-6638 or 734-426-5553 • FAX: 734-426-5557
www.aeroflex-inmet.com •
