BL2-57AGG-80U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BL2-57AGG-80U

BL2-57AGG-80U: DescriptionBoard Connector, 80 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size240KB，1 Pages; ManufacturerMPE-Garry GmbH; Environmental Compliance

Download Datasheet Parametric View All

BL2-57AGG-80U Overview

Board Connector, 80 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Plug

BL2-57AGG-80U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.197 inch
subject depth	0.395 inch
body length	4.02 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
insulator material	THERMOPLASTIC
JESD-609 code	e4
Manufacturer's serial number	401
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	80

Preview

Download Datasheet

View All

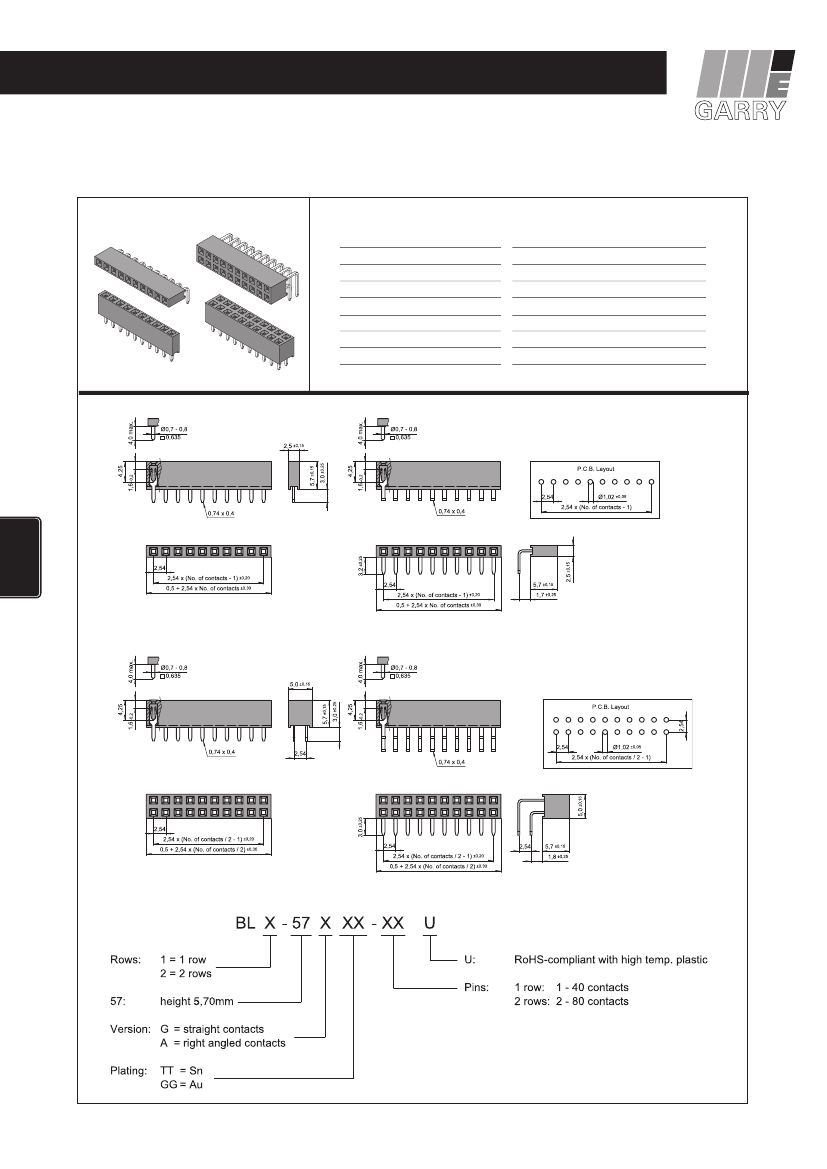

PRODUCT GROUP 7 -

MALE AND FEMALE HEADER 2,54/2,50/2,39 mm

FEMALE HEADER „THROUGH HOLE“

ID: 096

BL 1-57GXX / BL 2-57GXX / BL 1-57AXX / BL 2-57AXX

Series 401

TECHNICAL DATA

Pitch

Insulating Material

Contact Material

Rated Current

Rated Voltage

Withstanding Voltage

Operating Temperature

Maximum Soldering Temperature

2,54 mm

high temp. thermoplast UL94V-0

phosphor bronze

3 Amp.

250 V

AC/DC

1000 V

for one minute

-40°C to +105°C

260°C for 10 seconds

120

| 2,54 mm

All dimensions in mm.

Other dimensions upon request.

MPE-Garry GmbH · Schäfflerstraße 13 · 87629 Füssen · Germany · Tel.: +49 (0) 83 62 / 91 56-0 · Fax.: +49 (0) 83 62 / 91 56-520

e-mail: vk@mpe-connector.de · www.mpe-connector.de
