Ideal for high power diversity switch applications
including WiMax, WLAN MESH Networks, and
Fixed Wireless Access
Broadband Performance: DC - 4.0 GHz
Low Insertion Loss: 0.8 dB @ 2.5 GHz and
1.2 dB @ 3.5 GHz
High P1dB Compression: 39.5 dBm @ 5 V
Fast Settling for Low Gate Lag Requirements
Lead-Free 3 mm 12-Lead PQFN Package
100% Matte Tin Plating over Copper
Halogen-Free ―Green‖ Mold Compound
RoHS* Compliant and 260°C Reflow Compatible
Rev. V1
Functional Schematic
GND
Tx
Rx
GND
GND
V
C
1
GND
GND
V
C
2
ANT1
Description
M/A-COM’s MASW-007587 is a broadband GaAs
PHEMT MMIC diversity switch available in a lead-
free 3 mm 12-lead PQFN package. The MASW-
007587 is ideally suited for applications where very
small size and high linear power are required.
Typical applications include 2.5 & 3.5 GHz WiMax,
WLAN MESH networks, fixed wireless access, and
other higher power systems. Designed for high
power, this DPDT switch maintains high linearity up
to 4.0 GHz.
The MASW-007587 is fabricated using a 0.5 micron
gate length GaAs PHEMT process. The process
features full passivation for performance and
reliability.
Pin Configuration
Pin No.
1
2
3
4
5
6
7
8
9
10
Pin Name
GND
GND
V
C
1
ANT1
GND
ANT2
V
C
2
GND
GND
Rx
GND
Tx
Paddle
2
ANT2
GND
Description
Ground
Ground
Control 1
Antenna Port 1
Ground
Antenna Port 2
Control 2
Ground
Ground
Receive Port
Ground
Transmit Port
RF and DC Ground
Ordering Information
1
Part Number
MASW-007587-TR3000
MASW-007587-000SMB
11
Package
3000 piece reel
Sample Test Board
(Includes 5 Samples)
12
13
2. The exposed pad centered on the package bottom must be
connected to RF and DC ground.
1. Reference Application Note M513 for reel size information.
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MASW-007587
High Power GaAs DPDT Diversity Switch
DC - 4.0 GHz
Electrical Specifications: T
A
= 25°C, Z
0
= 50, V
C
= 0 V / 3 V, 39 pF Capacitor
3
Parameter
Test Conditions
0.5 - 1 GHz
1 - 2 GHz
2 - 3 GHz
2.45 GHz
3 - 4 GHz
0.5 - 1 GHz
1 - 2 GHz
2 - 3 GHz
2.45 GHz
3 - 4 GHz
0.5 - 1 GHz
1 - 2 GHz
2 - 3 GHz
2.45 GHz
3 - 4 GHz
0.5 - 1 GHz
1 - 2 GHz
2 - 3 GHz
3 - 4 GHz
Two Tone, +15 dBm/Tone, 5 MHz Spacing, 2.4 GHz
V
C
= 3 V
V
C
= 5 V
V
C
= 8 V
2.4 GHz, V
C
= 3 V
2.4 GHz, V
C
= 5 V
2.4 GHz, V
C
= 8 V
2.4 GHz, Pin = 15 dBm
2.4 GHz, Pin = 15 dBm
10% to 90% RF
90% to 10% RF
50% control to 90% RF and 50% control to 10% RF
—
—
Rev. V1
Units
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
dBm
dBm
dBm
dBm
dBc
dBc
nS
nS
nS
mV
µA
Min.
—
—
—
—
—
—
—
—
24
—
—
—
—
29
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Typ.
0.6
0.7
0.8
0.8
1.2
41.5
35
30
30
27
46.5
43
38
38
32
14
15
19.5
14
57.5
59
60
34
39.5
41
-86
-91
64
80
90
5
5
Max.
—
—
—
1.2
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
10
Insertion Loss
4
Isolation (on/off or off/on)
Iso @ Tx when IL from Ant 2 to Rx
Iso @ Rx when IL from Ant 1 to Tx
Isolation (on/off or off/on)
Iso @ Tx when IL from Ant 1 to Rx
Iso @ Rx when IL from Ant 2 to Tx
Return Loss
IP3
Input P1dB
2
nd
Harmonic
3
rd
Harmonic
Trise, Tfall
Ton, Toff
Transients
Control Current
3. For positive voltage control, external DC blocking capacitors are required on all RF ports.
4. Insertion loss can be optimized by varying the DC blocking capacitor value. For use above 2.5 GHz, M/A-COM recommends using
smaller capacitor values. For example, use 5 pF for 3.2 GHz.
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MASW-007587
High Power GaAs DPDT Diversity Switch
DC - 4.0 GHz

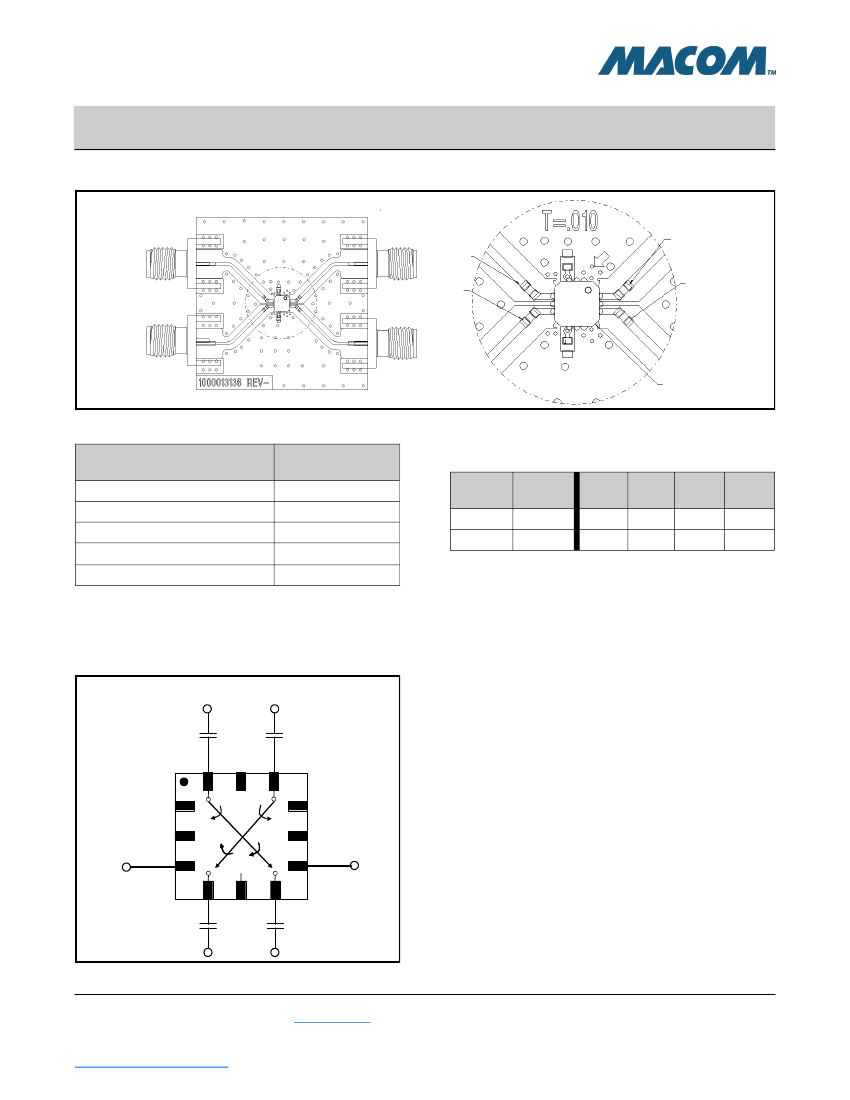

Evaluation Board for 3 mm 12-Lead PQFN
Rev. V1
C1
C4
C2
C3
U1
Absolute Maximum Ratings
5,6
Parameter
Input Power @ 3 V Control
Input Power @ 5 V Control
Voltage
Operating Temperature
Storage Temperature
Absolute
Maximum
+35 dBm CW
+37 dBm CW
8 volts
Truth Table
7,8
Control
V
C
1
1
0
Control
V
C
2
0
1
ANT 1 ANT 1 ANT 2 ANT 2
- Rx
- Tx
- Tx
- Rx
On
Off
Off
On
On
Off
Off
On
-40°C to +85 C
-65
°
C to +150
°
C
°
5. Exceeding any one or combination of these limits may cause
permanent damage to this device.
6. M/A-COM does not recommend sustained operation near
these survivability limits.
7. Differential voltage, V (state 1) - V (state 0), must be
+2.7 V minimum and must not exceed 8.0 V.
8. 1 = +2.9 V to +8 V, 0 = 0 V + 0.2 V.
Application Schematic
C1 = C2 = C3 = C4 = 39 pF
Qualification
Qualified to M/A-COM specification REL-201,
Process Flow –2.
Handling Procedures
C1
GND
Tx
C2
Rx
Please observe the following precautions to avoid
damage:
GND
GND
GND
GND
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
Vc1
ANT1
ANT2
Vc2
C4
GND
C3
3
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MASW-007587
High Power GaAs DPDT Diversity Switch
DC - 4.0 GHz

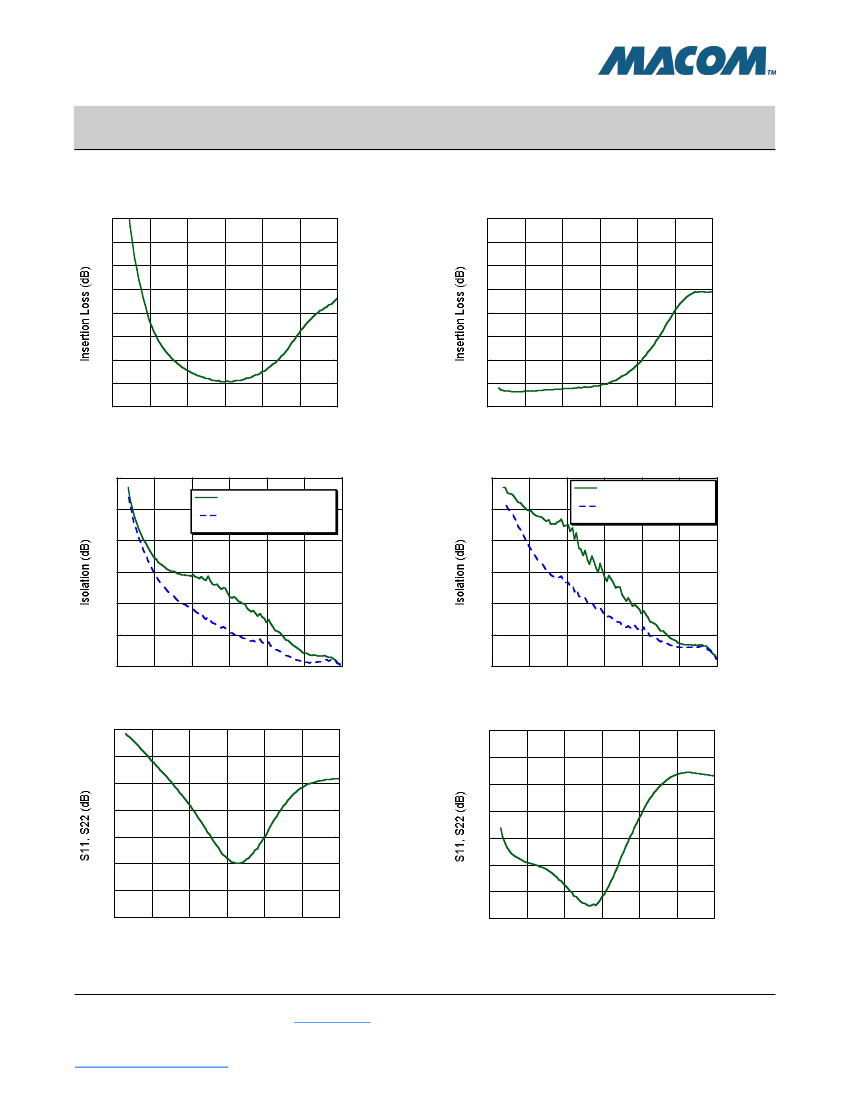

Typical Performance Curves
Insertion Loss, 4 pF Capacitors
8
7
6
5
4
3
2
1
0
0
1
2
3
4
5
6
Rev. V1
Insertion Loss, 39 pF Capacitors
8
7
6
5
4
3
2
1
0
0
1
2
3
4
5
6
Frequency (GHz)
Frequency (GHz)
Isolation, 4 pF Capacitors
50
Iso @
Iso @
Iso @
Iso @
Tx when IL from Ant 1 to Rx
Rx when IL from Ant 2 to Tx
Tx when IL from Ant 2 to Rx
Rx when IL from Ant 1 to Tx
Isolation, 39 pF Capacitors
50
Iso @
Iso @
Iso @
Iso @
Tx when IL from Ant 1 to Rx
Rx when IL from Ant 2 to Tx
Tx when IL from Ant 2 to Rx
Rx when IL from Ant 1 to Tx
45
40
35
30
25
20
0
1
2
45
40
35
30
25
20
3
4
5
6
0
1
2
3
4
5
6
Frequency (GHz)
Frequency (GHz)
S11,
0
-3
-6
-9
-12
-15
-18
-21
0
1
2
3
4
5
6
0
-3
-6
-9
-12
-15
-18
-21
0
1
2
3
4
5
6
S11,
Frequency (GHz)
4
Frequency (GHz)
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MASW-007587
High Power GaAs DPDT Diversity Switch
DC - 4.0 GHz

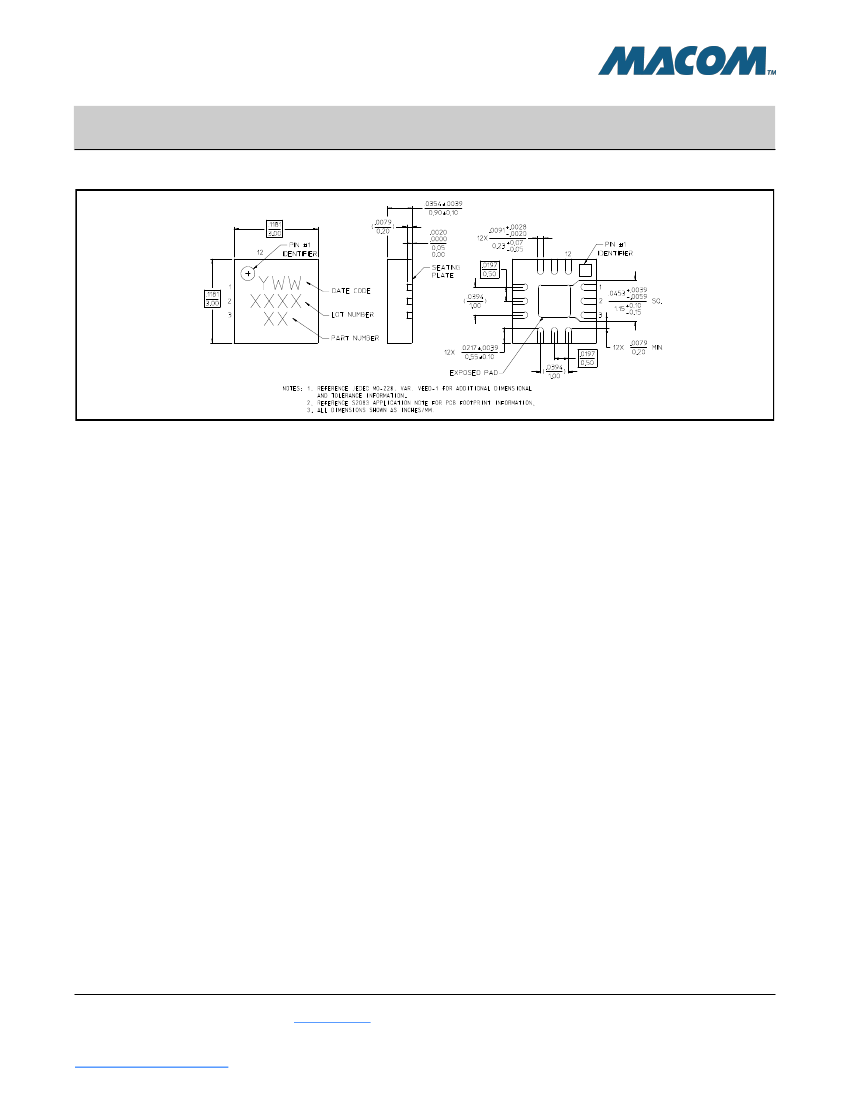

Lead-Free
3 mm 12-Lead PQFN
†
Rev. V1
†
Reference Application Note M538 for lead-free solder reflow recommendations.
5
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
