The MASW-008566 is ideally suited for applications
where high power, low control voltage, low insertion
loss, high isolation, small size, and low cost are
required.
Typical applications are for GSM and DCS handset
systems that connect separate transmit and receive
functions to a common antenna, as well as other
handset and related applications. This part can be
used in all systems operating up to 3.0 GHz
requiring high power at low control voltage.
The MASW-008566 is fabricated using a 0.5 micron
gate length GaAs PHEMT process. The process
features full passivation for performance and
reliability.
GND
RF2
39 pF
GND
Pin Configuration
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Pin Name
V1
RF1
GND
RF2
GND
V2
V3
GND
RF3
GND
GND
RF4
GND
V4
GND
ANT
Paddle
3
Description
Control 1
RF Port 1
RF Ground
RF Port 2
RF Ground
Control 2
Control 3
RF Ground
RF Port 3
RF Ground
RF Ground
RF Port 4
RF Ground
Control 4
RF Ground
Antenna Port
RF Ground
Ordering Information
1,2
Part Number
MASW-008566-TR3000
MASW-008566-001SMB
Package
3000 piece reel
Sample Board
1. Reference Application Note M513 for reel size information.
2. All sample boards include 5 loose parts.
3. The exposed pad centered on the package bottom must be
connected to RF and DC ground.
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
GND
V2
V3
MASW-008566
GaAs SP4T 2.5 V High Power Switch
DC - 3.0 GHz
Electrical Specifications: T
A
= 25°C, Z
0
= 50
Ω
4
Parameter
Insertion Loss
5
Test Conditions
DC – 1 GHz
1 – 2 GHz
2 - 3 GHz
DC – 1 GHz
1 – 2 GHz
2 - 3 GHz
DC – 3 GHz
Two Tone +26 dBm, 5 MHz Spacing, > 50 MHz
V
C
= 0 V / 2.5 V
Two Tone +26 dBm, 5 MHz Spacing, > 50 MHz
V
C
= 0 V / 2.5 V
V
C
= 0 V / 2.5 V
1 GHz, P
IN
= +34 dBm, V
C
= 0 V / 2.5 V
1 GHz, P
IN
= +34 dBm, V
C
= 0 V / 2.5 V
10% RF to 90% RF, 90% to 10% RF, V
C
= 0 V / 2.5 V
50% control to 90% RF, 50% control to 10% RF, V
C
= 0 V /
2.5 V
V
C
= 0 V / 2.5 V, 34 dBm
Units
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
dBm
dBc
dBc
µS
µS
mV
µA
Min.
—
—
—
27
21
—
—
—
—
—
—
—
—
—
—
—
Typ.
0.65
0.80
1.00
29.0
23.0
18.5
20
57
81
38
-80
-68
0.2
0.2
35
10
Max.
0.85
1.00
—
—
—
—
—
—
—
—
-71
-65
—
—
—
50
Rev. V1
Isolation
Return Loss
IP3
IP2
P.1dB
2
nd
Harmonic
3
rd
Harmonic
Trise, Tfall
Ton, Toff
Transients
Control Current
4. External DC blocking capacitors are required on all RF ports.
5. Insertion Loss can be optimized by varying the DC blocking capacitor value, e.g. 1000 pF for 100 - 500 MHz, 39 pF for 0.5 - 3 GHz.
Absolute Maximum Ratings
6,7
Parameter
Input Power
(0.5 - 3.0 GHz, 2.5 V Control)
Voltage
Operating Temperature
Storage Temperature
Absolute Maximum
+38 dBm
± 8.5 volts
-40
°
C to +85
°
C
-65°C to +150°C
Truth Table
8,9
V1
1
0
0
0
V2
0
1
0
0
V3
0
0
1
0
V4
0
0
0
1
ANT-
RF1
On
Off
Off
Off
ANT-
RF2
Off
On
Off
Off
ANT-
RF3
Off
Off
On
Off
ANT-
RF4
Off
Off
Off
On
6. Exceeding any one or combination of these limits may cause
permanent damage to this device.
7. M/A-COM does not recommend sustained operation near
these survivability limits.
8. Differential voltage, V (state 1) -V (state 2), must be 2.5 V
minimum.
9. 0 = -5 V to +2.5 V, 1 = -2.5 V to +5 V
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MASW-008566
GaAs SP4T 2.5 V High Power Switch
DC - 3.0 GHz
Typical Performance Curves
Insertion Loss vs. Temperature
1.6
Rev. V1
Isolation vs. Temperature
40
1.2
35
+25°C
+85°C
-40°C
30
0.8
25
0.4
+25°C
+85°C
-40°C
20
0.0
0.5
1.0
1.5
2.0
2.5
3.0
15
0.5
1.0
1.5
2.0
2.5
3.0
Frequency (GHz)
Frequency (GHz)
1 GHz 2nd Harmonic Rejection
-50
1 GHz 3rd Harmonic Rejection
-50
-60
+25°C
+85°C
-40°C
-60
-70
-70
-80
-80
+25°C
+85°C
-40°C
-90
-90
-100
2.0
2.5
3.0
3.5
4.0
4.5
5.0
-100
2.0
2.5
3.0
3.5
4.0
4.5
5.0
Control Voltage (V)
Control Voltage (V)
3
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MASW-008566
GaAs SP4T 2.5 V High Power Switch
DC - 3.0 GHz
Lead-Free

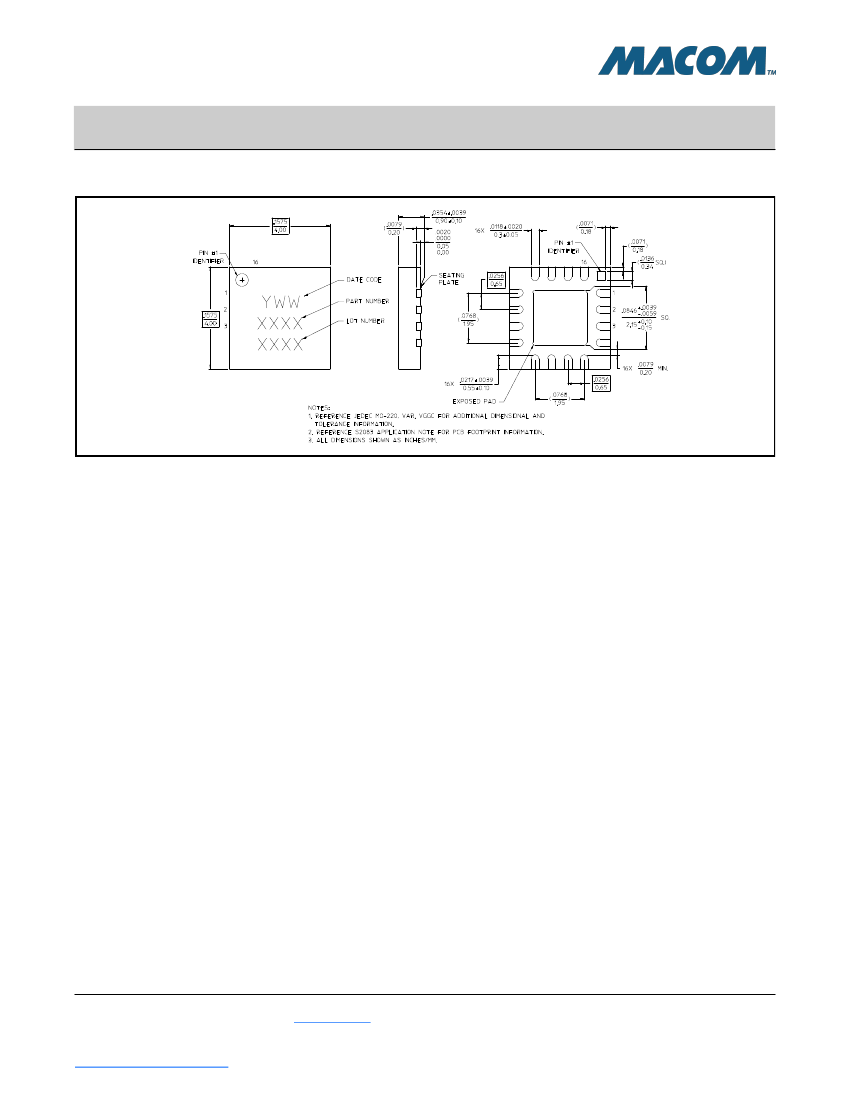

4 mm 16-Lead PQFN
†
Rev. V1
† Reference Application Note M538 for lead-free solder reflow recommendations.
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
4
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MASW-008566
GaAs SP4T 2.5 V High Power Switch
DC - 3.0 GHz
Rev. V1
M/A-COM Technology Solutions Inc. All rights reserved.
Information in this document is provided in connection with M/A-COM Technology Solutions Inc ("MACOM")
products. These materials are provided by MACOM as a service to its customers and may be used for
informational purposes only. Except as provided in MACOM's Terms and Conditions of Sale for such products or
in any separate agreement related to this document, MACOM assumes no liability whatsoever. MACOM
assumes no responsibility for errors or omissions in these materials. MACOM may make changes to
specifications and product descriptions at any time, without notice. MACOM makes no commitment to update
the information and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future
changes to its specifications and product descriptions. No license, express or implied, by estoppels or otherwise,
to any intellectual property rights is granted by this document.
THESE MATERIALS ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, RELATING TO SALE AND/OR USE OF MACOM PRODUCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, CONSEQUENTIAL OR
INCIDENTAL DAMAGES, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR
OTHER INTELLECTUAL PROPERTY RIGHT. MACOM FURTHER DOES NOT WARRANT THE ACCURACY
OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CONTAINED WITHIN
THESE MATERIALS. MACOM SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR LOST PROFITS,
WHICH MAY RESULT FROM THE USE OF THESE MATERIALS.
MACOM products are not intended for use in medical, lifesaving or life sustaining applications. MACOM
customers using or selling MACOM products for use in such applications do so at their own risk and agree to
fully indemnify MACOM for any damages resulting from such improper use or sale.
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
