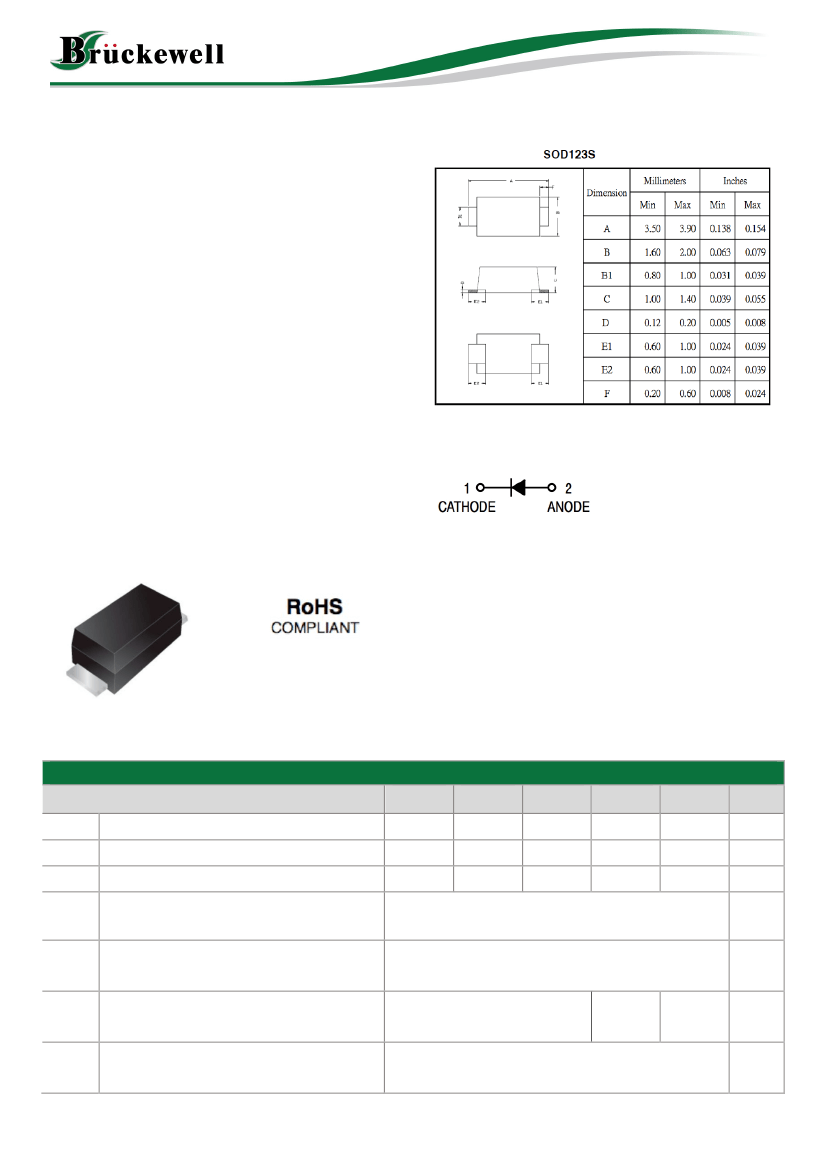

ES1000FL – ES1006FL
SURFACE MOUNT ULTRAFAST EFFICIENT RECTIFIER
Features
•
Plastic package has Underwriters Laboratory
•
Flammability Classification 94V-0
•
Glass passivated chip junctions
•
Ultrafast recovery times for high efficiency
•
Low forward voltage, low power loss
•
High temperature soldering guaranteed: 260°C/10
seconds on terminals
•
RoHS Compliant Product
Mechanical Data
Case: SOD-123S molded plastic body
Terminals: Solder plated, solderable per
MIL-STD-750,Method 2026
Polarity: Color band denotes cathode end
Weight: 0.017 gram
Packing & Order Information
3,000/Reel
Graphic symbol
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°˚C ambient temperature unless otherwise specified
ES
ES
1000FL
1001FL
V
RRM
V
RWS
V
DC
I
F(AV)
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
at TL=110°C
I
FSM
Peak forward surge current 8.3ms single
half-sine-wave
Maximum instantaneous forward voltage at
IFM=1.0A
Maximum DC reverse current TJ=25°C
At rated DC blocking voltage TA=100°C
0.95
5
200
50
35
50
100
70
100
ES
1002FL
200
140
200
1
30
ES
1004FL
400
280
400
ES
1006FL
600
420
600
Unit
V
V
V
A
A
V
F
1.25
1.7
V
I
R
uA
Publication Order Number: [ES1000FL
– ES1006FL]
©
Bruckewell Technology Corporation Rev.
A -2014
ES1000FL – ES1006FL
SURFACE MOUNT ULTRAFAST EFFICIENT RECTIFIER
Ratings at 25°˚C ambient temperature unless otherwise specified
ES
ES
1000FL
1001FL
Trr
Cj
R
θJA
R
θJL
T
STG
Maximum reverse recovery time
Typical junction capacitance
Maximum thermal resistance
Storage temperature range
ES
1002FL
35
10
82
27
-55 to +150
ES
1004FL
ES
1006FL
Unit
nS
PF
°C/W
°C/W
°C
NOTE:
1. Pluse test: Pulse width 300us, duty cycle 1%
Publication Order Number: [ES1000FL
– ES1006FL]
©
Bruckewell Technology Corporation Rev.
A -2014
ES1000FL – ES1006FL
SURFACE MOUNT ULTRAFAST EFFICIENT RECTIFIER

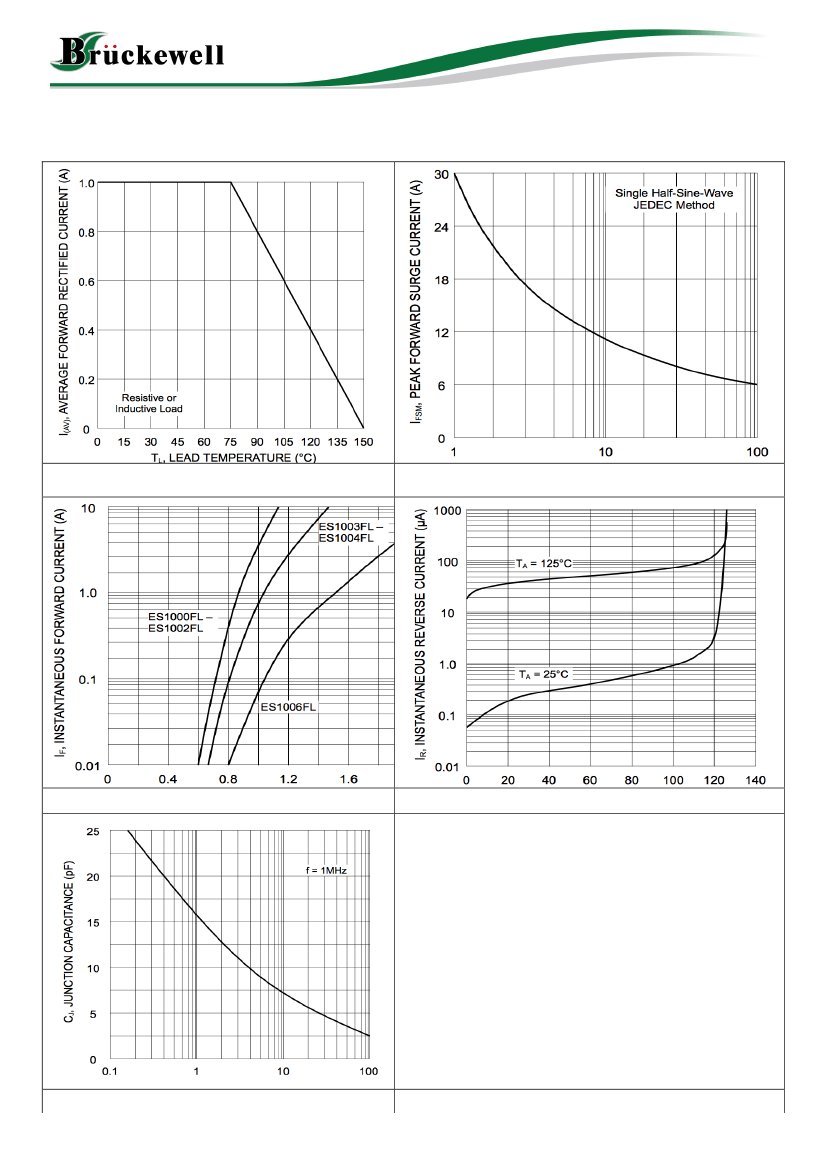

Ratings and Characteristic Curves
FIG.1-FORWARD DERATING CURVE
FIG.2-MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
FIG.3-TYPICAL FORWARD CHARACTERISTICS
FIG.4-TYPICAL REVERSE CHARACTERISTICS
FIG.5-TYPICAL JUNCTION CAPACITANCE
Publication Order Number: [ES1000FL
– ES1006FL]
©
Bruckewell Technology Corporation Rev.
A -2014
ES1000FL – ES1006FL
SURFACE MOUNT ULTRAFAST EFFICIENT RECTIFIER
