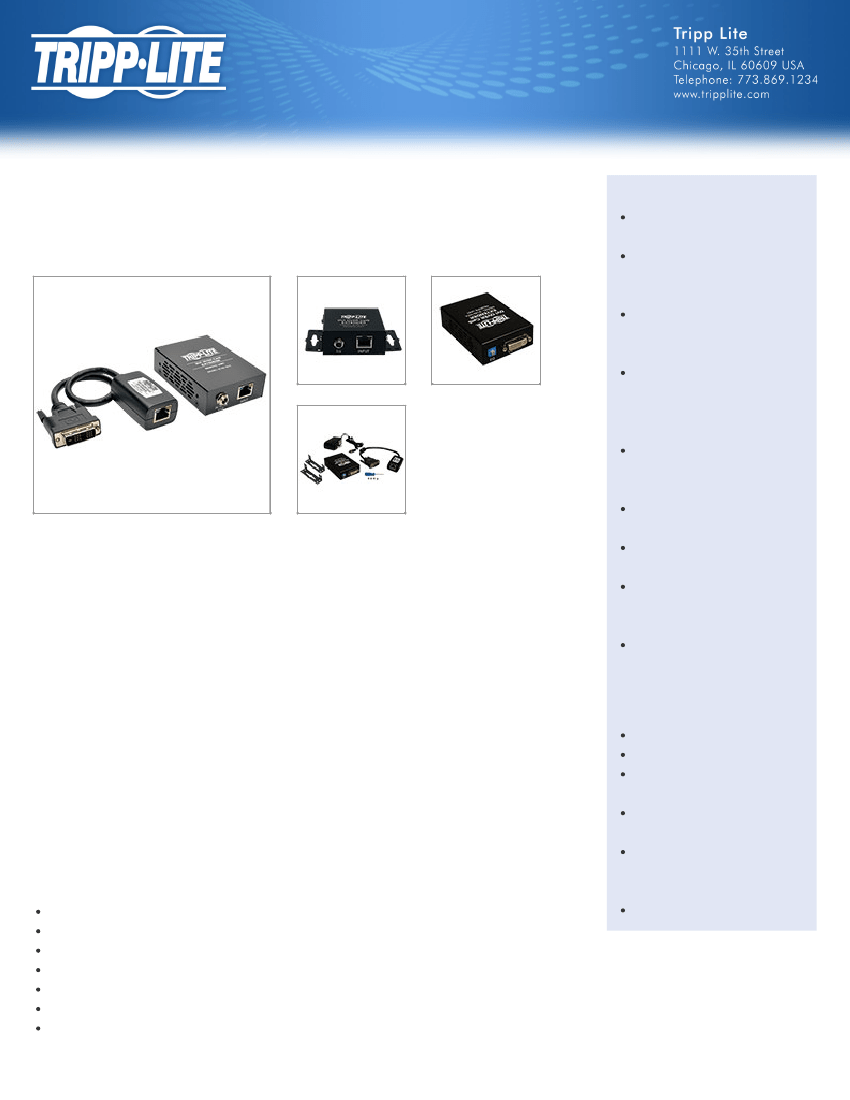

DVI over Cat5/Cat6 Active Extender Kit, Box-Style
Video Transmitter & Receiver, 1920x1080 at 60Hz
MODEL NUMBER:
B140-101X
Highlights
Extender kit comes with
transmitter and receiver units
Supports DVI-D Single-Link video
resolutions up to 1920 x 1080 @
60Hz
Extends a 1920 x 1080 @ 60Hz
signal up to 150 ft., or a 1024 x
768 @ 60Hz signal up to 200 ft.
Use 24AWG, Solid Wire Cat5e/6
cable, such as Tripp Lite's
N202-Series,
to achieve
maximum distance and resolution
Can further expand the range
and number of monitors by
adding
B140-110
repeaters
Compatible with all operating
systems
Description
The B140-101X is a DVI Over Cat5 Active Extender Kit that comes with both transmitter and receiver units. It
transmits a DVI-D Single-Link signal up to 200 ft. away using a single Cat5e/6 patch cable. To achieve
maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's
N202-Series).
The
B140-101X is compatible with all operating systems, and is plug and play, with no software or drivers required. It
features a built-in Equalization control for adjustment of the video image. Compliant with the Federal Trade
Agreements Act (TAA) for GSA Schedule purchases.
Plug and play, no software or
drivers required
Features a built-in Equalization
control for adjustment of the
video image
Compliant with the Federal Trade
Agreements Act (TAA) for GSA
Schedule purchases
Installation is simple. Connect a the built-in DVI connector on the transmitter unit to a DVI source. Connect the
receiver unit to a display using a Tripp Lite
P561-Series DVI cable
(not included). Finally, the RJ45 ports on the
transmitter and receiver units are connected using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be
extended up to 150 ft. from the source,, or a 1024 x 768 @ 60Hz signal up to 200 ft.
Package Includes
B140-101X local transmitter unit
B140-101X remote receiver unit
Screwdriver (used for
Further expand the range and number of monitors by using a
B140-110
repeater unit. Add up to four remote
units (three repeaters and one active receiver) in a single chain, for a total of 4 displays. (An active receiver
should be the last unit in a chain) A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. from each
repeater to the next unit in the chain, or a 1024 x 768 @ 60Hz signal can be extended up to 175 ft.
Equalization control)
Mounting hardware for receiver
unit
External power supply (Input:
100-240V, 50/60Hz, 0.5A Output:
Features
Extender kit comes with transmitter and receiver units
Transmit a DVI-D Single-Link signal up to 200 ft. away using a single Cat5e/6 patch cable
Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
Extends a 1920 x 1080 @ 60Hz signal up to 150 ft., or a 1024 x 768 @ 60Hz signal up to 200 ft.
Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's
N202-Series,
to achieve maximum distance and resolution
Features a built-in Equalization control for adjustment of the video image
Further expand the range and number of monitors by using a
B140-110
repeater unit
5V, 2A)
Owner’s manual
Add up to four remote units (three repeaters and one active receiver) in a single chain, for a total of 4 displays. (An active receiver should be the last unit
1/2
Add up to four remote units (three repeaters and one active receiver) in a single chain, for a total of 4 displays. (An active receiver should be the last unit
in a channel)
A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. from each repeater to the next unit in the chain, or a 1024 x 768 @ 60Hz signal can be
extended up to 175 ft.
HDCP compatible
Compatible with all operating systems
Plug and play; no software or drivers required
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
General Info
RoHS
Y
OVERVIEW
Chromebook Compatible
Display Style
Model Type
Cable Types
No
Extender
DVI
CAT5/CAT5E
USER INTERFACE, ALERTS & CONTROLS
The Green RJ45 LED on the local unit illuminates to indicate it is connected to and receiving power from the source.
The Orange RJ45 LED on the local unit does not illuminate. The Green RJ45 LED on the remote unit illuminates to
indicate it is receiving power from the external power supply. The Orange RJ45 LED on the remote unit illuminates
to indicate it is connected to the local unit and receiving a signal from the source.
LED Indicators
PHYSICAL
Color
Black
CONNECTIONS
Connector A
Connector B
Connector C
DVI-D SINGLE LINK (MALE)
RJ45 (FEMALE) (X2)
DVI-I (FEMALE)
WARRANTY
Product Warranty Period (Worldwide)
1-year limited warranty
© 2015 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous improvement.
Specifications are subject to change without notice. Photos may differ slightly from final products.
2/2
