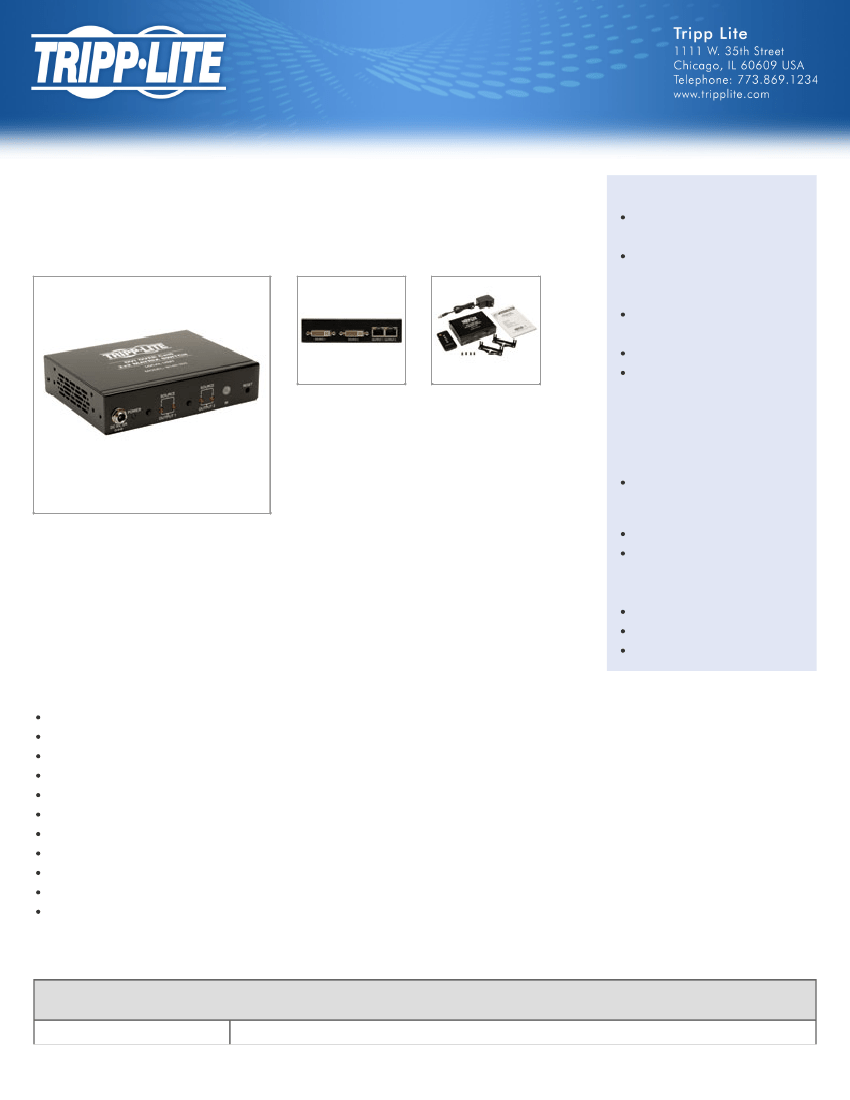

2x2 DVI over Cat5/Cat6 Matrix Splitter Switch, Video

Transmitter

MODEL NUMBER:

B140-202

Highlights

Share two DVI sources between

two monitors

Supports DVI Single Link

computer resolutions up to 1920

x 1200 @ 60Hz

Transmits over inexpensive

Cat5e/6 cable up to 200 ft.

Plug-and-Play

Compliant with the Federal Trade

Agreements Act (TAA) for GSA

Schedule purchases

System Requirements

DVI video cards and DVI monitors

Package Includes

B140-202 Local Transmitter Unit

Description

Tripp Lite's B140-202, 2X2 DVI Matrix Switch allows two DVI Single-Link video sources to be routed to one or

two RJ45 outputs and extended up to 150-ft. @ 1920x1200 using

Active (powered) Receivers,

or up to 50-ft. @

1920x1200 using

Passive (non-powered) Receivers.

Switching between sources is done manually or with

included remote control. Additional monitors can be added beyond the typical two by using Tripp Lite

B140-110

daisy-chain Receivers - up to 4 monitors per channel. Compliant with the Federal Trade Agreements Act (TAA)

for GSA Schedule purchases.

External Power Supply ( Input:

100-240V, 50/60Hz, 0.5A Output:

5V, 2A

Mounting Hardware

Remote Control

Owners Manual

Features

Share two DVI video sources between two monitors

Supports DVI Single Link computer resolutions up to 1920 x 1200 @ 60Hz

Allows either input to be routed to either output, or the one input signal to both outputs

Transmits over a single Cat5e/6 cable to a remote monitor up to 200-ft. away

HDCP and EDID compliant

Plug-and-Play

A B140-Series remote receiver is needed at each monitor

Active (powered) and Passive (non-powered) Receivers available

Use 24AWG

Solid Wire Cat5e/6 patch cable

for maximum video performance

Further expand the range and number of monitors with

B140-110

Daisy-Chain Repeaters

Compliant with the Federal Trade Agreements Act ( TAA ) for GSA schedule purchases

Specifications

General Info

RoHS

1/2
