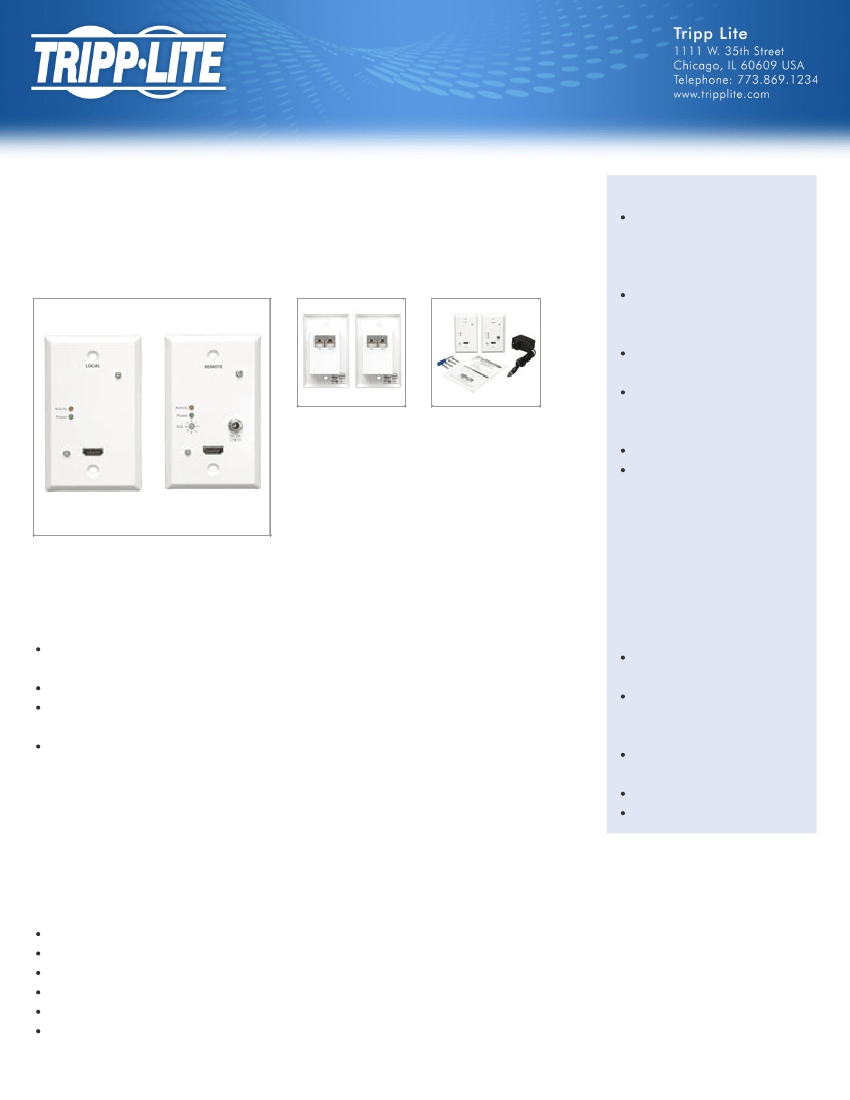

HDMI over Dual Cat5/Cat6 Extender Kit, Wallplate

Transmitter and Receiver for Video and Audio,

1920x1200 1080p at 60Hz (HDMI M/F)

MODEL NUMBER:

B125-101-60-WP

Highlights

Extends a 1080p @ 60Hz (or

1920 x 1200) signal up to 125 ft.

using 24Awg, Solid Wire Cat6*

cabling (Tripp Lite N202-Series)

Extends a 3D signal up to 100 ft.

using 24Awg, Solid Wire Cat6*

cabling (Tripp Lite N202-Series)

Supports 24-bit True Color (8-bits

per channel)

Supports DTS-HD, Dolby True

HD and 7.1 Channel Surround

Sound Audio

Supports HDCP, EDID and DDC

Compliant with the Federal Trade

Agreements Act (TAA) for GSA

Schedule purchases

Description

Tripp Lite's HDMI Over Dual Cat5 Extender Wallplate Kit is the perfect solution for those who need to extend a

HDMI signal over a long distance over two Cat5/6 cables.

*When using Cat5 cable, the

maximum extension distance is

reduced by 50 ft.

Package Includes

When using 24Awg, Solid Wire Cat6 cable, a 1080p @ 60Hz (or 1920 x 1200) signal can be extended up to

125 ft. from the source.

When using 24Awg, Solid Wire Cat6 cable, a 3D signal can be extended up to 100 ft.

When using 24Awg, Solid Wire Cat5 cable, a 1080p @ 60Hz (or 1920 x 1200) signal can be extended up to

75 ft. from the source.

When using 24Awg, Solid Wire Cat5 cable, a 3D signal can be extended up to 50 ft.

Local Transmitter and Receiver

Units

External Power Supply ( Input:

100-240V, 50/60Hz, 0.5A -

Output: 5V, 2A )

Screwdriver for Equalization

adjustment

Simply run two Cat5/6 cables between the local transmitter and remote receiver units, and plug in standard Tripp

Lite HDMI cables to the HDMI source and the display.

Wallplate screws

Owners Manual

The B125-101-60-WP comes with both local transmitter and remote receiver wallplates. DTS-HD, Dolby True HD and 7.1 Channel Surround Sound audio are

supported, and it is compliant with HDCP, EDID and DDC. 24-bit True Color (8-bits per channel) is supported. Compliant with the Federal Trade Agreements

Act (TAA) for GSA Schedule purchases.

Features

Extends a 1080p @ 60Hz (or 1920 x 1200) signal up to 125 ft. using 24Awg, Solid Wire Cat6 cabling (Tripp Lite N202-Series)

Extends a 1080p @ 60Hz (or 1920 x 1200) signal up to 75 ft. using 24Awg, Solid Wire Cat5 cabling

Extends a 3D signal up to 100 ft. using 24Awg, Solid Wire Cat6 cabling, or up to 50 ft. using 24Awg, Solid Wire Cat5 cabling

Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio

Supports HDCP, EDID and DDC

Supports 24-bit True Color (8-bits per channel)

1/2
