BD940: DescriptionBipolar Transistors;PNP;-3A;-100V;TO-220; CategoryDiscrete semiconductor; File Size112KB，2 Pages; ManufacturerInchange Semiconductor

Download Datasheet Parametric Compare View All

BD940 Overview

Bipolar Transistors;PNP;-3A;-100V;TO-220

BD940 Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99

Preview

Download Datasheet

View All

INCHANGE Semiconductor

isc

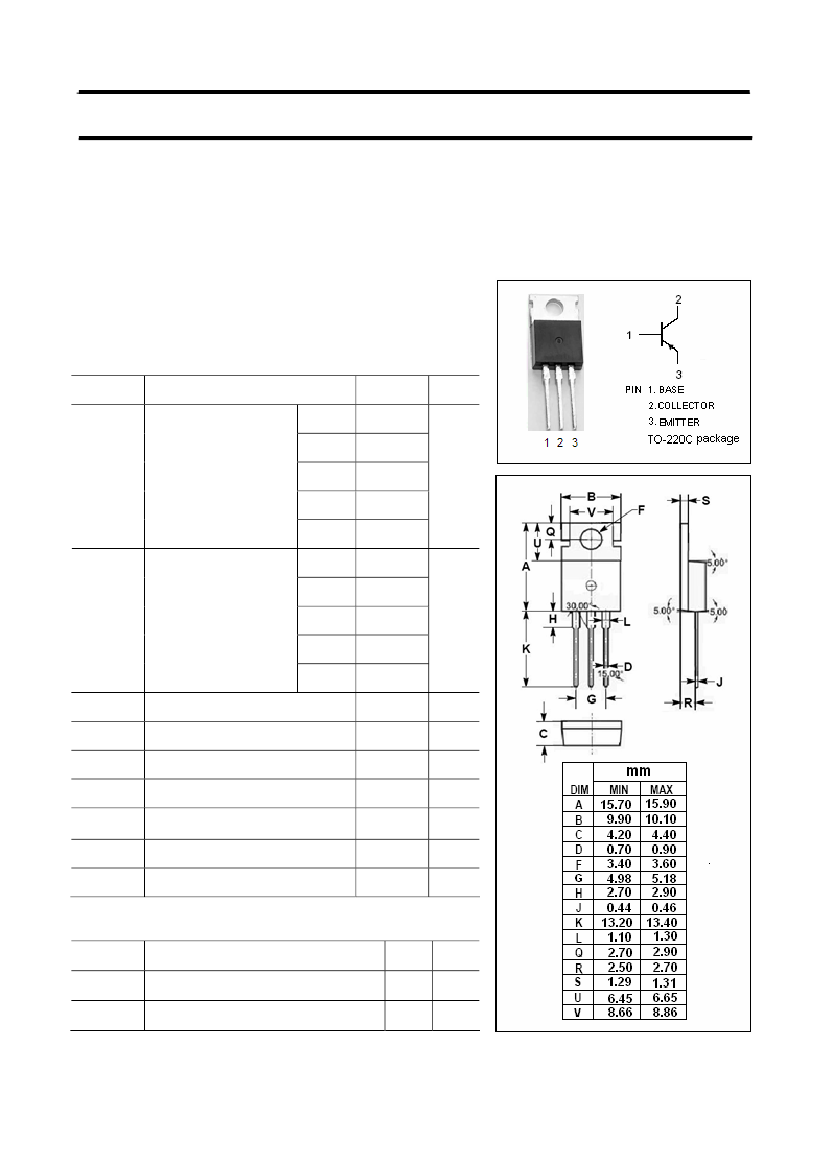

Product Specification

isc

Silicon PNP Power Transistor

DESCRIPTION

·DC

Current Gain-

: h

FE

= 40(Min)@ I

C

= -150mA

·Complement

to Type BD933/935/937/939/941

APPLICATIONS

·Designed

for use in output stages of audio and television

amplifier circuits where high peak powers can occur.

ABSOLUTE MAXIMUM RATINGS(T

a

=25

℃)

SYMBOL

PARAMETER

BD934

BD936

V

CBO

Collector-Base Voltage

BD938

BD940

BD942

BD934

BD936

V

CEO

Collector-Emitter Voltage

BD938

BD940

BD942

V

EBO

I

C

I

CM

I

B

BD934/936/938/940/942

VALUE

-45

-60

-100

-120

-140

-45

-60

-80

-100

-120

-5

-3

-7

-0.5

30

150

-65~150

UNIT

V

Emitter-Base Voltage

Collector Current-Continuous

Collector Current-Peak

Base Current-Continuous

Collector Power Dissipation

@ T

C

=25℃

Junction Temperature

Storage Temperature Range

V

A

W

℃

P

C

T

J

T

stg

THERMAL CHARACTERISTICS

SYMBOL

R

th j-c

R

th j-a

PARAMETER

Thermal Resistance,Junction to Case

Thermal Resistance,Junction to Ambient

MAX

4.17

70

UNIT

℃/W

isc Website：www.iscsemi.cn
