HIN239IP datasheet, PDF - EEWORLD Datasheet

HIN239IP: DescriptionLINE TRANSCEIVER, PDIP24, MS-011AA, PLASTIC, DIP-24; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size196KB，5 Pages; ManufacturerIntersil ( Renesas ); Websitehttp://www.intersil.com/cda/home/

Download Datasheet Parametric Compare View All

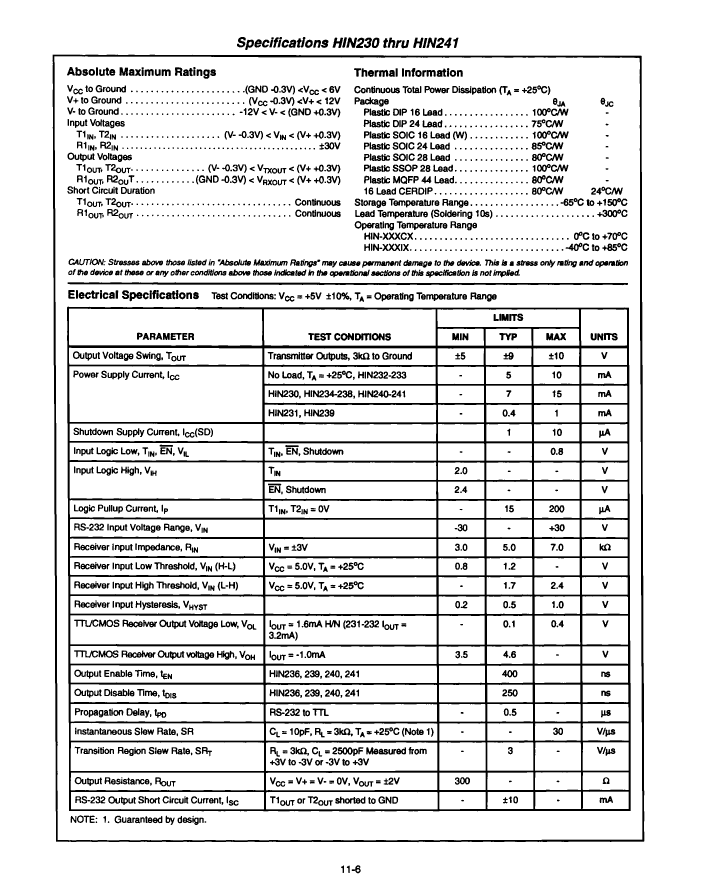

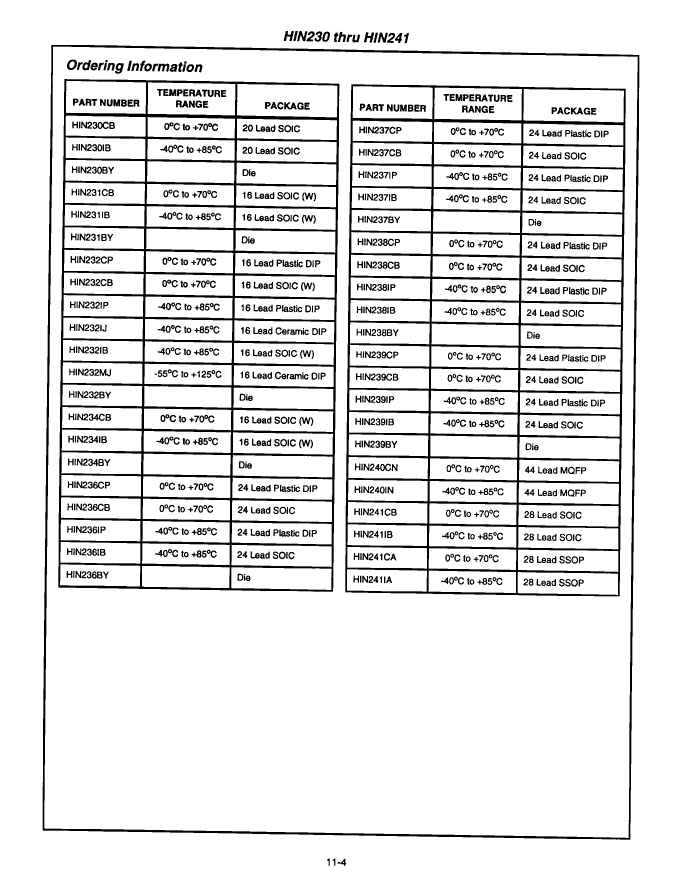

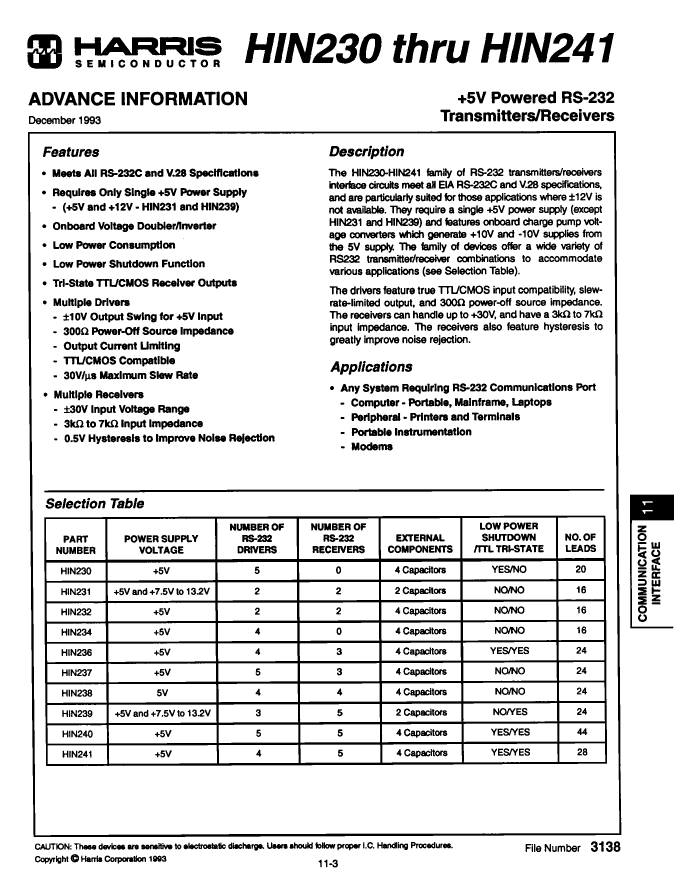

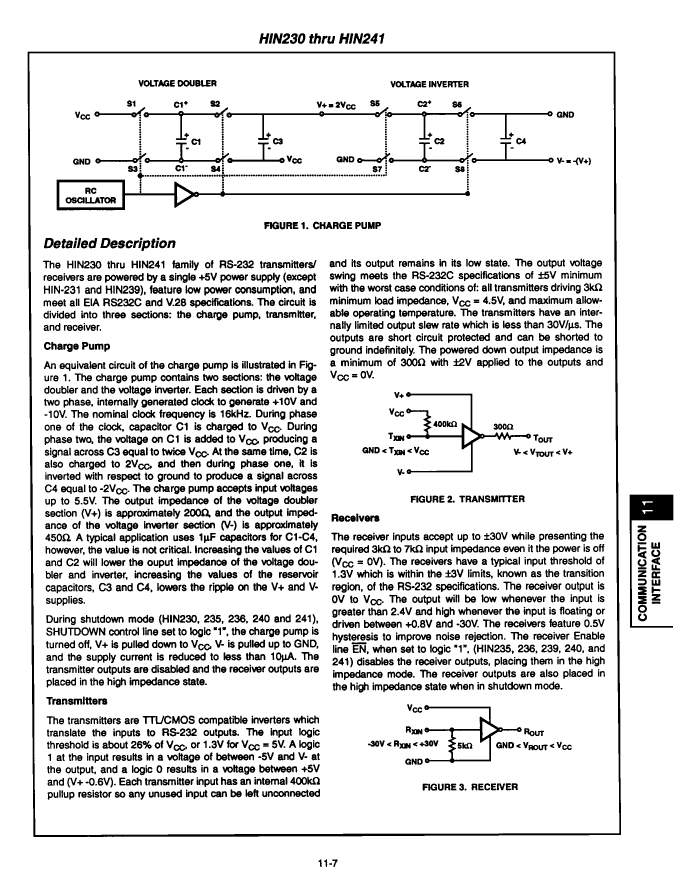

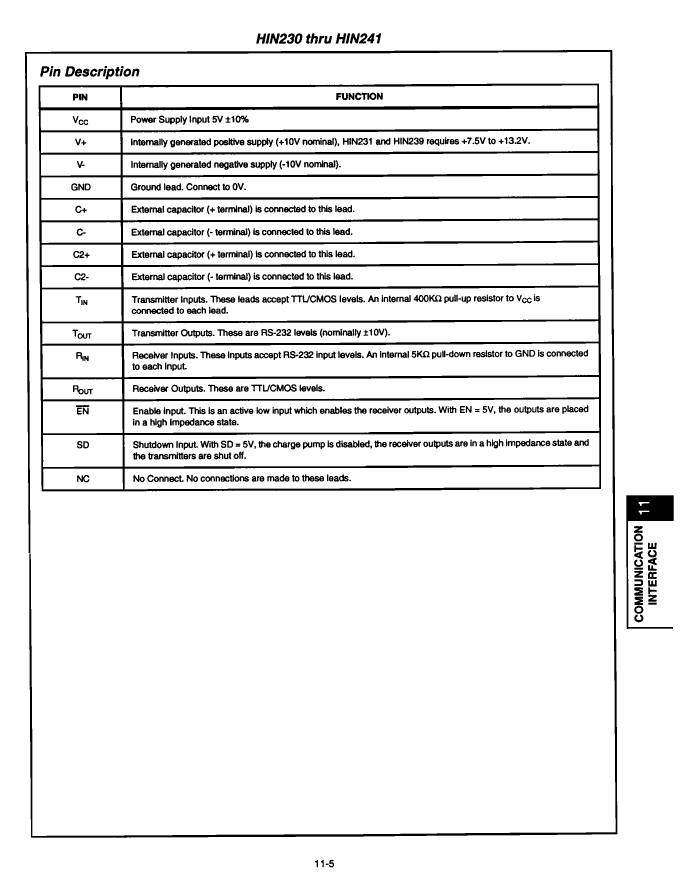

HIN239IP Overview

LINE TRANSCEIVER, PDIP24, MS-011AA, PLASTIC, DIP-24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP24,.6
Contacts	24
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	TRISTATABLE RECEIVERS; EXTERNAL CHARGE PUMP
Differential output	NO
Number of drives	3
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	EIA-232-C; V.28
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
length	31 mm
Number of functions	1
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Minimum output swing	10 V
Maximum output low current	0.0016 A
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,12 V
Certification status	Not Qualified
Maximum receive delay
Number of receiver bits	5
Maximum seat height	6.35 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
Supply voltage 1-max	13.2 V
Mains voltage 1-minute	7.5 V
Supply voltage1-Nom	12 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm

	HIN239IP
Description	LINE TRANSCEIVER, PDIP24, MS-011AA, PLASTIC, DIP-24
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP24,.6
Contacts	24
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	TRISTATABLE RECEIVERS; EXTERNAL CHARGE PUMP
Differential output	NO
Number of drives	3
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	EIA-232-C; V.28
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
length	31 mm
Number of functions	1
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Minimum output swing	10 V
Maximum output low current	0.0016 A
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,12 V
Certification status	Not Qualified
Number of receiver bits	5
Maximum seat height	6.35 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
Supply voltage 1-max	13.2 V
Mains voltage 1-minute	7.5 V
Supply voltage1-Nom	12 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
