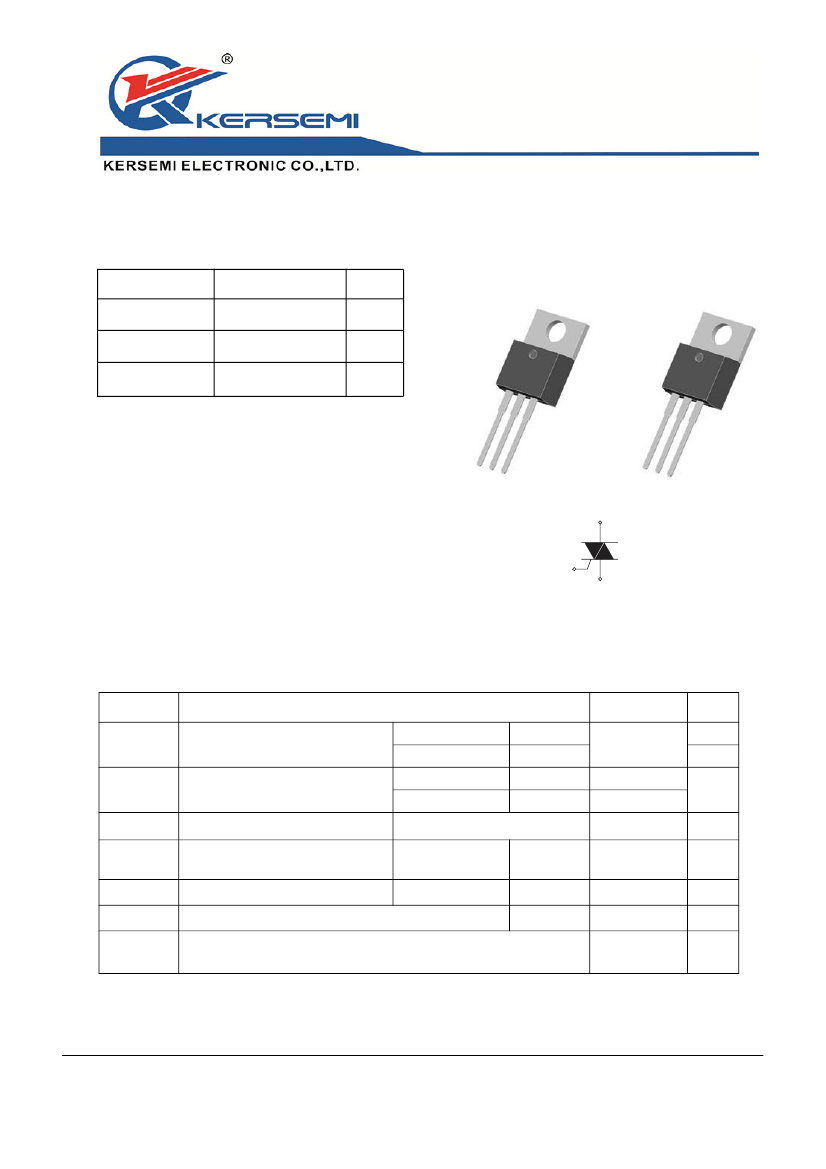

BTA/BTB06 Series
6A TRIAC
S
MAIN FEATURES:
Symbol
I
T(RMS)
V
DRM
/V
RRM
I
G (Q
1
)
Value
6
600 and 800
5 to 50
Unit
A
V
mA
TO-220AB Insulated
(BTA06)
TO-220AB
(BTB06)
DESCRIPTION
Suitable for AC switching operations, the BTA/
BTB06 series can be used as an ON/OFF function
in applications such as static relays, heating
regulation, induction motor starting circuits... or for
phase control in light dimmers, motor speed
controllers,...
The snubberless and logic level versions (BTA/
BTB...W) are specially recommended for use on
inductive loads, thanks to their high commutation
performances. By using an internal ceramic pad,
the BTA series provides voltage insulated tab
(rated at 2500V RMS) complying with UL
standards (File ref.: E81734)
ABSOLUTE MAXIMUM RATINGS
Symbol
I
T(RMS)
Parameter
RMS on-state current (full sine wave)
TO-220AB
TO-220AB Ins.
I
TSM
Non repetitive surge peak on-state
current (full cycle, Tj initial = 25°C)
I
²
t Value for fusing
Critical rate of rise of on-state current
I
G
= 2 x I
GT
, tr
≤
100 ns
Peak gate current
Average gate power dissipation
Storage junction temperature range
Operating junction temperature range
F = 50 Hz
F = 60 Hz
A2
G
A1
Value
Tc = 110°C
6
Tc = 105°C
t = 20 ms
t = 16.7 ms
60
63
21
Tj = 125°C
Tj = 125°C
Tj = 125°C
50
4
1
- 40 to + 150
- 40 to + 125
Unit
A
A
I
²
t
dI/dt
I
GM
P
G(AV)
T
stg
T
j
tp = 10 ms
F = 120 Hz
tp = 20 µs
A
²
s
A/µs
A
W
°C
2014-6-9
1
www.kersemi.com
BTA/BTB06 Series
ELECTRICAL CHARACTERISTICS
(Tj = 25°C, unless otherwise specified)
s
SNUBBERLESS™ and LOGIC LEVEL (3 Quadrants)
Symbol
Test Conditions
Quadrant
TW
I
GT
(1)
V
GT
V
GD
I
H
(2)
I
L
dV/dt (2)
(dI/dt)c (2)
V
D
= 12 V
R
L
= 30
Ω
I - II - III
I - II - III
I - II - III
MAX.
MAX.
MIN.
MAX.
I - III
II
V
D
= 67 %V
DRM
gate open
Tj = 125°C
(dV/dt)c = 0.1 V/µs
(dV/dt)c = 10 V/µs
Without snubber
Tj = 125°C
Tj = 125°C
Tj = 125°C
MIN.
MIN.
MAX.
10
10
15
20
2.7
1.2
-
15
25
30
40
3.5
2.4
-
5
BTA/BTB06
SW
10
1.3
0.2
35
50
60
400
-
-
3.5
50
70
80
1000
-
-
5.3
V/µs
A/ms
CW
35
BW
50
mA
V
V
mA
mA
Unit
V
D
= V
DRM
R
L
= 3.3 kΩ
Tj = 125°C
I
T
= 100 mA
I
G
= 1.2 I
GT
s
STANDARD (4 Quadrants)
Symbol
Test Conditions
Quadrant
BTA/BTB06
C
I
G
(1)
V
D
= 12 V
V
GT
V
GD
I
H
(2)
I
L
dV/dt (2)
V
D
= V
DRM
R
L
= 3.3 kΩ Tj = 125°C
I
T
= 500 mA
I
G
= 1.2 I
GT
V
D
= 67 %V
DRM
gate open Tj = 125°C
Tj = 125°C
I - III - IV
II
MIN.
MIN.
R
L
= 30
Ω
I - II - III
IV
ALL
ALL
MAX.
MAX.
MIN.
MAX.
MAX.
25
40
80
200
5
25
50
1.3
0.2
50
50
100
400
10
V/µs
V/µs
B
50
100
mA
V
V
mA
mA
Unit
(dV/dt)c (2) (dI/dt)c = 2.7 A/ms
STATIC CHARACTERISTICS
Symbol
V
T
(2)
V
to
(2)
R
d
(2)
I
DRM
I
RRM
Note 1:
minimum IGT is guaranted at 5% of IGT max.
Note 2:
for both polarities of A2 referenced to A1
Test Conditions
I
TM
= 5.5 A
tp = 380 µs
Tj = 25°C
Tj = 125°C
Tj = 125°C
Tj = 25°C
Tj = 125°C
MAX.
MAX.
MAX.
MAX.
Value
1.55
0.85
60
5
1
Unit
V
V
mΩ
µA
mA
Threshold voltage
Dynamic resistance
V
DRM
= V
RRM
2014-6-9
2
www.kersemi.com
BTA/BTB06 Series
THERMAL RESISTANCES
Symbol
R
th(j-c)
R
th(j-a)
Junction to case (AC)
Junction to ambient
Parameter
TO-220AB
TO-220AB Insulated
TO-220AB
TO-220AB Insulated
Value
1.8
2.7
60
°C/W
Unit
°C/W
PRODUCT SELECTOR
Voltage (xxx)
Part Number
600 V
BTA/BTB06-xxxB
BTA/BTB06-xxxBW
BTA/BTB06-xxxC
BTA/BTB06-xxxCW
BTA/BTB06-xxxSW
BTA/BTB06-xxxTW
BTB: non insulated TO-220AB package
Sensitivity
800 V
X
X
X
X
X
X
50 mA
50 mA
25 mA
35 mA
10 mA
5 mA
X
X
X
X
X
X
Type
Standard
Snubberless
Standard
Snubberless
Logic level
Logic level
Package
TO-220AB
TO-220AB
TO-220AB
TO-220AB
TO-220AB
TO-220AB
ORDERING INFORMATION
BT A 06 -
TRIAC
SERIES
INSULATION:
A: insulated
B: non insulated
CURRENT: 6A
600
BW
(RG)
PACKING MODE
Blank: Bulk
RG: Tube
VOLTAGE:
600: 600V
800: 800V
SENSITIVITY & TYPE
B: 50mA STANDARD
BW: 50mA SNUBBERLESS
C: 25mA STANDARD
CW: 35mA SNUBBERLESS
SW: 10mA LOGIC LEVEL
TW: 5mA LOGIC LEVEL
OTHER INFORMATION
Part Number
BTA/BTB06-xxxyz
BTA/BTB06-xxxyzRG
Marking
BTA/BTB06-xxxyz
BTA/BTB06-xxxyz
Weight
2.3 g
2.3 g
Base
quantity
250
50
Packing
mode
Bulk
Tube
Note:
xxx = voltage, y = sensitivity, z = type
2014-6-9
3
www.kersemi.com
BTA/BTB06 Series

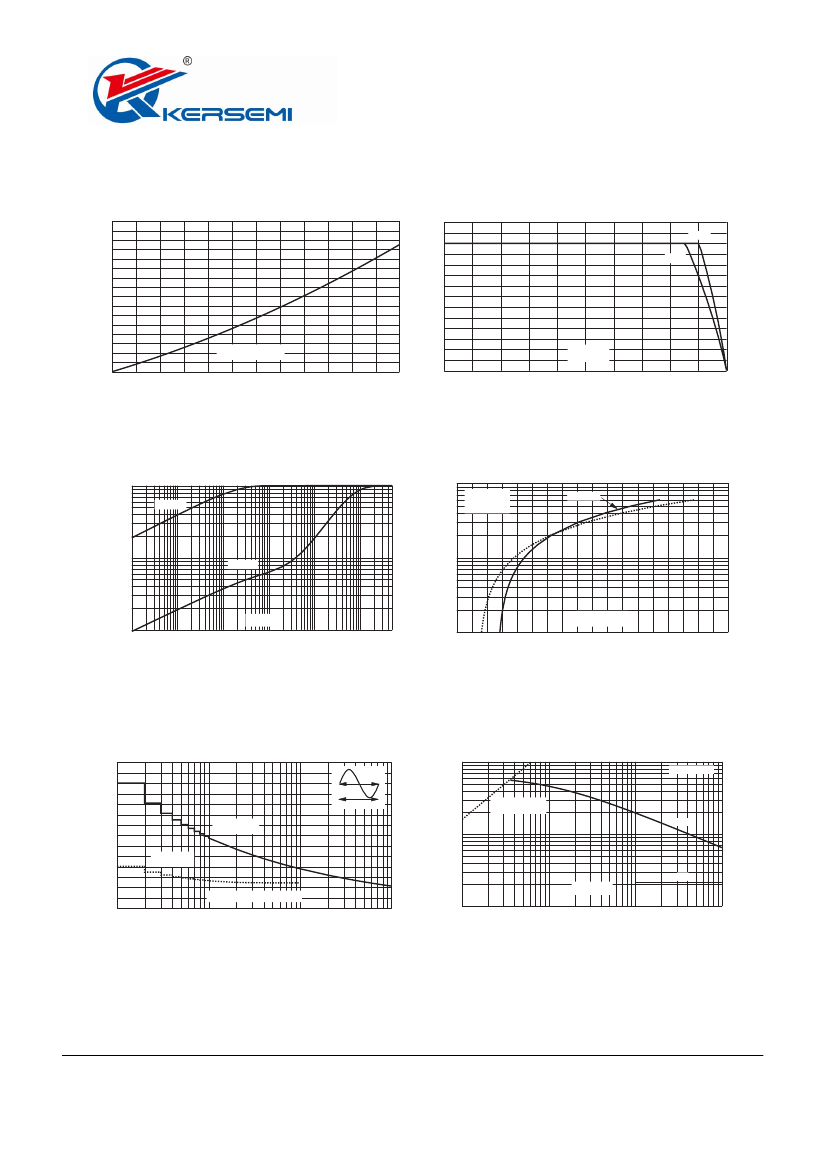

Fig. 1:
Maximum power dissipation versus RMS
on-state current (full cycle).
P (W)
8
7
6
5
4
3
2
1
0
0
1
2
IT(RMS)(A)
Fig. 2:
RMS on-state current versus case
temperature (full cycle).
IT(RMS) (A)
7
BTB
6
5
4
3
2
1
Tc(°C)
BTA
3
4
5
6
0
0
25
50
75
100
125
Fig. 3:
Relative variation of thermal impedance
versus pulse duration.
K=[Zth/Rth]
1E+0
Zth(j-c)
Fig. 4:
values).
ITM (A)
100
On-state
characteristics
(maximum
Tj max.
Vto = 0.85 V
Rd = 60 mΩ
Tj=Tj max
1E-1
Zth(j-a)
10
tp(s)
1E-2
1E-3
1E-2
1E-1
1E+0
1E+1
1E+2 5E+2
VTM(V)
1
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
Fig. 5:
Surge peak on-state current versus
number of cycles.
Fig. 6:
Non-repetitive surge peak on-state
current for a sinusoidal pulse with width
tp < 10ms, and corresponding value of I²t.
ITSM (A), I²t (A²s)
1000
Tj initial=25°C
ITSM (A)
70
60
50
40
30
20
10
0
1
Repetitive
Tc=105°C
Non repetitive
Tj initial=25°C
t=20ms
One cycle
dI/dt limitation:
50A/µs
ITSM
100
I²t
Number of cycles
tp (ms)
10
100
1000
10
0.01
0.10
1.00
10.00
2014-6-9
4
www.kersemi.com
BTA/BTB06 Series

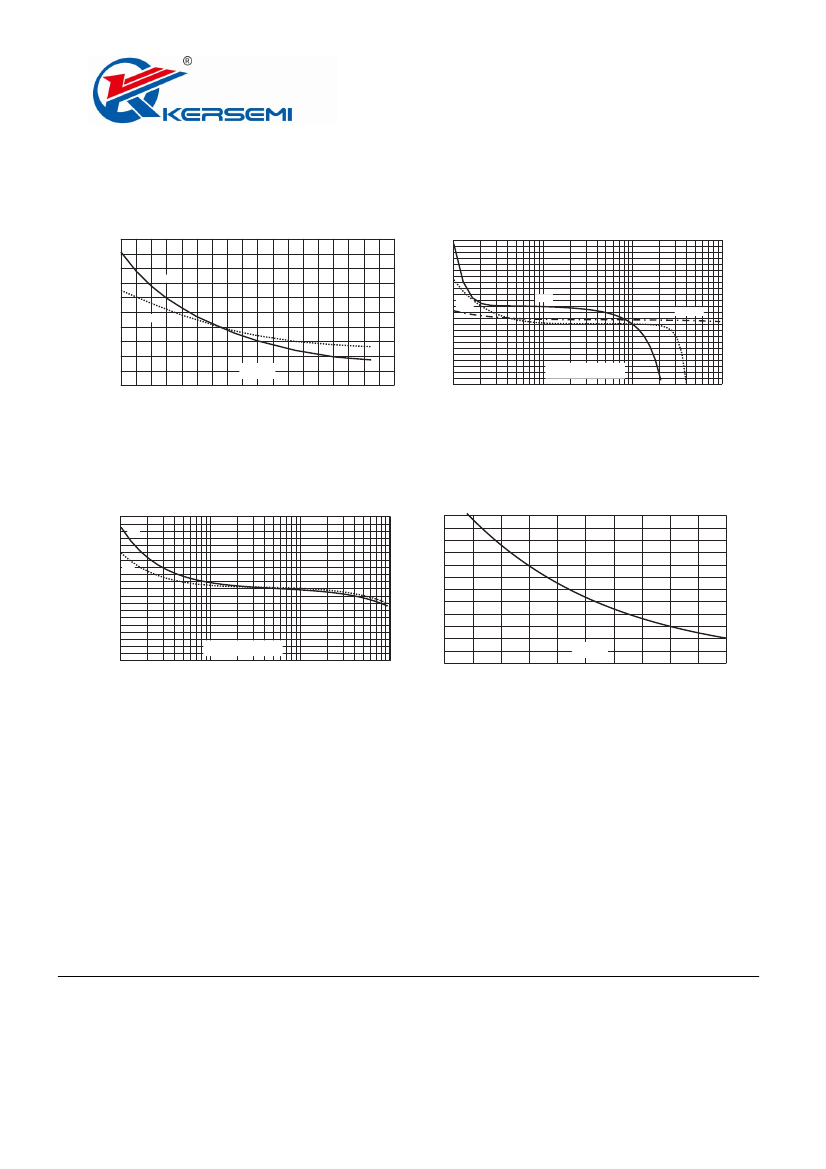

Fig. 7:
Relative variation of gate trigger current,
holding current and latching current versus
junction temperature (typical values).
IGT,IH,IL[Tj] / IGT,IH,IL [Tj=25°C]
2.5
2.0
IGT
Fig. 8-1:
Relative variation of critical rate of
decrease of main current versus (dV/dt)c (typical
values). Snubberless & Logic Level Types
(dI/dt)c [(dV/dt)c] / Specified (dI/dt)c
2.4
2.2
2.0
1.8
1.6
1.4
SW
1.2
1.0
0.8
0.6
0.4
0.2
0.0
0.1
1.5
IH & IL
TW
BW/CW
1.0
0.5
Tj(°C)
(dV/dt)c (V/µs)
0.0
-40
-20
0
20
40
60
80
100
120
140
1.0
10.0
100.0
Fig. 8-2:
Relative variation of critical rate of
decrease of main current versus (dV/dt)c (typical
values). Standard Types
(dI/dt)c [(dV/dt)c] / Specified (dI/dt)c
2.0
1.8
C
1.6
1.4
B
1.2
1.0
0.8
0.6
0.4
0.2
0.0
0.1
Fig. 9:
Relative variation of critical rate of
decrease of main current versus junction
temperature.
(dI/dt)c [Tj] / (dI/dt)c [Tj specified]
6
5
4
3
2
(dV/dt)c (V/µs)
1
Tj(°C)
1.0
10.0
100.0
0
0
25
50
75
100
125
2014-6-9
5
www.kersemi.com
