DTS24Z15-05SB

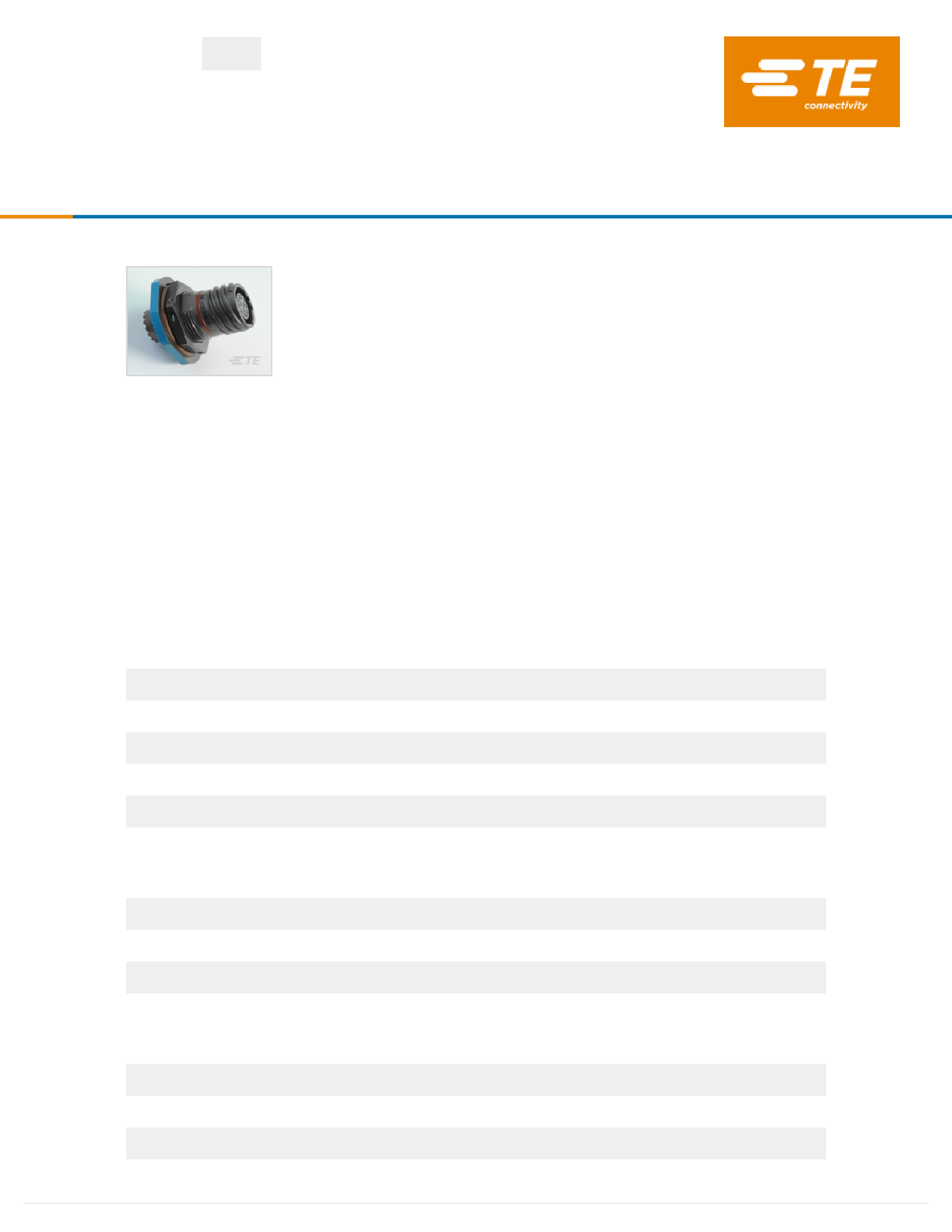

DEUTSCH 38999 Series III, Standard Circular Connectors, Cable-to-Panel, 5 Position,
Sealable, Wire & Cable, Power, Panel Mount, Black Zinc Nickel
DTS24Z15-05SB
ACTIVE
DEUTSCH
|
DEUTSCH 38999 Series III
TE Internal #: YDTS24Z15-05SB0000
DEUTSCH 38999 Series III, Standard Circular Connectors, Cable-to-
Panel, 5 Position, Sealable, Wire & Cable, Power, Panel Mount,
Black Zinc Nickel
View on TE.com >
Connectors
>
Circular Connectors
>
Standard Circular Connectors
>
Jam Nut: D38999, 15-05 Insert, Black Zinc Nickel Plating
Connector System:
Cable-to-Panel
Number of Positions:
5
Sealable:
Yes
Connector & Contact Terminates To:
Wire & Cable
Contact Current Rating (Max):
13 A
All Jam Nut: D38999, 15-05 Insert, Black Zinc Nickel Plating (84)
Features
Product Type Features
Product Type
Connector System
Sealable
Connector & Contact Terminates To
Circular Connector Type
Shell Type
Configuration Features
Number of Positions
Number of Power Positions
Number of Signal Positions
Contacts Preloaded
Body Features
Shell Plating Material
Shell Base Material
Circular Connector Insulation Material Type
Hermetically Sealed
Connector
Cable-to-Panel
Yes
Wire & Cable
Receptacle
Jam Nut Receptacle
5
5
0
No
Black Zinc Nickel
Aluminum 6061-T6
Hard Dielectric/Silicone
No
02/17/2022 08:45AM | Page 1
For support call+1 800 522 6752
Contact Features
DTS24Z15-05SB
DEUTSCH 38999 Series III, Standard Circular Connectors, Cable-to-Panel, 5 Position,
Sealable, Wire & Cable, Power, Panel Mount, Black Zinc Nickel
Contact Features
Contact Current Rating (Max)
Reverse Gender
Contact Layout Arrangement
Circular Connector Contact Type
Mechanical Attachment
Connector Mounting Type
Polarization Code
Mating Alignment Type
Mating Retention
Housing Features
Circular Connector Shell Size
Alignment Keyed
Dimensions
Wire Size
Usage Conditions
Operating Temperature Range
Operation/Application
Circuit Application
Shielded
Power
Yes
-65 – 200 °C[-85 – 392 °F]
.52 – 1.31 mm²
15
Clocking
Panel Mount
B
Keyed
With
13 A
No
15 – 5
Socket
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Compliant with Exemptions
Compliant with Exemptions
Restricted Materials Above Threshold
Current ECHA Candidate List: JUL 2021
(219)
Candidate List Declared Against: JUL 2021
(219)
SVHC > Threshold:
Pb (1.2% in Contact's Copper Alloy)
Decamethylcyclopentasiloxane (D5) (5% in
Insert Assembly)
Article Safe Usage Statements:
Do not eat, drink or smoke when using this product. Wash thoroughly after
For support call+1 800 522 6752
02/17/2022 08:45AM | Page 2
DTS24Z15-05SB
DEUTSCH 38999 Series III, Standard Circular Connectors, Cable-to-Panel, 5 Position,
Sealable, Wire & Cable, Power, Panel Mount, Black Zinc Nickel
Do not eat, drink or smoke when using this product. Wash thoroughly after
handling. Recycle if possible and dispose of the article by following all applicable
governmental regulations relevant to your geographic location.
Halogen Content
Solder Process Capability
Not Yet Reviewed for halogen content
Not reviewed for solder process capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach

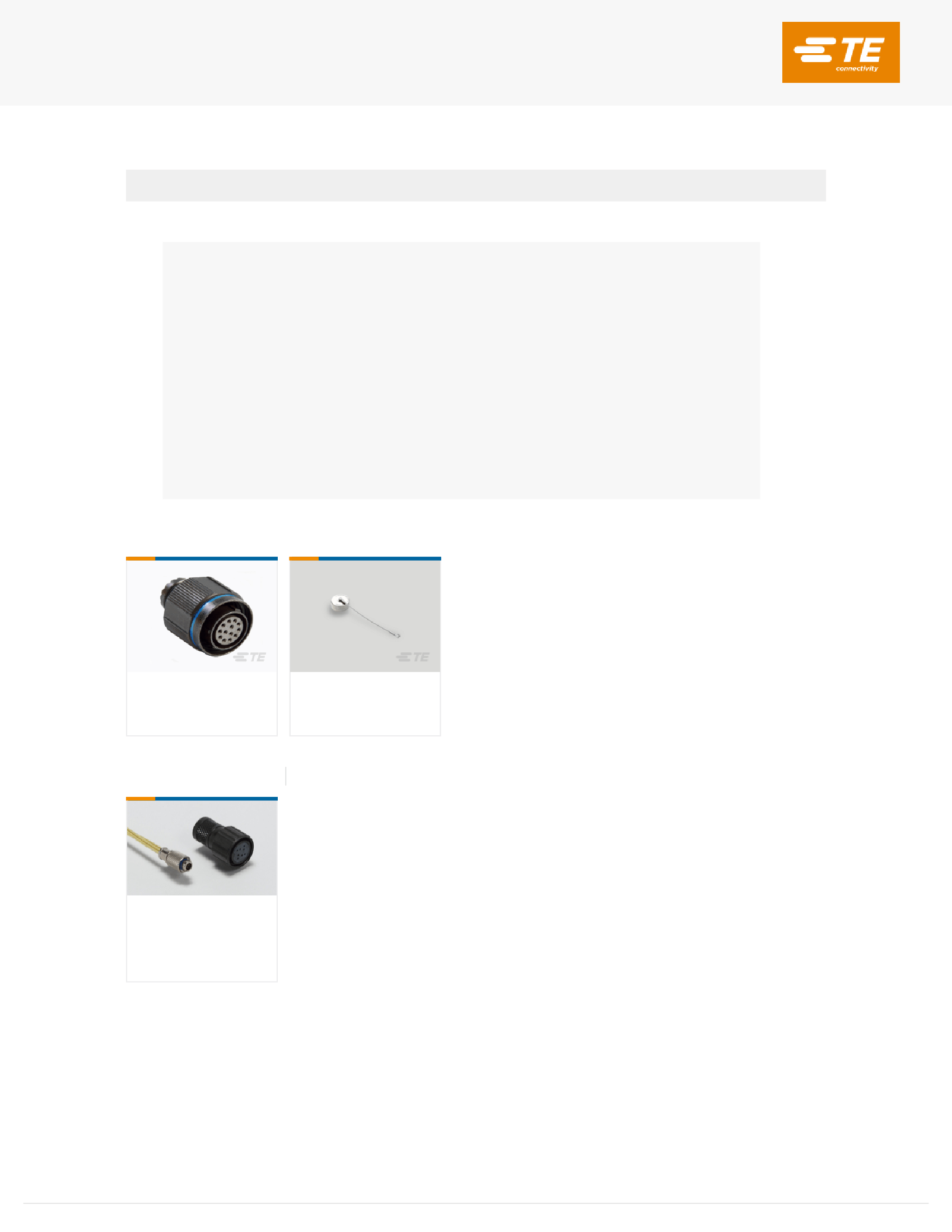

Compatible Parts
TE Part # CAT-D38999-DTS25J
D38999: Straight Plug, 15-05 Insert
TE Part # YDTS33Z15RV0010000
CAP ASSEMBLY
Also in the Series
DEUTSCH 38999 Series III
Standard Circular Connectors(50942)

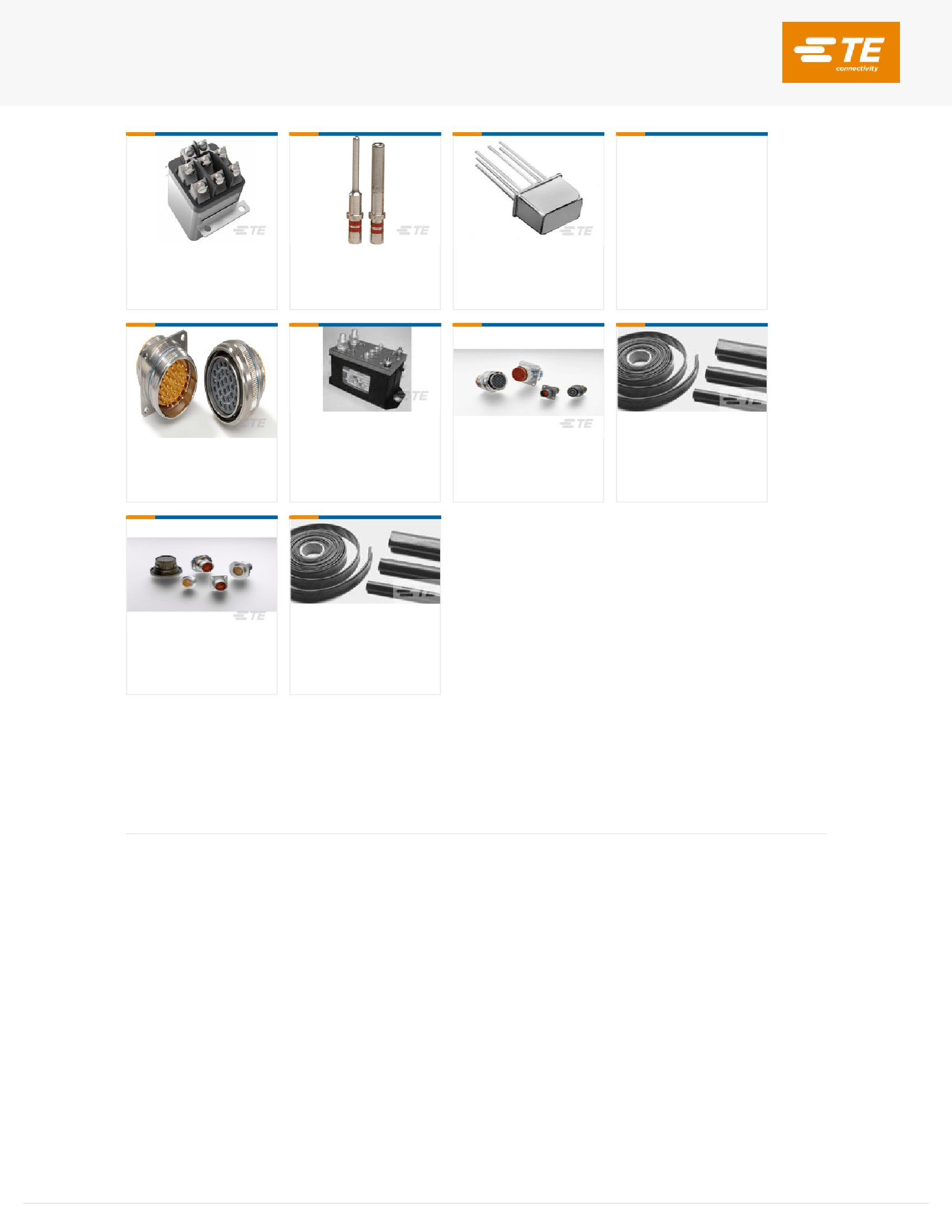

Customers Also Bought
For support call+1 800 522 6752
02/17/2022 08:45AM | Page 3
DTS24Z15-05SB
DEUTSCH 38999 Series III, Standard Circular Connectors, Cable-to-Panel, 5 Position,
Sealable, Wire & Cable, Power, Panel Mount, Black Zinc Nickel
TE Part #1617807-5
FC-335-SY8= RELAY, 3PST
TE Part #ZPF000000000001261
097-0267-16 A1267
TE Part #1617147-5
JMGAP-26P = M39016/17-030P
TE Part #358279-000
382C312-50-01-0
TE Part #ZPF000000000007174
983-0RS 08-98 PN
TE Part #1616058-6
A703CD (FAA/PMA)=RELAY
TE Part #YAFD56-14-15SWC019
PLUG ASSY
TE Part #CX1369-000
BSTS-13X4FR/NM
TE Part #YDTS20Y13-98XNV001
HERM RECP
TE Part #CS8624-000
BSTS-15X4FR/NM
Documents
Product Drawings
RECP ASSY
English
Datasheets & Catalog Pages
DEUTSCH MIL-DTL-38999 CIRCULAR CONNECTORS
English
For support call+1 800 522 6752
02/17/2022 08:45AM | Page 4
