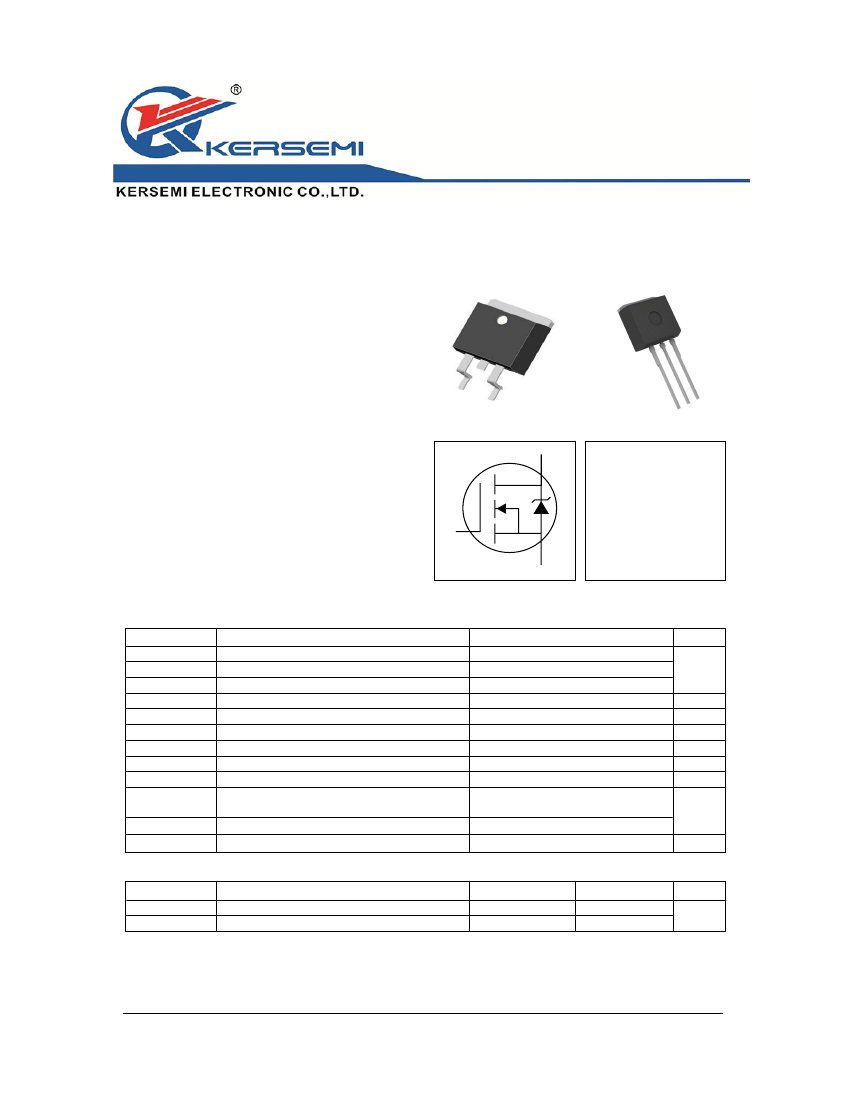

IRF1010NS
IRF1010NL
l
l
l
l
l
l
Advanced Process Technology
Ultra Low On-Resistance
Dynamic dv/dt Rating
175°C Operating Temperature
Fast Switching
Fully Avalanche Rated
D 2 P ak
T O -26 2
IRF1010NS
IRF1010NL
Description
The D
2
Pak is a surface mount power package capable of
accommodating die sizes up to HEX-4. It provides the
highest power capability and the lowest possible on-
resistance in any existing surface mount package. The
D
2
Pak is suitable for high current applications because of its
low internal connection resistance and can dissipate up to
2.0W in a typical surface mount application.
The through-hole version (IRF1010NL) is available for low-
profile applications.
D
V
DSS
= 55V
R
DS(on)
= 11mΩ
G
S
I
D
= 85A
Absolute Maximum Ratings
Parameter
I
D
@ T
C
= 25°C
I
D
@ T
C
= 100°C
I
DM
P
D
@T
C
= 25°C
V
GS
I
AR
E
AR
dv/dt
T
J
T
STG
Continuous Drain Current, V
GS
@ 10V
Continuous Drain Current, V
GS
@ 10V
Pulsed Drain Current
Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Avalanche Current
Repetitive Avalanche Energy
Peak Diode Recovery dv/dt
Operating Junction and
Storage Temperature Range
Soldering Temperature, for 10 seconds
Mounting torque, 6-32 or M3 srew
Max.
85
60
290
180
1.2
± 20
43
18
3.6
-55 to + 175
300 (1.6mm from case )
10 lbf•in (1.1N•m)
Units
A
W
W/°C
V
A
mJ
V/ns
°C
Thermal Resistance
Parameter
R
θJC
R
θJA
Junction-to-Case
Junction-to-Ambient ( PCB Mounted,steady-state)**
Typ.
–––
–––
Max.
0.85
40
Units
°C/W
2014-8-30
1
www.kersemi.com
IRF1010NS/IRF1010NL
Electrical Characteristics @ T
J
= 25°C (unless otherwise specified)
V
(BR)DSS
∆V
(BR)DSS
/∆T
J
R
DS(on)
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
L
D
L
S
C
iss
C
oss
C
rss
E
AS
Parameter
Drain-to-Source Breakdown Voltage
Breakdown Voltage Temp. Coefficient
Static Drain-to-Source On-Resistance
Gate Threshold Voltage
Forward Transconductance
Drain-to-Source Leakage Current
Gate-to-Source Forward Leakage
Gate-to-Source Reverse Leakage
Total Gate Charge
Gate-to-Source Charge
Gate-to-Drain ("Miller") Charge
Turn-On Delay Time
Rise Time
Turn-Off Delay Time
Fall Time
Internal Drain Inductance
Internal Source Inductance
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Single Pulse Avalanche Energy
Min.
55
–––
–––
2.0
32
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
Max. Units
Conditions
–––
V
V
GS
= 0V, I
D
= 250µA
––– V/°C Reference to 25°C, I
D
= 1mA
11
mΩ V
GS
= 10V, I
D
= 43A
4.0
V
V
DS
= V
GS
, I
D
= 250µA
–––
S
V
DS
= 25V, I
D
= 43A
25
V
DS
= 55V, V
GS
= 0V
µA
250
V
DS
= 44V, V
GS
= 0V, T
J
= 150°C
100
V
GS
= 20V
nA
-100
V
GS
= -20V
120
I
D
= 43A
19
nC V
DS
= 44V
41
V
GS
= 10V, See Fig. 6 and 13
–––
V
DD
= 28V
–––
I
D
= 43A
ns
–––
R
G
= 3.6Ω
–––
V
GS
= 10V, See Fig. 10
D
Between lead,
4.5 –––
6mm (0.25in.)
nH
G
from package
7.5 –––
and center of die contact
S
3210 –––
V
GS
= 0V
690 –––
V
DS
= 25V
140 –––
pF
ƒ = 1.0MHz, See Fig. 5
1030
250 mJ I
AS
= 4.3A, L = 270µH
Typ.
–––
0.058
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
13
76
39
48
Source-Drain Ratings and Characteristics
I
S
I
SM
V
SD
t
rr
Q
rr
t
on
Notes:
Parameter
Continuous Source Current
(Body Diode)
Pulsed Source Current
(Body Diode)
Diode Forward Voltage
Reverse Recovery Time
Reverse Recovery Charge
Forward Turn-On Time
Min. Typ. Max. Units
Conditions
D
MOSFET symbol
––– ––– 85
showing the
A
G
integral reverse
––– ––– 290
S
p-n junction diode.
––– ––– 1.3
V
T
J
= 25°C, I
S
= 43A, V
GS
= 0V
––– 69 100
ns
T
J
= 25°C, I
F
= 43A
––– 220 230
nC di/dt = 100A/µs
Intrinsic turn-on time is negligible (turn-on is dominated by L
S
+L
D
)
Repetitive rating; pulse width limited by
max. junction temperature. ( See fig. 11 )
Starting T
J
= 25°C, L = 270µH
R
G
= 25Ω, I
AS
= 43A, V
GS
=10V (See Figure 12)
I
SD
≤
43A, di/dt
≤
210A/µs, V
DD
≤
V
(BR)DSS
,
T
J
≤
175°C
Pulse width
≤
400µs; duty cycle
≤
2%.
This is a typical value at device destruction and
represents operation outside rated limits.
This is a calculated value limited to T
J
= 175°C .
Calculated continuous current based on maximum allowable
junction temperature. Package limitation current is 75A.
Uses IRF1010N data and test conditions.
2014-8-30
2
www.kersemi.com
IRF1010NS/IRF1010NL
1000
I
D
, Drain-to-Source Current (A)
100
I
D
, Drain-to-Source Current (A)
VGS
TOP
15V
10V
8.0V
7.0V
6.0V
5.5V
5.0V
BOTTOM 4.5V
1000
100
VGS
15V
10V
8.0V
7.0V
6.0V
5.5V
5.0V
BOTTOM 4.5V
TOP
4.5V
10
4.5V
10
1
0.1
20µs PULSE WIDTH
T = 25 C
J
°
1
10
100
1
0.1
20µs PULSE WIDTH
T = 175 C
J
°
1
10
100
V
DS
, Drain-to-Source Voltage (V)
V
DS
, Drain-to-Source Voltage (V)

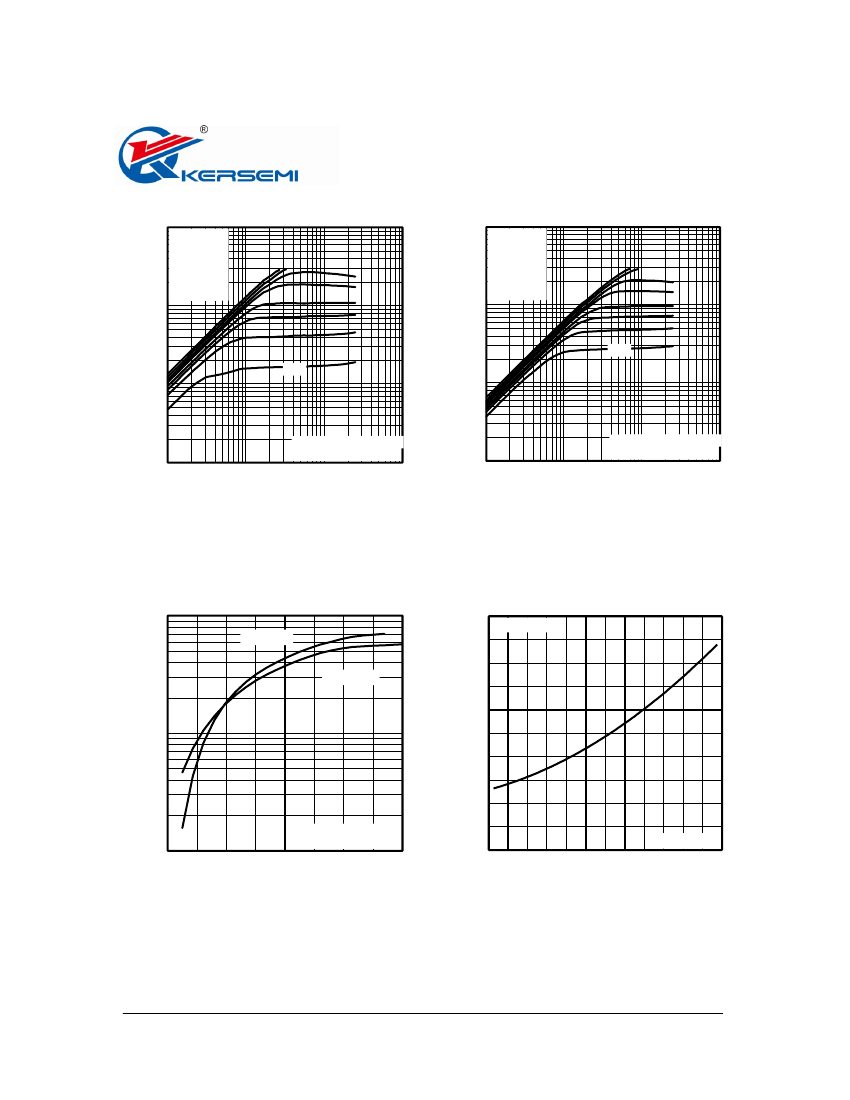

Fig 1.
Typical Output Characteristics
Fig 2.
Typical Output Characteristics
100
2.5
I
D
, Drain-to-Source Current (A)
T
J
= 25
°
C
R
DS(on)
, Drain-to-Source On Resistance
(Normalized)
T
J
= 175
°
C
I
D
= 85A
2.0
1.5
10
1.0
0.5
1
4
6
8
V DS = 25V
20µs PULSE WIDTH
10
12
0.0
-60 -40 -20 0
V
GS
= 10V
20 40 60 80 100 120 140 160 180
V
GS
, Gate-to-Source Voltage (V)
T
J
, Junction Temperature(
°
C)
Fig 3.
Typical Transfer Characteristics
Fig 4.
Normalized On-Resistance
Vs. Temperature
2014-8-30
3
www.kersemi.com
IRF1010NS/IRF1010NL
6000
20
5000
V
GS
, Gate-to-Source Voltage (V)
VGS = 0V,
f = 1 MHZ
Ciss = C + Cgd, C
gs
ds SHORTED
Crss = C
gd
Coss = C + Cgd
ds
I
D
= 43A
16
V
DS
= 44V
V
DS
= 27V
V
DS
= 11V
C, Capacitance(pF)
4000
Ciss
12
3000
Coss
2000
8
1000
Crss
4
0
1
10
100
0
0
20
40
FOR TEST CIRCUIT
SEE FIGURE 13
80
100
60
120
VDS, Drain-to-Source Voltage (V)
Q
G
, Total Gate Charge (nC)
Fig 5.
Typical Capacitance Vs.
Drain-to-Source Voltage
Fig 6.
Typical Gate Charge Vs.
Gate-to-Source Voltage
1000
1000
OPERATION IN THIS AREA
LIMITED BY R DS(on)
T
J
= 175
°
C
I
SD
, Reverse Drain Current (A)
100
ID, Drain-to-Source Current (A)
100
100µsec
10
10
1msec
1
T
J
= 25
°
C
0.1
0.0
V
GS
= 0 V
0.6
1.2
1.8
2.4
1
1
Tc = 25°C
Tj = 175°C
Single Pulse
10
10msec
100
1000
V
SD
,Source-to-Drain Voltage (V)
VDS , Drain-toSource Voltage (V)

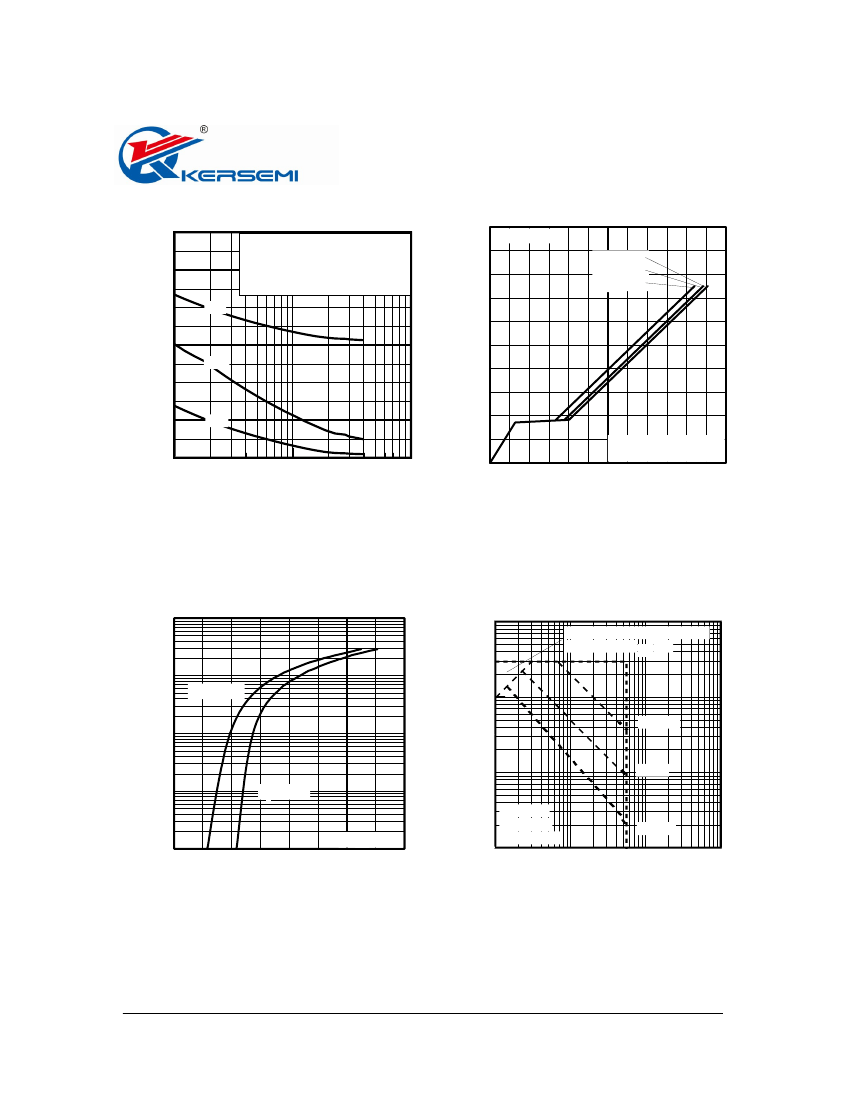

Fig 7.
Typical Source-Drain Diode
Forward Voltage
Fig 8.
Maximum Safe Operating Area
2014-8-30
4
www.kersemi.com
IRF1010NS/IRF1010NL
100
LIMITED BY PACKAGE
80
V
DS
V
GS
R
G
R
D
D.U.T.
+
I
D
, Drain Current (A)
-
V
DD
60
V
GS
Pulse Width
≤ 1
µs
Duty Factor
≤ 0.1 %
40
Fig 10a.
Switching Time Test Circuit
20
V
DS
90%
0
25
50
75
100
125
150
175
T
C
, Case Temperature ( ° C)

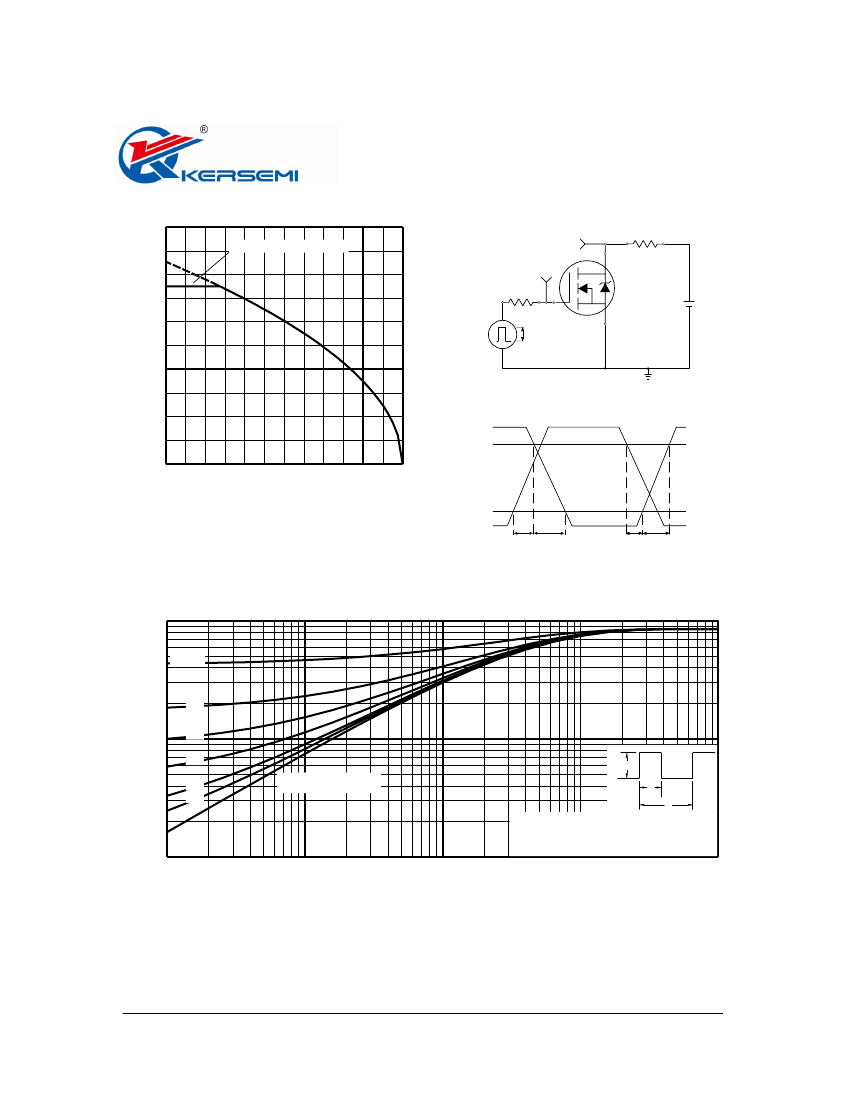

Fig 9.
Maximum Drain Current Vs.
Case Temperature
10%
V
GS
t
d(on)
t
r
t
d(off)
t
f
Fig 10b.
Switching Time Waveforms
1
Thermal Response (Z
thJC
)
D = 0.50
0.20
0.10
0.05
0.02
0.01
SINGLE PULSE
(THERMAL RESPONSE)
0.1
0.01
0.00001
Notes:
1. Duty factor D = t
1
/ t
2
2. Peak T
J
= P
DM
x Z
thJC
+ T
C
0.01
0.0001
0.001
0.1
P
DM
t
1
t
2
t
1
, Rectangular Pulse Duration (sec)
Fig 11.
Maximum Effective Transient Thermal Impedance, Junction-to-Case
2014-8-30
5
www.kersemi.com
