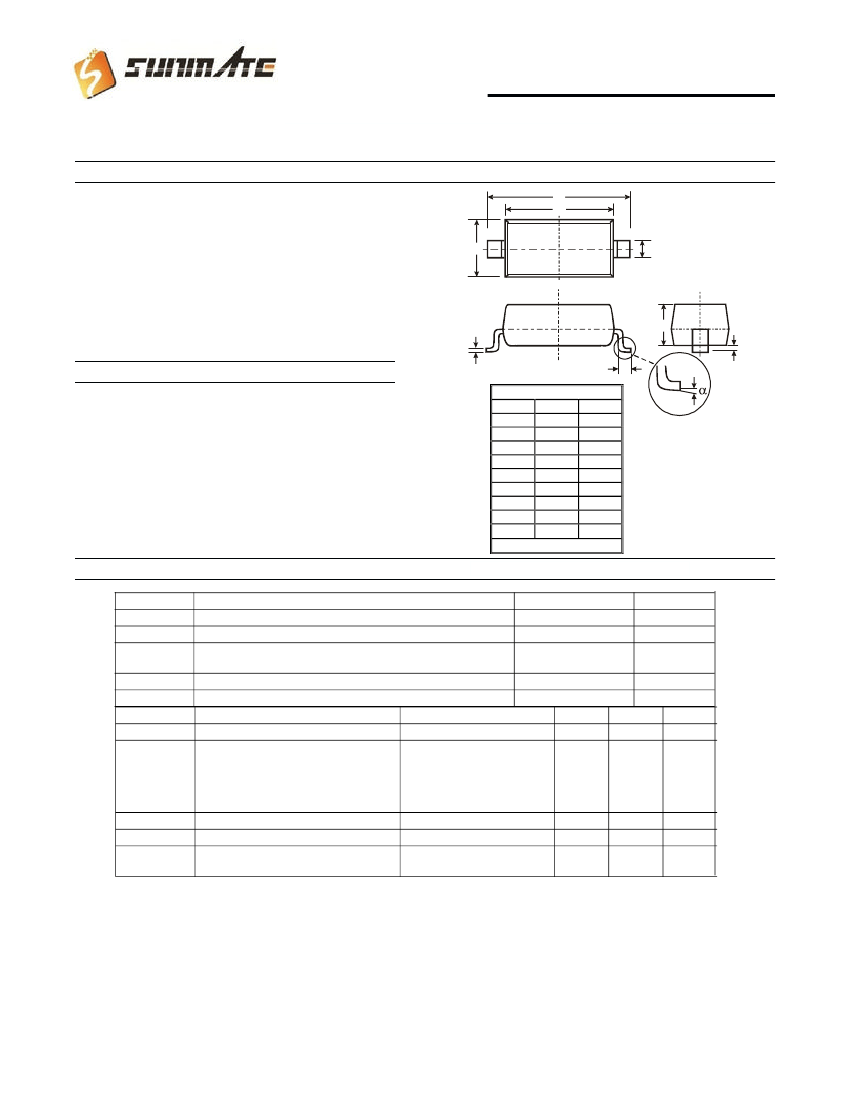

BAT54HT1G

200mA Surface Mount Schottky Barrier Diode

Features

C

H

B

A

M

L

K

J

Mechanical Data

·

Case

Molded Plastic

SOD-323

Dim

Min

Max

A

0.25

0.35

B

1.20

1.40

C

2.30

2.70

H

1.60

1.80

J

0.00

0.10

K

1.0

1.1

L

0.20

0.40

M

0.10

0.15

0°

8°

α

All Dimensions in mm

Maximum Ratings and Electrical Characteristics

Symbol

V

RRM

I

F(AV)

I

FSM

T

STG

T

J

Symbol

V

R

V

F

Parameter

Maximum Repetitive Reverse Voltage

Average Rectified Forward Current

Non-repetitive Peak Forward Surge Current

Pulse Width = 1.0 second

Storage Temperature Range

Operating Junction Temperature

Parameter

Breakdown Voltage

Forward Voltage

@ T

A

= 25°C unless otherwise specified

Value

30

200

600

-65 to +150

-55 to +150

Units

V

mA

°C

Max.

240

320

400

500

0.8

2.0

10

5.0

Units

V

mV

V

µA

pF

ns

Test Conditions

I

R

= 10µA

I

F

= 0.1mA

I

F

= 1.0mA

I

F

= 10mA

I

F

= 30mA

I

F

= 100mA

V

R

= 25V

V

R

= 1V, f = 1.0MHz

I

F

= I

R

= 10mA, I

RR

= 1.0mA,

R

L

= 100Ω

Min.

30

I

R

C

T

t

rr

Reverse Leakage

Total Capacitance

Reverse Recovery Time

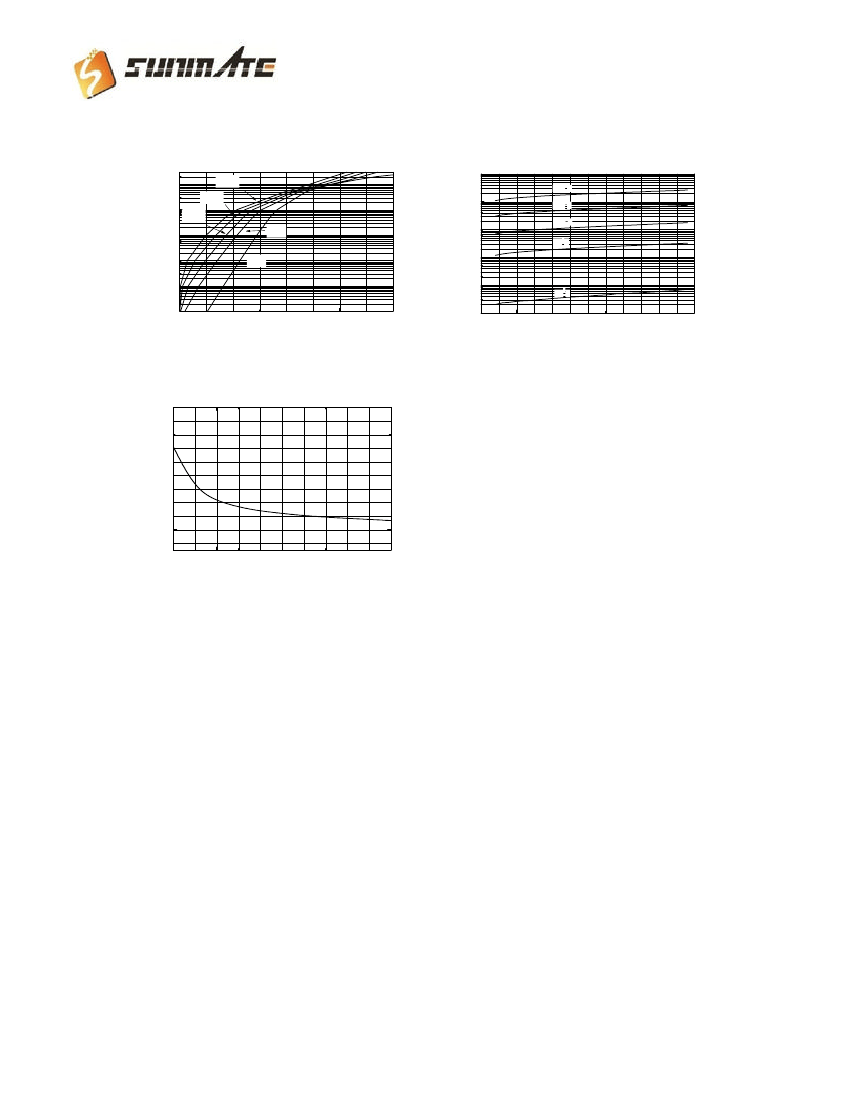

* These ratings are limiting values above which the serviceability of the diode may be impaired.

NOTES:

1) These ratings are based on a maximum junction temperature of 150 degrees C.

2) These are steady limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
