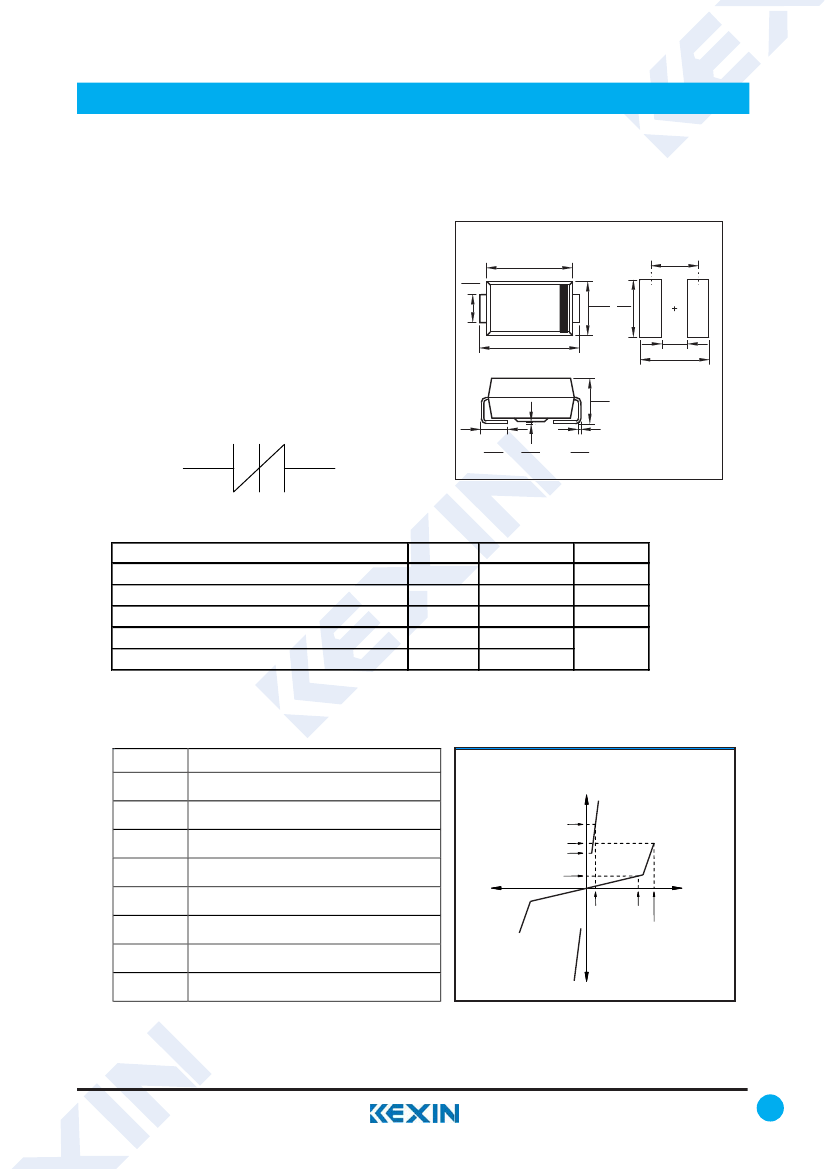

SMD Type
Thyristor Surge Suppressors
P0080TB ~ P5000TB
DO-214AC(SMA)
4.597
3.988
2.126
1.397
2
1
Thyristor
Unit: mm
4.32
4.12
■
Features
●
Low voltage overshoot
●
Low on-state voltage
●
Low Capacitance
●
Does not degrade surge capability after
multiple surge events within limit
●
Fails short circuit when surged in excess of ratings
2.896 2.22
2.489 2.02
5.668
4.925
2.75
2.55
5.87
5.67
Recommended
Land Pattern
2.438
1.981
1.524
0.762
0.203
0.051
0.305
0.152
■
Absolute Maximum Ratings Ta = 25℃
Parameter
Non-Repetitive Peak on-state Current @ 50/60Hz
Critical Rate of rise of off-state Curent
Thermal Resistance Junction to Ambient
Junction Temperature
Storage Temperature Range
Symbol
I
TSM
di/dt
R
thJA
T
J
T
stg
Rating
30
500
90
150
-40 to 150
Unit
A
A/us
℃
/W
℃
■
Electrical Parameters
Parameter
I
S
I
DRM
I
H
I
T
V
S
V
DRM
V
T
C
0
Definition
Switching Current
- maximum current required to switch to
on state
Leakage Current
- maximum peak off-state current
measured at VDRM
Holding Current
- minimum current required to maintain on
state
On-state Current
- maximum rated continuous on-state
current
Switching Voltage
- maximum voltage prior to switching to
on stat
Peak Off-state Voltage
- maximum voltage that can be
applied while maintaining off state
On-state Voltage
- maximum voltage measured at rated
on-state current
Off-state Capacitance
- typical capacitance measured in
off state
+I
I
T
I
S
I
H
-V
I
DRM
V
T
V
DRM
V
S
+V
-I
www.kexin.com.cn
1
SMD Type
Thyristor Surge Suppressors
P0080TB ~ P5000TB
■
Electrical Characteristics
(Ta = 25℃, unless otherwise noted.)
Part
Number
P0080TB
P0300TB
P0640TB
P0720TB
P0900TB
P1100TB
P1300TB
P1500TB
P1800TB
P2000TB
P2300TB
P2600TB
P3100TB
P3500TB
P4000TB
P4500TB
P5000TB
V
DRM
Marking
P008B
P03B
P06B
P07B
P09B
P11B
P13B
P15B
P18B
P20B
P23B
P26B
P31B
P35B
P40B
P45B
P50B
@I
DRM
=5 A
Thyristor
V
S
@100V/ S
V
T
@I
T
=2.2A
I
S
mA max
800
800
800
800
800
800
800
800
800
800
800
800
800
800
800
800
800
I
T
A max
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
I
H
mA min
50
50
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
C
0
@1MHz
V min
6
25
58
65
75
90
120
140
170
180
190
220
275
320
360
400
440
V max
25
40
77
88
98
130
160
180
220
220
260
300
350
400
460
540
600
V max
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
pF min
25
15
40
35
25
30
25
25
25
20
25
20
20
20
20
20
20
pF max
150
140
60
60
55
50
45
40
35
35
35
35
35
35
35
35
35
Notes:
- Absolute maximum ratings measured at T
A
= 25ºC (unless otherwise noted).
- Devices are bi-directional.
■
Surge Ratings
2/10 S
1
Series
2/10 S
A min
B
250
2
8/20 S
1
1.2/50 S
A min
250
2
10/160 S
1
10/160 S
A min
150
2
10/560 S
1
10/560 S
A min
100
2
10/1000 S
1
10/1000 S
A min
80
2
5/310 S
1
10/700 S
A min
100
2
I
TSM
50/60 Hz
A min
30
di/dt
Amps/µs max
500
Notes:
1. Current waveform in s
2. Voltage waveform in s
- Peak pulse current rating (I
PP
) is repetitive and guaranteed for the life of the product.
- I
PP
ratings applicable over temperature range of -40ºC to +85ºC
- The device must initially be in thermal equilibrium with -40° < T
J
< +150°
C
C
2
www.kexin.com.cn
SMD Type
Thyristor Surge Suppressors
P0080TB ~ P5000TB
■

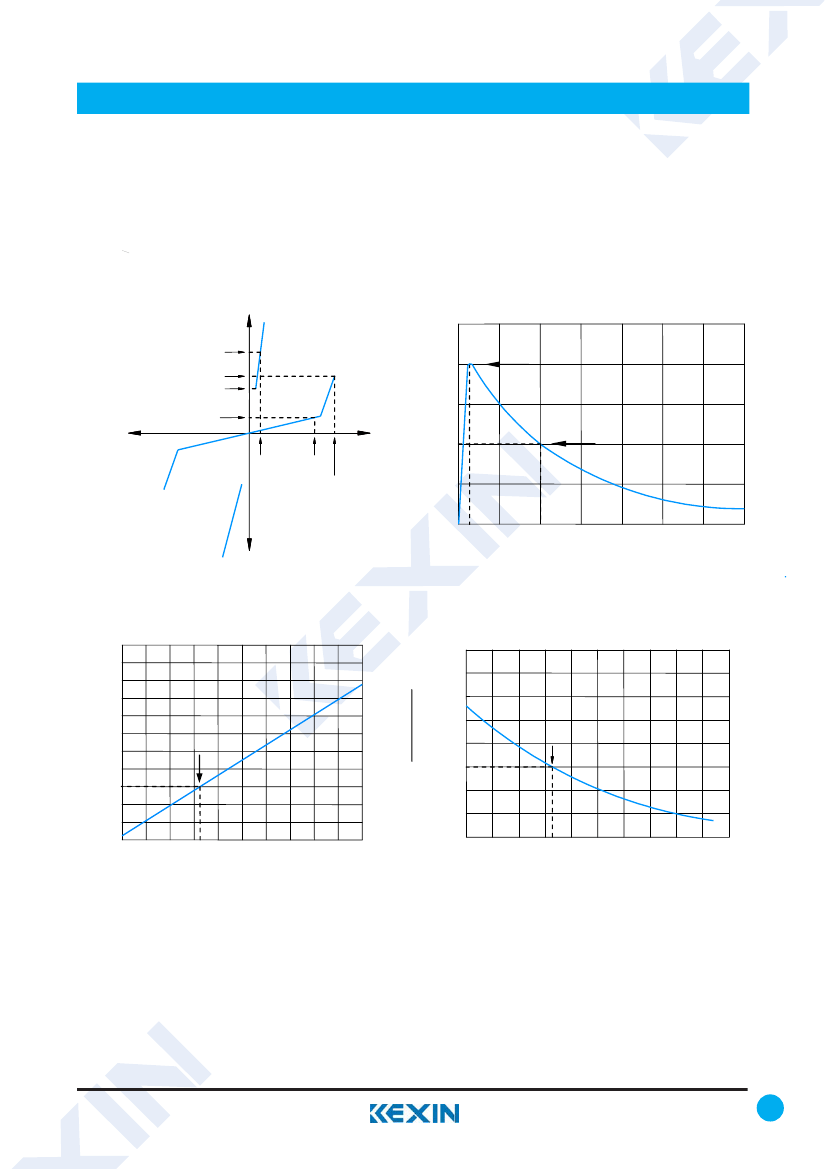

Typical Characterisitics
Figure 1 - V-I Characteristics
Thyristor
Figure 2 - tr × td Pulse Waveform
+I
I
T
I
S
I
H
-V
I
DRM
V
T
V
DRM
V
S
+V
100
I
pp
–Peak
Pulse Current - % I
pp
Value
Waveform=t
r
X t
d
Peak
t
r
=rise time to peak value
t
d
=decay time to half value
50
Value
Half Value
50
0
0
tr
t
t
td
-I
Figure 3 - Normalized VS Change Versus Junction
Temperature
14
t
–Time
(µs)
t – Time
(μs)
Figure 4 - Normalized DC Holding Current Versus Case
Temperature
2.0
1.8
Percent of V
S
Change - %
12
I
H
I
H
(T
C
=25! )
10
8
6
4
2
9
-4
-6
-8
-40
-20 0
20
40
60
80
100
120
140
160
1.6
1.4
1.2
1.0
0.8
0.6
0.4
-40 -20
0
20
40
60
80
100 120 140
160
25℃
25℃
Ration of
Junction Temperature (T
J
) -
℃
Case Temperature (TC) -
℃
www.kexin.com.cn
3
