DATA SHEET
SEMICONDUCTOR
YS15S50SL
15A/50V
SURFACE MOUNT LOW VF SCHOTTKY BARRIER RECTIFIER
H
Features
High current capability, low forward voltage
Excellent high temperature stability
Low power loss, and high efficiency
High forward surge capability
RoHS compliant, and Halogen free
Applications
Switching mode power supply applications
Portable equipment battery applications
High frequency rectification
DC/DC converter
Designed as bypass diodes for solar panels
Mechanical Data
Case: TO-277 small outline plastic package
Terminal: Matte tin plated, solderable per
MIL-STD-750, Method 2026
Molding Compound Flammability Rating:UL94-0
High temperature soldering guaranteed:
260 C /10second
Packed with FRP substrate and epoxy
underfilled
Ordering Information
Device:
YS15S50SL
Package: TO-277
Marking: 15S50SL
Material: Halogen free
Packing: Tape & 13’’ Reel
Quantity per reel: 5,000pcs
Pin Configuration
Maximum Ratings
Symbol
V
RRM
I
F(AV)
I
FSM
T
J
& T
STG
@ T
A
= 25°C unless otherwise specified
Parameter
Repetitive Peak Reverse Voltage
Average Forward Current
Peak Forward Surge Current, 8.3ms single half sine-wave
Junction and Storage Temperature
@ T
A
= 25°C unless otherwise specified
Value
50
15
320
-50~+150
Units
V
A
A
C
Electrical Characteristics
Symbol
Parameter
Test Condition
I
F
= 3A @ 25 C
I
F
= 10A @ 25 C
I
F
= 15A @ 25 C
I
F
= 3A @ 125 C
I
F
= 10A @ 125 C
I
F
= 15A @ 125 C
I
R
= 0.5mA
V
R
= 50V
f=1MHz, V
R
=4V
Min
V
F
Forward Voltage
Typ
0.33
0.41
0.46
0.24
0.37
0.44
Max
0.36
0.46
0.51
V
R
I
R
C
J
Reverse Breakdown Voltage
Reverse Leakage Current
Junction Capacitance
50
0.280
900
Units
V
V
V
V
V
V
V
mA
pF
Note 1: Polymide PCB, 2oz. copper. Cathode pad dimensions 18.8x14.4mm. Anode pad dimensions 5.6x14.4mm
http://www.yeashin.com
1
REV.02 20140910

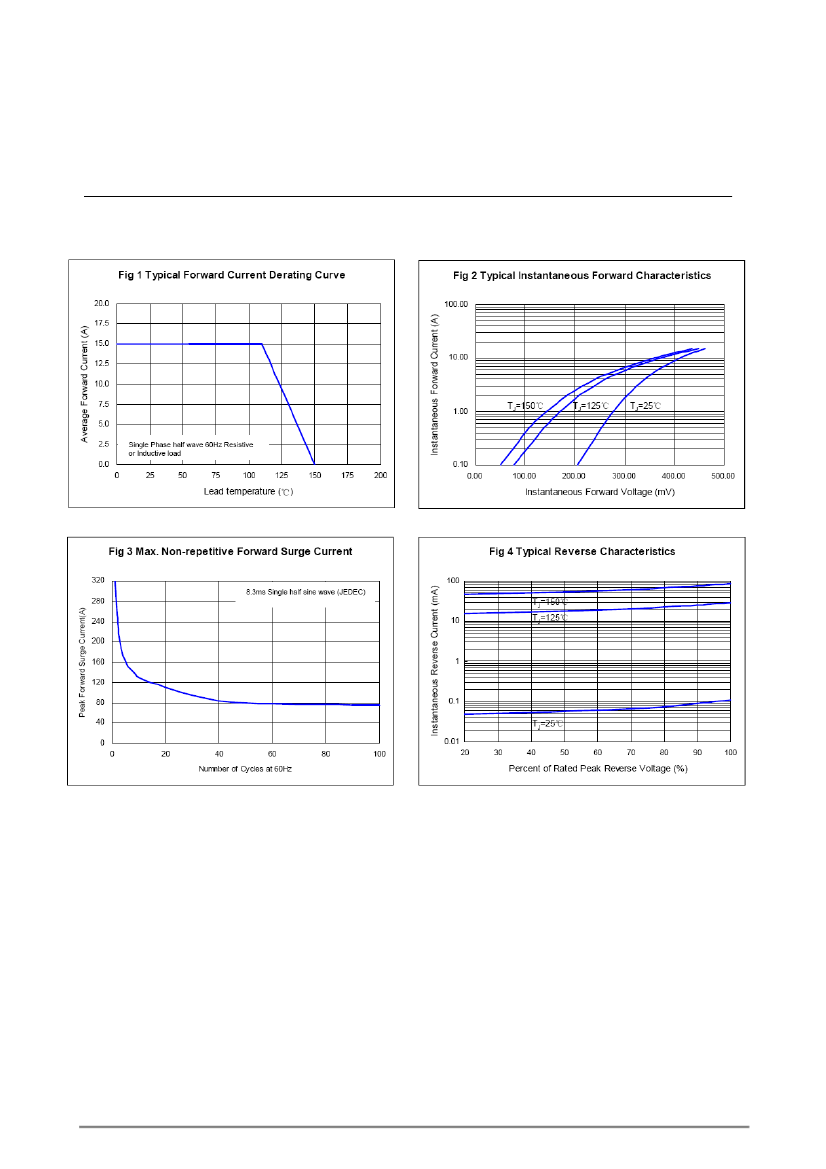

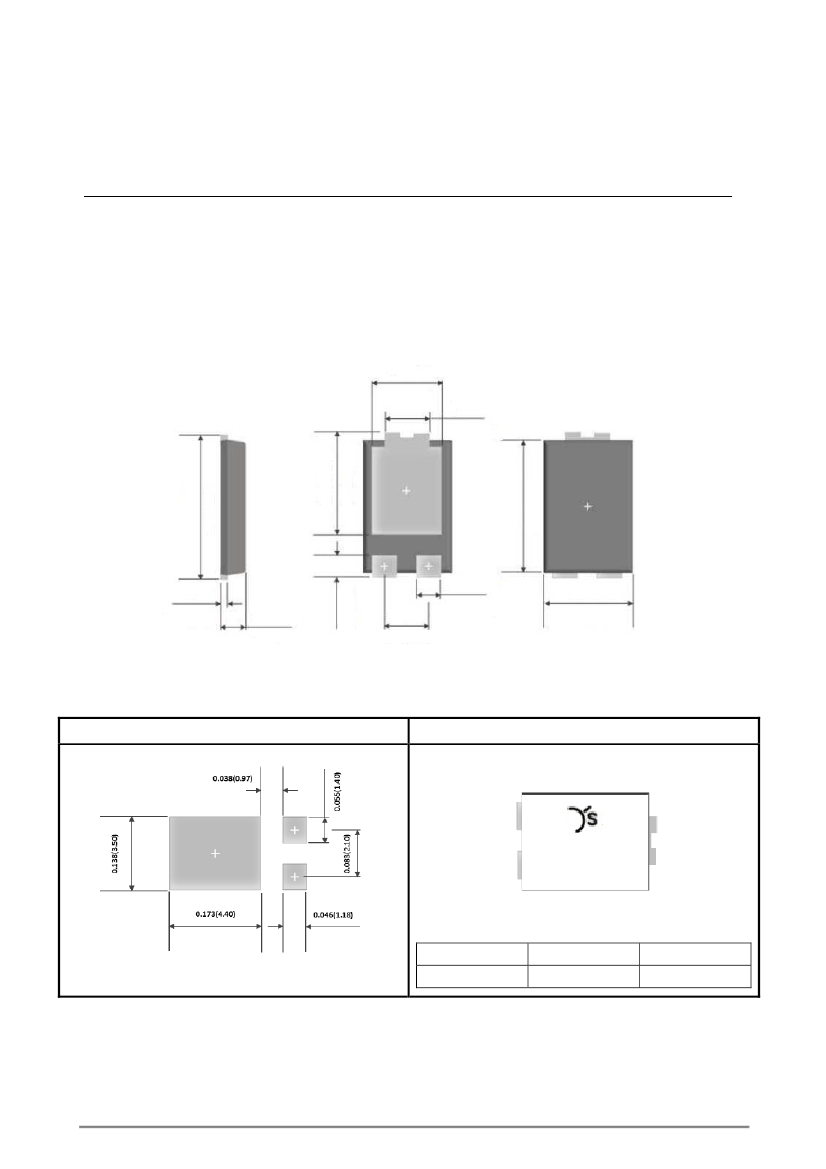

PACKAGE OUTLINE AND DIMENSIONS
YS15S50SL
3$&.$*( $1' 68**(67(' 3$' /$<287 ',0(16,21
TO-277
Outline drawing and Dimension
.130(3.30)
.114(2.90)
.075(1.90)
.067(1.70)
Unit:inch(mm)
.264(6.70)
.248(6.30)
.179(4.55)
.165(4.20)
.288(5.80)
.039(1.10)
.031(0.80)
.077(1.96)
.069(1.76)
.043(1.10)
.033(0.85)
.205(5.20)
.016(0.40)
.008(0.20)
.049(1.25)
.037(0.95)
.169(4.30)
.153(3.88)
FOOT PRINT RECOMMENDATION
MARKING CODE
□
1 5S50SL
XXXX
Y S
unit: mm
1 5S50SL
Device name
XXXX
Date code
L ogo
http://www.yeashin.com
3
REV.02 20140910
