SMD Type
General Purpose Silion Rectifiers
1N4001FH ~ 1N4007FH
A7
Diodes
■
Features
●
Surface Mount General Purpose Silicon Rectifiers
●
Reverse Voltage - 50 to 1000 V
●
Forward Current: 1 A
1
2
PIN DESCRIPTION
1 Cathode
2 Anode
Weight：17.6mg，0.00062 o z
Simplified outline SOD-123FH
■
Absolute Maximum Ratings Ta = 25℃
Parameter
Repetitive Peak reverse voltage
Surge Peak reverse voltage
Maximum DC Blocking Voltage
Forward voltage
Max.averaged fwd.current.
Peak forward surge current
Maximum DC Reverse Current Ta=25℃
Ta=125℃
Typical Junction Capacitance *1
Thermal Resistance Junction to Ambient *2
Junction temperature
Storage temperature
@I
F
=1A
@ Ta =65℃
Symbol 1N4001FH 1N4002FH 1N4003FH 1N4004FH 1N4005FH 1N4006FH 1N4007FH Unit
V
RRM
V
RSM
V
DC
V
F
I
FAV
I
FSM
I
R
Cj
R
θJA
Tj
Tstg
50
35
50
100
70
100
200
140
200
400
280
400
1.1
1
25
5
100
4
180
150
-55 to 150
A
600
420
600
800
560
800
1000
700
1000
V
μA
pF
℃/W
℃
* 1 Measured at 1 MHz and applied reverse voltage of 4 V D.C
* 2 Thermal resistance from junction to ambient at 0.375" (9.5 mm) lead length, P.C.B. mounted
■
Marking
NO.
Marking
1N4001FH 1N4002FH 1N4003FH 1N4004FH 1N4005FH 1N4006FH 1N4007FH
A1
A2
A3
A4
A5
A6
A7
www.kexin.com.cn
1
SMD Type
General Purpose Silion Rectifiers
1N4001FH ~ 1N4007FH
Diodes
■
Typical Characterisitics

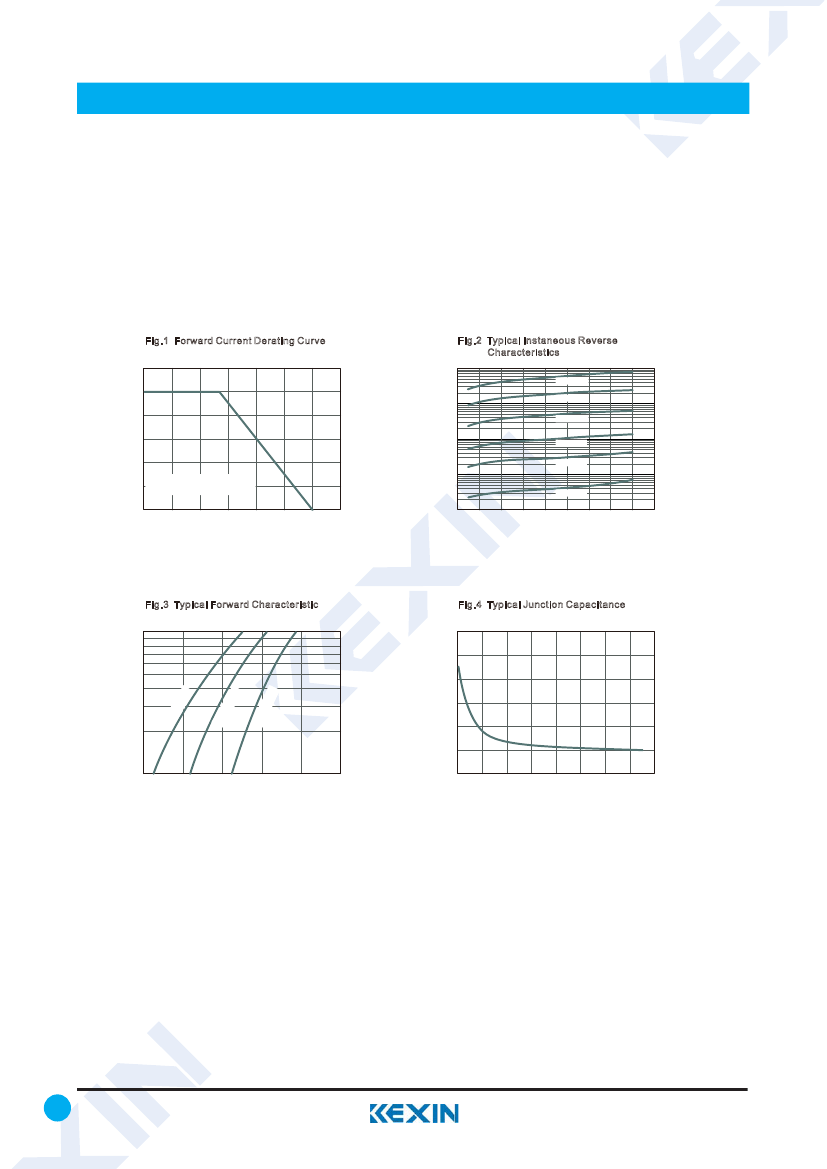

Fig.1 Forward Current Derating Curve
Instaneous Reverse Current (
μ
A)
1.2
1.0
0.8
0.6
0.4
0.2
0.0
Single phase half-wave 60 Hz
resistive or inductive load
Fig.2 Typical Instaneous Reverse
Characteristics
100
T
J
=150
°
C
T
J
=125
°
C
T
J
=100
°
C
Average Forward Current (A)
10
1.0
T
J
=75
°
C
T
J
=50
°
C
0.1
T
J
=25
°
C
25
50
75
100
125
150
175
0.01
0
200
400
600
800
Ambient Temperature (°
C)
Instaneous Reverse Voltage (V)
Fig.3 Typical Forward Characteristic
Instaneous Forward Current (A)
1.0
12
Fig.4 Typical Junction Capacitance
0.5
50
°
C
00
°
C
Junction Capacitance ( pF)
10
8
6
4
2
0
0
5
10
15
20
25
30
35
40
=1
=1
T
J
0.2
0.1
0.6
0.7
T
J
0.8
T
J
=
0.9
2 5
°
C
1.0
1.1
Instaneous Forward Voltage (V)
Reverse Voltage (V)
2
www.kexin.com.cn
SMD Type
General Purpose Silion Rectifiers
1N4001FH ~ 1N4007FH
■
Typical Application

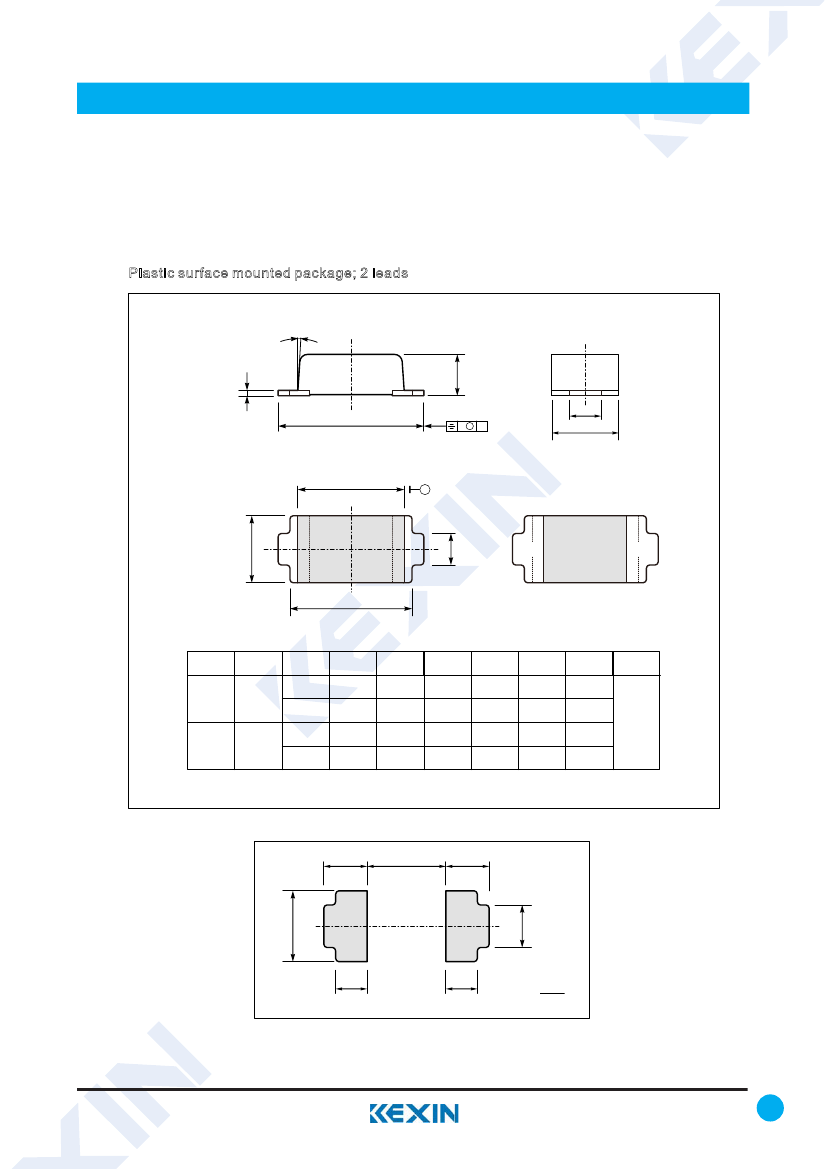

Plastic surface mounted package; 2 leads
Diodes
∠
LL R O U N D
A
C
H
E
A
VM
A
e
E
D
A
pad
pad
E
e
bottom
d
UNIT
mm
mil
max
min
max
min
A
1.08
0.95
42.5
37.4
C
0.16
0.14
6.3
5.5
D
2.9
2.6
114
102
d
3.3
3.0
130
118
E
1.8
1.5
70
60
e
1.0
0.7
39
28
H
E
∠
3.8
3.5
150
138
5°
1.1
(43)
2.0
(79)
1.1
(43)
1.8
(71)
0.8
(32)
0.8
(32)
1.1
(43)
Unit： mm
(mil)
www.kexin.com.cn
3
SMD Type
General Purpose Silion Rectifiers
1N4001FH ~ 1N4007FH
■
Typical Application
Diodes

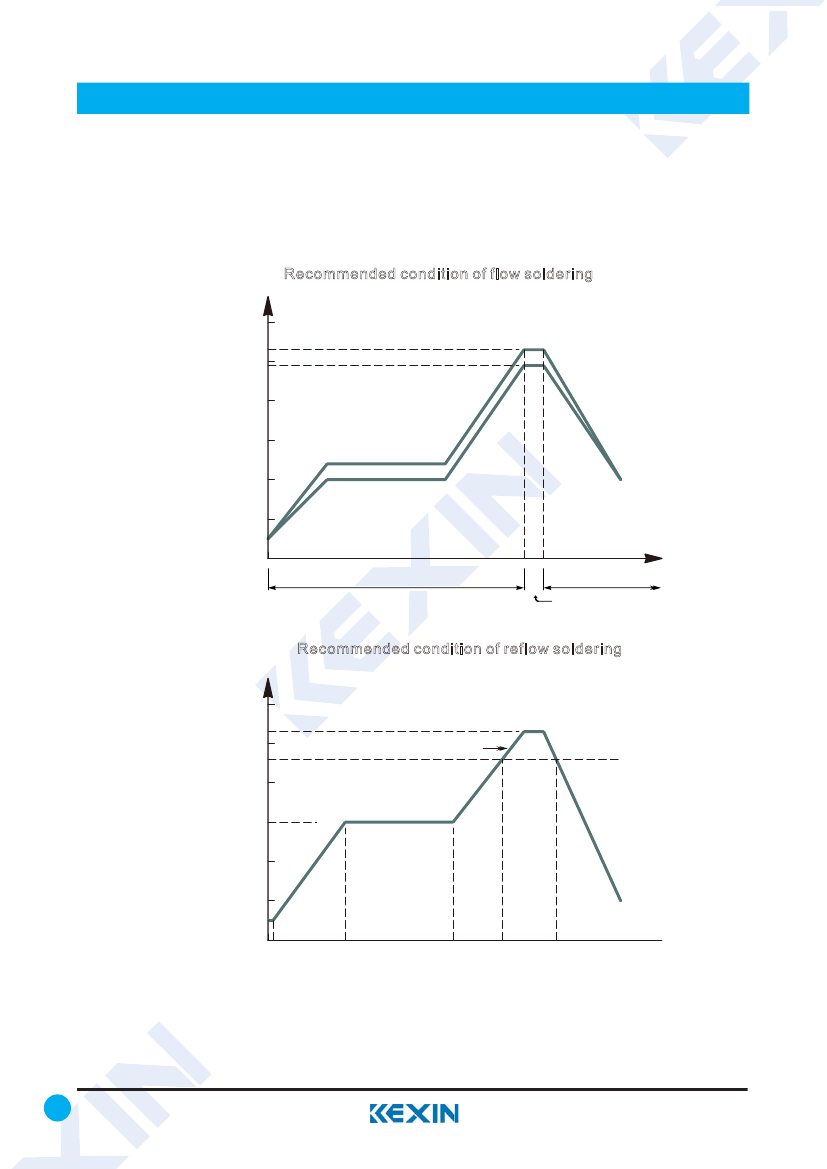

Recommended condition of flow soldering
300
Preliminary Heating
265°C
Soldering
Cooling (in air)
Temperature of Soldering (°C)
250
245°C
200
150
120°C
100
100°C
50
0
2 to 5 min
more than 1 min
less than 10s
Recommended condition of reflow soldering
300
.
Peak Temperature
245 to 260°C, 10s max.
Reflow Heating Rate
1 to 5°C / s
Temperature of Soldering (°C)
250
200
150
100
50
Pre Heating Rate
1 to 5°C / s
0
Preliminary Heating
130 to 170°C,
50 to 120s
Soldering
230°C
20 to 30s
Cooling
more than 60s
2 times max.
Recommended peak temperature is over 245
°
If peak temperature is below 245 °C, you may adjust
C.
the following parameters; time length of peak temperature (longer), time length of soldering (longer),
thickness of solder paste (thicker)
4
www.kexin.com.cn
