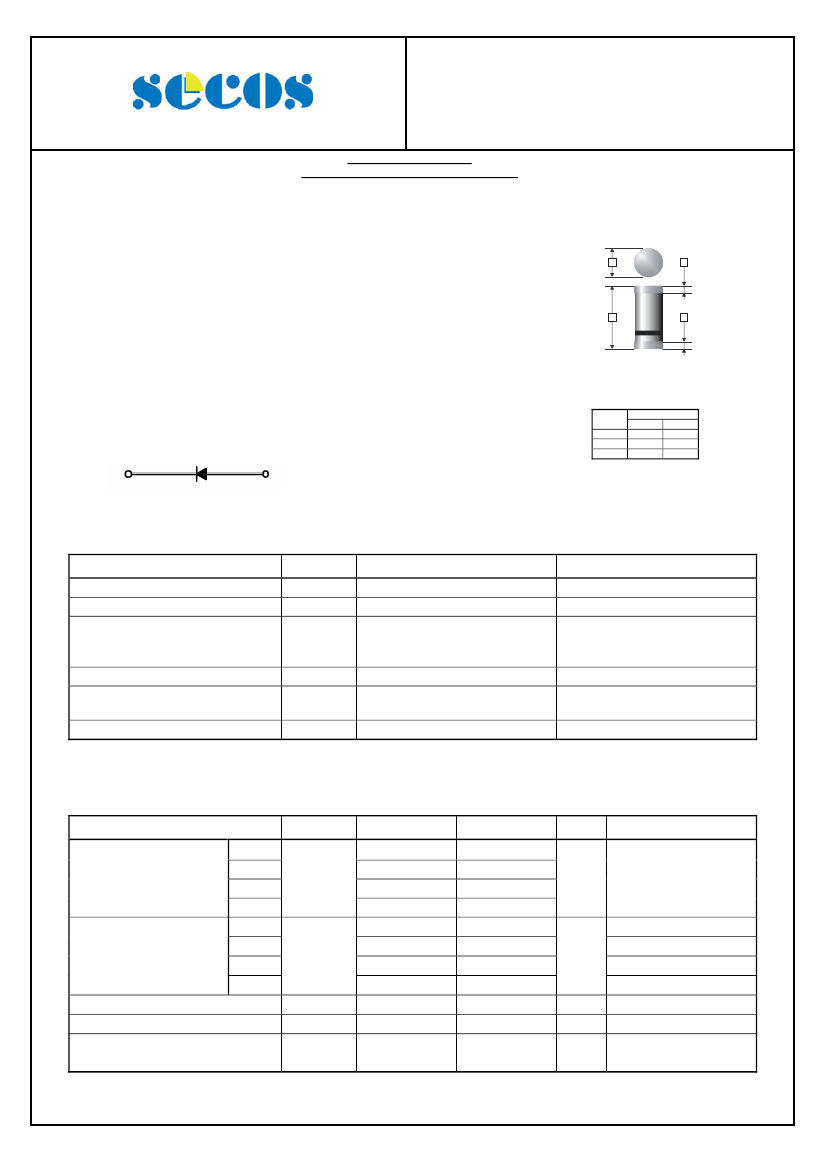

BAV100 ~ BAV103
Elektronische Bauelemente
Surface Mount Small Signal Switching Diode
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
FEATURES
SOD-80 (Mini-Melf)
SOD-80 (Mini-MELF) Package
Surface Device Type Mounting
Hermetically Sealed Glass
Compression Bonded Construction
All External Surfaces Are Corrosion Resistant
And Terminals Are Readily Solderable
RoHS Compliant
Matte Tin (Sn) Lead Finish
Color band Indicates Negative Polarity
B
C
A
C
REF.
ELECTRICAL SYMBOL
Cathode
Anode
A
B
C
Millimeter
Min.
Max.
3.30
3.70
1.40
1.60
0.28
0.50
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise noted)
Parameter
Maximum Repetitive Reverse Voltage
Average Rectified Forward Current
Non repetitive Peak Forward Current
Pulse Width = 1.0 Second
Pulse Width = 1.0
second
Power Dissipation
Thermal Resistance Junction to
Ambient
Junction, Storage Temperature
Symbol
V
RRM
I
F(AV)
I
FSM
P
D
R
θJA
T
J
, T
STG
Ratings
250
200
1.0
4.0
500
350
200, -65 ~ +200
Unit
V
mA
A
mW
°C
/ W
°C
These ratings are limiting values above which the serviceability of the diode may be impaired.
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise specified)
Parameters
BAV100
Breakdown Voltage
BAV101
BAV102
BAV103
BAV100
Reverse Leakage Current
BAV101
BAV102
BAV103
Forward Voltage
Capacitance
Reverse Recovery Time
V
F
C
T
RR
I
R
B
V
Symbol
Min.
60
120
200
250
-
-
-
-
-
-
-
Max.
-
-
-
-
100
100
100
100
1.0
5.0
50
Unit
V
Test Conditions
I
R
= 100
A
V
R
= 50V
nA
V
R
= 100V
V
R
= 150V
V
R
= 200V
V
pF
nS
I
F
= 100mA
V
R
= 0V, f = 1MHz
I
F
= I
R
= 30 mA,
I
RR
= 3mA, R
L
= 100
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
30-Aug-2010 Rev. A
Page 1 of 2
BAV100 ~ BAV103
Elektronische Bauelemente
Surface Mount Small Signal Switching Diode

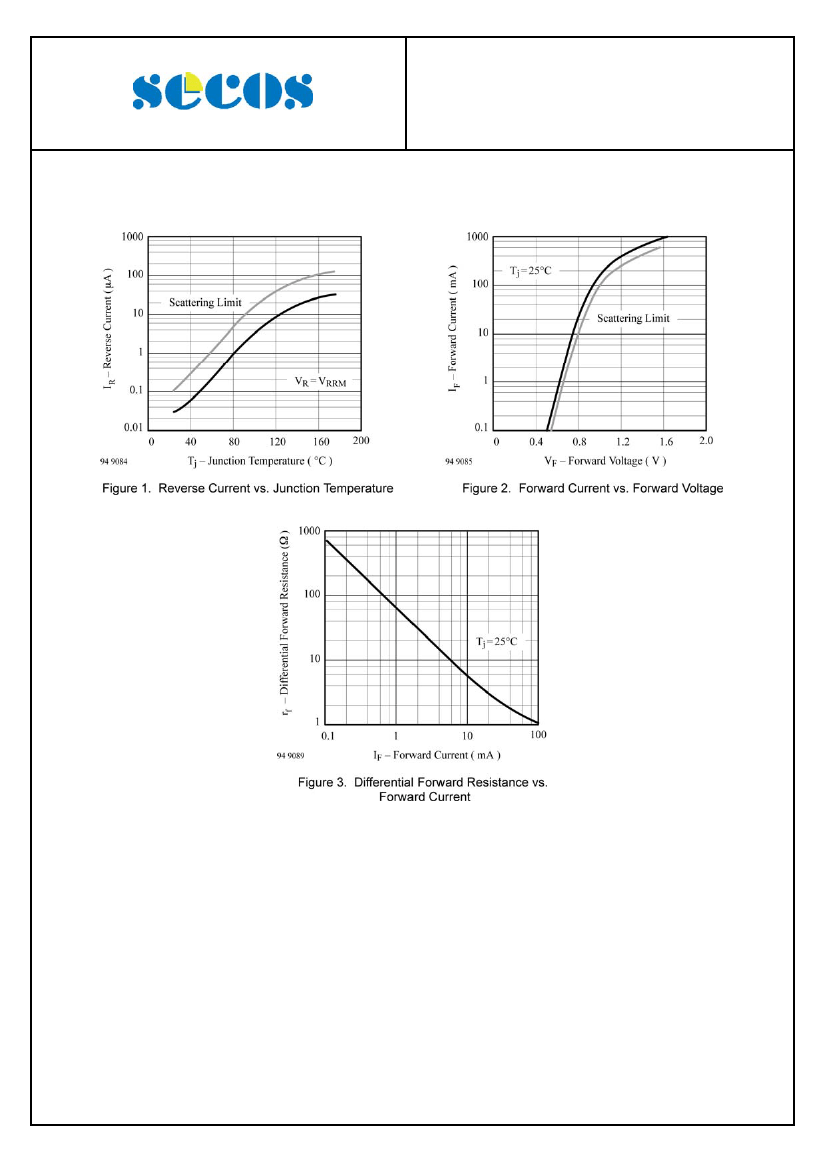

CHARACTERISTICS CURVE
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
30-Aug-2010 Rev. A
Page 2 of 2
