BAS70W/BAS70-04W/
BAS70-05W/BAS70-06W
Elektronische Bauelemente
VOLTAGE 70 V, 70 mA
Surface Mount Schottky Barrier Diodes
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
FEATURES
SOT-323
A
L
3
3
Low Turn-on voltage
Low Forward Voltage - 0.75V(Max) @ I
F
= 10 mA
Very Low Capacitance - Less Than 2.0pF @ 0V
For high speed switching application, circuit protection
1
Top View
2
C B
1
2
K
E
D
MECHANICAL DATA
F
REF.
A
B
C
D
E
F
G
Millimeter
Min.
Max.
2.00
2.20
2.15
2.45
1.15
1.35
0.90
1.10
1.20
1.40
0.20
0.40
H
REF.
G
H
J
K
L
J
Millimeter
Min.
Max.
0.100 REF.
0.525 REF.
0.08
0.15
-
-
0.525 TYP.
Case: SOT-323, Molded Plastic
Terminals: Solderable per MIL-STD-202,Method 208
Polarity: See Diagrams Below
Weight: 0.004 grams (approx.)
Mounting Position: Any
BAS70W Marking: K73, BE
BAS70-04W Marking: K74
BAS70-05W Marking: K75
BAS70-06W Marking: K76
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
J
= 150°C unless otherwise noted)
TYPE NUMBER
Reverse Voltage
Forward Power Dissipation
@ T
A
= 25°C
Derate above 25°C
SYMBOL
V
R
P
F
I
FM
I
FSM
T
J
, T
STG
VALUES
70
225
1.8
70
100
-55~150
UNITS
V
mW
mW /
°C
mA
℃
Forward Continuous Current
Single Forward Current
t
≦
10 m
Operating Junction and Storage Temperature Range
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise noted)
PARAMETERS
Reverse breakdown voltage
Diode capacitance
Reverse voltage leakage current
SYMBOL
V
(BR)R
C
T
I
R
TEST CONDITIONS
I
R
= 10µA
V
R
=0, f=1MHz
V
R
=50V
V
R
=70V
I
F
=1.0 mA
I
F
=10 mA
I
F
=15 mA
MIN
70
-
-
MAX
-
2.0
0.1
10
410
750
1000
UNITS
V
pF
A
Forward voltage
V
F
-
mV
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
23-June-2010 Rev. C
Page 1 of 2
BAS70W/BAS70-04W/
BAS70-05W/BAS70-06W
Elektronische Bauelemente
VOLTAGE 70 V, 70 mA
Surface Mount Schottky Barrier Diodes

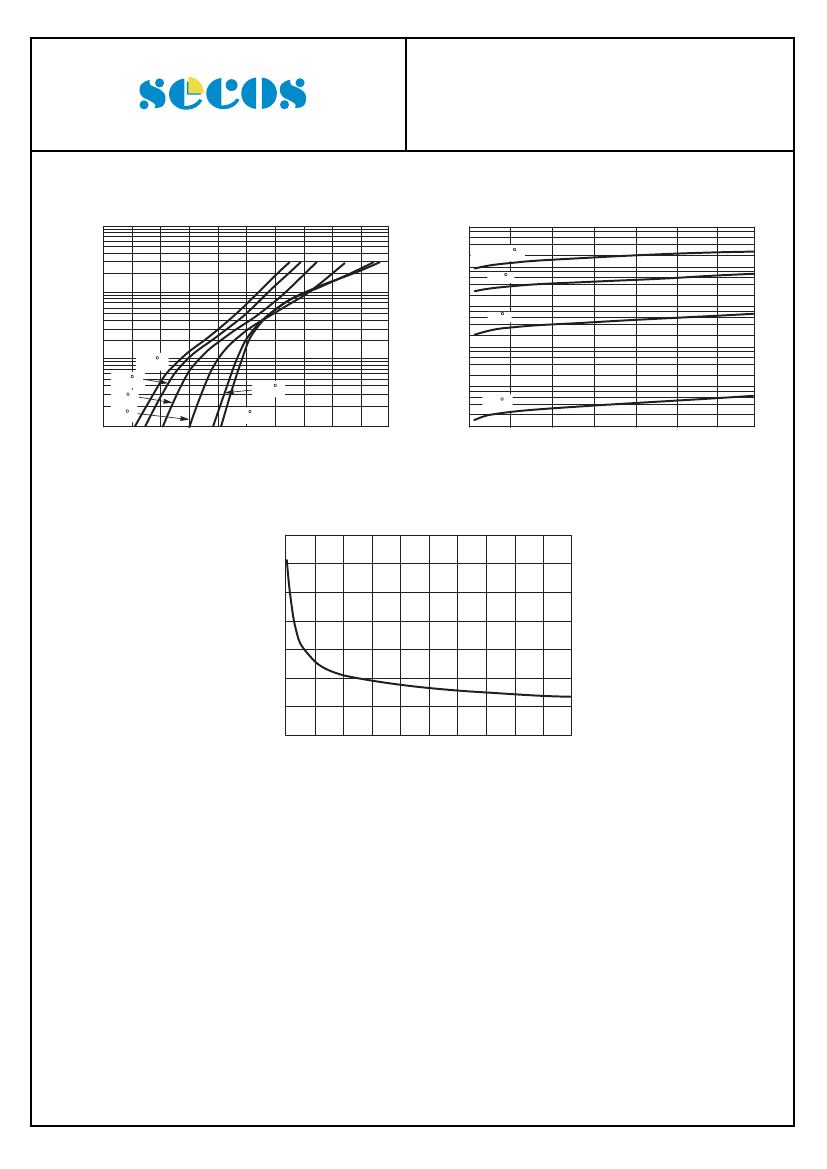

RATINGS AND CHARACTERISTIC CURVES
100
100
TA = 150 C
IR , Reverse Current (μA)
10
I F, Forward Current (mA)
125 C
10
1.0
85 C
0.1
1.0
150 C
125 C
85 C
25 C
0
0.1
0.2
0.3
0.4
± 40 C
± 55 C
0.5
0.6
0.7
0.8
0.9
1.0
0.01
25 C
0.001
0
10
20
30
40
50
VR, Reverse Voltage (V)
60
70
0.1
VF, Forward Voltage (V)
Figure 1. Typical Forward Voltage
Figure 2. Reverse Current versus Reverse
Voltage
1.4
1.2
C T, Capacitance (pF)
1.0
0.8
0.6
0.4
0.2
0
0
5.0
10
15
20
25
30
35
40
45
50
V R, Reverse Voltage (V)
Figure 3. Typical Capacitance
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
23-June-2010 Rev. C
Page 2 of 2
