DATA SHEET
SEMICONDUCTOR
YSULCxx04P10
H
APPLICATIONS
◆
Portable Electronics
◆
USB OTG interfaces
◆
Video Graphics Cards
◆
Notebooks, Desktops, and Servers
◆
Portable Instrumentation
◆
Industrial Controls
◆
Peripherals
DFN2510P10
IEC COMPATIBILITY
◆
IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
◆
IEC61000-4-4 (EFT) 40A (5/50ηs)
◆
IEC61000-4-5 (Lightning) 5A (8/20µs)
PIN CONFIGURATION
FEATURES
◆
100 Watts Peak Pulse Power per Line (tp=8/20µs)
◆
Protects Four High Speed Lines
◆
Low Clamping Voltage
◆
RoHS Compliant

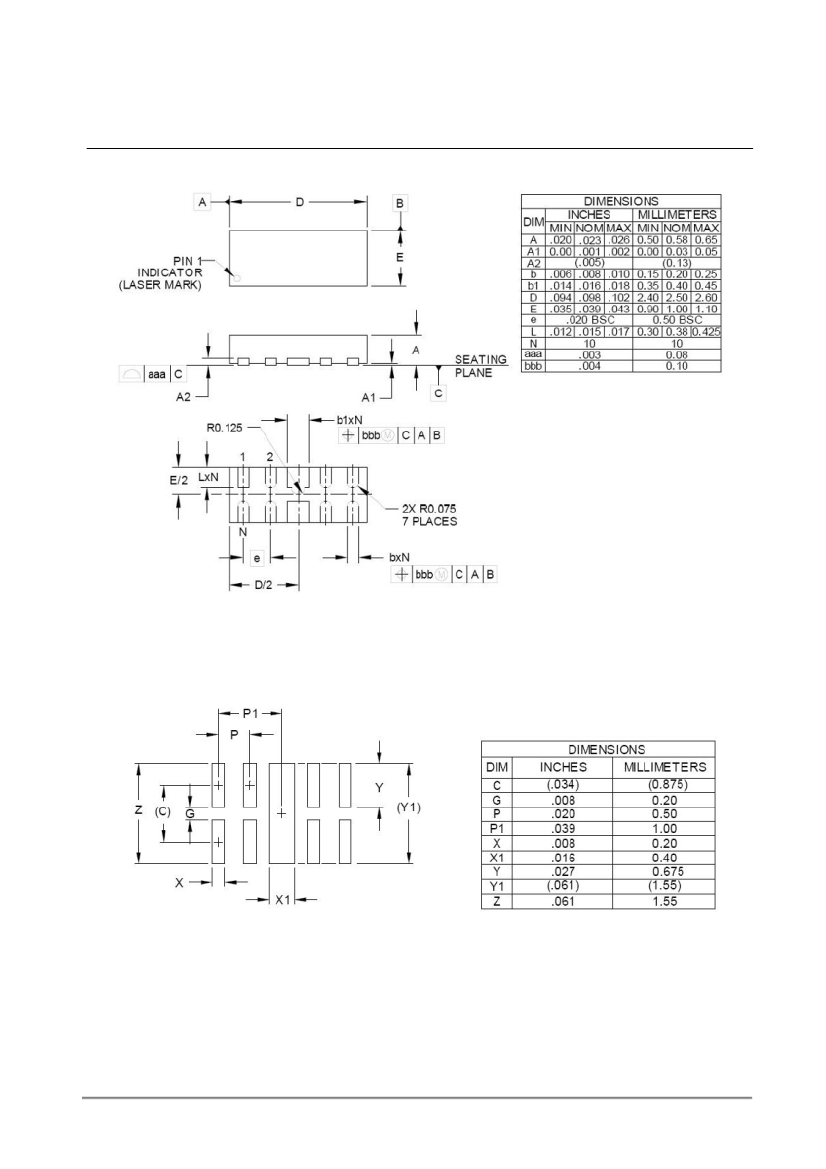

MECHANICAL CHARACTERISTICS
◆
DFN2510P10 (2.5x1.0mm) Package
◆
Molding Compound Flammability Rating : UL 94V-O
◆
Weight 5.0 Millgrams (Approximate)
◆
Quantity Per Reel : 3,000pcs
◆
Reel Size : 7 inch
◆
Lead Finish : Lead Free
Configuration per Line
http://www.yeashin.com
1
REV.02 20120403

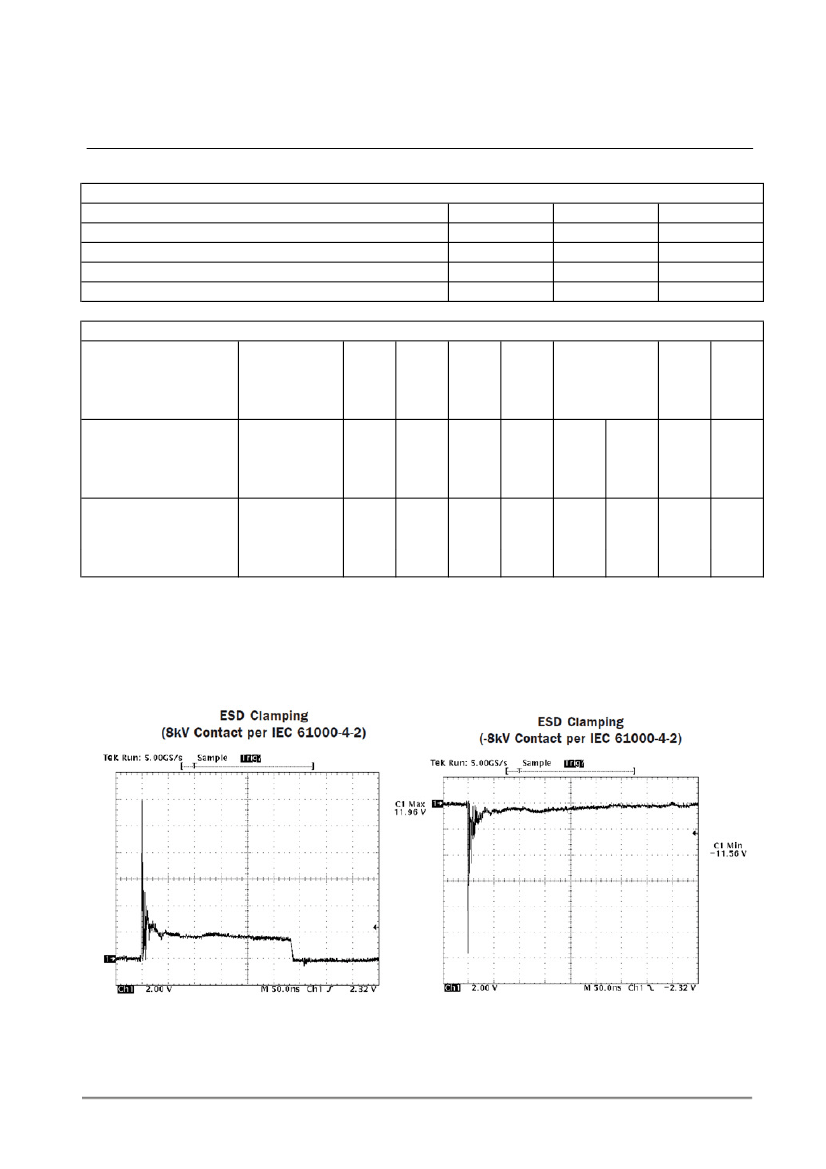

DEVICE CHARACTERISTICS
YSULCxx04P10
MAXIMUM RATINGS (@ 25℃ Unless Otherwise Specified)
PARAMETER
Peak Pulse Power (tp=8/20µs waveform)
Lead Soldering Temperature
Operating Temperature Range
Storage Temperature Range
SYMBOL
P
PP
T
L
T
J
T
STG
VALUE
100
260 (10 sec.)
-55 ~ 150
-55 ~ 150
UNITS
Watts
℃
℃
℃
ELECTRICAL CHARACTERISTICS PER LINE (@ 25℃ Unless Otherwise Specified)
DEVICE
MARKING
V
RWM
(V)
V
B
(V)
(mA)
V
C
I
T
(8/20us)
PART NUMBER
V
C (8/20us)
(@A)
I
R
(µA)
(max.)
C
T
(pF)
(typ.)
@1A
(max.) (max.)
(max.) (min.)
YSULC3304P10
304U
3.3
4.0
1
7.5
15
8
1
0.5
YSULC0504P10
504U
5
6.0
1
9.8
18
8
1
0.5
http://www.yeashin.com
2
REV.02 20120403
Transmission Line Pulse (TLP)
YSULCxx04P10
Transmission Line Pulse (TLP) is a measurement technique used in the Electrostatic Discharge (ESD) arena
to characterize performance attributes of devices under ESD stresses. TLP is able to obtain current versus
voltage (I−V) curves in which each data point is obtained with a 100 ns long pulse, with currents up to 40 A.
TLP was first used in the ESD field to study human body model (HBM) in integrated circuits, but it is an
equally valid tool in the field of system level ESD. The applicability of TLP to system level ESD is illustrated
in Figure 1, which compares an 8 kV IEC 61000−4−2 current waveform with TLP current pulses of 8 and 16 A.
The current levels and time duration for the pulses are similar and the initial rise time for the TLP pulse is
comparable to the rise time of the IEC 61000−4−2’s initial current spike. This application note will give a
basic introduction to TLP measurements and explain the datasheet parameters extracted from TLP for
Yeashin Technology’s protection products.

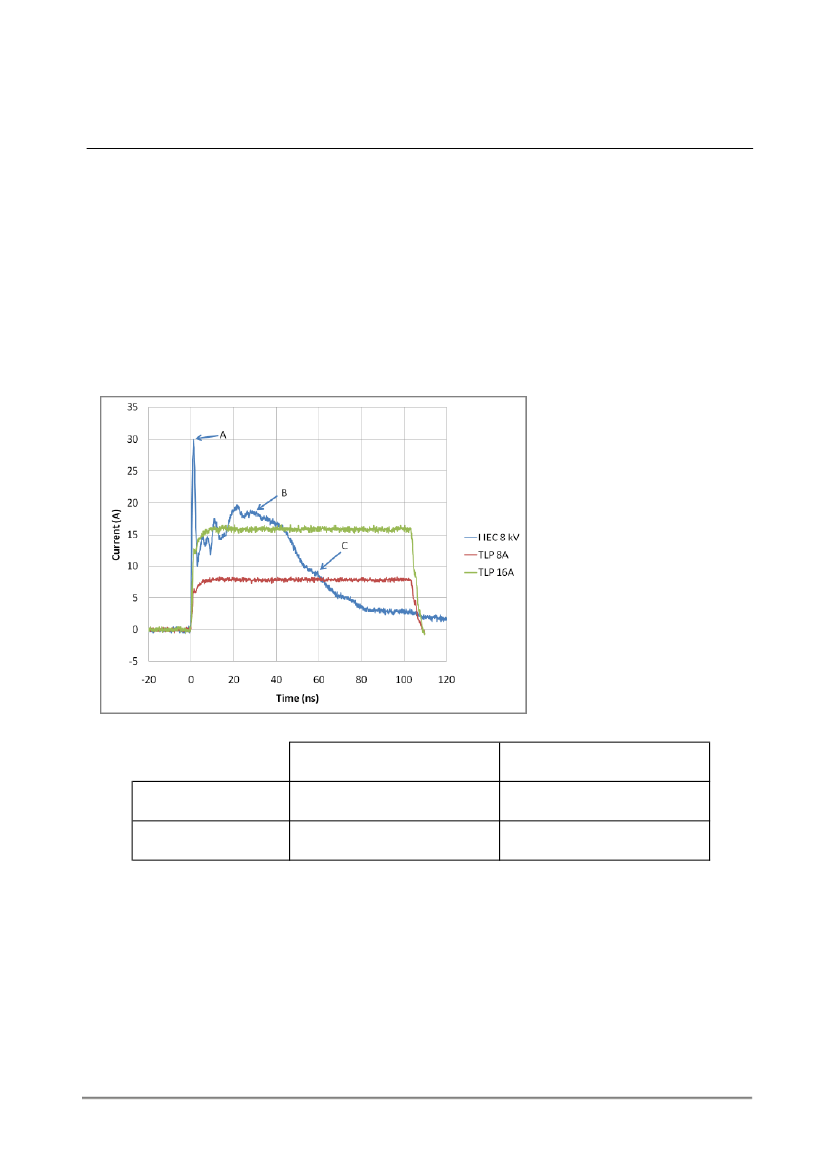

Comparison of a Current
Waveform of IEC 61000−4−2
with TLP Pulses at 8 and 16 A.
The IEC 61000−4−2 ESD
waveforms is true to the
Standard and is shown here
as captured on an oscilloscope.
The points A, B, and C show
the points on the waveforms
specified in IEC 61000−4−2.
4A
(tp=100ns)
ULC3304P10
ULC0504P10
5.5V(typ.)
7.8V(typ.)
8A
(tp=100ns)
8.5V(typ.)
9.5V(typ.)
http://www.yeashin.com
3
REV.02 20120403
