FUF5400........ FUF5408
3 Amp. Glass Passivated Ultrafast Recovery Rectifier
Dimensions in mm.
DO-201AD
(Plastic)
Voltage
50 to 1000 V.
Current
3 A at 55 ºC.
®
9.1
± 0.3
62.5
± 0.5
Mounting instructions
1. Min. distance from body to soldering point,
4 mm.
2. Max. solder temperature, 350 °C.
3. Max. soldering time, 3.5 sec.
4. Do not bend lead at a point closer than
3 mm. to the body.
•
Glass Passivated Junction
•
High current capability
•
The plastic material carries
U/L recognition 94 V-0
•
Terminals: Axial Leads
•
Polarity: Color band denotes cathode
FUF 5400 FUF 5401 FUF 5402 FUF 5404 FUF 5406 FUF 5407 FUF 5408
Maximum Ratings, according to IEC publication No. 134
V
RRM
V
RMS
V
DC
I
F(AV)
I
FRM
I
FSM
t
rr
C
j
T
j
T
stg
E
RSM
Peak Recurrent reverse voltage (V)
Maximum RMS voltage
Maximum DC blocking voltage
Forward current at Tamb = 55 °C
Recurrent peak forward surge current
8.3 ms. peak forward surge current
(Jedec Method)
50
35
50
100
70
100
200
140
200
400
280
400
3A
30 A
150 A
600
420
600
800
560
800
1000
700
1000
Max. reverse recovery time from
I
F
= 0.5 A ; I
R
= 1 A ; I
RR
= 0.25 A
Typical Junction Capacitance at 1 MHz
and reverse voltaje of 4V
DC
Operating temperature range
Storage temperature range
Maximum non repetitive peak
reverse avalanche energy.
I
R
= 1A ; T
J
= 25 ºC
Max. forward voltage drop at I
F
= 3 A
Max. reverse current at V
RRM
at 25 ºC
Max. thermal resistance ( l = 10 mm.)
50 ns
45 pF
– 65 to + 150 °C
– 65 to + 150 °C
20 mJ
75 ns
Electrical Characteristics at Tamb = 25 °C
V
F
I
R
R
thj-a
1.3 V
5µA
30 °C/W
1.7 V
FUF5400

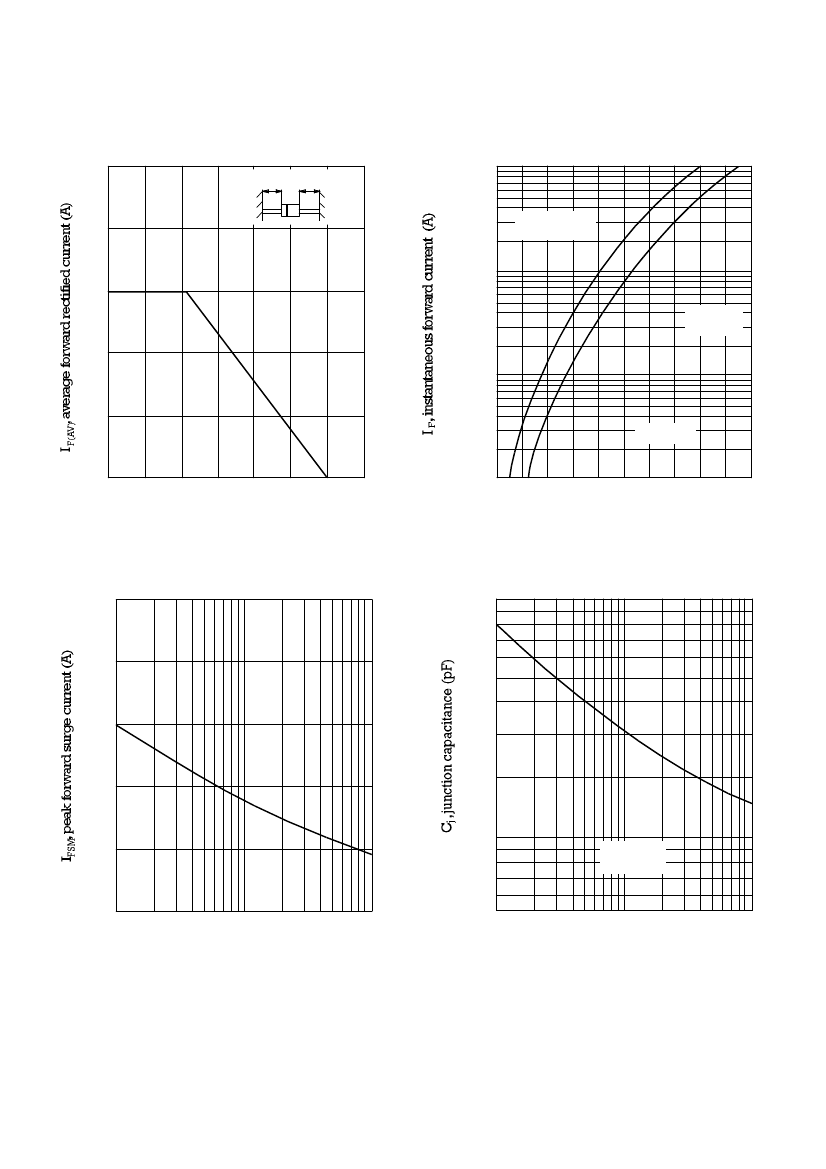

Rating And Characteristic Curves
FORWARD CURRENT DERATING CURVE
5
10 mm. - 10 mm.
FUF5400 thru
FUF5404
TYPICAL FORWARD CHARACTERISTIC
10
4
1
3
FUF5406
FUF5408
2
0.1
1
T j = 25 ºC
0
0
25
50
75
100
125
150
175
Tamb, ambient temperature (ºC)
0.01
0.6
F
0.8
1
1.2
1.4
1.6
V , instantaneous forward voltage (V)
MAXIMUM NON REPETITIVE
PEAK FORWARD SURGE CURRENT
250
TYPICAL JUNCTION CAPACITANCE
100
200
50
150
100
10
50
T j = 25 ºC
f = 1 MHz
0
1
2
4
6
10
20
40
100
Number of cycles at 60 Hz.
5
1
5
10
50
100
V
R
, reverse voltage (V)
