ILSU series
Submersible Level Transmitter
Stainless steel, piezo-resistive sensor
Accuracy: <0.1% FS BFSL
Depth ranges from 0-48" (0-4ft) to 0-3600" (0-300ft) WG
Various cable lengths
Suitable applications
River level
Reservoir level
Tank level
Borehole level
Aquifer level
Environmental monitoring
V-notch weir flow measurement
Performance
The ILSU is designed for use in continuous
submersion in liquids such as water, oil and
other non-aggressive chemicals. The
submersible uses the latest piezo-resistive
media-isolated silicon sensing technology and
a stainless steel diaphragm within a 316L
stainless steel housing.
It offers excellent stability, repeatability and
resolution, as required for use in rivers and
reservoirs. This submersible level transmitter
is the ideal product for reliable and repeatable
hydrostatic level measurement.
The electronics incorporate a microprocessor
based amplifier, requiring no adjusting and
giving stable electronics.
Each device is temperature compensated,
calibrated and supplied with a traceable
serial number and calibration certificate.
Custom versions can be made for particular applications.
Accuracy (Non-Linearity & Hysteresis)
<±0.1% / FS (BFSL)
Setting Errors (offsets)
Permissible Load
Influence Effects
Zero & Full Scale, <±0.5% / FS
R
max
= [(Voltage Supply-9)/0.02]Ohms
Supply
<0.005% FS / 1V
Load
0.05% FSO / kOhm
Input Pressure Range
Nominal Pressure, Gauge
Permissible Overpressure
inchWG
inchWG
40
800
100
800
200
1000
400
1000
800
1000
1000
2000
4000
2000
Output Signals and Supply Voltages
Wire systemOutput
2-wire
4-20mA
Supply Voltage
9-32Vdc
Connection
+ve Supply
-ve Supply
Ground
Cable Screen
PUR sheath
Wire Colours
Red
Blue
White
Green
Cynergy3 Components Ltd.
7 Cobham Road
Ferndown Industrial Estate
Wimborne, Dorset BH21 7PE
Telephone +44 (0) 1202 897969
Email:sales@cynergy3.com
Web: www.cynergy3.com
ISO
9001
ILSU 2015
CERTIFIED
www.cynergy3.com
© 2015 Cynergy3 Components, All Rights Reserved. Specifications are subject to change without prior notice. Cynergy3 Components and the Cynergy3 Components logo are trademarks of Cynergy3 Components Limited.
ILSU series
Submersible Level Transmitter
Electrical Protection
Supply reverse polarity protection
Lightning protection
Electromagnetic compatibility
Mechanical Stability
Shock
Vibration
No damage/no function
Internally fitted
CE Compliant
Material Specifications
Housing
“O” ring seals
Diaphragm
Cable sheath material
Media wetted parts
Miscellaneous
Weight
Current consumption
Installation position
Operational life
100g / 11ms
10g RMS (20 - 2000Hz)
316L Stainless Steel
Viton
316L Stainless Steel
PUR
Housing, “O” ring seal, diaphragm &
cable sheath
Transmitter: approx 9oz (250g)
Cable: 1.7oz (48g) per yard (metre)
Limits at 28mA
Any, small zero shift when tilted through 90º
Temperature & Thermal Effects
Media temperature
-20ºC (Non-freezing) to +60ºC
Storage temperature
-20ºC to +70ºC
Compensated temperature range
20ºC±25ºC
Thermal zero shift (TZS)
<±0.02%/FS/ºC
Thermal span shift (TSS)
<±0.01%/ºC
> 100x 10 cycles
6
Part No
ILSU-Gi048-003
ILSU-Gi120-005
ILSU-Gi240-008
ILSU-Gi360-016
ILSU-Gi720-025
ILSU-Gi1K8-060
ILSU-Gi3K6-110
Pressure Range
0-48" WG
0-120" WG
0-240" WG
0-360" WG
0-720" WG
0-1800" WG
0-3600" WG
Cable Length
10ft
16ft
26ft
52ft
82ft
196ft
360ft
Output
4-20mA
4-20mA
4-20mA
4-20mA
4-20mA
4-20mA
4-20mA
(Custom ranges and outputs available on request)

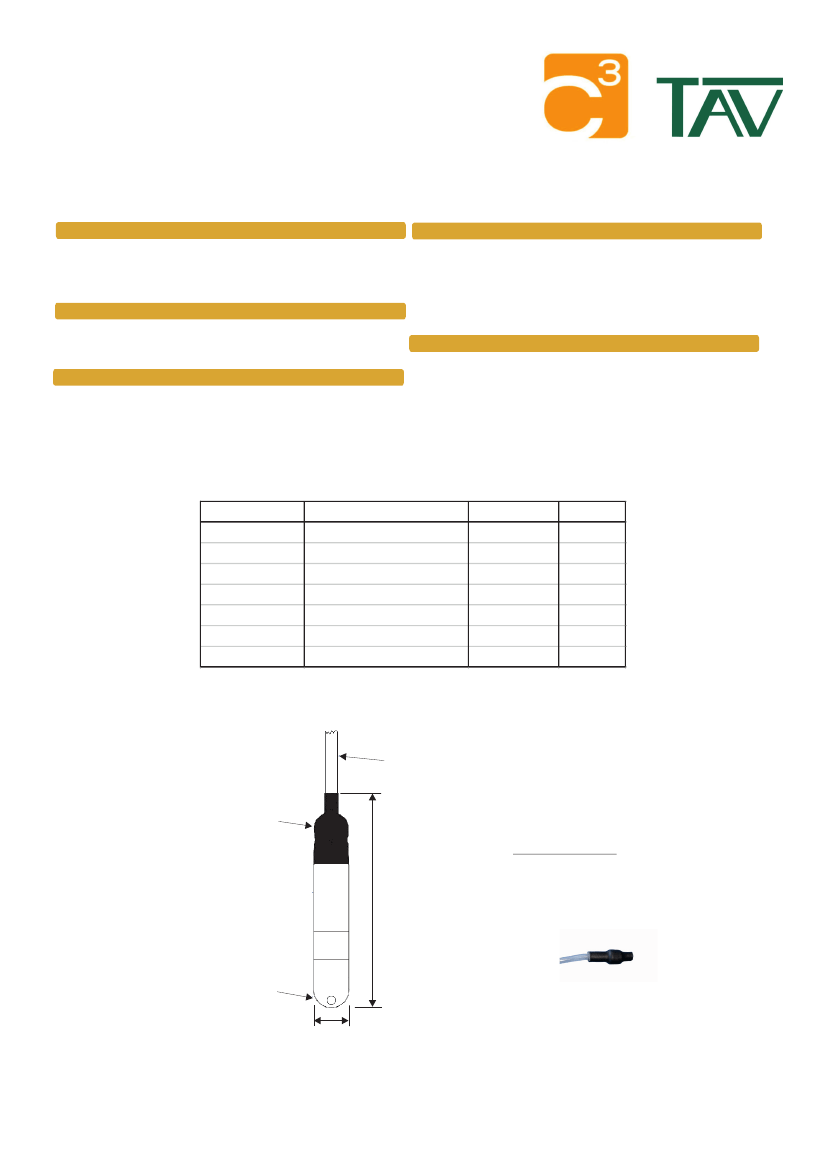

Mechanical Dimensions
PUR sheathed vented cable
Boot
Installation Note.
The vented cable is fitted with a
filter (shown below) to prevent
the entry of moisture. If removed,
ensure vent tube is positioned in
a clean, dry area.
150mm Nominal
(6")
Nose cone
25mm dia
(1")
ISO
9001
ILSU 2015
© 2015 Cynergy3 Components, All Rights Reserved. Specifications are subject to change without prior notice. Cynergy3 Components and the Cynergy3 Components logo are trademarks of Cynergy3 Components Limited.
CERTIFIED
www.cynergy3.com
