2681-6-08-1: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size79KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2681-6-08-1 Overview

Board Connector, 8 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking

2681-6-08-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307764622
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.197 inch
subject depth	0.496 inch
body length	0.9 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	2681
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

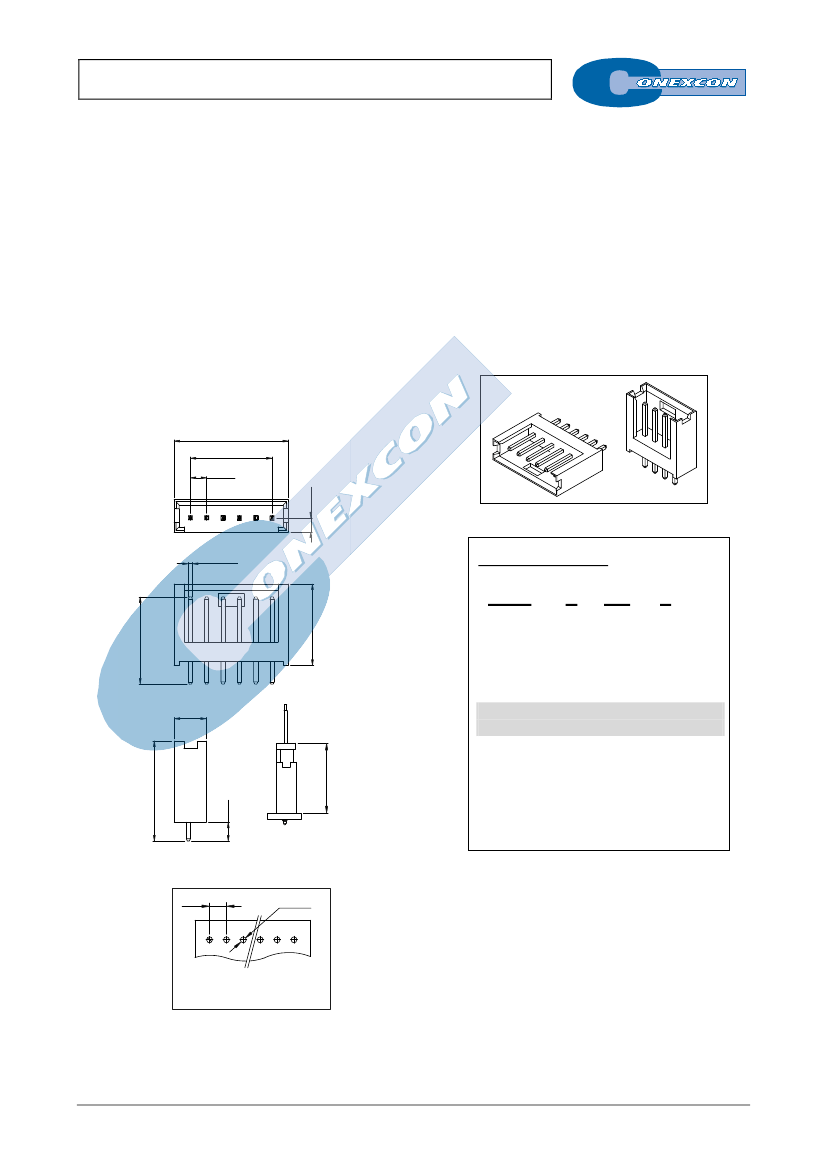

SINGLE ROW TOP ENTRY HEADER

2681 SERIES.

2.54 mm (0.100”) pitch.

General Features

Electrical Features



Available in 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15

and 22 circuits



Mates with 2.54 mm crimp housing 2680 series



0,64 mm. square pin tin plated



Fully shrouded with positive lock

Materials



Voltage rating: < 250V

Current rating: < 3 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Mechanical Features



Insulator: PBT UL 94 V-0

Contact: Tin plated brass

Operating temperature: -25ºC to +85ºC

RoHS compliant



Pin retention force to insulator: > 1.00 Kgf



Durability: 25 cycles

Dimension Information

B

A

2.54

.100

2.2

.087

0.64

.025

Ordering Information:

2681 -

14.2

.559

12.6

.496

T-

2

XX-

3

1

4

1

1. Connector Series

2. (T) Contact Plating

5.0

.197



T =

2.

Tin plated

Recommended Finish

17.30

16.1

.634

.681



T =

3.

Gold flash over nickel



T =

5.

15µ” gold over nickel



T =

6.

30µ” gold over nickel

3. (XX) Number of circuits

3.5

.138

Mating

Dimensions



Available in 2 through 22 circuits

2.54

ø1.0

±0.1

ø .039

.100

Dimensions:

(In mm.)

A

= 2.54 x (XX*-1)

B

= 2.54 x (XX)+2.54

RECOMMENDED HOLE PATTERN

Thickness: 1.0 ~ 1.6mm.

* XX

(Number of circuits)

E-XX
