7670-7024 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 7670-7024

Preview

7670-7024: DescriptionTelecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size199KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

7670-7024 Overview

Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack

7670-7024 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	306941298
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	SPLIT BOARD LOCK
body width	0.53 inch
subject depth	0.62 inch
body length	1.246 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	300VAC V
Durability	1000 Cycles
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	7670
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	16

Preview

Download Datasheet

View All

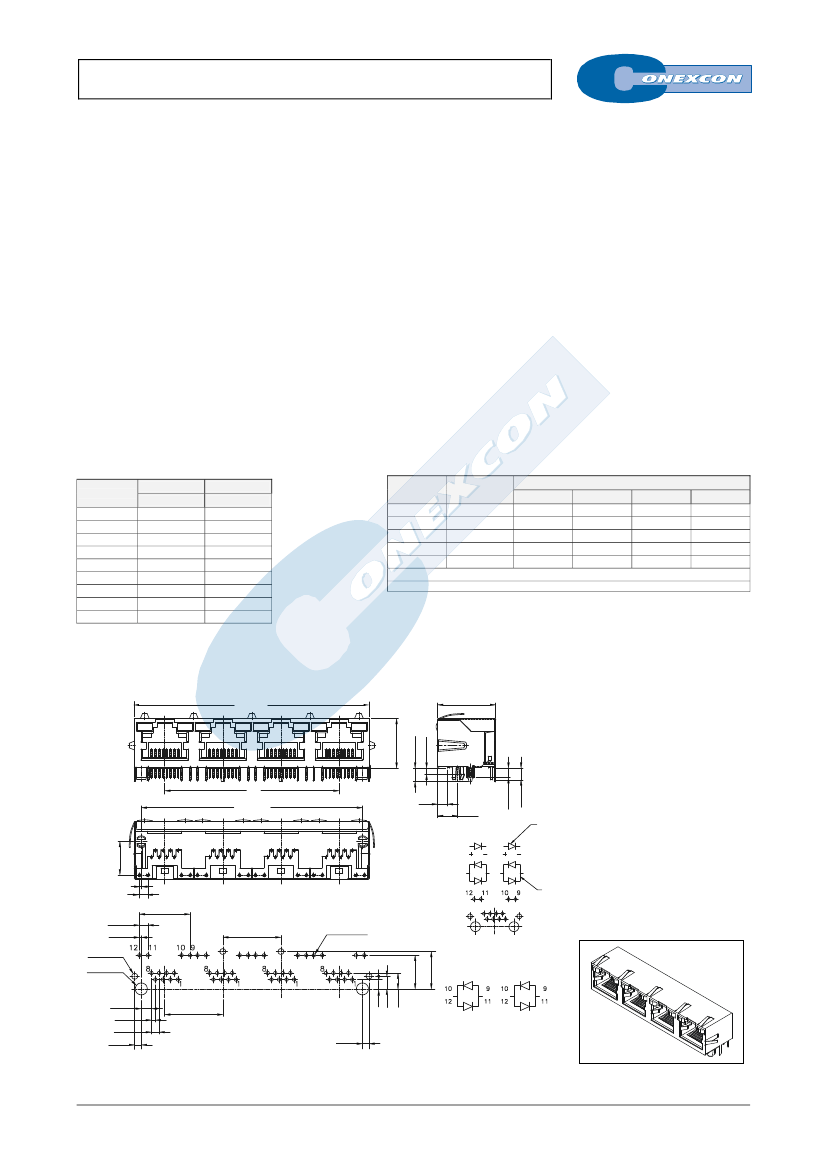

SIDE ENTRY MULTI PORT PCB JACK FCC-68

7670 SERIES.

With leds. Shielded multi port single level.

General Features

Electrical Features



Available in 8/8 circuits

Standard telephone jack FCC-68

Available in 1, 2, 4, 6 and 8 ports

13.45 mm. height

Accept standard plugs FCC-68

Selective gold plating with different plating

Bifurcated plastic foot print

With side and upper grounding tabs



Voltage rating: < 125V

Current rating: < 1.50 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features



Insulator: Thermoplastic UL 94V-0

Contact: 0.46 mm round in phosphor bronze

Operating temperature. -25ºC to + 85ºC

RoHS compliant



Durability: 1000 cycles

Dimensional Information

OPCION C

C=

0

C=

1

C=

2

C=

3

C=

4

C=

5

C=

6

C=

7

C=

8

LED 1

RIGHT

W/O LED

GREEN

YELLOW

GREEN

YELLOW

YELL/GREEN

GRREN/RED

YELLOW

LED 2

LEFT

W/O LED

YELLOW

W/O LED

GREEN

YELLOW

YELL/GREEN

GREEN/RED

YELL/GREEN

PORTS

1

2

4

6

8

Part Number

7670 –

T01C*

7670 –

T02C*

7670 –

T04C*

7670 –

T06C*

7670 –

T08C*

DIMENSIONS

A

15.91

31.66

63.16

95.26

126.16

B

-

15.75

47.25

78.75

110.25

C

12.70

28.45

59.94

91.45

122.94

D

2.54

2.37

2.67

2.37

*optional: add

1

for connector without grounding tabs

*optional: add

2

for connector with only upper grounding tabs

T = Plating Options

A±0.25

13.46±0.25

LED 2

LED 1

15.75±0.25



T =

4.

10µ” gold over nickel

T =

5.

15µ” gold over nickel

T =

6.

30µ” gold over nickel

T =

7.

50µ” gold over nickel

D

5.46

C±0.15

3.20

2.62

B

3.68

1.70

CONFIGURATION FOR

ONE COLOUR LED

(RED, GREEN, YELLOW

9.14

0.51

2.29

13.72

RECOMMENDED HOLE PATTERN

15.75

48-ø0.89

SCHEMATIC

CONFIGURATION FOR

BICOLOUR LED

2.29

0.51

4-ø1.57

9.14

3-ø3.23

10.16

GREEN

YELLOW

2.78

1.02

2.04

1.78

2.54

3.43

4.32

15.75

1.78

RED

GREEN

DETAIL BICOLOR LED

GREEN/RED & YELLOW/GREEN

AVAILABLES FOR LED ARD

E-XX

FULL LINE CATALOGUE
