PH2R15-240TEB3.9/2.8/2.5-U datasheet, PDF

Datasheet> All Categories > The connector> The connector> PH2R15-240TEB3.9/2.8/2.5-U

PH2R15-240TEB3.9/2.8/2.5-U: DescriptionBoard Connector, 80 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size185KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PH2R15-240TEB3.9/2.8/2.5-U Overview

Board Connector, 80 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle

PH2R15-240TEB3.9/2.8/2.5-U Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1164564967
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.157 inch
subject depth	0.187 inch
body length	3.15 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (200)
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e3
Manufacturer's serial number	PH2R
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	200u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	80

Preview

Download Datasheet

View All

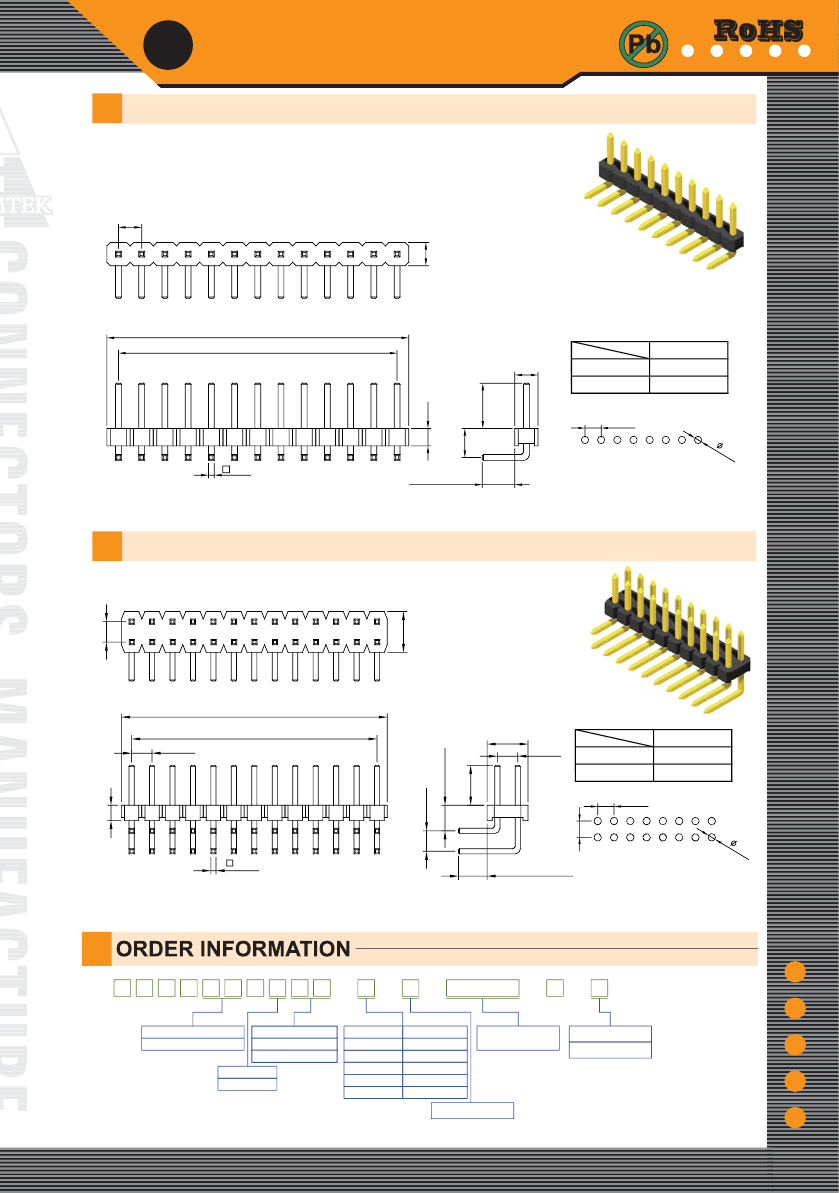

in Header 2.0mm

Pin Header 2.0mm 1 Row H=1.5/2.0mm Right Angle Type

Specifications

Current Rate:2.0 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:500V AC for one minute

Operation Temperature:-40°C to +105°C

Material

Insulator:Polyester,UL 94V-0

Standard:PBT or Nylon 6T

Terminal:Copper Alloy

Plating:Gold Plated

H=1.5mm

H=2.0mm

Dim. C

2.50

3.00

Part No.:PH2R15/20-1XX-L/U

Pin Header 2.0mm 2 Row H=1.5/2.0mm Right Angle Type

H=1.5mm

H=2.0mm

Dim. C

2.50

3.00

Part No.:PH2R15/20-2XX-L/U

P H 2 R X X - X X X

15:Insulator Height H=1.5mm

20:Insulator Height H=2.0mm

No. of Contacts Per Row

H=1.5mm (02~50)

H=2.0mm (02~40)

1:Single Row

2:Dual Row

G:Gold Flash

GA:Gold 5u"

GB:Gold 10u"

GC:Gold 20u"

GD:Gold 30u"

T:Tin Plated

S:Selective

SA:Selective 5u"

A/B/C

L:RoHS + PBT

U:RoHS + Nylon 6T

Fill in Dimensions For

Special Design

SB:Selective 10u"

SC:Selective 20u"

SD:Selective 30u"

TE:Tin 200u"

B:Black Insulator

Standard Recommended

www.amtek-co.com.tw

2-48
