MZ8813 / MZ8813C
Triple-Balanced Mixer
Rev. V3
Features
•
•
•
•
•
•
LO 2 to 18 GHz
RF 2 to 18 GHz
IF 1 to 8 GHz
LO Drive +13 dBm (nominal)
Wide Bandwidth
Available with Field Replaceable Connectors

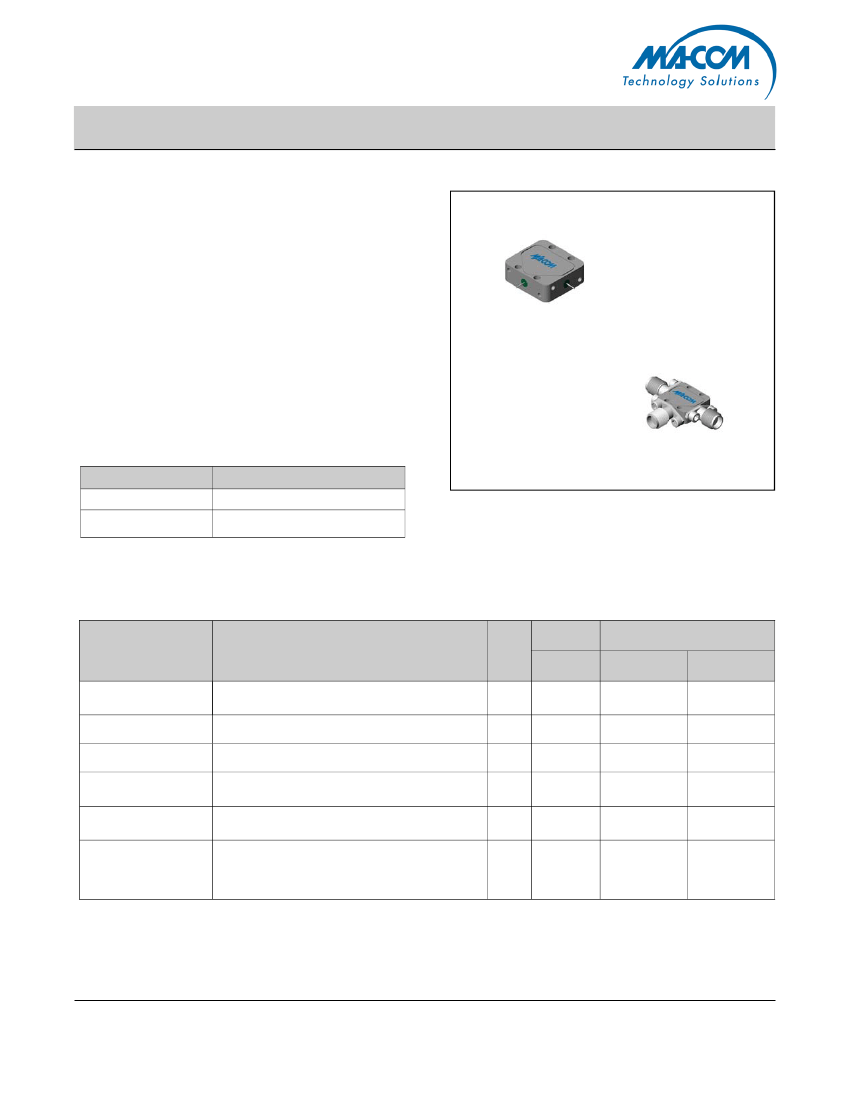

Product Image
Description
The MZ8813 is a triple balanced mixer, designed for use in mili-
tary, commercial and test equipment applications. The design
utilizes Schottky ring quad diodes and broadband soft dielectric
baluns to attain excellent performance. The use of high tempera-
ture solder and welded assembly processes used internally
makes it ideal for use in manual, semi-automated assembly.
Environmental screening available to MIL-STD-883, MIL-STD-202
or MIL-DTL-28837, consult factory.
Ordering Information
Part Number
MZ8813
MZ8813C
Package
Versapac
SMA Connectorized
Electrical Specifications: Z
0
= 50Ω Lo = +13 dBm (Downconverter application only)
Typical
Parameter
SSB Conversion Loss
(max)
SSB Noise Figure (max)
Isolation, L to R (min)
Isolation, L to I (min)
1 dB Conversion Comp.
Guaranteed
+25ºC
-54º to +85ºC
9.5
11.5
____
13
14
Test Conditions
fR = 3 to 10 GHz, fL = 2 to 15 GHz, fI = 1 to 5 GHz
fR = 2 to 18 GHz, fL = 2 to 18 GHz, fI = 1 to 8 GHz
Within 1 dB of conversion loss
fL = 2 to 18 GHz
fL = 2 to 18 GHz
fL = +13 dBm
fR1 = 3 GHz at –10 dBm, fR2 = 3.01 GHz at –10 dBm, fL = 5 GHz
at +13 dBm
fR1 = 17.99 GHz at –10 dBm, fR2 = 18 GHz at –10 dBm, fL = 14
GHz at +13 dBm
Units
6.5
7.5
____
25
28
+8
9.0
11.0
____
15
16
dB
dB
dB
dB
dBm
Input IP3
dBm
+19
+16
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MZ8813 / MZ8813C
Triple-Balanced Mixer
Rev. V3

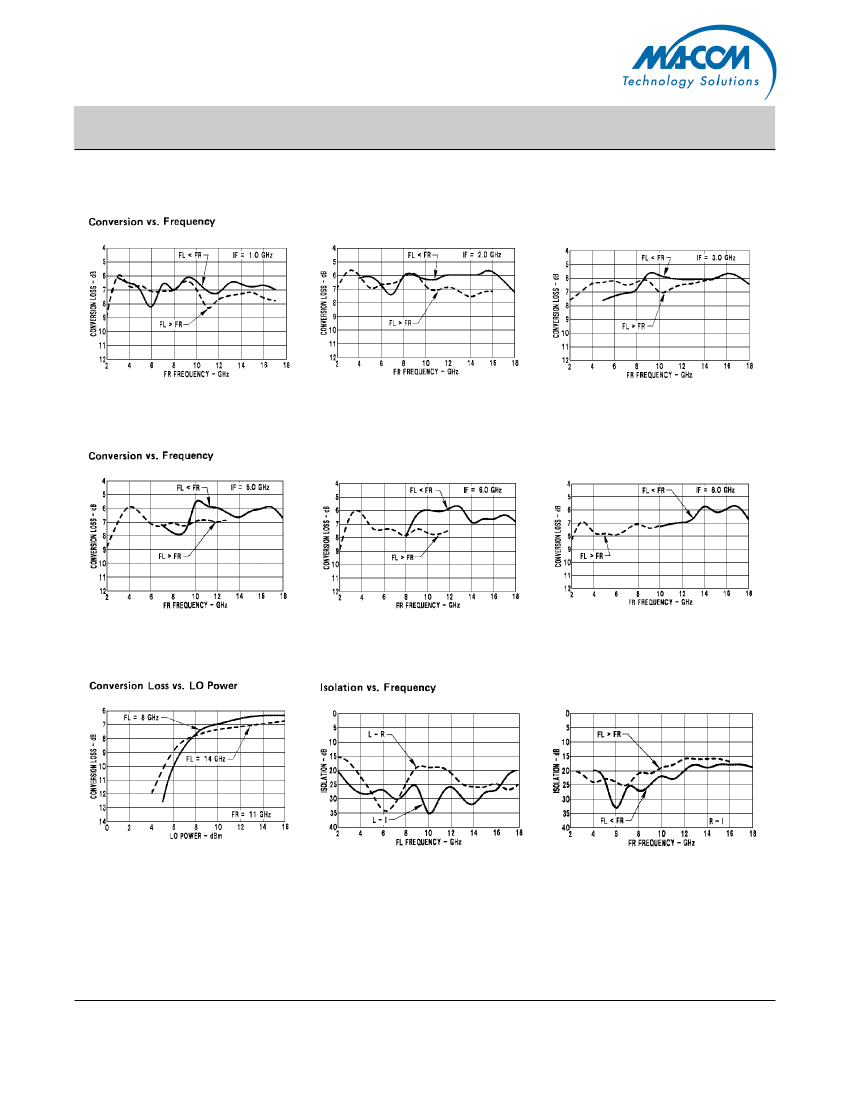

Typical Performance Curves
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MZ8813 / MZ8813C
Triple-Balanced Mixer
Rev. V3
Absolute Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Peak Input Power
Peak Input Current

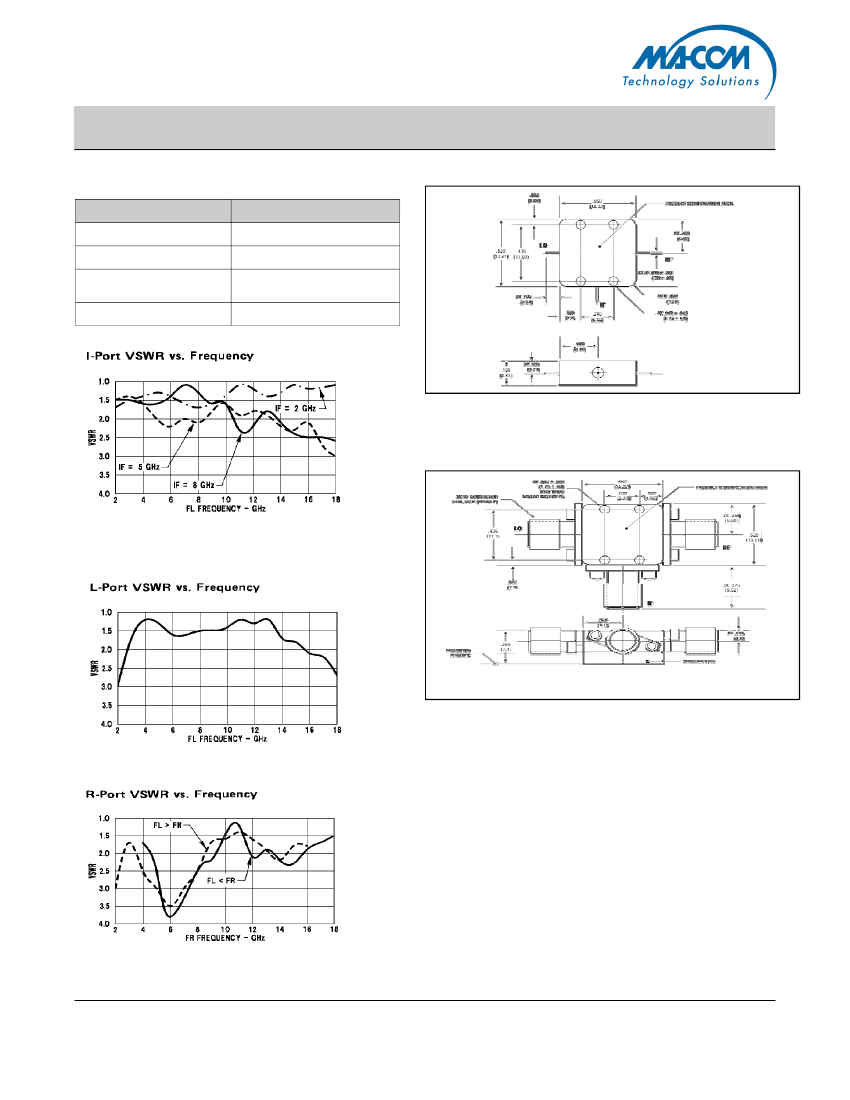

Outline Drawing: Versapac
*
Absolute Maximum
-54ºC to +100ºC
-65ºC to +100ºC
+26 dBm max @ +25ºC
+23 dBm max @ +100ºC
100 mA DC
Weight: 4 grams (0.14 oz.) max
Outline Drawing: SMA Connectorized
*
Weight: 13 grams (0.46 oz.) max
∗
Dimensions are inches (millimeters) ±0.015 (0.38) unless otherwise specified.
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
