3843.62.1420.085 datasheet, PDF

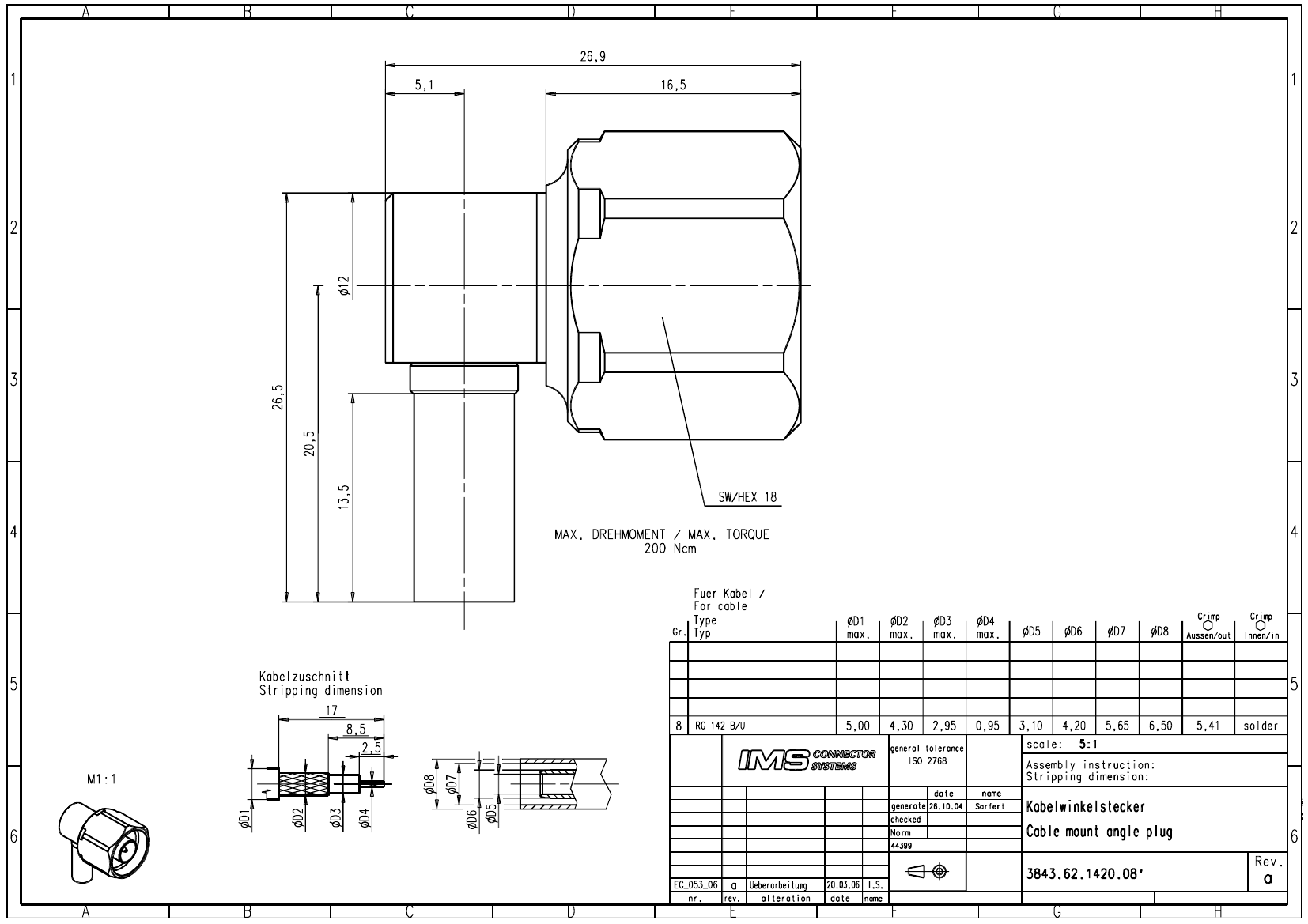

3843.62.1420.085: DescriptionRF N Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Plug; CategoryThe connector The connector; File Size158KB，1 Pages; ManufacturerIMS Connector Systems Gmbh

Download Datasheet Parametric Compare View All

3843.62.1420.085 Overview

RF N Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Plug

Parameter Name	Attribute value
Objectid	1732549178
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
subject depth	1.059 inch
Body diameter	0.787 inch
Body/casing type	PLUG
Cable type	RG-142B/U
Characteristic impedance	50 Ω
Connector type	RF N CONNECTOR
Contact point gender	FEMALE
Contact resistance	1 mΩ
Contact style	COAX
Dielectric withstand voltage	750VAC V
Durability	500 Cycles
Insertion loss	0.03 dB
Insulation resistance	5000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE
Manufacturer's serial number	3843
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	CABLE
Number of ports	1
Maximum operating frequency	11 GHz
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Rated current (signal)	10 A
Terminal length	0.531 inch
Termination type	CRIMP
Total number of contacts	1
voltage standing wave ratio	1.05

	3843.62.1420.085	3843.62.1420.089
Description	RF N Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Plug	RF N Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Plug
Objectid	1732549178	305229516
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	ROHS COMPLIANT	ROHS COMPLIANT
subject depth	1.059 inch	1.059 inch
Body diameter	0.787 inch	0.787 inch
Body/casing type	PLUG	PLUG
Cable type	RG-142B/U	RG-142B/U
Characteristic impedance	50 Ω	50 Ω
Connector type	RF N CONNECTOR	RF N CONNECTOR
Contact point gender	FEMALE	FEMALE
Contact resistance	1 mΩ	1 mΩ
Contact style	COAX	COAX
Dielectric withstand voltage	750VAC V	750VAC V
Durability	500 Cycles	500 Cycles
Insertion loss	0.03 dB	0.03 dB
Insulation resistance	5000000000 Ω	5000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	CABLE	CABLE
Number of ports	1	1
Maximum operating frequency	11 GHz	11 GHz
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Rated current (signal)	10 A	10 A
Terminal length	0.531 inch	0.531 inch
Termination type	CRIMP	CRIMP
Total number of contacts	1	1
voltage standing wave ratio	1.05	1.05
