W9812G6KH-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> W9812G6KH-5

W9812G6KH-5: DescriptionSYNCHRONOUS DRAM; Categorystorage; File Size1MB，42 Pages; ManufacturerWinbond Electronics Corporation; Websitehttp://www.winbond.com.tw

Download Datasheet Parametric Compare View All

W9812G6KH-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	W9812G6KH-5	-	-	View	Buy Now

W9812G6KH-5 Overview

SYNCHRONOUS DRAM

W9812G6KH-5 Parametric

Parameter Name	Attribute value
state	ACTIVE
Memory IC type	SYNCHRONOUS DRAM

Preview

Download Datasheet

View All

W9812G6KH



4 BANKS



16 BITS SDRAM

Table of Contents-

GENERAL DESCRIPTION .............................................................................................................. 3

FEATURES ...................................................................................................................................... 3

ORDER INFORMATION.................................................................................................................. 3

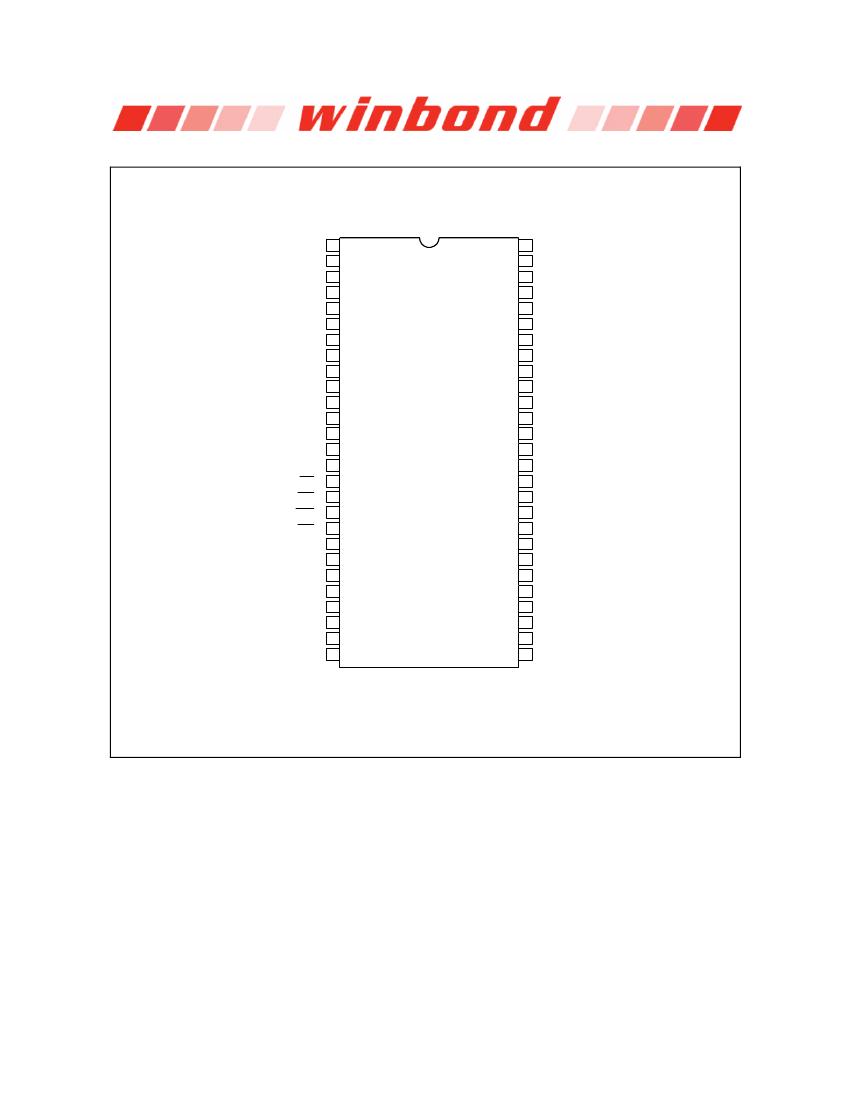

PIN CONFIGURATION.................................................................................................................... 4

PIN DESCRIPTION ......................................................................................................................... 5

BLOCK DIAGRAM ........................................................................................................................... 6

FUNCTIONAL DESCRIPTION ........................................................................................................ 7

7.1

Power Up and Initialization ................................................................................................. 7

7.2

Programming Mode Register .............................................................................................. 7

7.3

Bank Activate Command .................................................................................................... 7

7.4

Read and Write Access Modes .......................................................................................... 7

7.5

Burst Read Command ........................................................................................................ 8

7.6

Burst Write Command......................................................................................................... 8

7.7

Read Interrupted by a Read................................................................................................ 8

7.8

Read Interrupted by a Write ................................................................................................ 8

7.9

Write Interrupted by a Write ................................................................................................ 8

7.10

Write Interrupted by a Read ................................................................................................ 8

7.11

Burst Stop Command.......................................................................................................... 8

7.12

Addressing Sequence of Sequential Mode......................................................................... 9

7.13

Addressing Sequence of Interleave Mode .......................................................................... 9

7.14

Auto-precharge Command................................................................................................ 10

7.15

Precharge Command ........................................................................................................ 10

7.16

Self Refresh Command..................................................................................................... 10

7.17

Power Down Mode ............................................................................................................ 11

7.18

No Operation Command ................................................................................................... 11

7.19

Deselect Command .......................................................................................................... 11

7.20

Clock Suspend Mode ........................................................................................................ 11

8. OPERATION MODE ...................................................................................................................... 12

9. ELECTRICAL CHARACTERISTICS ............................................................................................. 13

9.1

Absolute Maximum Ratings .............................................................................................. 13

9.2

Recommended DC Operating Conditions ........................................................................ 13

9.3

Capacitance ...................................................................................................................... 14

9.4

DC Characteristics ............................................................................................................ 14

9.5

AC Characteristics and Operating Condition .................................................................... 15

10. TIMING WAVEFORMS.................................................................................................................. 17

10.1

Command Input Timing..................................................................................................... 17

10.2

Read Timing ...................................................................................................................... 18

10.3

Control Timing of Input/Output Data ................................................................................. 19

10.4

Mode Register Set Cycle .................................................................................................. 20

Publication Release Date: Feb. 22, 2017

Revision: A05

-1-

W9812G6KH

11. OPERATING TIMING EXAMPLE .................................................................................................. 21

11.1

Interleaved Bank Read (Burst Length = 4, CAS Latency = 3) .......................................... 21

11.2

Interleaved Bank Read (Burst Length = 4, CAS Latency = 3, Auto-precharge) ............... 22

11.3

Interleaved Bank Read (Burst Length = 8, CAS Latency = 3) .......................................... 23

11.4

Interleaved Bank Read (Burst Length = 8, CAS Latency = 3, Auto-precharge) ............... 24

11.5

Interleaved Bank Write (Burst Length = 8) ....................................................................... 25

11.6

Interleaved Bank Write (Burst Length = 8, Auto-precharge) ............................................ 26

11.7

Page Mode Read (Burst Length = 4, CAS Latency = 3) ................................................... 27

11.8

Page Mode Read / Write (Burst Length = 8, CAS Latency = 3) ....................................... 28

11.9

Auto Precharge Read (Burst Length = 4, CAS Latency = 3) ............................................ 29

11.10 Auto Precharge Write (Burst Length = 4) ......................................................................... 30

11.11 Auto Refresh Cycle ........................................................................................................... 31

11.12 Self Refresh Cycle ............................................................................................................ 32

11.13 Burst Read and Single Write (Burst Length = 4, CAS Latency = 3) ................................. 33

11.14 Power Down Mode ............................................................................................................ 34

11.15 Auto-precharge Timing (Read Cycle) ............................................................................... 35

11.16 Auto-precharge Timing (Write Cycle) ............................................................................... 36

11.17 Timing Chart of Read to Write Cycle ................................................................................ 37

11.18 Timing Chart of Write to Read Cycle ................................................................................ 37

11.19 Timing Chart of Burst Stop Cycle (Burst Stop Command) ............................................... 38

11.20 Timing Chart of Burst Stop Cycle (Precharge Command) ................................................ 38

11.21 CKE/DQM Input Timing (Write Cycle) .............................................................................. 39

11.22 CKE/DQM Input Timing (Read Cycle) .............................................................................. 40

12. PACKAGE SPECIFICATION ......................................................................................................... 41

13. REVISION HISTORY..................................................................................................................... 42

Publication Release Date: Feb. 22, 2017

Revision: A05

-2-
