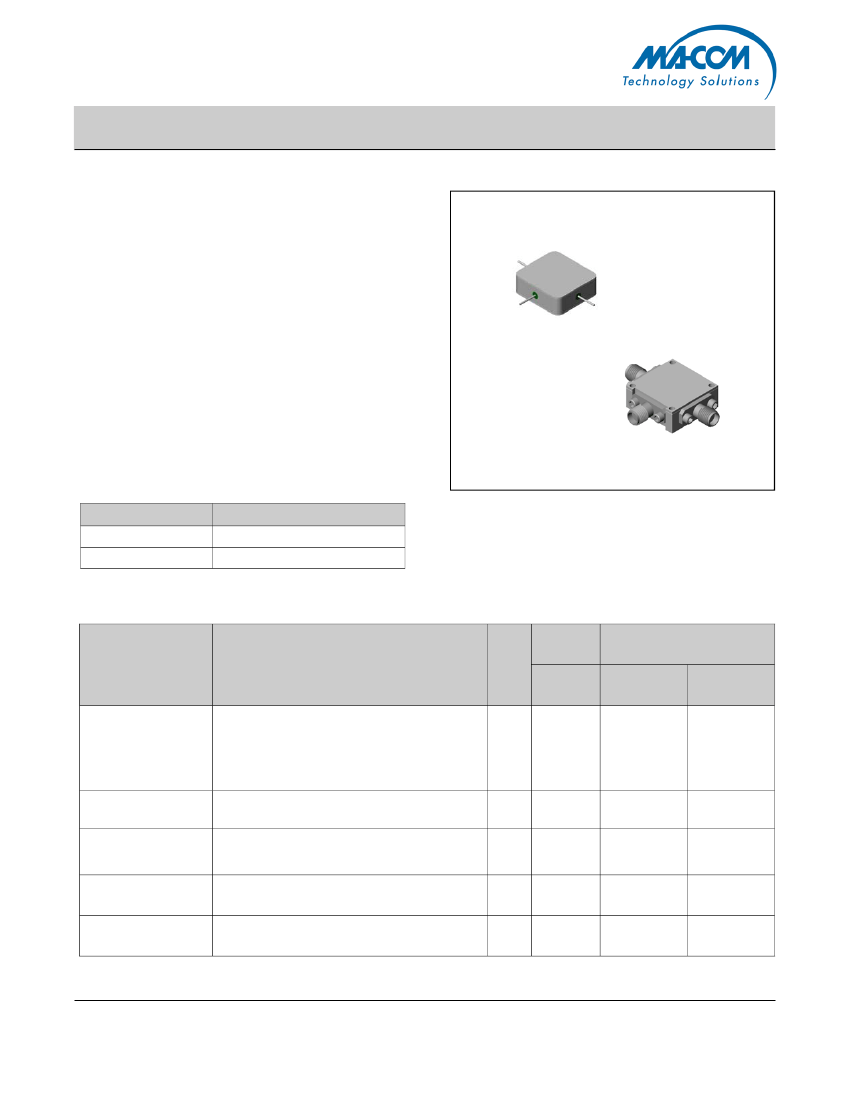

M79H / M79HC

Double-Balanced Mixer

Rev. V3

Features

•

LO 5 TO 18 GHz

RF 7 TO 18 GHz

IF DC TO 3000 MHz

LO DRIVE: +20 dBm (NOMINAL)

HIGH THIRD-ORDER I.P. +24 dBm (TYP.)

Product Image

Description

The M79H is a double balanced mixer, designed for use in mili-

tary, commercial and test equipment applications. This mixer can

also be used as a phase detector or bi-phase modulator since the

IF port is DC coupled to the diodes. Environmental screening

available to MIL-STD-202, and MIL-DTL-28837, consult factory.

Ordering Information

Part Number

M79H

M79HC

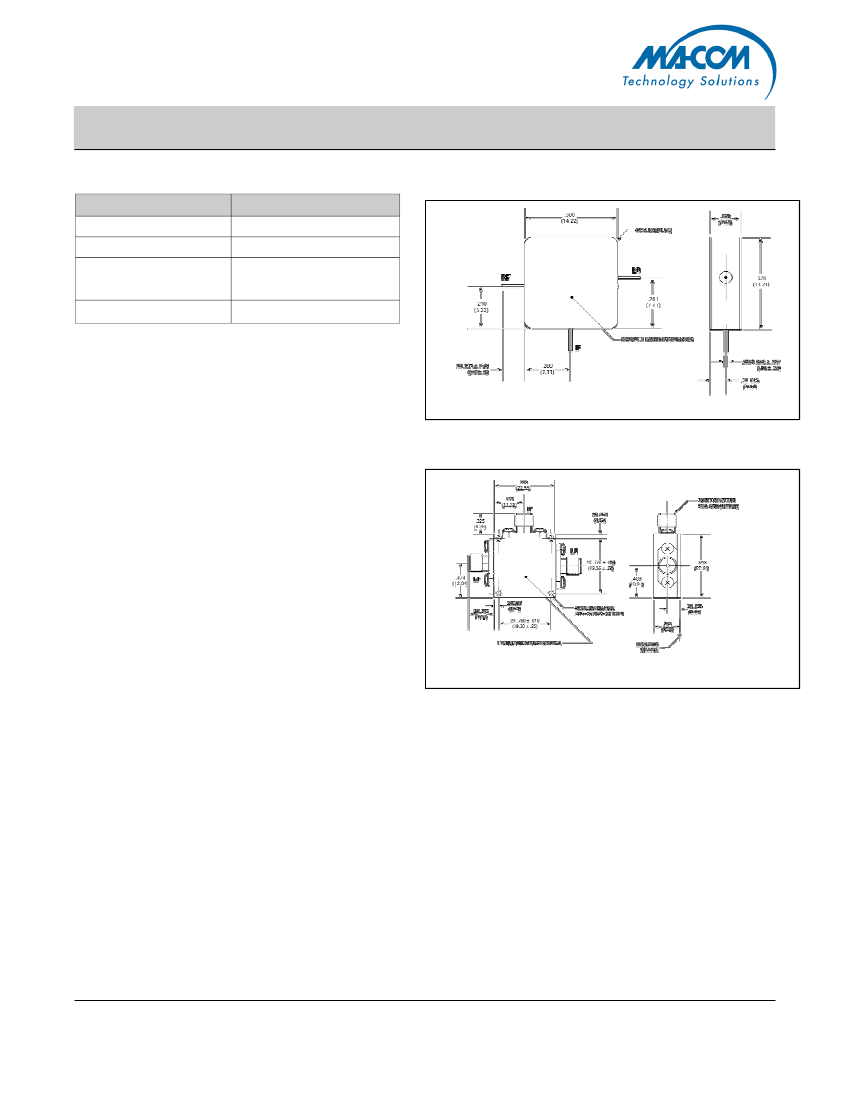

Package

Minpac

SMA Connectorized

Electrical Specifications: Z

= 50Ω Lo = +20 dBm (Downconverter application only)

Typical

Parameter

Test Conditions

Units

+25ºC

fR = 7 to 15 GHz, fL = 6 to 15 GHz, fI = 30 to 1000 MHz

fR = 7 to 16 GHz, fL = 5 to 18 GHz, fI = 30 to 2000 MHz

fR = 7 to 16 GHz, fL = 5 to 18 GHz, fI = 30 to 3000 MHz

fR = 16 to 18 GHz, fL = 5 to 15 GHz, fI = 30 to 3000 MHz

fL = 5 to 14 GHz

fL = 14 to 18 GHz

fL = 5 to 9 GHz

fL = 9 to 18 GHz

fL = +20 dBm

fR1=13 GHz at 0 dBm,fR2=13.01GHz at 0 dBm,

fL = 14 GHz at = 20 dBm

Guaranteed

-54º to +85ºC

SSB Conversion Loss

(max) & SSB Noise

Figure (max)

dBm

6.5

7.0

7.5

8.5

+15

8.0

8.5

9.5

10.0

8.3

8.8

9.8

10.3

Isolation, L to R (min)

Isolation, L to I (min)

1 dB Conversion Comp.

Input IP3

dBm

+24

ADVANCED:

Data Sheets contain information regarding a product M/A-COM Technology Solutions

•

North America

Tel: 800.366.2266 •

Europe

Tel: +353.21.244.6400

is considering for development. Performance is based on target specifications, simulated results,

•

India

Tel: +91.80.4155721

•

China

Tel: +86.21.2407.1588

and/or prototype measurements. Commitment to develop is not guaranteed.

Visit www.macomtech.com for additional data sheets and product information.

PRELIMINARY:

Data Sheets contain information regarding a product M/A-COM Technology

Solutions has under development. Performance is based on engineering tests. Specifications are

typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.

M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make

Commitment to produce in volume is not guaranteed.

changes to the product(s) or information contained herein without notice.
