MC2320
Open Carrier Double-Balanced Mixer
For Microwave Telecommunications
Features
•
•
•
•
•
LO 2.2 TO 8.0 GHz
RF 3.4 TO 7.0 GHz
IF DC TO 20. GHz
LO DRIVE +13 (NOMINAL)
MICROSTRIP INTERFACE
Rev. V2
Product Image
Description
The MC2320 is a double balanced mixer, designed for use in
military, commercial and test equipment applications. The design
utilizes Schottky ring quad diodes and broadband soft dielectric
and ferrite baluns to attain excellent performance. This mixer can
also be used as a phase detector and/or bi-phase modulator since
the IF port is DC coupled to the diodes. The use of high
temperature solder and welded assembly processes used
internally makes it ideal for use in manual, semi-automated
assembly. Environmental screening available to MIL-STD-883,
MIL-STD-202, or MIL-DTL-28837, consult factory.
Ordering Information
Part Number
MC2320
MC2320-2
Package
Open Carrier
Open Carrier
Electrical Specifications: Z
0
= 50Ω Lo = +13 dBm (Downconverter application only)
Parameter
Test Conditions
Units
Typical
Guaranteed
+25ºC
-54º to +85ºC
SSB Conversion Loss
(max) & SSB Noise
Figure (max)
fR=3.4 to 7 GHz, fL=2.2 to 8 GHz, fI=0.05 to 0.5 GHz
fR=3.4 to 7 GHz, fL=2.2 to 8 GHz, fI=0.05 to 1.5 GHz
fR=3.4 to 7 GHz, fL=2.2 to 8 GHz, fI=0.05 to 2 GHz
dB
dB
dB
5.2
6.5
7.0
7.0
8.0
8.5
7.5
8.5
8.0
Isolation, L to R (min)
fL = 2.2 to 3 GHz
fL = 3 to 8 GHz
fL = 2.2 to 3 GHz
fL = 3 to 4 GHz
fL = 4 to 8 GHz
fL = 3.4 to 7 GHz
fL = +20 dBm
fR1 = 4.2 GHz at –10 dBm, fR2 = 4.21 at –10 dBm,
fL = 2.7 GHz at +20 dBm
fR1 = 6 GHz at –10 dBm, fR2 = 6.01 at –10 dBm,
fL = 4.5 GHz at +20 dBm
dB
dB
dB
dB
dB
dB
dBm
25
40
20
30
42
26
+14
18
28
13
18
30
16
26
11
16
28
Isolation, L to I (min)
Isolation, R to I (min)
1 dB Conversion Comp.
dBm
dBm
+16
+17
Input IP3
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MC2320
Open Carrier Double-Balanced Mixer
For Microwave Telecommunications

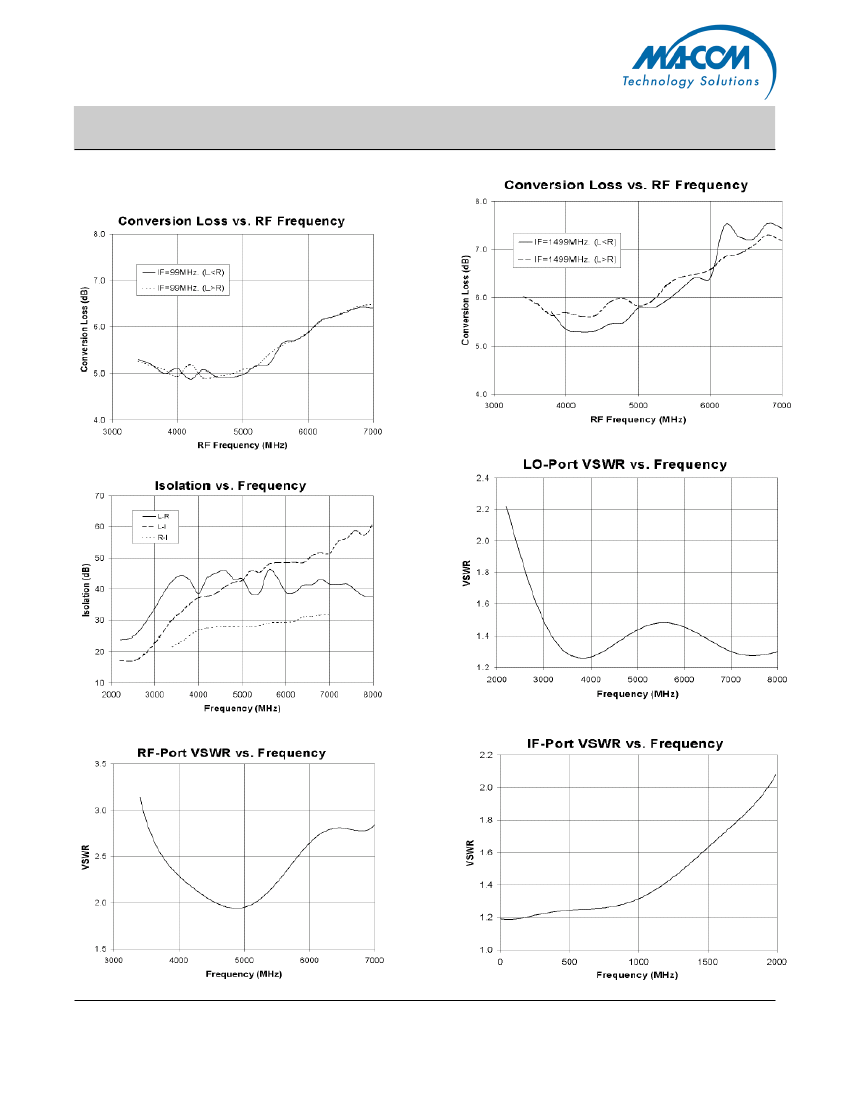

Typical Performance Curves
Rev. V2
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MC2320
Open Carrier Double-Balanced Mixer
For Microwave Telecommunications
Absolute Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Peak Input Power
Peak Input Current
Rev. V2

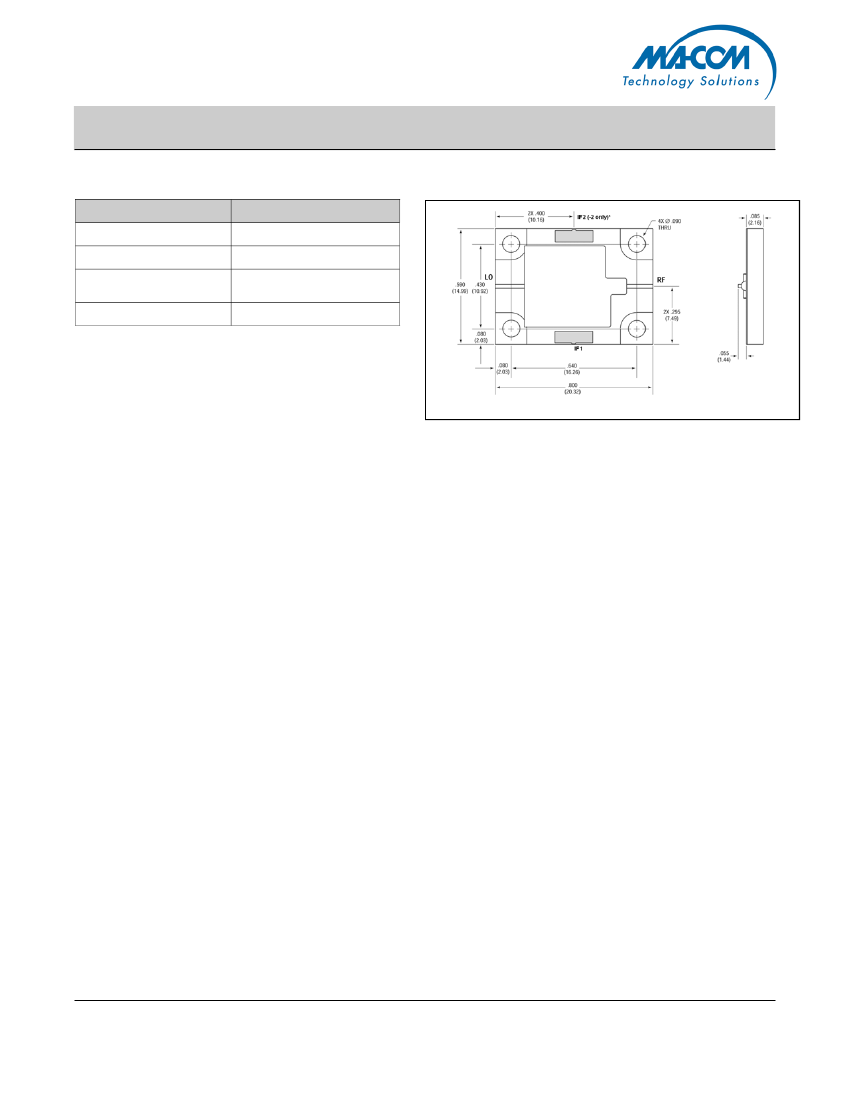

Outline Drawing: Open Carrier
*
MC2320
Absolute Maximum
-54ºC to +85ºC
-65ºC to +100ºC
+23 dBm max @ +25ºC
+20 dBm max @ +85ºC
50 mA DC
Weight: 0.5 grams (0.018 oz.) max
*For the base model, only the IF1 port is connected.
For the “-2” model, only the IF2 port is connected.
∗
Dimensions are inches (millimeters) ±0.015 (0.38) unless otherwise
specified.
3
