Capacitive proximity sensors
Capacitive proximity sensors

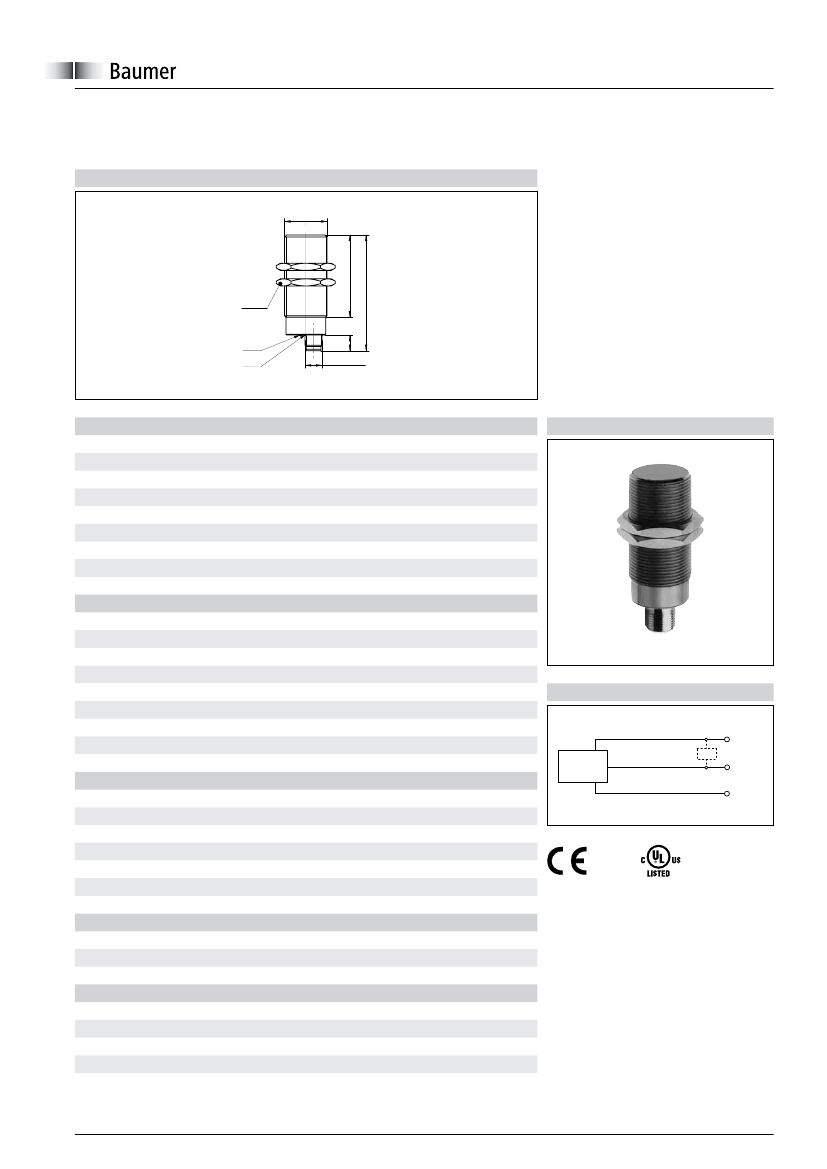

dimension drawing
M30 x 1,5
CFAM 30N1600/S14
58
SW 36
LED
Pot
M12 x 1
general data
nominal sensing distance Sn
nominal sensing distance Sn adjustable
mounting type
GND electrode
temperature drift
sensitivity adjustment
output indicator
15 mm
4 ... 15 mm
flush
yes
± 15 % (+10 ... +70 °C)
potentiometer, 18 turn
LED yellow
11
82
electrical data
voltage supply range +Vs
current consumption max. (no load)
output circuit
output current
voltage drop Vd
switching frequency
short circuit protection
reverse polarity protection
mechanical data
type
housing material
dimension
housing length
connection types
cylindrical threaded
brass nickel plated
30 mm
82 mm
connector M12
10 ... 30 VDC
20 mA
NPN make function (NO)
< 200 mA
< 1,5 VDC
< 50 Hz
yes
yes
BN (1)
+V
S
Z
connection diagram
NPN
BK (4)
BU (3)
output
0V
ambient conditions
operating temperature
protection class
field of application
detection of non-conductive media
fill level detection through container
liquids in direct contact
object detection / bulk goods
yes
yes
no
yes
-25 ... +75 °C
IP 65
CFAM 30N1600/S14
www.baumer.com
7/1/2014
