RCC-0603-56R0J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RCC-0603-56R0J

RCC-0603-56R0J: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.1W, 56ohm, 50V, 5% +/-Tol, -250,250ppm/Cel, Surface Mount, 0603, CHIP; CategoryPassive components The resistor; File Size137KB，2 Pages; ManufacturerInternational Manufacturing Services Inc

Download Datasheet Parametric Compare View All

RCC-0603-56R0J Overview

Fixed Resistor, Metal Glaze/thick Film, 0.1W, 56ohm, 50V, 5% +/-Tol, -250,250ppm/Cel, Surface Mount, 0603, CHIP

RCC-0603-56R0J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	2133680985
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Chip
JESD-609 code	e0
Manufacturer's serial number	RCC
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package height	0.508 mm
Package length	1.524 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	0.762 mm
method of packing	BULK; TR; WAFFLE PACK
Rated power dissipation(P)	0.1 W
Rated temperature	70 °C
resistance	56 Ω
Resistor type	FIXED RESISTOR
series	RCX
size code	0603
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	-250,250 ppm/°C
Terminal surface	Tin/Lead/Silver (Sn/Pb/Ag)
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	50 V

Preview

Download Datasheet

View All

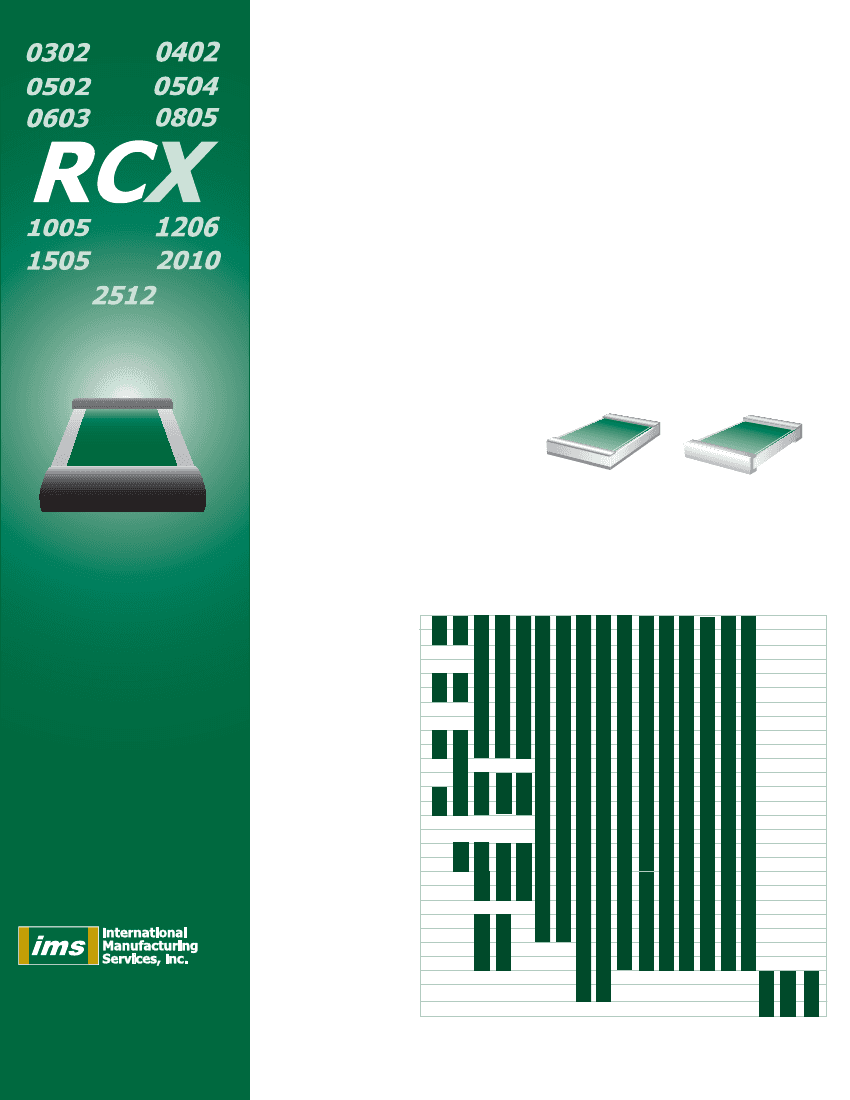

Thick Film Wraparound Surface

Mount Chip Resistors for

Epoxy and Solder Mount

The

ims

RCX, HCX series of thick film wraparound surface mount chip resistors is ideal

for most applications requiring epoxy or solder die attaching methods. Thick film

technology provides a stable resistor at a very affordable price. The “X” designation in

each series is a variable that allows for specifying the termination metalization. Please

see the ordering information on the back for instructions. The wraparound terminations

use gold, platinum gold, platinum silver, or platinum silver with solder coating. These chip

resistors have the following features:

• High stability thick film resistor element

• 96% Al

substrate material

• Platinum silver(PtAg), platinum gold(PtAu), solder coated platinum silver, solder coated

platinum gold, or gold(Au) terminations

• Tolerances to ± 1%

• Passivated resistor element available where not standard

• Available in bulk, tape and reel, and waffle pack

Termination styles

SG - Single wrap

with groundplane

Full wraparound

RCC-0504

RC3-0603

RCC-0603

RC3-0805

RCC-0805

RC3,C-1005

RC3,C-1206

RC3,C-1505

RC3,C-2010

RC3,C-2512

HCC,3-0805

Thick film technology

Full Wraparound and

Single Wraparound with

Groundplane

Ideal for epoxy

attachment. Solder

coating also available

Resistance values from

1 ohm to 1000 Gigohm

Tolerances to 1 %

TCR to 100 ppm/

10%

10 - 24

10%

25 - 50K

10%

50K - 6.2M 1%

10%

6.2M - 25M 1%

10%

26M - 50M 5%

10%

50M - 200M 5%

10%

15%

220M - 1G 10%

15%

1.2G - 100G 15%

30%

110G - 1T 30%

1 - 9.1

50 Schoolhouse Lane

Portsmouth, RI 02871

Tel (401) 683-9700

Fax (401) 683-5571

e-mail: ims@ims-resistors.com

http://www.ims-resistors.com

Consult factory for additional values, sizes and tolerances.

HCC,3-1206

HCC,3-2010

Features

RC1-0302(SG)

RC4,D-0302

RC3,4-0402(SG)

RCC,D-0402

RC3,C-0502

RC3-0504

RCC-0603-56R0J Related Products

	RCC-0603-56R0J	RCC-0603-1801J	RCC-0603-1101J
Description	Fixed Resistor, Metal Glaze/thick Film, 0.1W, 56ohm, 50V, 5% +/-Tol, -250,250ppm/Cel, Surface Mount, 0603, CHIP	Fixed Resistor, Metal Glaze/thick Film, 0.1W, 1800ohm, 50V, 5% +/-Tol, -250,250ppm/Cel, Surface Mount, 0603, CHIP	Fixed Resistor, Metal Glaze/thick Film, 0.1W, 1100ohm, 50V, 5% +/-Tol, -250,250ppm/Cel, Surface Mount, 0603, CHIP
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	CHIP	CHIP	CHIP
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
structure	Chip	Chip	Chip
JESD-609 code	e0	e0	e0
Manufacturer's serial number	RCC	RCC	RCC
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package height	0.508 mm	0.508 mm	0.508 mm
Package length	1.524 mm	1.524 mm	1.524 mm
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	SMT	SMT	SMT
Package width	0.762 mm	0.762 mm	0.762 mm
method of packing	BULK; TR; WAFFLE PACK	BULK; TR; WAFFLE PACK	BULK; TR; WAFFLE PACK
Rated power dissipation(P)	0.1 W	0.1 W	0.1 W
Rated temperature	70 °C	70 °C	70 °C
resistance	56 Ω	1800 Ω	1100 Ω
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
series	RCX	RCX	RCX
size code	0603	0603	0603
surface mount	YES	YES	YES
technology	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM
Temperature Coefficient	-250,250 ppm/°C	-250,250 ppm/°C	-250,250 ppm/°C
Terminal surface	Tin/Lead/Silver (Sn/Pb/Ag)	Tin/Lead/Silver (Sn/Pb/Ag)	Tin/Lead/Silver (Sn/Pb/Ag)
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND
Tolerance	5%	5%	5%
Operating Voltage	50 V	50 V	50 V
Objectid	2133680985	-	2133680827
