AUK CORP.
SB3418E-G/SB3418E-G(B)
1. Features
◆
Colored transparency lens type
◆φ3mm(T-1)
all plastic mold type
◆Super
luminosity
◆
E ; ESD Protected (±2.0KV, 3 Times @100pF, 1.5KΩ)

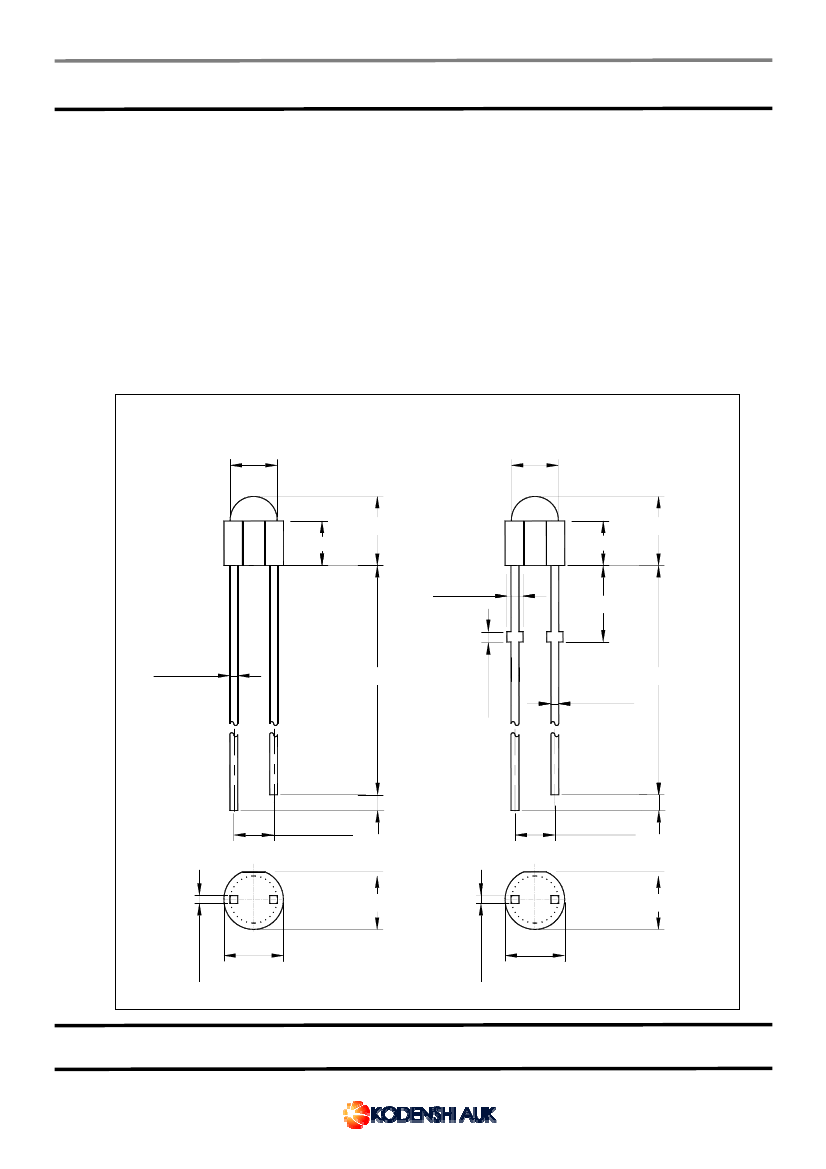

2. Outline Dimensions
unit : mm
STRAIGHT TYPE
Ø2.74~3.14
STOPPER
TYPE : (B)
Ø2.74~3.14
3.90~4.30
2.70~3.50
1.20 Min.
3.90~4.30
2.70~3.50
5.00~6.00
0.70 Max.
23.00 Min.
1.27 Typ.
23.00 Min.
0.70 Max.
1.00 Min.
2.54 Typ.
1.00 Min.
2.54 Typ.
0.45 Max.
0.45 Max.
1 2
3.50~3.90
1 2
3.50~3.90
3.60~4.00
3.60~4.00
PIN Connections
1. Anode
2. Cathode
The contents of this data sheet are subject to change without advance notice for the purpose of improvement.
When using this product, would you please refer to the latest specifications.
Rev.O date: 01-FEB-11
AUK-LDM-001(A)
AUK CORP.
SB3418E-G/SB3418E-G(B)
3. Absolute Maximum Ratings
(Ta=25
o
C)
Characteristic
Power dissipation
Forward current
*
1
Peak forward current
Reverse voltage
Operating temperature range
Storage temperature range
*
2
Soldering temperature
Symbol
P
D
I
F
I
FP
V
R
T
opr
T
stg
T
sol
Rating
114
30
50
4
-30∼85
-30∼100
Unit
mW
mA
mA
V
℃
℃
260℃ for 10 seconds
*1.Duty ratio = 1/16, Pulse width = 0.1ms
*2.Keep the distance more than 2.0mm from PCB to the bottom of LED package
※
Recommend document
-. LED is very sensitive to ESD.
4. Electrical / Optical Characteristics
(Ta=25
o
C)
Characteristic
*
3
Forward Voltage
*
4
Luminous Intensity
*
5
Dominant Wavelength
Spectrum Bandwidth
Reverse Current
*
6
Half angle
Symbol
V
F
I
V
Test Condition
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
V
R
=4V
I
F
= 20mA
Min.
-
230
465
-
-
-
Typ.
-
-
-
24
-
±45
Max.
3.8
1170
480
-
10
-
Unit
V
mcd
nm
nm
uA
deg
λ
D
∆
λ
I
R
θ
1/2
*3. Forward voltage tolerance for each Grade Classification limit is ±0.1V
*4. Luminous Intensity Maximum tolerance for each Grade Classification limit is ±18%
*5. Dominant Wavelength Maximum tolerance for each Grade Classification limit is ±1nm
*6.
θ1/2
is the off-axis angle where the luminous intensity is 1/2 the peak intensity
The contents of this data sheet are subject to change without advance notice for the purpose of improvement.
When using this product, would you please refer to the latest specifications.
Rev.O date: 01-FEB-11
AUK-LDM-001(A)
AUK CORP.
SB3418E-G/SB3418E-G(B)
◆
V
F
/ I
V
/
λ
D
Grade
Classification
(Ta=25℃)
Test Condition @I
F
= 20mA
Forward Voltage [V]
1 : 2.8~3.2
Luminous Intensity [mcd]
O : 230~350
P : 350~520
Dominant Wavelength [nm]
a : 465~470
2 : 3.2~3.5
Q : 520~780
3 : 3.5~3.8
R : 780~1170
b : 470~475
c : 475~480
(Do not use to combine grade classification. It must be used separately grade classification)
The contents of this data sheet are subject to change without advance notice for the purpose of improvement.
When using this product, would you please refer to the latest specifications.
Rev.O date: 01-FEB-11
AUK-LDM-001(A)
AUK CORP.
SB3418E-G/SB3418E-G(B)
▶

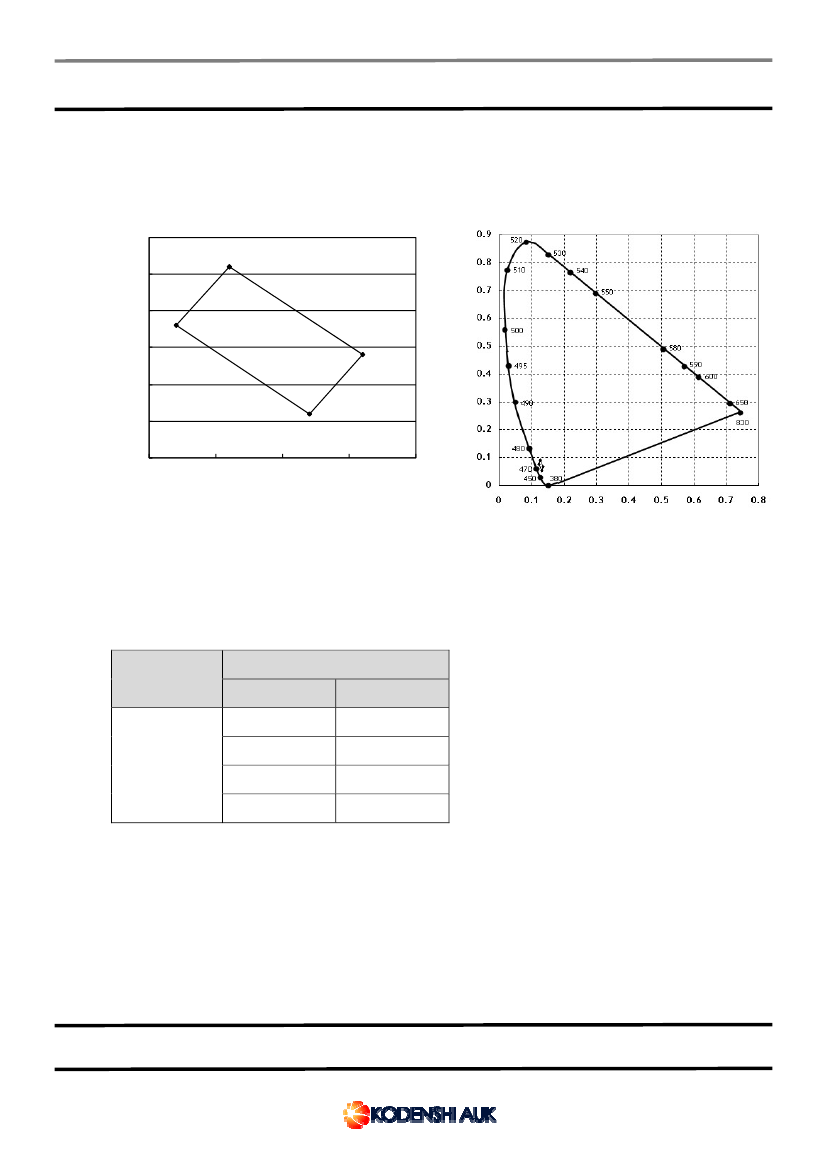

CIE 1931 UCS Diagram
0.1
0.09
CIE Coordinate Y
0.07
0.06
0.05
0.04
0.12
0.125
0.13
0.135
0.14
CIE Coordinate X
CIE Coordinate Y
0.08
CIE Coordinate X
◆
CIE Coordinates Grade Classification (Ta=25℃, I
F
=20mA)
CIE Coordinates
X
0.126
-
0.122
0.132
0.136
Y
0.092
0.076
0.052
0.068
Color Bin
(Do not use to combine grade classification. It must be used separately grade classification)
The contents of this data sheet are subject to change without advance notice for the purpose of improvement.
When using this product, would you please refer to the latest specifications.
Rev.O date: 01-FEB-11
AUK-LDM-001(A)
AUK CORP.
SB3418E-G/SB3418E-G(B)

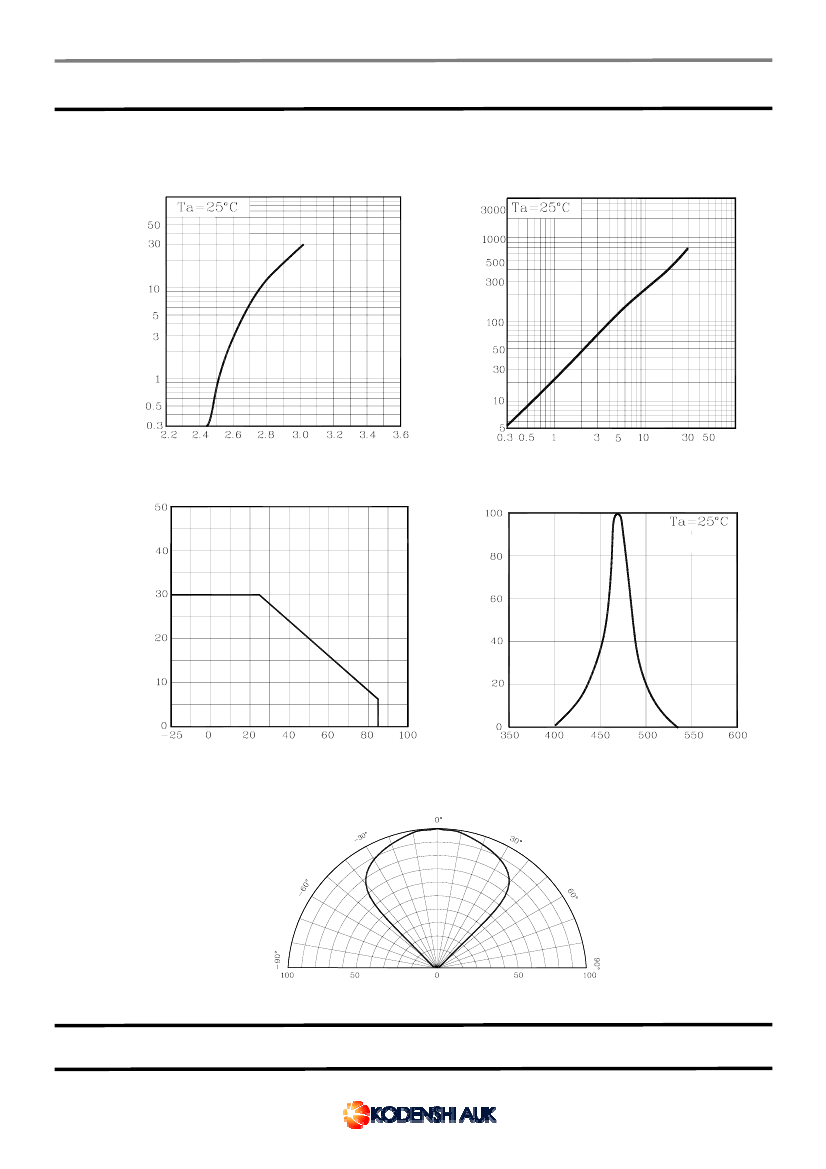

5. Characteristic Diagrams
Fig. 1 I
F
- V
F
Fig. 2 I
V
- I
F
Forward Voltage V
F
[V]
Luminous Intensity I
v
[mcd]
Forward
Current I
F
[mA]
Forward
Current I
F
[mA]
Fig. 3 I
F
– Ta
Fig.4 Spectrum Distribution
Current I
F
[mA]
I
F
=20mA
Relative Intensity [%]
Forward
Ambient Temperature Ta [℃]
Wavelength
λ
[nm]
Fig. 5 Radiation Diagram
Relative Luminous Intensity Iv [%]
The contents of this data sheet are subject to change without advance notice for the purpose of improvement.
When using this product, would you please refer to the latest specifications.
Rev.O date: 01-FEB-11
AUK-LDM-001(A)
