SURFACE MOUNT DISPLAY
Part Number: ACSC03-41SYKWA-F01
Super Bright Yellow
Features
0.3 inch digit height.
Low current operation.
Excellent character appearance.
Mechanically rugged.
Gray face,white segment.
Package : 550pcs / reel.
Moisture sensitivity level : level 2a.
RoHS compliant.
Description
The Super Bright Yellow device is made with AlGaInP (on
GaAs substrate) light emitting diode chip.

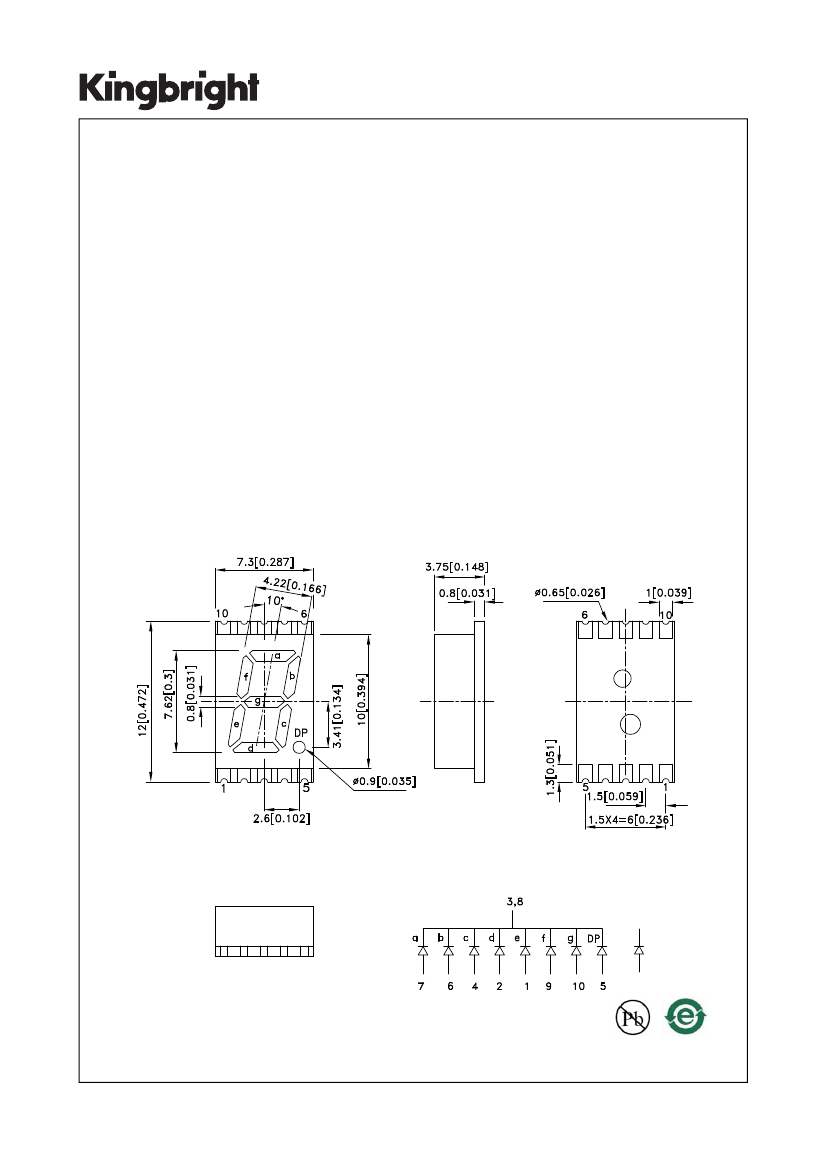

Package Dimensions& Internal Circuit Diagram
YELLOW
Notes:
1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.
2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
3.The gap between the reflector and PCB shall not exceed 0.25mm.
SPEC NO: DSAG0282
APPROVED: WYNEC
REV NO: V.10A
CHECKED: Joe Lee
DATE: JAN/08/2015
DRAWN: L.Q.Xie
PAGE: 1 OF 5
ERP: 1351000445
Selection Guide
Part No.
Dice
Lens Type
Iv (ucd) [1]
@ 10mA
Min.
ACSC03-41SYKWA-F01
Super Bright Yellow (AlGaInP)
White Diffused
21000
*5600
Typ.
Common Cathode, Rt.
Hand Decimal.
*13000
36000
Description
Note:
1. Luminous intensity/ luminous Flux: +/-15%.
* Luminous intensity value is traceable to the CIE127-2007 compliant national standards.
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Super Bright Yellow
Super Bright Yellow
Super Bright Yellow
Super Bright Yellow
Super Bright Yellow
Super Bright Yellow
Typ.
590
590
20
20
2.0
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
=5V
Notes:
1.Wavelength: +/-1nm.
2.Forward Voltage: +/-0.1V.
3.Wavelength value is traceable to the CIE127-2007 compliant national standards.
4.Excess driving current and/or operating temperature higher than recommended conditions may result in severe light degradation or
premature failure.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating / Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Super Bright Yellow
75
30
175
5
-40°C To +85°C
Units
mW
mA
mA
V
SPEC NO: DSAG0282
APPROVED: WYNEC
REV NO: V.10A
CHECKED: Joe Lee
DATE: JAN/08/2015
DRAWN: L.Q.Xie
PAGE: 2 OF 5
ERP: 1351000445

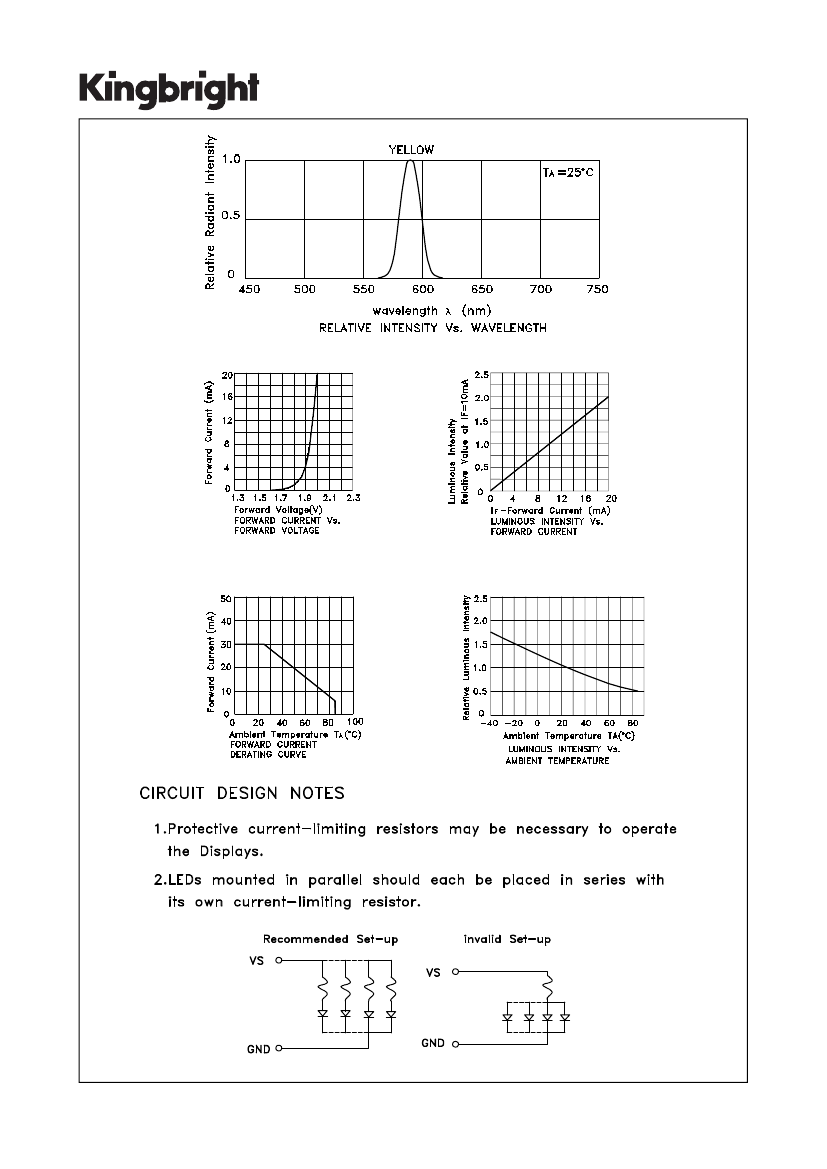

Super Bright Yellow
ACSC03-41SYKWA-F01
SPEC NO: DSAG0282
APPROVED: WYNEC
REV NO: V.10A
CHECKED: Joe Lee
DATE: JAN/08/2015
DRAWN: L.Q.Xie
PAGE: 3 OF 5
ERP: 1351000445
ACSC03-41SYKWA-F01

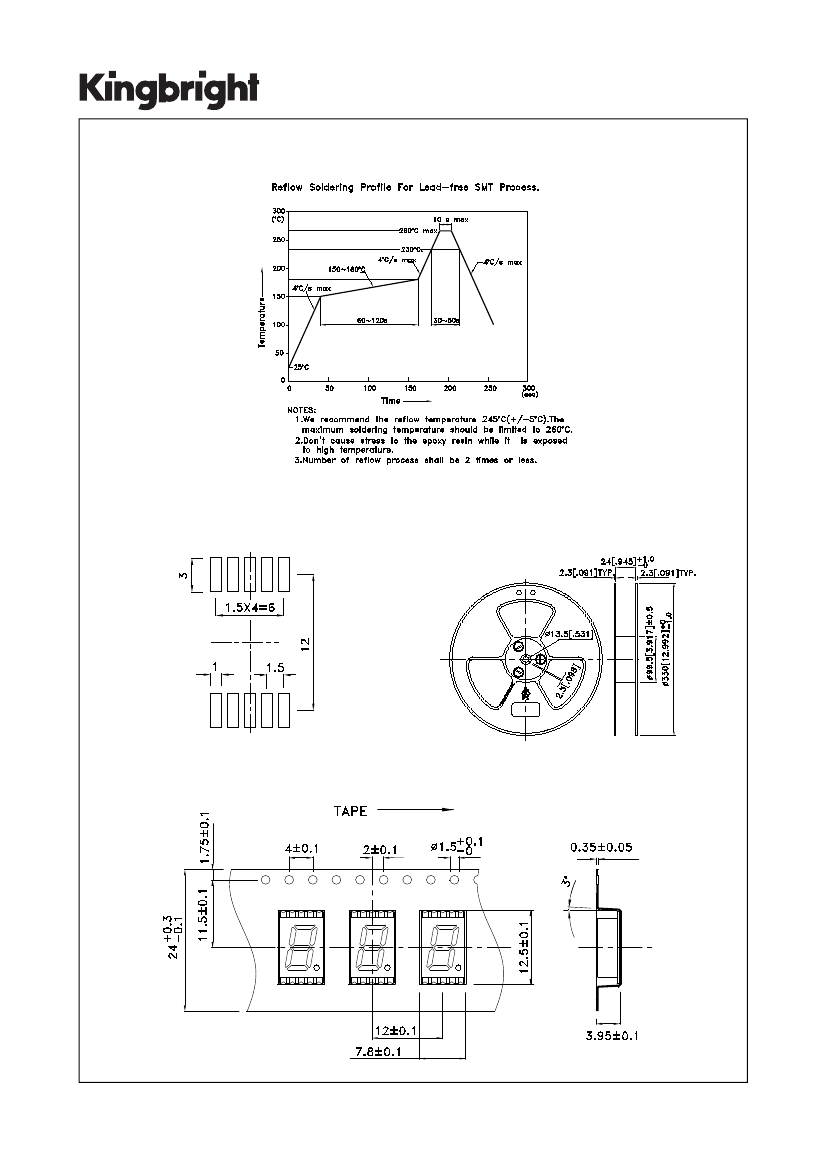

Recommended Soldering Pattern
(Units : mm; Tolerance: ± 0.15)
Reel Dimension
Tape Specifications
(Units : mm)
SPEC NO: DSAG0282
APPROVED: WYNEC
REV NO: V.10A
CHECKED: Joe Lee
DATE: JAN/08/2015
DRAWN: L.Q.Xie
PAGE: 4 OF 5
ERP: 1351000445

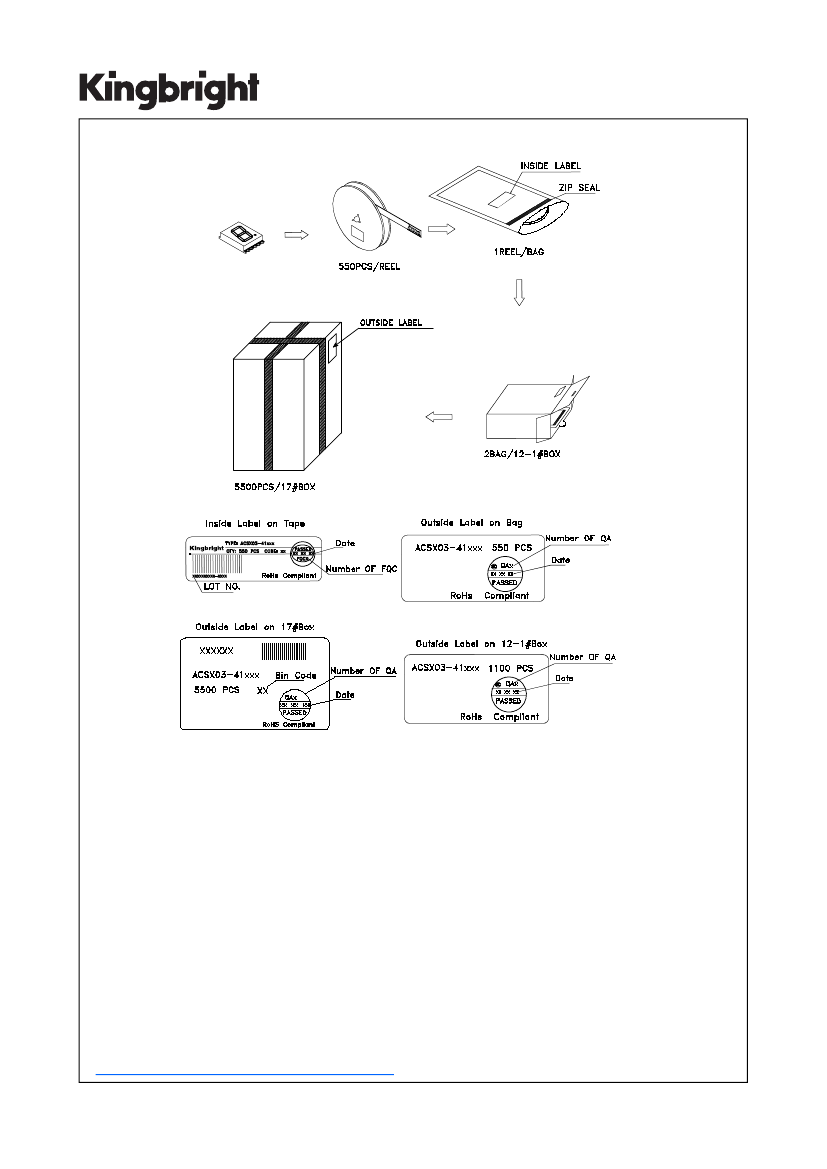

PACKING & LABEL SPECIFICATIONS
ACSC03-41SYKWA-F01
Terms and conditions for the usage of this document
1.The information included in this document reflects representative usage scenarios and is intended
for technical reference only.
2.The part number, type, and specifications mentioned in this document are subject to future change
and improvement without notice. Before production usage customer should refer to the latest
datasheet for the updated specifications.
3.When using the products referenced in this document, please make sure the product is being
operated within the environmental and electrical limits specified in the datasheet. If customer usage
exceeds the specified limits, Kingbright will not be responsible for any subsequent issues.
4.The information in this document applies to typical usage in consumer electronics applications.
If customer's application has special reliability requirements or have life-threatening liabilities,
such as automotive or medical usage, please consult with Kingbright representative for further
assistance.
5.The contents and information of this document may not be reproduced or re-transmitted without
permission by Kingbright.
6.All design applications should refer to Kingbright application notes available at
http://www.KingbrightUSA.com/ApplicationNotes
