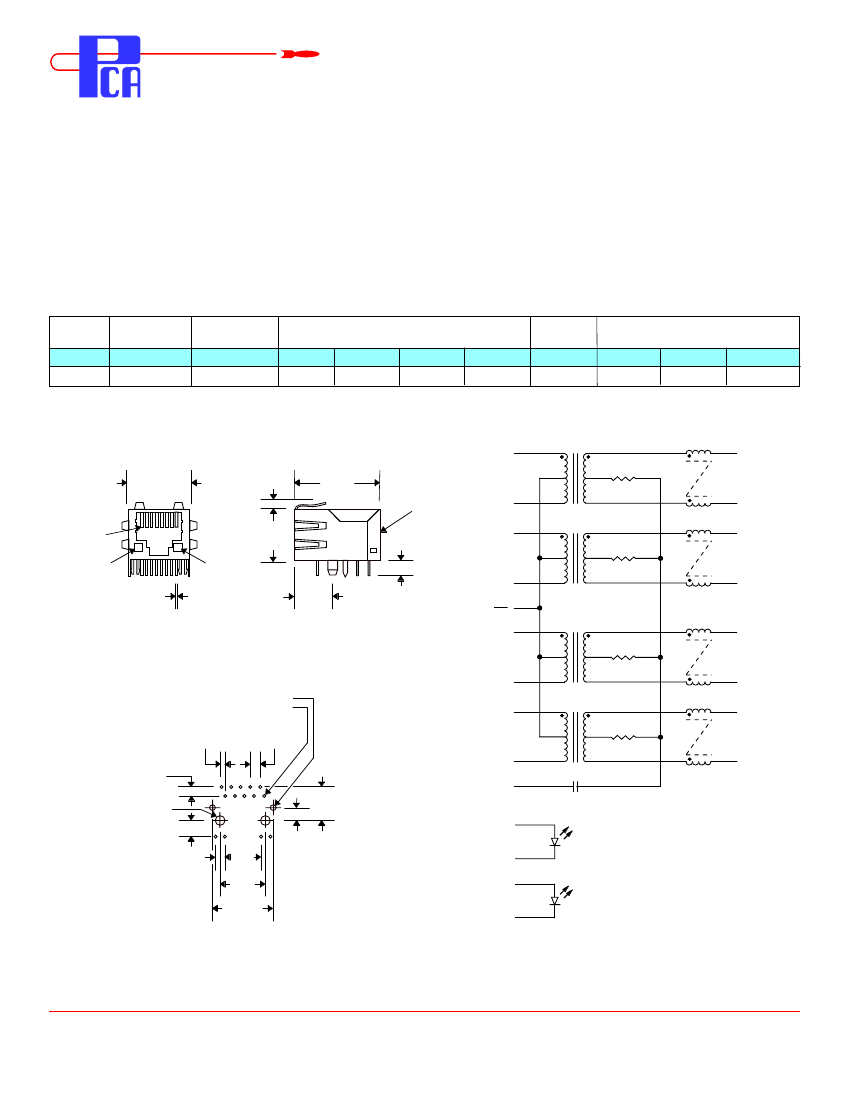

Gigabit Filter Port Jack
ELECTRONICS INC.
EPJ4030-S9
• Designed for Gigabit Ethernet and 10/100Base-TX Transceiver ICs
• Complies with IEEE 802.3ab Standards and Gigabit Ethernet Specifications
• Thermo Plastic PBT UL94V-0 Rated Connector Housing
• Complete Bob Smith Termination Included
• Metal Shield : Nickel Plated Copper Alloy
• Operating Temperature : 0°C to +70°C
• Space Saving RJ-45 Connector
Electrical Parameters @ 25° C
Turns
Ratio
Xmit/Rcv
1:1/1:1
OCL*
(uH Min.)
100 KHz/0.1V
350
Insertion Loss
(dB Max.)
1-100 MHz
-1.0
Return Loss
(dB Min.)
1-30 MHz 30-40 MHz 40-50 MHz 50-80 MHz
-16
-13.5
-11.5
-10
CMRR
(dB Min.)
1-100 MHz
-30
1-30 MHz
-40
Crosstalk
(dB Min.)
30-60 MHz
-38
60-100 MHz
-33
• *OCL :
@ 8 mA DC Bias
• Isolation :
1500 Vrms
•
Schematic
Package
.630 Typ.
(16.00)
.060
(1.50)
.846
(21.50)
Marking :
PCA
EPJ4030-S9
D.C.
P1
1CT:1CT (Xmit)
J1
75
Ω
P2
P3
1CT:1CT (Rcv)
J2
J3
J1
Green
LED
.019 Typ.
(.483)
Yellow
LED
.535
(13.60)
75
Ω
.429
(10.90)
P4
.126 Typ.
(3.20)
Chip
Side
P5
P6
P7
J6
Cable
Side
J4
75
Ω
P8
1CT:1CT (Rcv)
P9
75
Ω
P10
J8
Shield
.350
(8.89)
P11
.120
(3.05)
Green LED
P12
P13
Yellow LED
P14
1000 pF
2000V
J7
J5
1CT:1CT (Xmit)
Recommended PCB Layout
(Component Side)
.067 (1.70) Ø (2 Plcs)
.035 (.900) Ø (14 Plcs)
.050
(1.27)
.100
(2.54)
.100
(2.54)
P1
.126 (3.20) Ø
(2 Plcs)
.160 (4.06)
.100
(2.54)
.322
(8.18)
.450
(11.43)
.620
(15.75)
Unless Otherwise Specified Dimensions are in Inches /mm ± .010 /.25
PCA ELECTRONICS, INC.
16799 SCHOENBORN ST.
NORTH HILLS, CA 91343
Product performance is limited to specified parameters. Data is subject to change without prior notice.
CSJ4030-S9
Rev. -
11/5/03 JDG
TEL: (818) 892-0761
FAX: (818) 894-5791
http://www.pca.com
