EPF8119S-RC_15: Description10/100Base-TX Interface Module; File Size26KB，1 Pages; ManufacturerPCA Electronics Inc.; Websitehttp://www.pca.com/

Download Datasheet View All

EPF8119S-RC_15 Overview

10/100Base-TX Interface Module

Preview

Download Datasheet

View All

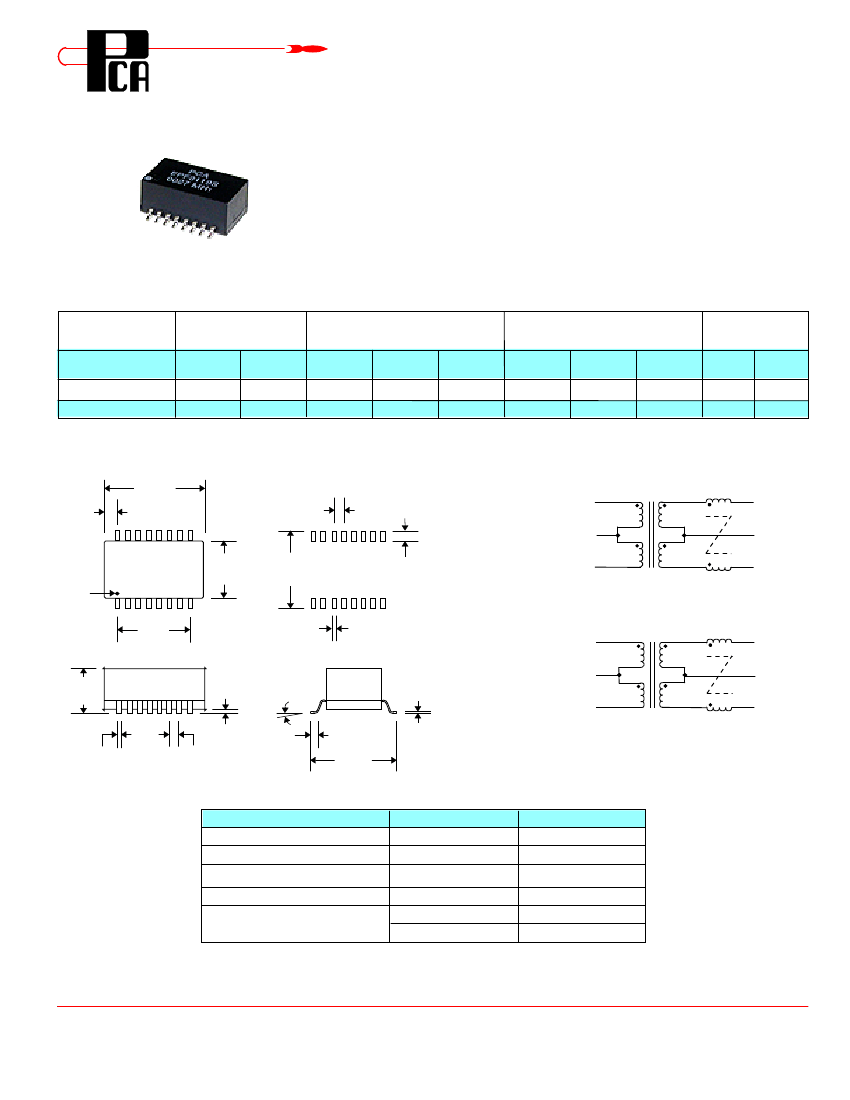

10/100Base-TX Interface Module

for NIC/HUB Applications

ELECTRONICS INC.

EPF8119S & EPF8119S-RC

• Robust construction allows for toughest soldering processes

• Guaranteed to operate with 8 mA DC bias at 70°C on Cable Side

• Complies with or exceeds IEEE 802.3, 10/100Base-TX Standards

• Add “-RC” after part number for RoHS Compliant

• Operating Temperature : 0°C to +70°C

• Wire Insulation Class : MW 80C

• 1500 Vrms Isolation

Electrical Parameters @ 25° C

OCL

Insertion Loss

(dB Max.)

1-80

MHz

Xmit/Rcv

-1/-1

@ 100

MHz

Xmit/Rcv

-1.5/-1.5

•

1-30

MHz

Xmit/Rcv

-18/-18

Return Loss

(dB Min.)

30-60

MHz

Xmit/Rcv

-12/-12

60-100

MHz

Xmit/Rcv

-10/-10

Common Mode Rejection

(dB Min.)

1-30

MHz

Xmit/Rcv

-40/-40

30-100

MHz

Xmit/Rcv

-30/-30

100-500

MHz

Xmit/Rcv

-10/-10

Crosstalk

(dB Min.)

Between Channels

1-10

MHz

-40

10-100

MHz

-35

100 KHz, 0.1 Vrms

8 mA DC Bias

Cable Side

350 µH

Impedance

: 100

Ω

Xmit / 100

Ω

Rcv •

Rise Time

: 3.0 nS Max. •

Package

.490

(12.45)

.070

(1.78)

PCA

EPF8119S(-RC)

Date Code

Pin 1

I.D.

.350

(8.89)

.010/.015

(.254/.381)

.030

(.762)

.050

(1.27)

.055

(1.40)

Schematic

Transmit Channel

TD+ 1

16 TX+

15 CT

14 TX-

1CT : 1CT

.270

(6.86)

.410

(10.41)

Solder

Pad Layout

TD- 3

Receive Channel

RD+ 6

CT 7

RD- 8

11 RX+

10 CT

9 RX-

.230

(5.84)

0°-8°

.008/.012

(.203/.305)

1CT : 1CT

.035

(.889)

.016/.022

(.406/.559)

.050

(1.27)

.380

(9.65)

Notes :

1. Lead Finish

2. Peak Temperature Rating

3. Moisture Sensitive Levels

4. Weight

5. Packaging Information

(Tube)

EPF8119S

SnPb

225°C

(168 Hours,

≤30°C/60%RH)

EPF8119S-RC

Hot Tin Dip (Sn)

†

245°C

(72 Hours,

≤30°C/60%RH)

MSL = 3

1 gram

MSL = 4

1 gram

40 pieces/tube

650 pieces/13” reel

40 pieces/tube

650 pieces/13” reel

(Tape & Reel)

†

Lead Material : Ni Barrier over Cu

Unless Otherwise Specified Dimensions are in Inches /mm ± .010 /.25

PCA ELECTRONICS, INC.

16799 SCHOENBORN ST.

NORTH HILLS, CA 91343

Product performance is limited to specified parameters. Data is subject to change without prior notice.

CSF8119S & -RC

Rev. A7

7/11/07 JDG

TEL: (818) 892-0761

FAX: (818) 894-5791

http://www.pca.com
