EPC3168G-X_15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > EPC3168G-X_15

Preview

EPC3168G-X_15: DescriptionFlyback Power Transformer; File Size22KB，1 Pages; ManufacturerPCA Electronics Inc.; Websitehttp://www.pca.com/

Download Datasheet Compare View All

EPC3168G-X_15 Overview

Flyback Power Transformer

Preview

Download Datasheet

View All

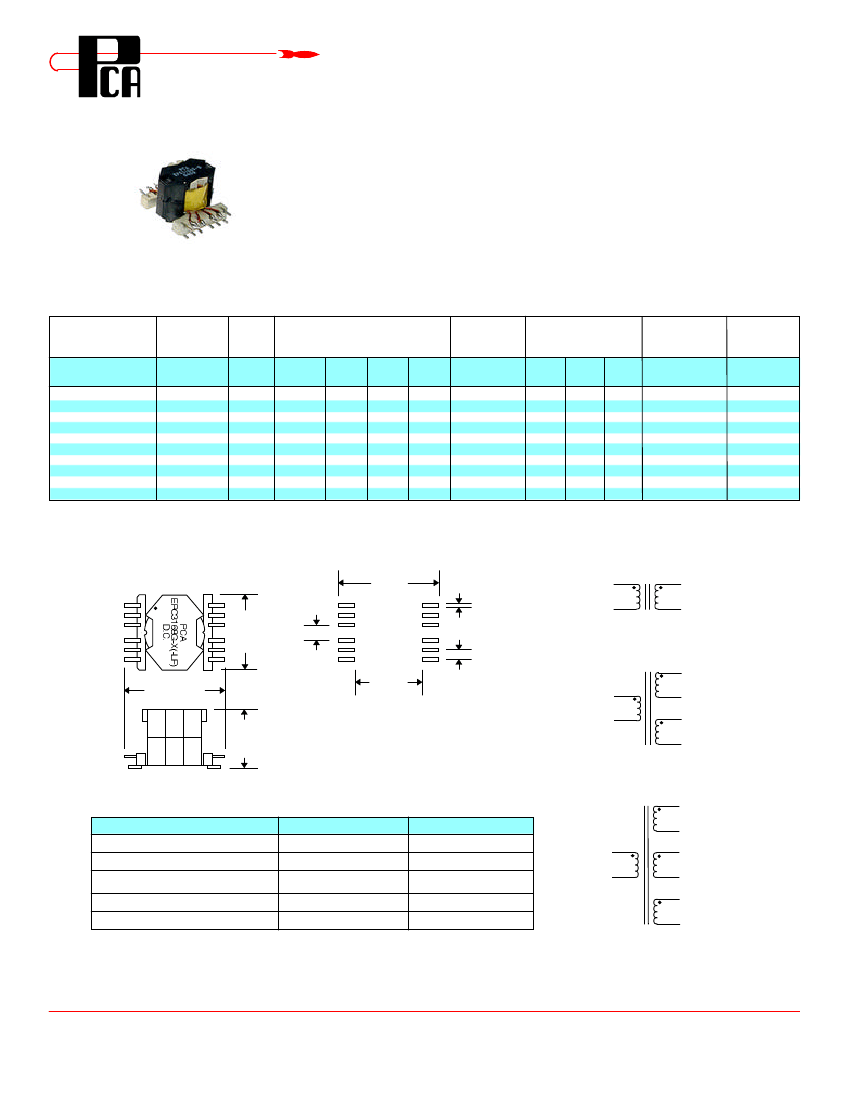

Flyback Power Transformer

ELECTRONICS INC.

EPC3168G-X & EPC3168G-X-LF

• Used in SMPS Flyback Topology

• Add “-LF” after part number for Lead Free

• Designed for use with National Semiconductor Chips

LM2585 to LM2588

• UL94V-0 Recognized Components

• UL1446 Class B Insulation System

• Very Low Core Loss

Electrical Parameters @ 25° C

PCA

Part

Number

Chipset

Xfmr

Code

V in

Pin 2-3

Voltage

(Vdc)

V out

Primary

OCL

(µH ± 10%)

@ 10 KHz,

0.1 Vrms

Current

(Amp. Max.)

Sec.

Turns

Ratio

Schematic

EPC3168G-1(-LF)

EPC3168G-2(-LF)

EPC3168G-5(-LF)

EPC3168G-6(-LF)

EPC3168G-7(-LF)

LM2587/88

1.8

1:1

4-6

3.3

LM2587/88

1.4

1:1

4-6

5.0

LM2587/88

1.2

1:1

8-16

12.0

LM2587/88

-12

0.3

1:2.5:2.5

4-6

12.0

0.3

LM2585/86

1.8

0.25 1:.5:1.15:1.15

18-36

5.0

-12

0.25

LM2585/86

-12

0.15

1:1.2:1.2

4-6

12.0

0.15

LM2585/86

-12

0.6

1:1.2:1.2

18-36

12.0

0.6

LM2585/86

1.4

1:1

4-6

3.3

LM2585/86

1.0

1:1

4-6

5.0

LM2585/86

0.8

1:1

8-16

12.0

• LM2585/86/87 Switching Frequency :

100 KHz

• LM2588 Switching Frequency :

200 KHz

•

• Storage Temperature :

-40°C to +125°C

• Operating Temperature :

0°C to +70°C •

• Note :

“N” means Not Required/No Connections

• Isolation :

750 Vrms

•

Package

Top View

Schematic A

.870

(22.10)

.100 x .059

(2.54 x 1.50)

Vin

Vout 1

.750

Max.

(19.05)

Schematic B

.150

(3.81)

.670

(17.02)

.100

(2.54)

Vin

Vout 1

Vout 2

1.00 Max.

(25.40)

.600

Max.

(15.24)

Schematic C

Vout 1

Notes :

1. Lead Finish

2. Peak Temperature Rating

3. Moisture Sensitive Levels

4. Weight

5. Packaging Information

(Tube)

EPC3168G-X

SnPb

225°C

(Unlimited,

≤30°C/60%RH)

EPC3168G-X-LF

Hot Tin Dip (SnCu)

245°C

(Unlimited,

≤30°C/60%RH)

Vin

Vout 3

Vout 2

MSL = 1

TBD grams

TBD pieces/tube

TBD grams

TBD pieces/tube

Unless Otherwise Specified Dimensions are in Inches /mm ± .010 /.25

PCA ELECTRONICS, INC.

16799 SCHOENBORN ST.

NORTH HILLS, CA 91343

Product performance is limited to specified parameters. Data is subject to change without prior notice.

CSC3168G-X & -LF

Rev. 2

8/14/07

TEL: (818) 892-0761

FAX: (818) 894-5791

http://www.pca.com
