PoE Flyback Transformer

Preview

Download Datasheet

View All

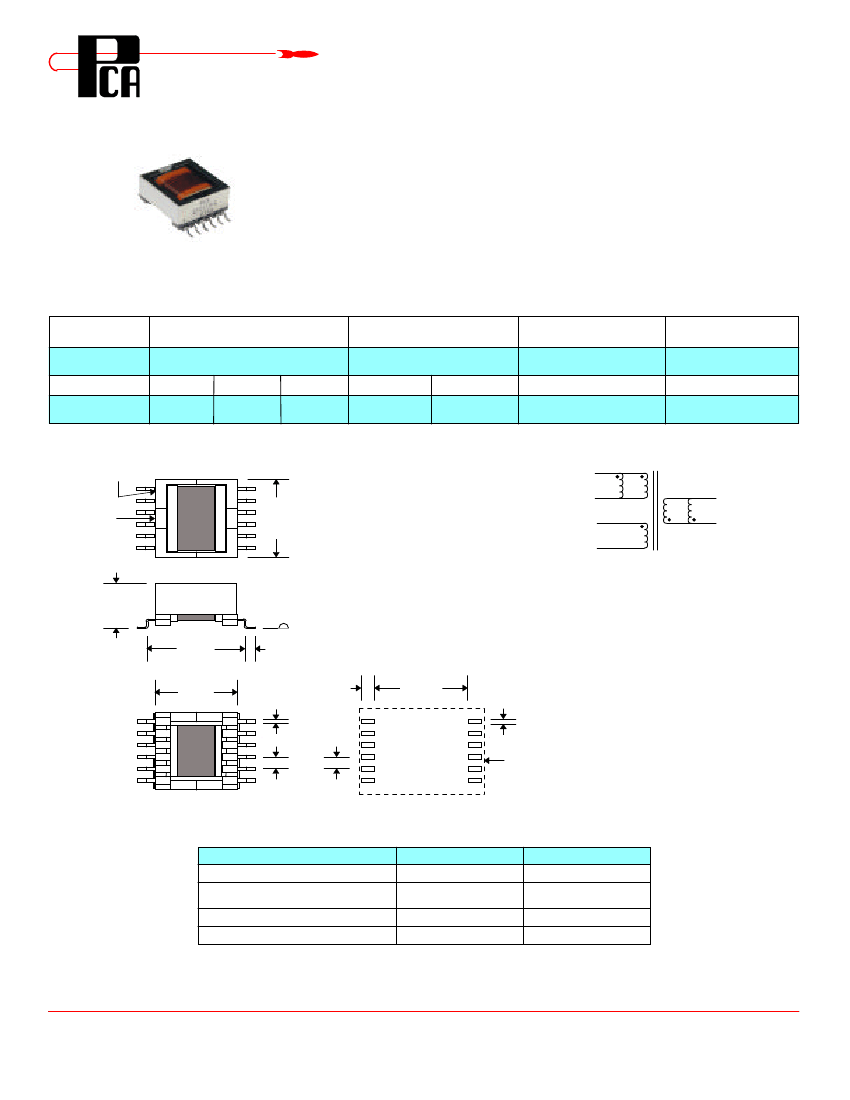

PoE Flyback Transformer

ELECTRONICS INC.

EPC3391G & EPC3391G-LF

• 45W PoE Applications

• Designed to work with LT1725

• Used in Flyback Topology Converter

• Bobbin : UL94V-0 Recognized Materials

• Storage Temperature : -40°C to +125°C

• Operating Temperature : 0°C to +70°C

• UL 1446 Class B Insulation System

• Duty Cycle : 50% Max.

Electrical Parameters @ 25° C

Inductance

(µH ± 10%)

@ 100 KHz,

1.0 Vrms

Pins

1-3

0.1

Pins

1-3

DCR

(Ω Typ.)

Turns

Ratio

Leakage Inductance

(µH Max.)

@ 100 KHz,

1.0 Vrms

Dielectric Rating

(Vrms)

0.135

Pins

5-6

0.06

Pins

8-11

2.4:1

Pins

1-3:5-6

0.9:1

Pins

1-3:8-11

1.0

Pins 1-3 All

other wdg’s shorted

1500

Wdg’s - Wdg’s

Wdg’s - Core

Package

Pin 1 I.D.

Pri.

(36-57 Vdc)

.810

(20.57)

Schematic

Marking:

PCA

EPC3391G(-LF)

D.C.

Sec.

36 V (1.25 A)

Vcc

15 V (10 mA)

.450

Max.

(11.43)

.969

(24.60)

.827

(21.00)

0.004

(.100)

.084

(2.13)

.028

(.720)

.130

(3.30)

.930

(23.62)

.050

(1.27)

PCB Layout

(Top View)

12 .118

(3.00)

.118

(3.00)

Component Outline

1.250 x .850

(31.75 x 21.60)

Notes :

1. Lead Finish

2. Peak Solder Rating

(for wave solder process Only)

EPC3391G

SnPb

225°C

11.1 grams

(Tube)

25 pcs / tube

EPC3391G-LF

Hot Tin Dip (Sn)

260°C

11.1 grams

25 pcs / tube

3. Weight

4. Packaging Information

Unless Otherwise Specified Dimensions are in Inches /mm ± .010 /.25

PCA ELECTRONICS, INC.

16799 SCHOENBORN ST.

NORTH HILLS, CA 91343

Product performance is limited to specified parameters. Data is subject to change without prior notice.

CSC3391G & -LF

Rev. 1

12/13/07 JDG

TEL: (818) 892-0761

FAX: (818) 894-5791

http://www.pca.com
