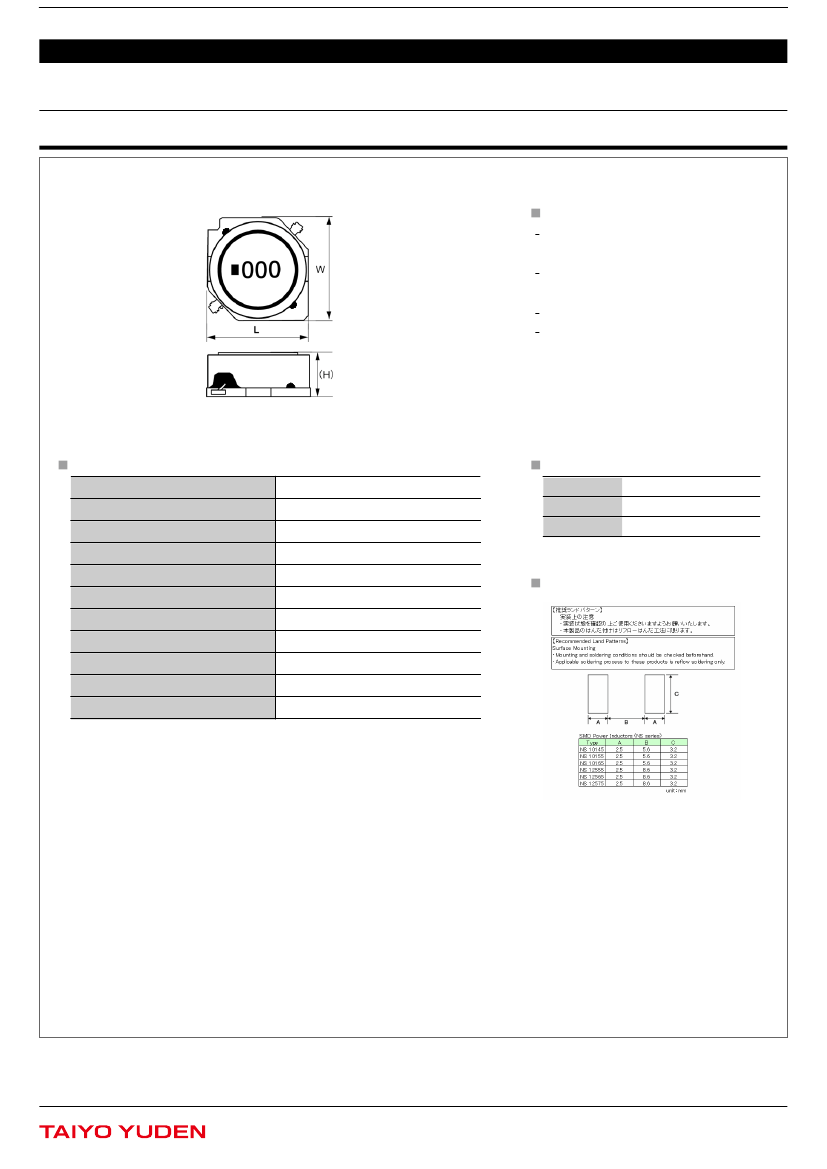

Spec Sheet

INDUCTORS (High Reliability Application)

SMD Power Inductors for Automotive / Industrial Applications (NS series)

NS10145T101MNV

Features

Item Summary

100μH(±20%), 1.4A, 1.1A

Lifecycle Stage

Mass Production

AEC-Q200 qualified

Standard packaging quantity (minimum)

Taping 2000pcs(500pcs*4reel)

Products characteristics table

CaseSize (EIA/JIS)

Inductance

Inductance Measuring Frequency

Rated Current -Saturation Current

Rated Current -Temperature Rise Current

DC Resistance (max)

Avg. of DC.Resistance

Self-resonant Frequency (min)

RoHS Compliance

Halogen Free

Soldering Method

-/101101

100μH(±20%)

100kHz

1.4A

1.1A

External Dimensions

10.1mm ±0.3

4.5mm ±0.35

Recommended Land Patterns

0.276Ω

0.23Ω

6MHz

Yes

Reflow

2015.03.09

The data is reference only. Electrical characteristics vary depending on environment or measurement condition.

TAIYO YUDEN reserves the right to make change to the Date at any time without notice.

Before making final selection, please check product specification.
