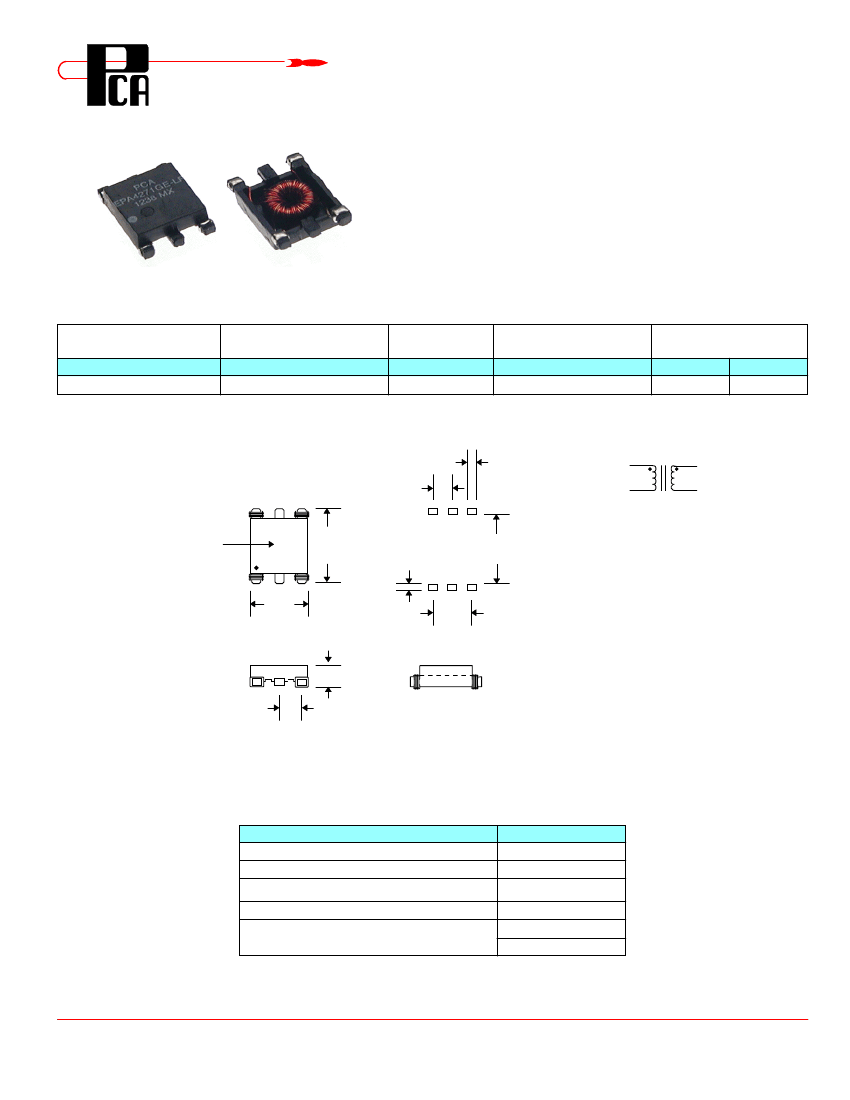

Gate Drive Transformer
ELECTRONICS INC.
EPA4271GE-LF
• Operating Temperature : -40°C to +85°C
• Storage Temperature : -40°C to +130°C
• Operating Frequency : 50 KHz and Up
• Lead-Free
Electrical Parameters @ 25° C
Primary Inductance
(µH Min.)
Leakage Inductance
(µH Max.)
ET
(V µSec. Max.)
Pri.-Sec. Insulation
(Vdc)
Pri.
785
0.46
9.7
1500
0.60
DCR
(Ω Max.)
Sec.
0.60
Package
.060
(1.52)
.100
(2.54)
.340
Max.
(8.64)
.265
Max.
(6.73)
1
3
Schematic
6
1:1
4
Marking :
PCA
EPA4271GE-LF
D.C.
.050
(1.27)
Pad
Layout
.225
(5.71)
.200
(5.08)
.098 Max. (2.49)
.100
(2.54)
Coplanarity : ± .005 Max. (.130)
Notes :
1. Lead Finish
2. Peak Temperature Rating
3. Moisture Sensitive Levels
4. Weight
5. Packaging Information
(Tube)
(Tape & Reel)
EPA4271GE-LF
Hot Dipped Sn or SnCu
250°C
(Unlimited,
≤30°C/60%RH)
MSL = 1
0.28 grams
60 pieces/tube
1500 pieces/13” reel
Unless Otherwise Specified Dimensions are in Inches /mm ± .010 /.25
PCA ELECTRONICS, INC.
16799 SCHOENBORN ST.
NORTH HILLS, CA 91343
Product performance is limited to specified parameters. Data is subject to change without prior notice.
CSA4271GE-LF
Rev. A 5/1/13 BJW
TEL: (818) 892-0761
FAX: (818) 894-5791
http://www.pca.com
