BP5313 datasheet, PDF - EEWORLD Datasheet

BP5313: DescriptionPower supply unit for LCD drives; CategoryPower/power management The power supply circuit; File Size45KB，4 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BP5313 Overview

Power supply unit for LCD drives

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
package instruction	SIP, SIP11,.2
Reach Compliance Code	compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	12.6 V
Minimum input voltage	11.4 V
Nominal input voltage	12 V
JESD-30 code	R-PSIP-T5
JESD-609 code	e3/e2
Number of functions	1
Output times	1
Number of terminals	5
Maximum operating temperature	60 °C
Minimum operating temperature
Maximum output current	0.06 A
Maximum output voltage	42 V
Minimum output voltage	38 V
Nominal output voltage	40 V
Package body material	PLASTIC/EPOXY
encapsulated code	SIP
Encapsulate equivalent code	SIP11,.2
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	12.5 mm
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal surface	TIN/TIN COPPER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	10
Fine-tuning/adjustable output	NO

Regulator ICs

Power supply unit for LCD drives

BP5313

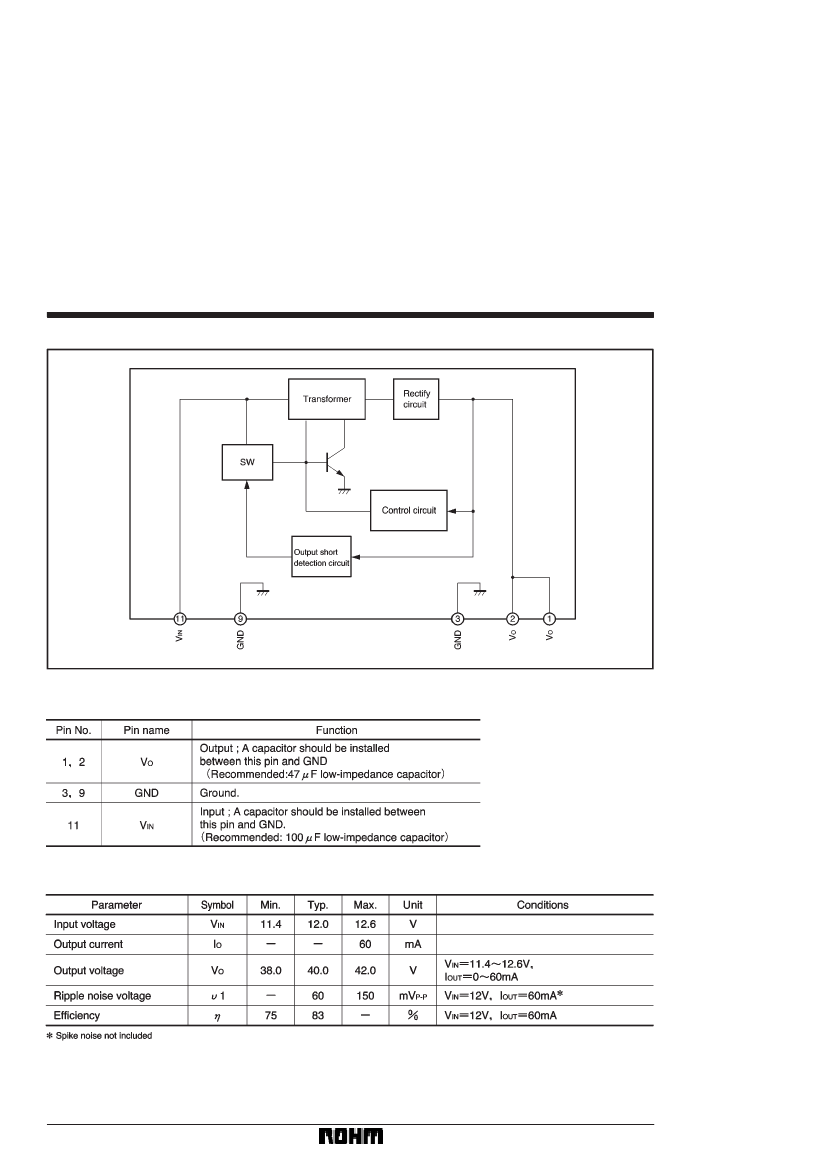

The BP5313 is a power supply unit designed to drive LCD panels. Using this unit makes it easy to create a

)40V

power

supply from a logic circuit ()12V) to drive an LCD.

FApplications

LCD panels for personal computers, word processors, and other equipment; LCD display units

FFeatures

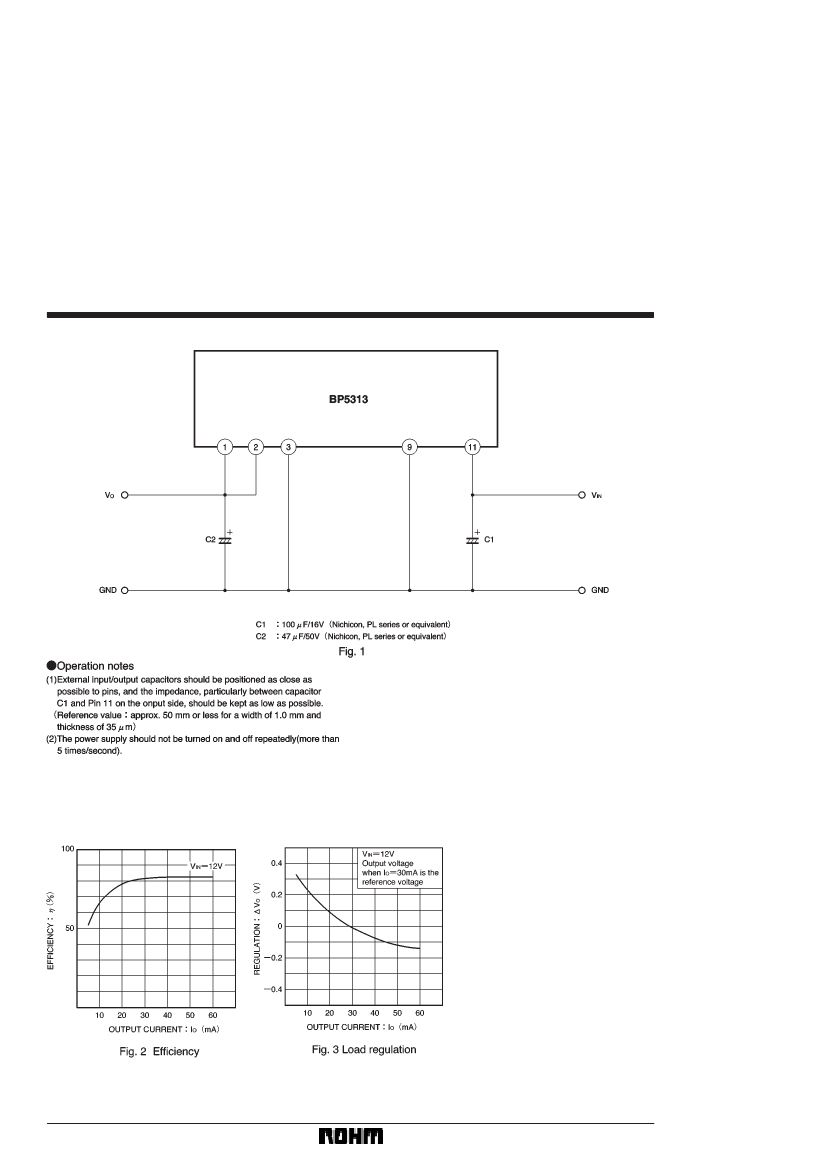

1) High efficient power conversion (83%).

2) Internal short-circuit protection.

3) Low height makes this product ideal for thin-panel

sets.

FAbsolute

maximum ratings (Ta = 25_C)

FRecommended

operating conditions (Ta = 25_C)

373
