74838-3063 datasheet, PDF - EEWORLD Datasheet

74838-3063: DescriptionTelecom and Datacom Connector, 48 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size257KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

74838-3063 Overview

Telecom and Datacom Connector, 48 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1177594089
Reach Compliance Code	compliant
ECCN code	EAR99

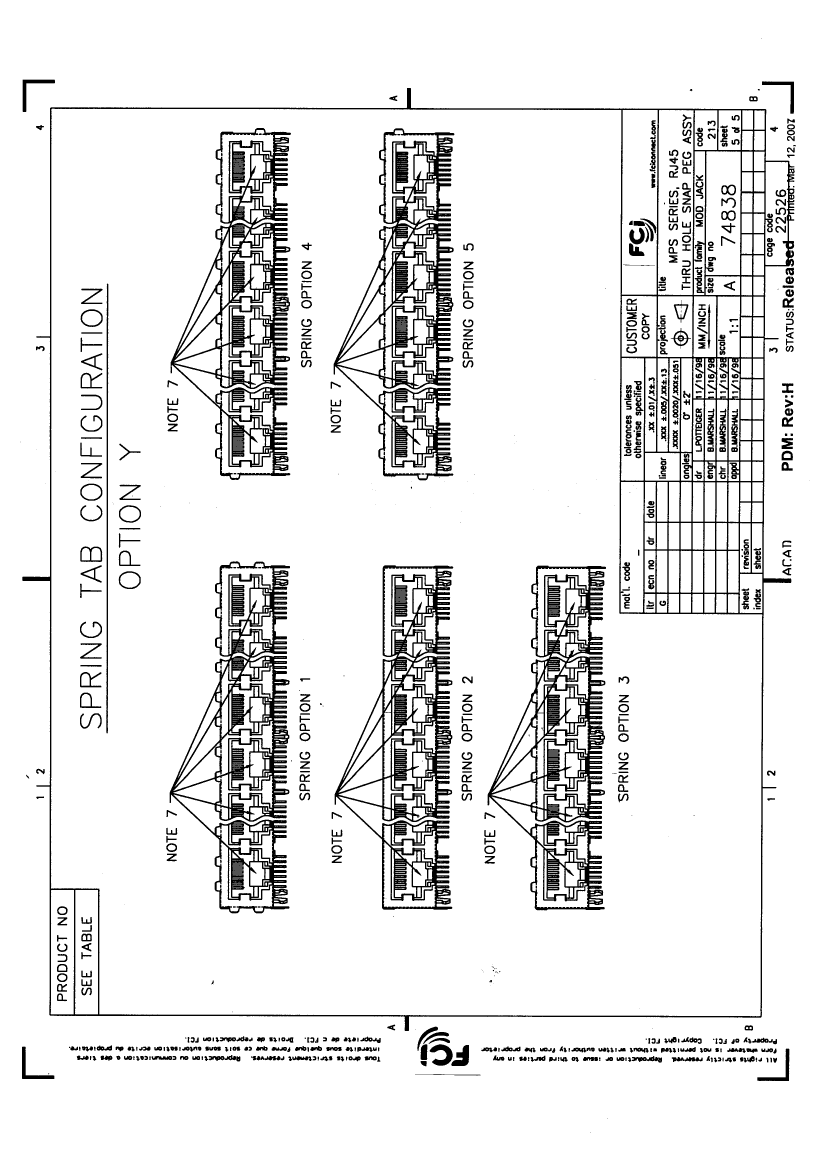

Other features	SPRINGS ON TOP AND BOTTOM
Board mount options	PEG
body width	0.54 inch
subject depth	0.851 inch
body length	3.447 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact style	TELCOM, MODULAR
maximum insertion force	3.4472 N
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e0
Manufacturer's serial number	74838
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	6
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	COPPER ALLOY
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	48

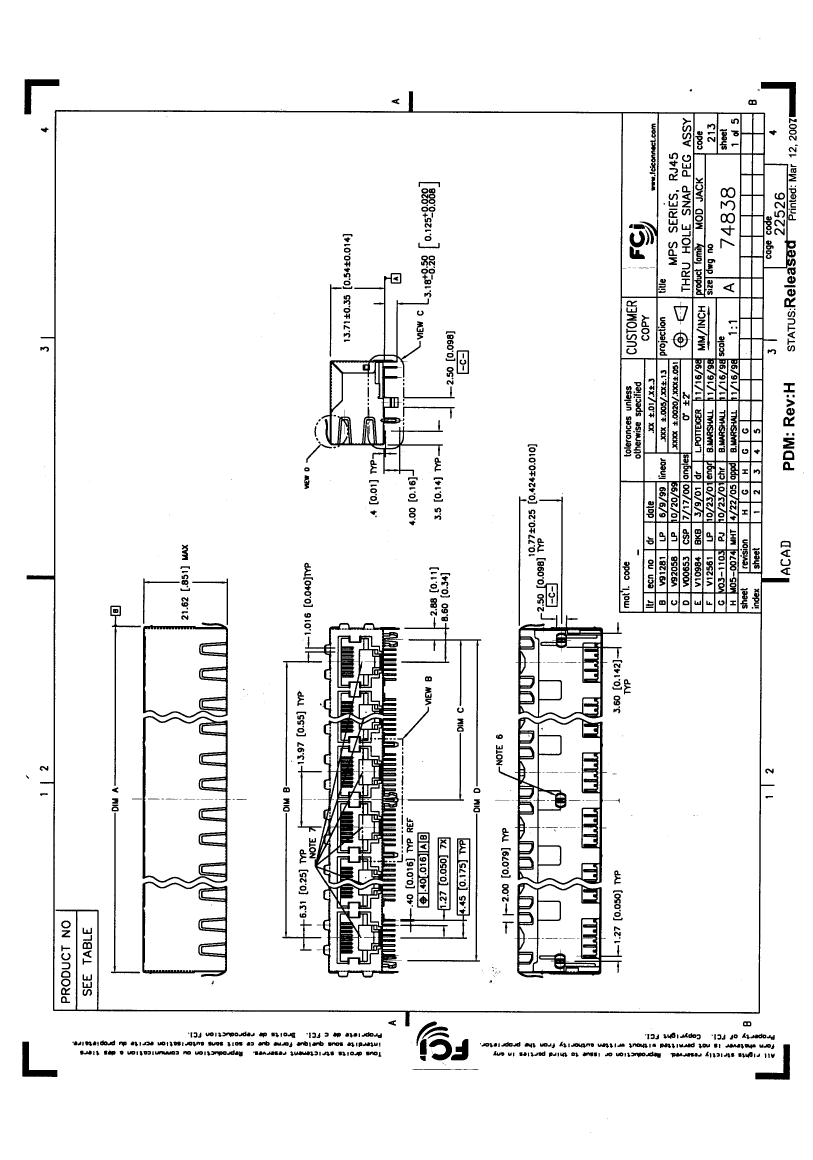

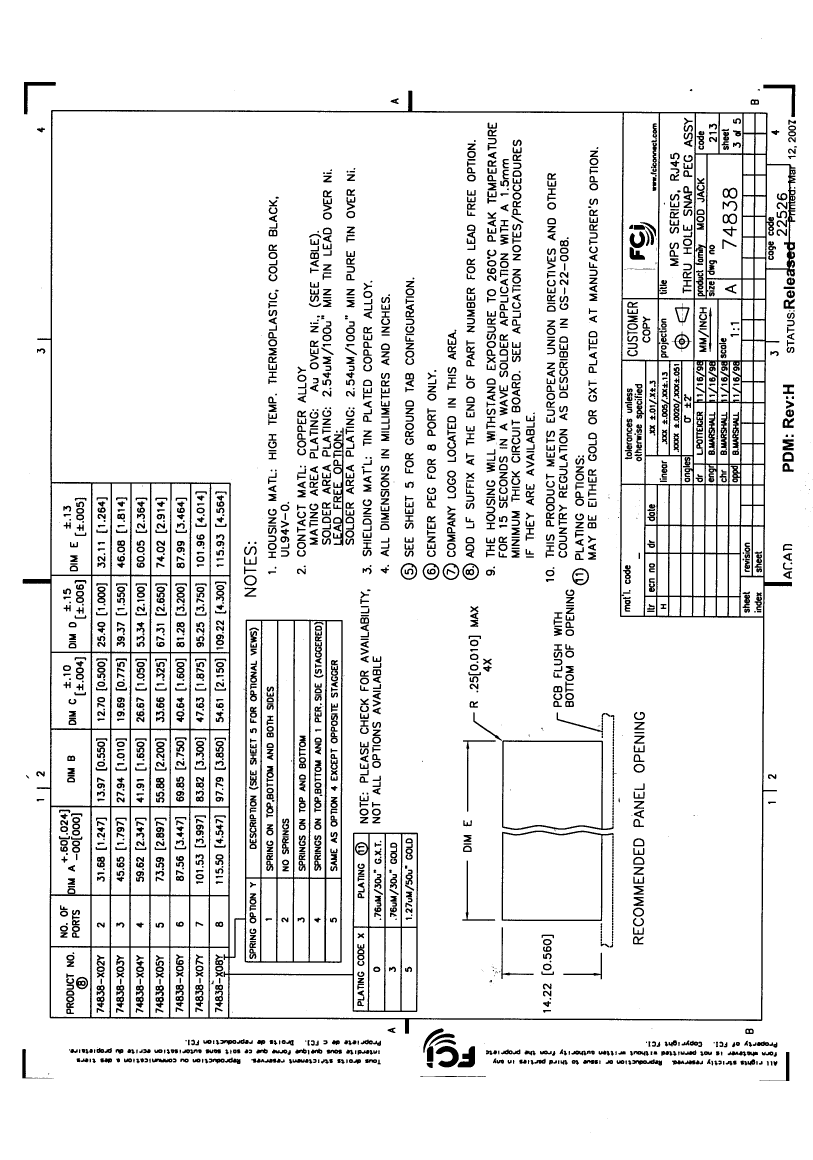

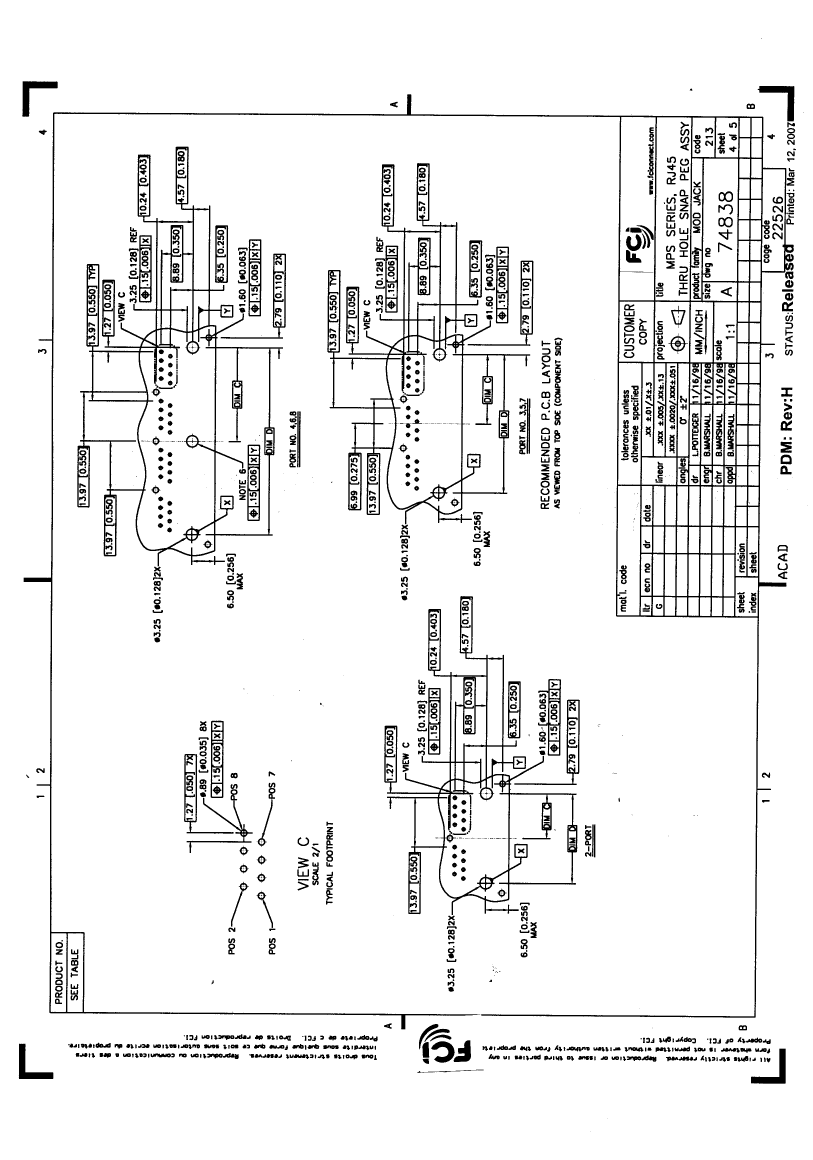

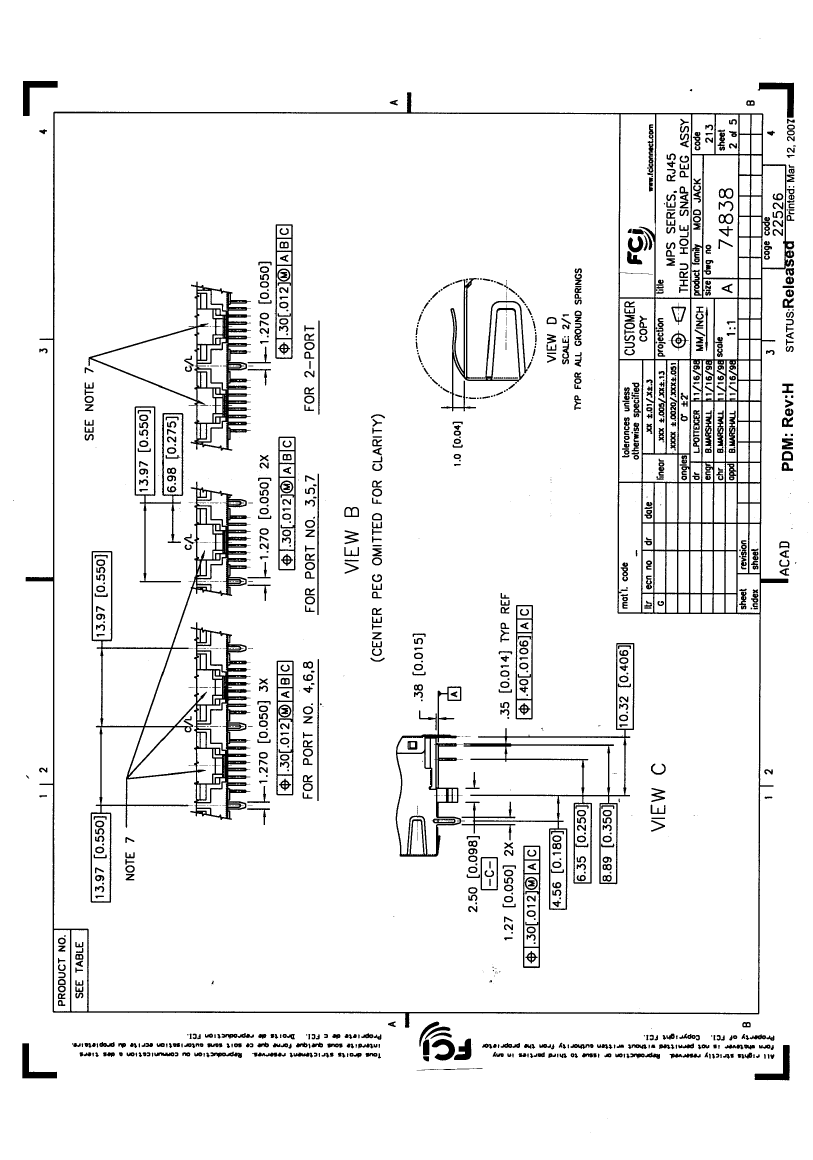

PDM: Rev:H

STATUS:

Released

Printed: Mar 14, 2007
