REVISIONS
REV
DESCRIPTION, ECN, EAR NO.
H
DATE
APP'D
K
L

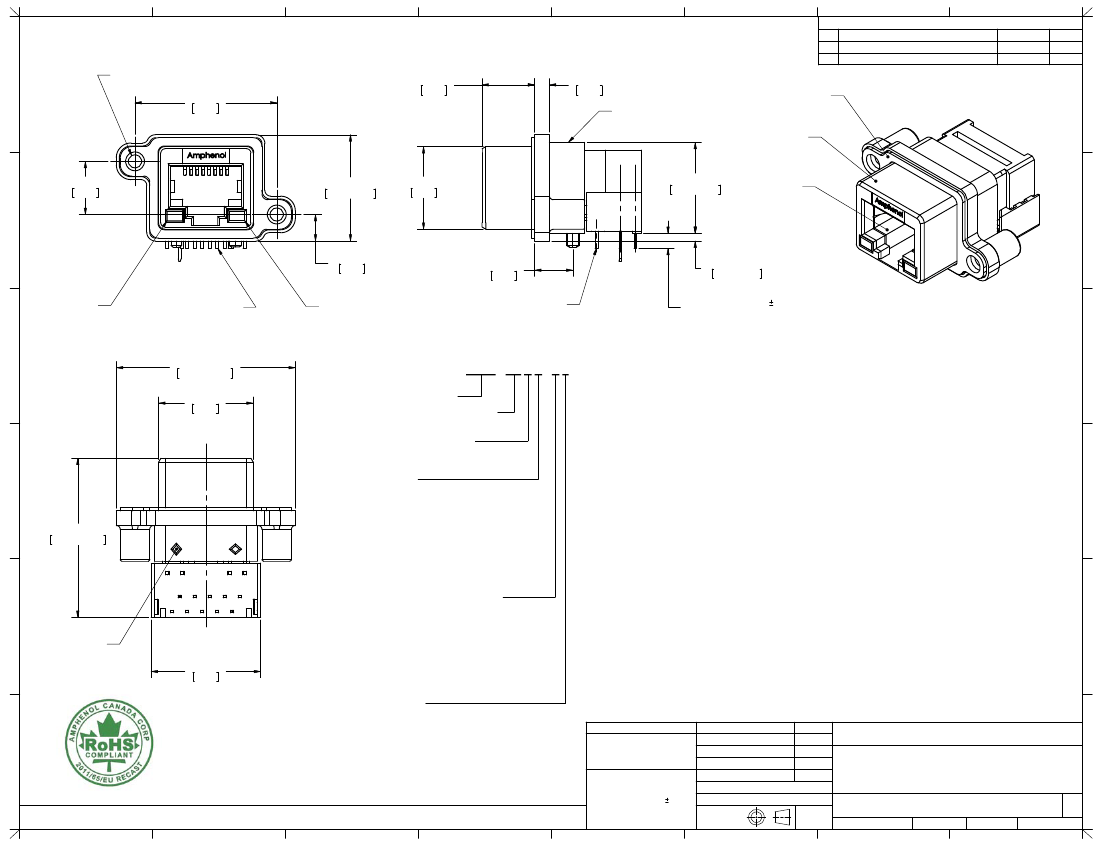

PRODUCT DRAWING (EAR 13638)
PRODUCT DRAWING (EAR 14330)
DEC09/09
DEC11/14
K.L.
K.L.
1
5.50 [.217] DEEP THREADED HOLES,
SEE ORDERING CODE THREAD OPTION
1
24.00
.945
8.90
.350
2.50
.098
DATE CODE
INK MARKING
PANEL GASKET
SHELL
9.00
.354
2
18.00±0.25
.709±.010
14.00
.551
15.40±0.25
.606±.010
FRONT
HOUSING
2
4.50
.177
RIGHT LED
SEE ORDERING
CODE
6.50
.256
0.51 [.020]
SQUARE
LED TAILS
1.30±0.25
.051±.010
TAIL LENGTH 'A' 0.30 [.012]
SEE ORDERING CODE
LEFT LED
0.46 [.018] x 0.36 [.014]
CONTACT TAILS
3
3
30.30±0.25
1.193±.010
16.00
.630
ORDERING CODE: M R J - 5 3 X X - X 1
SERIES, RUGGED RJ
RECEPTACLE, RIGHT ANGLE,
PCB TAIL
NUMBER OF CONTACTS
8= 8 CONTACTS
A=10 CONTACTS
NOTES:
1.
MATERIAL:
ALL MATERIALS ARE RoHS COMPLIANT PER EU DIRECTIVE 2011/65/EU AND
AMENDMENTS
•
SHELL - DIECAST ZINC, NICKEL PLATED
•
CONTACTS - PHOSPHOR BRONZE WITH 50 MICROINCHES (1.27 MICRONS) GOLD OVER
50 MICROINCHES (1.27 MICRONS) MINIMUM NICKEL ON THE MATING AREA AND MATTE
TIN OVER NICKEL ON THE CONTACT TAILS.
•
INSERTS - ENGINEERING THERMOPLASTIC, UL FLAMMABILITY RATING 94V-0,
REAR INSERTS: BLACK NYLON, FRONT INSERT: CLEAR POLYCARBONATE
•
LED’S - EPOXY LENS, STEEL TAILS WITH TIN PLATING
•
GASKET - SILICONE RUBBER, BLACK
ENVIRONMENTAL PERFORMANCE PER IEC 60529 CODE IP67 FOR SEAL BETWEEN MATING
AREA AND PCB SIDE OF CONNECTOR. GASKET PROVIDES SEAL TO INSIDE FACE OF
PANEL.
CURRENT RATING: 1.5 AMPERES
CONTACT RESISTANCE: 30 MILLIOHMS MAXIMUM
OPERATING TEMPERATURE: -40°C TO +105°C
LED CHARACTERISTICS: FORWARD DC CURRENT 25 mA MAX.,
FORWARD VOLTAGE 2.5 V MAX@ 2 mA
AVAILABLE MATING AREA COVERS PROVIDE ADDED PROTECTION. CONSULT
WITH AMPHENOL CANADA FOR DETAILS.
CUSTOMER TO VERIFY THAT ALL PROCESS CLEANERS ARE COMPATIBLE
WITH POLYCARBONATE MATERIAL.
4
26.95±0.30
1.061±.012
LED OPTION
0=NONE
1=GREEN LEFT, YELLOW RIGHT
4=YELLOW LEFT, GREEN RIGHT
5=GREEN LEFT, GREEN RIGHT
A=BI-COLOUR GREEN/YELLOW LEFT
BI-COLOUR GREEN/YELLOW RIGHT
D=GREEN LEFT
BI-COLOUR GREEN/YELLOW RIGHT
E=YELLOW LEFT
BI-COLOUR GREEN/YELLOW RIGHT
TAIL LENGTH AND MOUNTING
HOLE THREAD OPTION
0= TAIL LENGTH A=2.54 [.100],
#4-40 UNC THREAD
B= TAIL LENGTH A=3.81 [.150],
#4-40 UNC THREAD
M= TAIL LENGTH A=2.54 [.100],
M3 x 0.5 THREAD
P= TAIL LENGTH A=3.81 [.150],
M3 x 0.5 THREAD
SINGLE PORT
4
2.
3.
4.
5.
6.
7.
8.
5
5
2.08 [0.82]
MAJOR DIAGONAL
DIAMOND PEG
18.54
.730
UNLESS SPECIFIED OTHERWISE DRAWN
S.SEMENOV NOV11/04
SPECIAL CONNECTORS
6
PRIMARY UNITS
SECONDARY
MILLIMETERS
CHECKED
INCHES
M.E. APP'D
Q.A. APP'D
DWG APPR.
Amphenol Canada Corp.
www.amphenolcanada.com
MANY UNIQUE FEATURES ARE READILY
AVAILABLE TO SUIT CUSTOMER
REQUIREMENTS. CONSULT WITH
AMPHENOL CANADA FOR DETAILS.
REFERENCE IN PARENTHESES
GENERAL TOLERANCES
1 DECIMAL PLACE
2 DECIMAL PLACES
A. GREEN
NOV11/04
DWG.
ENG. REL. NO.
MRJ SERIES RUGGED MODULAR
JACK, 8 & 10 POSITION RIGHT ANGLE,
WITH LED, TAIL LENGTH & THREAD
OPTIONS, RoHS COMPLIANT
NO.
REV
6
0.15
REF.
THIRD
ANGLE
PROJECTION
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR
ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
A
B
C
D
3 DECIMAL PLACES
ANGULAR DEGREES
DO NOT
SCALE
DRAWING CODE ID NO.
P-MRJ-53XX-X1
03554
DWG SIZE:
C
SCALE:
L
SHEET
3:1
H
1
OF
2
E
F
G
A
B
C
D
E
F
G
REVISIONS
H

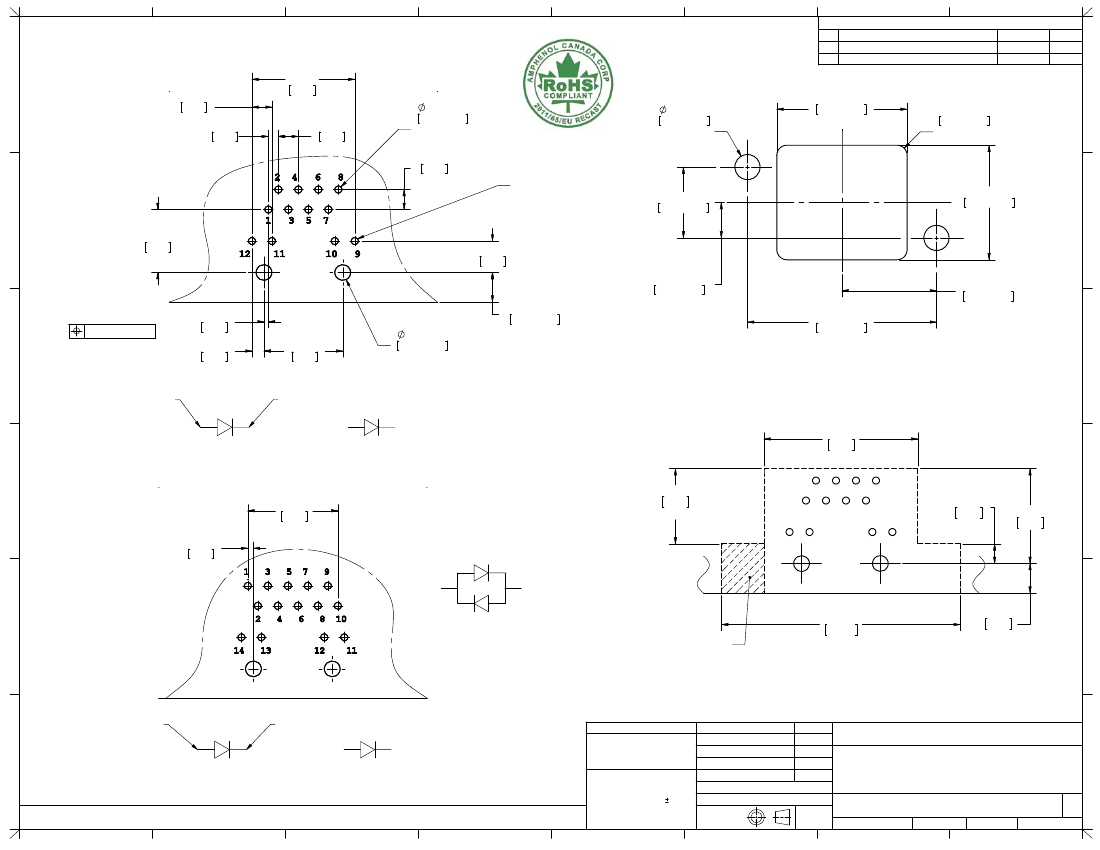

RECOMMENDED P.C.B. LAYOUT
COMPONENT SIDE OF BOARD
1
REV
DESCRIPTION, ECN, EAR NO.
DATE
APP'D
K
L
PRODUCT DRAWING (EAR 13638)
PRODUCT DRAWING (EAR 14330)
DEC09/09
DEC11/14
K.L
K.L
1
2.54
.100
2 PLCS
13.06
.514
0.90±0.05
.035±.002
12 HOLES
2.54
.100
THESE 4 LED HOLES
NOT REQUIRED FOR
CONNECTORS
WITHOUT LED'S
9.00±0.20
.354±.008
3.20±0.08
.126±.003
2 HOLES
16.55±0.20
.652±.008
8 POSITION
VIEW
1.27
.050
TYP
2.54
.100
TYP
R1.30±0.15
.051±.006
TYP.
14.55±0.20
.573±.008
2
2
8.00
.315
4.00
.157
4.50±0.07
.177±.003
12.00±0.07
.472±.003
24.00±0.20
.945±.008
LOCATE HOLES
0.13 [.005] DIA
3
0.56
.022
1.53
.060
10.00
.394
3.75 MAX
.148 MAX
2.00±0.05
.079±.002
2 HOLES
POSITION DIMENSIONS
ARE BASIC
RECOMMENDED PANEL CUTOUT
FRONT OF PANEL
3
ANODE (+)
12
11
CATHODE (-)
10
9
8 POSITION
LED SCHEMATIC
GREEN OR YELLOW
19.54
.769
LEFT LED
RIGHT LED
4
10 POSITION
VIEW
11.43
.450
0.72
.028
BI-COLOUR
LED SCHEMATIC
LEFT OR RIGHT SIDE,
8 OR 10 POSITION
GREEN
10, 12
OR 14
9, 11
OR 13
YELLOW
9.55
.376
REF
4
2.50
.098
12.05
.475
5
30.30
1.193
COMPONENTS WITH 9.10
[.358] MAX HEIGHT CAN BE
PLACED IN THIS REGION
3.75
.148
MAX
5
RECOMMENDED KEEP-OUT ZONE
COMPONENT SIDE OF BOARD
ANODE (+)
14
6
CATHODE (-)
13
12
11
10 POSITION
LED SCHEMATIC
GREEN OR YELLOW
UNLESS SPECIFIED OTHERWISE DRAWN
PRIMARY UNITS
SECONDARY
S. SEMENOV NOV11/04
MILLIMETERS
CHECKED
INCHES
M.E. APP'D
Q.A. APP'D
DWG APPR.
Amphenol Canada Corp.
www.amphenolcanada.com
LEFT LED
RIGHT LED
REFERENCE IN PARENTHESES
GENERAL TOLERANCES
1 DECIMAL PLACE
2 DECIMAL PLACES
A. GREEN
NOV11/04
DWG.
ENG. REL. NO.
MRJ SERIES RUGGED MODULAR
JACK, 8 & 10 POSITION RIGHT ANGLE,
WITH LED, TAIL LENGTH & THREAD
OPTIONS, RoHS COMPLIANT
NO.
REV
6
0.15
REF.
THIRD
ANGLE
PROJECTION
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR
ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
A
B
C
D
3 DECIMAL PLACES
ANGULAR DEGREES
DO NOT
SCALE
DRAWING CODE ID NO.
P-MRJ-53XX-X1
03554
DWG SIZE:
C
SCALE:
L
SHEET
3:1
H
2
OF
2
E
F
G
