RJLSE-60283-02: DescriptionTelecom and Datacom Connector, 16 Contact(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size2MB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

RJLSE-60283-02 Overview

Telecom and Datacom Connector, 16 Contact(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT

RJLSE-60283-02 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1671197592
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: RJ11
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	MATTE TIN
Contact completed and terminated	MATTE TIN (100)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	COPPER ALLOY
Termination type	SURFACE MOUNT
Total number of contacts	16
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

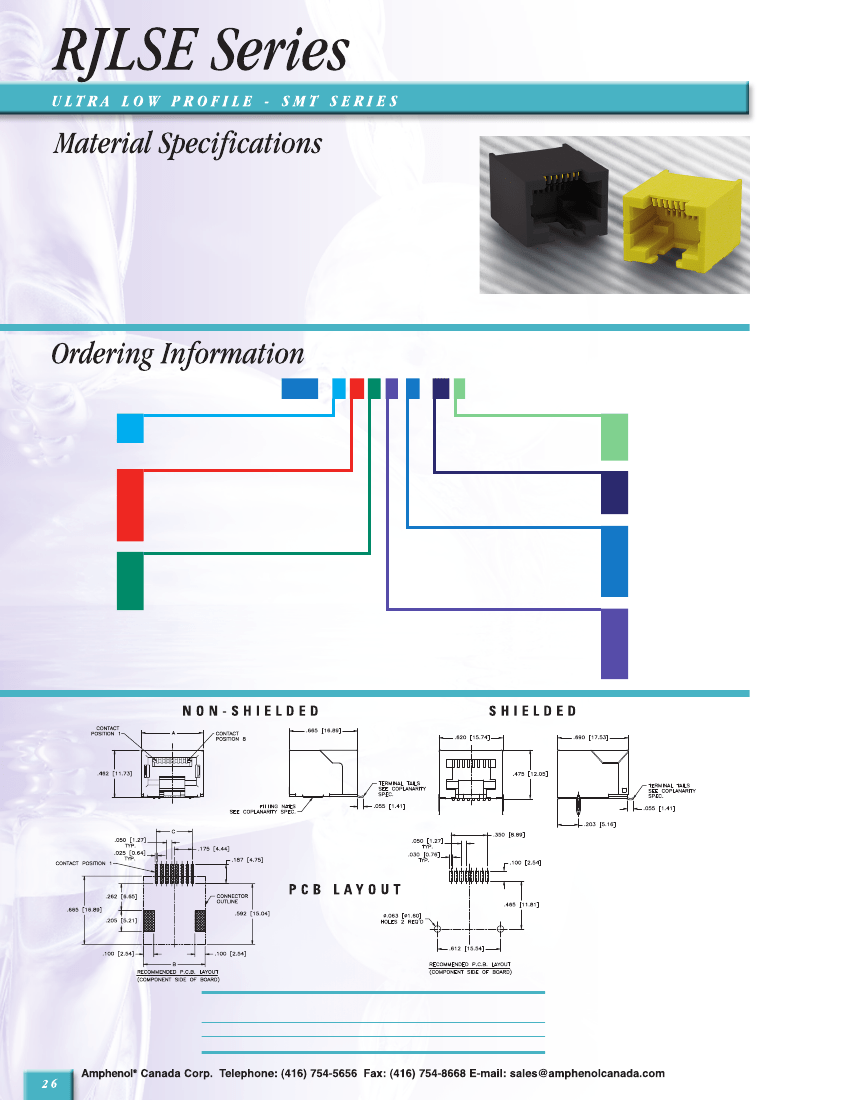

Housing:

Contacts:

Plating:

Shield:

Coplanarity:

High temperature engineering thermoplastic,

flammability rating UL 94V-O

*RoHS compliant

Phosphor bronze

Gold plated on mating surfaces

over 50µ” (1.27 microns) min. nickel underplate.

100µ” (2.54 microns) min. matte tin on contact tails.

Copper alloy, nickel plated

The maximum gap between all terminal tails is .004” (0.10mm).

*Please visit www.amphenolcanada.com (ECO-RoHS section) for further information on RoHS products.

RJLSE

-

X

SERIES

4 = RJ45

6 = RJ11

GOLD PLATING

0 = Gold flash

1 = 15 Micro” gold plating

2 = 30 Micro” gold plating

3 = 50 Micro” gold plating

SHIELD OPTIONS

0 = No shield

1 = Standard shield

2 = No shield, with special solder bracket

X

-

01 T

PACKAGING

Blank = Tray

T = Tape and packaging

NUMBER OF PORTS

01 = 1 Port

02 = 2 Port

HOUSING OPTIONS

1 = Black housing

2 = Yellow housing

3 = Red housing

4 = Black .74” long housing

NUMBER OF CONTACTS

2 = 2 Contacts

4 = 4 Contacts

6 = 6 Contacts

8 = 8 Contacts

X

XX

X

Number

of positions

6

8

Unshielded

A

.520 [13.21]

.600 [15.24]

Shielded

A

.540 [13.71]

.620 [15.74]

Shielded

B

.532 [13.51]

.612 [15.64]

C

.520 [13.21]

.600 [15.24]

D

.250 [6.35]

.350 [8.89]
