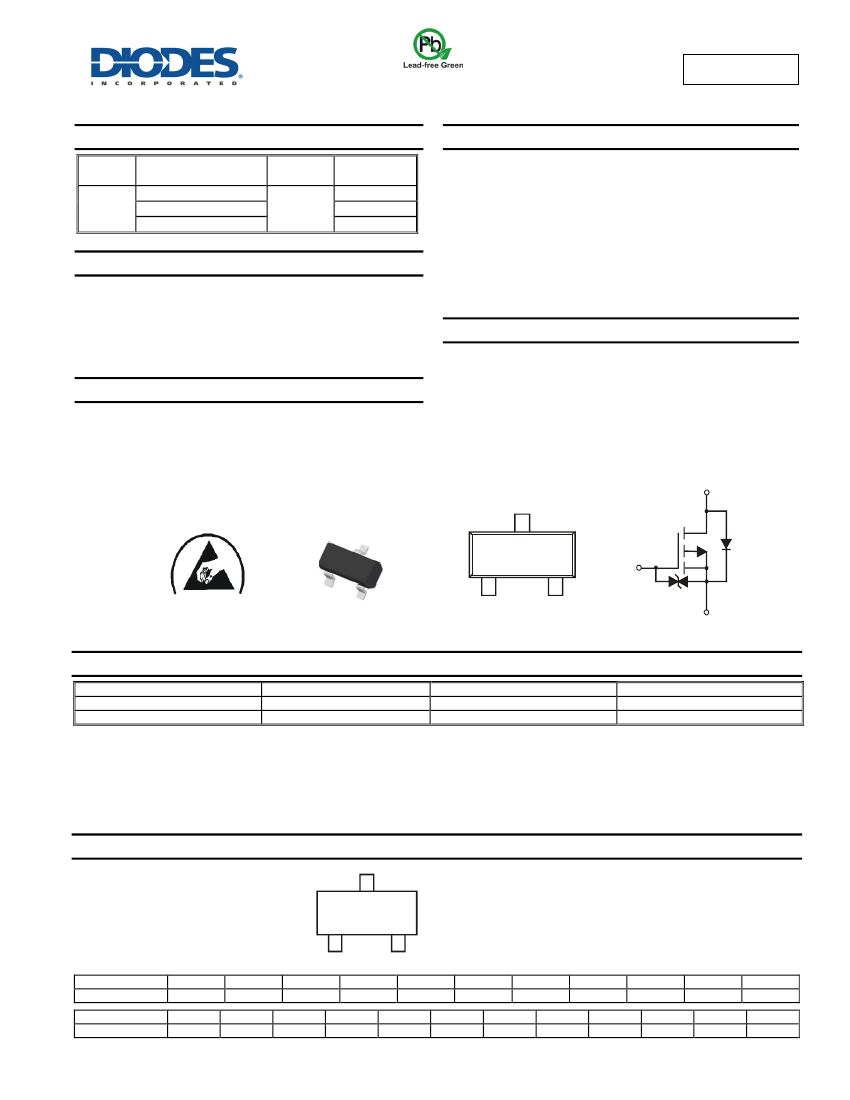

DMP2100U

P-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

(BR)DSS

-20V

DS(ON) MAX

38mΩ @ V

= -10V

43mΩ @ V

= -4.5V

75mΩ @ V

= -2.5V

Package

SOT23

= +25°C

-4.3A

-4.0A

-2.8A

Features



Low On-Resistance

Low Input Capacitance

Fast Switching Speed

Low Input/Output Leakage

ESD Protected Up To 3kV

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Description

This new generation MOSFET has been designed to minimize the on-

state resistance (R

DS(on)

) and yet maintain superior switching

performance, making it ideal for high efficiency power management

applications.

Mechanical Data



Case: SOT23

Case Material: Molded Plastic, “Green” Molding Compound.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish – Matte Tin annealed over Copper leadframe.

Solderable per MIL-STD-202, Method 208

Terminals Connections: See Diagram Below

Weight: 0.008 grams (approximate)

Drain

Applications



Load Switch

Power Management Functions



SOT23

Gate

ESD PROTECTED TO 3kV

Top View

Internal Schematic

Gate

Protection

Diode

Source

Equivalent Circuit

Ordering Information

(Note 4 & 5)

Part Number

DMP2100U-7

DMP2100UQ-7

Notes:

Compliance

Standard

Automotive

Case

SOT23

Packaging

3,000/Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

5. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the

same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_grade_definitions/

Marking Information

35P = Product Type Marking Code

YM = Date Code Marking

Y = Year (ex: V = 2008)

M = Month (ex: 9 = September)

35P

Date Code Key

Year

Code

Month

Code

2008

Jan

2009

Feb

2010

Mar

2011

Apr

2012

May

Jun

2013

Jul

2014

Aug

2015

Sep

2016

Oct

2017

Nov

2018

Dec

April 2013

DMP2100U

Document number: DS35718 Rev. 6 - 2

1 of 6

www.diodes.com
