Technical Data 4315
Effective April 2014
Supersedes December 2007
Coiltronics DR Series
High power density, high efficiency, shielded inductors
Applications
•
•
•
•
•
Computer, DVD players, and portable power
devices
LCD panels
DC-DC converters
Buck, boost, forward, and resonant converters
Noise filtering and filter chokes
Environmental data
•
•
•
Storage temperature range (Component):
-40°C to +125°C
Operating temperature range: -40°C to +125°C
(ambient + self-temperature rise)
Solder reflow temperature: J-STD-020D
compliant
Product description
•
•
•
•
•
•
•
•
Packaging:
•
Lead free, RoHS compliant
125°C maximum total operating
temperature

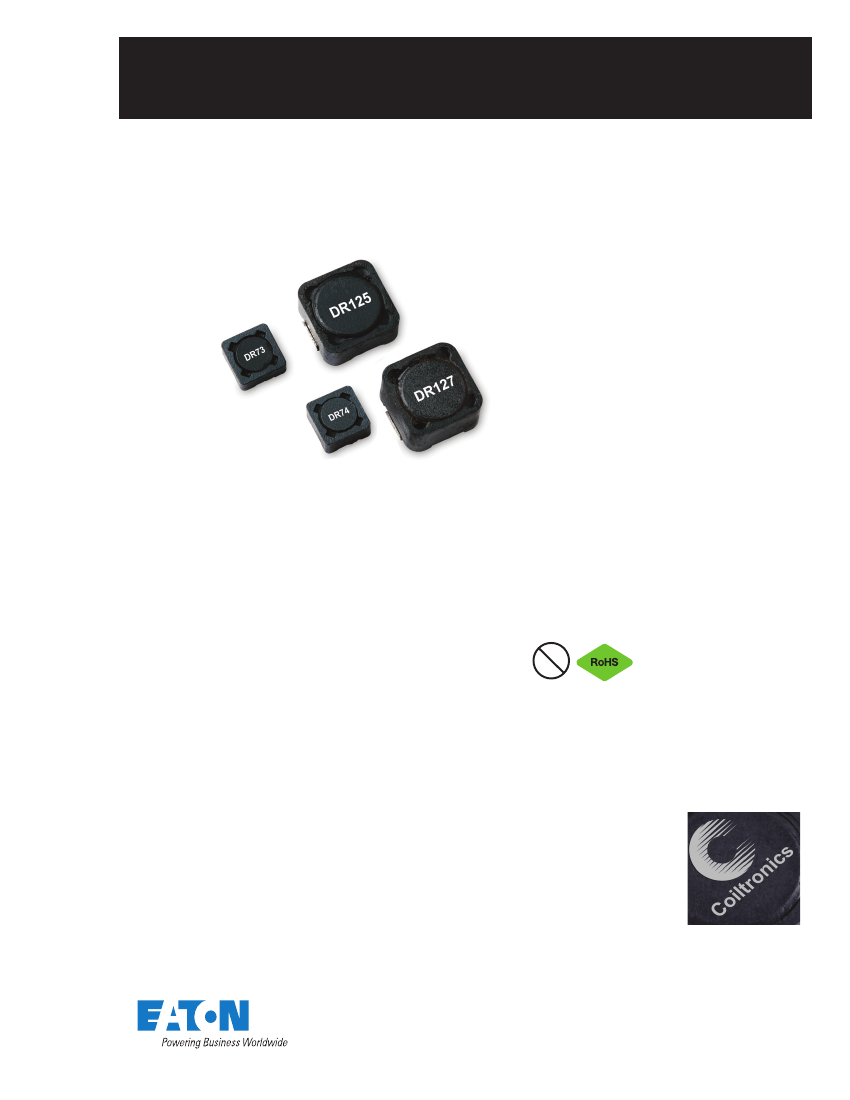

Four sizes of shielded drum core induc-
tors
Inductance range from 0.33μH to
1000μH
Current range up to 56 amps peak
Magnetic shielding
Secure mounting
Ferrite core material
Supplied in tape and reel packaging (per reel):
- DR73 1350
- DR74 1100
- DR125 600
- DR127 350
Pb
The Coiltronics brand of
magnetics (formerly of
the Bussmann Division of
Cooper Industries)
is now part of
Eaton’s Electrical Group,
Electronics Division.
Coiltronics is now
part of Eaton
Same great
products plus
even more.
Technical Data 4315
Effective April 2014
DR Series High power density,
high efficiency, shielded inductors
Product specifications
Rated
Inductance
(μH)
0.33
1.00
1.50
2.20
3.30
4.70
6.80
8.20
10.0
15.0
22.0
33.0
47.0
68.0
82.0
100
150
220
330
470
680
820
1000
OCL
1
±20%
(μH)
0.306
0.992
1.482
2.070
3.540
4.422
6.480
8.930
10.30
15.01
22.65
34.41
48.62
68.91
80.37
101.4
150.9
223.3
325.5
465.8
676.5
821.7
995.0
I
sat3
Amps
Peak
14.4
7.97
6.52
5.52
4.22
3.78
3.12
2.66
2.47
2.05
1.67
1.35
1.14
0.96
0.89
0.79
0.65
0.53
0.44
0.37
0.31
0.28
0.25
DCR
4
(Ω)
Typ.
0.0073
0.0102
0.0130
0.0165
0.0259
0.0297
0.0435
0.0592
0.0656
0.0844
0.107
0.166
0.241
0.358
0.384
0.527
0.851
1.05
1.59
2.36
3.47
3.93
4.34
Part Number
DR73-R33-R
DR73-1R0-R
DR73-1R5-R
DR73-2R2-R
DR73-3R3-R
DR73-4R7-R
DR73-6R8-R
DR73-8R2-R
DR73-100-R
DR73-150-R
DR73-220-R
DR73-330-R
DR73-470-R
DR73-680-R
DR73-820-R
DR73-101-R
DR73-151-R
DR73-221-R
DR73-331-R
DR73-471-R
DR73-681-R
DR73-821-R
DR73-102-R
I
rms
Amps
2
Volt-μSec
5
Typ.
1.98
3.56
4.36
5.15
6.73
7.52
9.11
10.7
11.5
13.9
17.0
21.0
24.9
29.7
32.1
36.0
44.0
53.5
64.5
77.2
93.1
103
113
6.21
5.28
4.67
4.15
3.31
3.09
2.55
2.19
2.08
1.83
1.62
1.31
1.08
0.89
0.86
0.73
0.58
0.52
0.42
0.35
0.29
0.27
0.26
1. Open Circuit Inductance Test Parameters: 100kHz, 0.25V
rms
, 0.0Adc.
2. RMS current for an approximate DT of 40°C without core loss.
It is recommended that the temperature of the part not exceed 125°C.
3. Peak current for approximate 30% roll off at 20°C.
4. DCR limits @ 20°C.
5. Applied Volt-Time product (V-μS) across the inductor. This value represent the
applied V-μSat 100kHz necessary to generate a core loss equal to 10% of the
total losses for 40°C temperature rise.
6. Part number definition: DRxxx-yyy-R
- DRxxx = product code and size,
- yyy = inductance value in μH,
- R = decimal point. If no R is present, third character = # of zeros
- “-R” suffix = RoHS compliant
2
www.eaton.com/elx
DR Series High power density,
high efficiency, shielded inductors
Product specifications
Rated
Inductance
(μH)
0.33
1.00
1.50
2.20
3.30
4.70
6.80
8.20
10.0
15.0
22.0
33.0
47.0
68.0
82.0
100
150
220
330
470
680
820
1000
OCL
1
±20%
(μH)
0.294
0.952
1.422
1.986
3.396
5.182
7.344
8.566
9.882
16.09
21.73
33.01
49.64
69.67
80.95
101.6
150.0
227.0
335.6
465.3
671.2
812.7
1009
I
sat3
Amps
Peak
18.4
10.2
8.35
7.06
5.40
4.37
3.67
3.40
3.17
2.48
2.13
1.73
1.41
1.19
1.11
0.99
0.81
0.66
0.54
0.46
0.38
0.35
0.31
DCR
4
(Ω)
Typ.
0.0074
0.0099
0.0118
0.0126
0.0183
0.0254
0.0418
0.0441
0.0489
0.0637
0.0925
0.143
0.216
0.265
0.345
0.383
0.591
0.907
1.41
1.74
2.58
2.93
3.89
Technical Data 4315
Effective April 2014
Part Number
DR74-R33-R
DR74-1R0-R
DR74-1R5-R
DR74-2R2-R
DR74-3R3-R
DR74-4R7-R
DR74-6R8-R
DR74-8R2-R
DR74-100-R
DR74-150-R
DR74-220-R
DR74-330-R
DR74-470-R
DR74-680-R
DR74-820-R
DR74-101-R
DR74-151-R
DR74-221-R
DR74-331-R
DR74-471-R
DR74-681-R
DR74-821-R
DR74-102-R
I
rms
Amps
2
Volt-μSec
5
Typ.
1.71
3.08
3.76
4.45
5.81
7.18
8.55
9.23
9.92
12.7
14.7
18.1
22.2
26.3
28.4
31.8
38.6
47.5
57.8
68.1
81.7
89.9
100
6.26
5.39
4.94
4.76
3.94
3.34
2.60
2.53
2.41
2.11
1.75
1.41
1.15
1.03
0.91
0.86
0.69
0.56
0.45
0.40
0.33
0.31
0.27
1. Open Circuit Inductance Test Parameters: 100kHz, 0.25V
rms
, 0.0Adc.
2. RMS current for an approximate DT of 40°C without core loss.
It is recommended that the temperature of the part not exceed 125°C.
3. Peak current for approximate 30% roll off at 20°C.
4. DCR limits @ 20°C.
5. Applied Volt-Time product (V-μS) across the inductor. This value represent the
applied V-μSat 100kHz necessary to generate a core loss equal to 10% of the
total losses for 40°C temperature rise.
6. Part number definition: DRxxx-yyy-R
- DRxxx = product code and size,
- yyy = inductance value in μH,
- R = decimal point. If no R is present, third character = # of zeros
- “-R” suffix = RoHS compliant
www.eaton.com/elx
3
Technical Data 4315
Effective April 2014
DR Series High power density,
high efficiency, shielded inductors
Product specifications
Rated
Inductance
(μH)
0.47
1.00
1.50
2.20
3.30
4.70
6.80
8.20
10.0
15.0
18.0
22.0
33.0
47.0
56.0
68.0
82.0
100
150
220
330
470
680
820
1000
4700
120000
OCL
1
±20%
(μH)
0.456
0.894
1.478
2.208
3.084
5.274
6.588
8.048
9.654
15.35
17.70
22.36
33.74
47.47
55.24
67.91
86.89
102.7
151.1
216.8
332.6
473.1
679.8
828.0
1008
4720
120630
I
rms
Amps
2
Part Number
DR125-R47-R
DR125-1R0-R
DR125-1R5-R
DR125-2R2-R
DR125-3R3-R
DR125-4R7-R
DR125-6R8-R
DR125-8R2-R
DR125-100-R
DR125-150-R
DR125-180-R
DR125-220-R
DR125-330-R
DR125-470-R
DR125-560-R
DR125-680-R
DR125-820-R
DR125-101-R
DR125-151-R
DR125-221-R
DR125-331-R
DR125-471-R
DR125-681-R
DR125-821-R
DR125-102-R
DR125-472-R
DR125-124-R
I
sat3
Amps
Peak
33.0
23.6
18.3
15.0
12.7
9.71
8.68
7.86
7.17
5.69
5.32
4.71
3.84
3.24
3.00
2.70
2.39
2.20
1.81
1.51
1.22
1.02
0.85
0.77
0.70
0.32
0.069
DCR
4
(Ω)
Typ.
0.0018
0.0024
0.0029
0.0045
0.0063
0.0105
0.0123
0.0176
0.0189
0.0298
0.0377
0.0396
0.0505
0.0740
0.102
0.101
0.128
0.170
0.248
0.384
0.482
0.718
1.10
1.49
1.69
7.53
150
Volt-μSec
5
Typ.
3.17
4.43
5.70
6.97
8.23
10.8
12.0
13.3
14.6
18.4
19.6
22.2
27.2
32.3
34.8
38.6
43.7
47.5
57.6
69.0
85.5
102
122
135
149
322.4
1521
17.6
15.0
13.8
10.9
9.26
7.18
6.64
5.54
5.35
4.27
3.81
3.70
3.28
2.71
2.31
2.22
2.05
1.78
1.48
1.19
1.06
0.87
0.70
0.60
0.57
0.268
0.060
1. Open Circuit Inductance Test Parameters: 100kHz, 0.25V
rms
, 0.0Adc.
2. RMS current for an approximate DT of 40°C without core loss.
It is recommended that the temperature of the part not exceed 125°C.
3. Peak current for approximate 30% roll off at 20°C.
4. DCR limits @ 20°C.
5. Applied Volt-Time product (V-μS) across the inductor. This value represent the
applied V-μSat 100kHz necessary to generate a core loss equal to 10% of the
total losses for 40°C temperature rise.
6. Part number definition: DRxxx-yyy-R
- DRxxx = product code and size,
- yyy = inductance value in μH,
- R = decimal point. If no R is present, third character = # of zeros
- “-R” suffix = RoHS compliant
4
www.eaton.com/elx
DR Series High power density,
high efficiency, shielded inductors
Product specifications
Rated
Inductance
(μH)
0.47
1.00
1.50
2.20
3.30
4.70
6.80
8.20
10.0
15.0
22.0
33.0
47.0
68.0
82.0
100
150
220
330
470
680
820
1000
OCL
1
±20%
(μH)
0.419
0.821
1.357
2.027
2.831
4.841
7.387
8.861
10.47
14.09
22.93
33.92
47.05
66.48
79.75
99.31
144.9
221.5
323.6
467.1
676.7
818.1
1005
I
rms
Amps
2
Technical Data 4315
Effective April 2014
Part Number
DR127-R47-R
DR127-1R0-R
DR127-1R5-R
DR127-2R2-R
DR127-3R3-R
DR127-4R7-R
DR127-6R8-R
DR127-8R2-R
DR127-100-R
DR127-150-R
DR127-220-R
DR127-330-R
DR127-470-R
DR127-680-R
DR127-820-R
DR127-101-R
DR127-151-R
DR127-221-R
DR127-331-R
DR127-471-R
DR127-681-R
DR127-821-R
DR127-102-R
I
sat3
Amps
Peak
56.0
40.0
31.1
25.5
21.5
16.5
13.3
12.2
11.2
9.66
7.57
6.22
5.28
4.44
4.06
3.64
3.01
2.43
2.01
1.68
1.39
1.27
1.14
DCR
4
(Ω)
Typ.
0.00195
0.00313
0.00341
0.00402
0.00567
0.00917
0.0116
0.0157
0.0172
0.0247
0.0391
0.0600
0.0719
0.105
0.143
0.163
0.247
0.376
0.574
0.861
1.08
1.47
1.66
Volt-μSec
5
Typ.
3.50
4.90
6.30
7.70
9.10
11.9
14.7
16.1
17.5
20.3
25.9
31.5
37.1
44.1
48.3
53.9
65.1
80.5
97.3
117
141
155
172
17.9
15.5
13.5
12.5
10.5
8.25
7.34
6.32
6.04
5.03
4.00
3.23
2.95
2.44
2.09
1.96
1.59
1.29
1.04
0.85
0.76
0.65
0.61
1. Open Circuit Inductance Test Parameters: 100kHz, 0.25V
rms
, 0.0Adc.
2. RMS current for an approximate DT of 40°C without core loss.
It is recommended that the temperature of the part not exceed 125°C.
3. Peak current for approximate 30% roll off at 20°C.
4. DCR limits @ 20°C.
5. Applied Volt-Time product (V-μS) across the inductor. This value represent the
applied V-μSat 100kHz necessary to generate a core loss equal to 10% of the
total losses for 40°C temperature rise.
6. Part number definition: DRxxx-yyy-R
- DRxxx = product code and size,
- yyy = inductance value in μH,
- R = decimal point. If no R is present, third character = # of zeros
- “-R” suffix = RoHS compliant
www.eaton.com/elx
5
MCU
京公网安备 11010802033920号
EEWORLD
