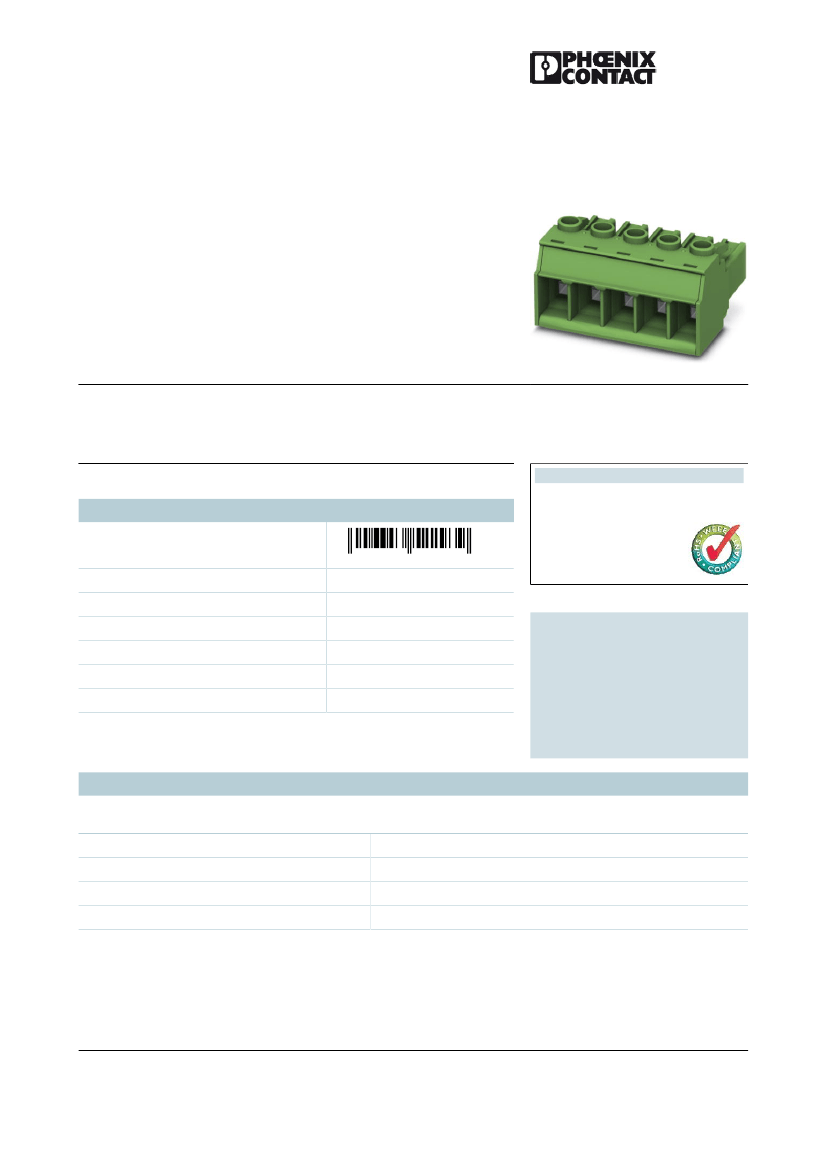

PC 5/ 9-ST1-7,62
Order No.: 1777794
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=1777794
Plug component, Nominal current: 41 A, Rated voltage (III/2): 1000 V,
Number of positions: 9, Pitch: 7.62 mm, Connection method: Screw
connection, Color: green, Contact surface: Tin
Product notes
Commercial data
EAN
4
046356
522939
WEEE/RoHS-compliant since:
08/05/2009
sales group
Pack
Customs tariff
Gross weight in pieces
Net weight per piece
Catalog page information
E522
50 Pcs.
85366990
0.039336 KG
0.039336 KG
Page 524 (C-1-2013)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Dimensions
Length
Height
Pitch
Dimension a
35.5 mm
19.7 mm
7.62 mm
60.96 mm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 1 / 6
Aug 13, 2014
PC 5/ 9-ST1-7,62
Order No.: 1777794
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=1777794
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Inflammability class according to UL 94
Internal cylindrical gage
Stripping length
Number of positions
Screw thread
Tightening torque, min
Tightening torque max
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
2 conductors with same cross section, solid min.
0.2 mm²
10 mm²
0.2 mm²
6 mm²
0.25 mm²
6 mm²
0.25 mm²
4 mm²
24
10
0.2 mm²
PC 5/..-ST1
I
8 kV
8 kV
6 kV
1000 V
1000 V
1000 V
41 A
6 mm²
41 A
PA
V0
A4
10 mm
9
M3
0.5 Nm
0.8 Nm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 2 / 6
Aug 13, 2014
PC 5/ 9-ST1-7,62
Order No.: 1777794
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=1777794
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
Certificates / Approvals
2.5 mm²
0.2 mm²
4 mm²
0.25 mm²
1.5 mm²
0.25 mm²
2.5 mm²
24
8
Certification
Certifications applied for:
Certification Ex:
cULus Recognized, GOST
Accessories
Item
General
1701967
CP-PC RD
Coding profile, for plugging into the coding ribs of the plug at a
later date, insulating material, color: Red
Designation
Description
Tools
1205053
SZS 0,6X3,5
Actuation tool, for ST terminal blocks, insulated, also suitable
for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-
component grip, with non-slip grip
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 3 / 6
Aug 13, 2014
PC 5/ 9-ST1-7,62
Order No.: 1777794
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=1777794
Drawings
Diagram

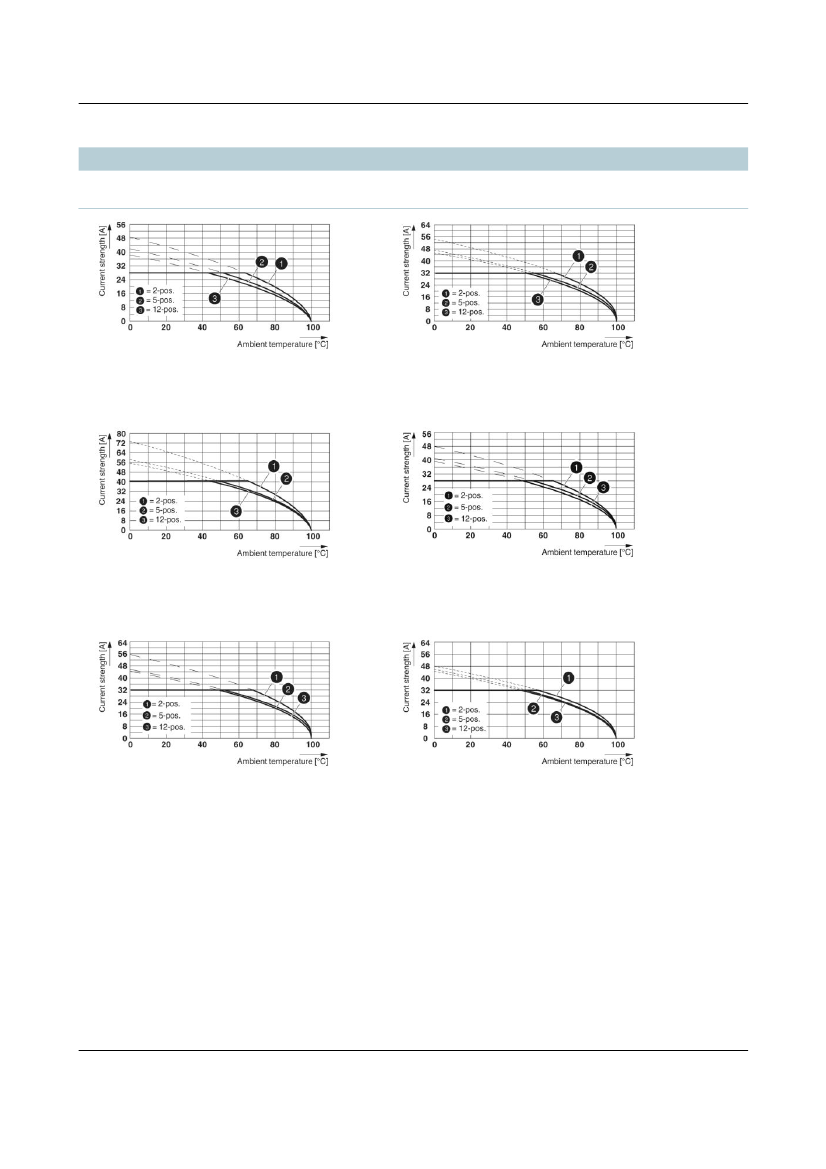

Derating curve for: PC 5/...-ST1-7,62 with
PC 4/....-G-7,62
Conductor cross section: 4 mm²
Derating curve for: PC 5/...-ST1-7,62 with
PC 5/...-G-7,62
Conductor cross section: 6 mm²
Derating curve for: PC 5/...-ST1-7,62 with
PC 5/...-G-7,62
Conductor cross section: 10 mm²
Derating curve for: PC 5/...-ST1-7,62 with
PCV 4/....-G-7,62
Conductor cross section: 4 mm²
Derating curve for: PC 5/...-ST1-7,62 with
PCV 4/....-G-7,62
Conductor cross section: 6 mm²
Derating curve for: PC 5/...-ST1-7,62 with
PCV 5/....-G-7,62
Conductor cross section: 6 mm²
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 4 / 6
Aug 13, 2014
PC 5/ 9-ST1-7,62
Order No.: 1777794
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=1777794
Derating curve for: PC 5/...-ST1-7,62 with
PCV 5/....-G-7,62
Conductor cross section: 10 mm²
Derating curve for: PC 5/...-ST1-7,62 with
PC 4/....-G-7,62
Conductor cross section: 6 mm²
Type: PC 5/...-ST1-7,62 with PCVK
4-7,62
Type: PC 5/...-ST(F)1-7,62 with PC 5/...-
GU(F)-7,62
Conductor cross section: 6 mm²

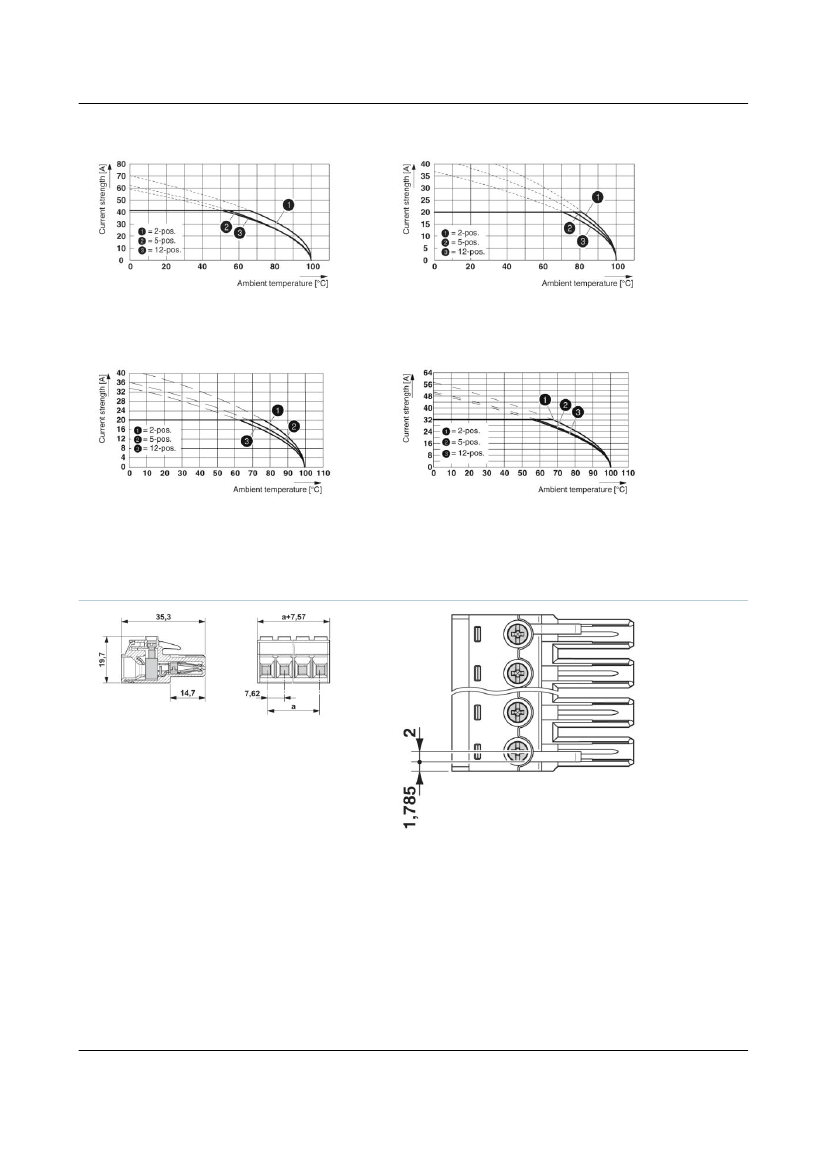

Dimensioned drawing
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 5 / 6
