BR24G64FV-3AE2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> BR24G64FV-3AE2

BR24G64FV-3AE2: DescriptionEEPROM, 8KX8, Serial, CMOS, PDSO8,; Categorystorage storage; File Size910KB，37 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BR24G64FV-3AE2 Overview

EEPROM, 8KX8, Serial, CMOS, PDSO8,

BR24G64FV-3AE2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1252054379
package instruction	SSOP-8
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum clock frequency (fCLK)	1 MHz
Data retention time - minimum	40
Durability	1000000 Write/Erase Cycles
I2C control byte	1010DDDR
JESD-30 code	R-PDSO-G8
length	4.4 mm
memory density	65536 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	8192 words
character code	8000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	8KX8
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Encapsulate equivalent code	TSSOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Parallel/Serial	SERIAL
power supply	1.8/5 V
Certification status	Not Qualified
Maximum seat height	1.35 mm
Serial bus type	I2C
Maximum standby current	0.000002 A
Maximum slew rate	0.0025 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.7 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	3 mm
Maximum write cycle time (tWC)	5 ms
write protect	HARDWARE

Preview

Download Datasheet

View All

Datasheet

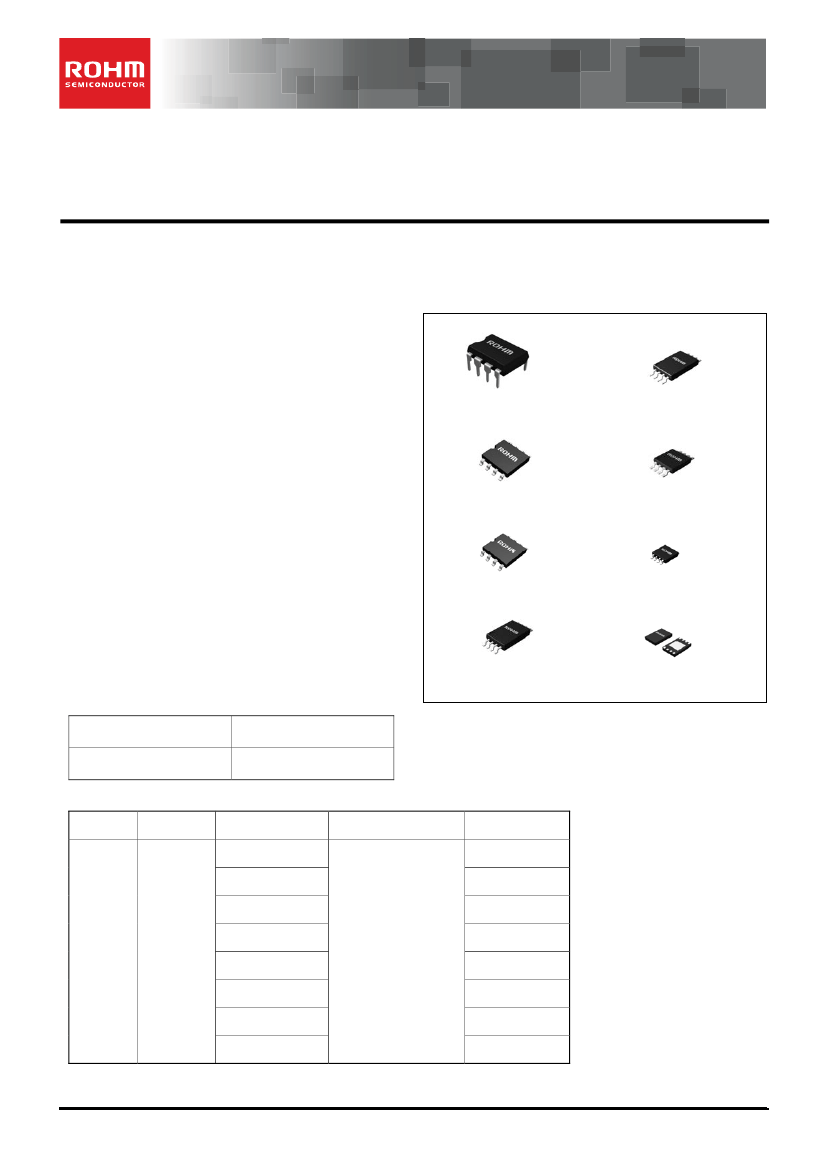

Serial EEPROM Series Standard EEPROM

C BUS EEPROM (2-Wire)

BR24G64-3A

General Description

BR24G64-3A is a serial EEPROM of I

C BUS Interface Method

Features

All controls available by 2 ports of serial clock(SCL) and

serial data(SDA)

Other devices than EEPROM can be connected to the

same port, saving microcontroller port

1.7V to 5.5V Single Power Source Operation most

suitable for battery use

1.7V to 5.5Vwide limit of action voltage, possible 1MHz

operation

Page Write Mode useful for initial value write at factory

shipment

Self-timed Programming Cycle

Low Current Consumption

Prevention of Write Mistake

Write (Write Protect) Function added

Prevention of Write Mistake at Low Voltage

More than 1 million write cycles

More than 40 years data retention

Noise filter built in SCL / SDA terminal

Initial delivery state FFh

Packages

W(Typ) x D(Typ)x H(Max)

DIP-T8

9.30mm x 6.50mm x 7.10mm

TSSOP-B8

3.00mm x 6.40mm x 1.20mm

SOP8

5.00mm x 6.20mm x 1.71mm

TSSOP-B8J

3.00mm x 4.90mm x 1.10mm

SOP-J8

4.90mm x 6.00mm x 1.65mm

MSOP8

2.90mm x 4.00mm x 0.90mm

SSOP-B8

3.00mm x 6.40mm x 1.35mm

VSON008X2030

2.00mm x 3.00mm x 0.60mm

Page write

Number of Pages

Product Number

Figure 1.

32Byte

BR24G64-3A

Capacity

Bit Format

Type

BR24G64-3A

BR24G64F-3A

BR24G64FJ-3A

BR24G64FV-3A

64Kbit

8K×8

BR24G64FVT-3A

BR24G64FVJ-3A

BR24G64FVM-3A

BR24G64NUX-3A

1.7V to 5.5V

TSSOP-B8

TSSOP-B8J

MSOP8

VSON008X2030

Power Source

Voltage

Package

DIP-T8

SOP8

SOP-J8

SSOP-B8

○Product

structure：Silicon monolithic integrated circuit

www.rohm.com

TSZ22111・14・001

○This

product has no designed protection against radioactive rays

1/34

TSZ02201-0R2R0G100040-1-2

31.May.2013 Rev.003

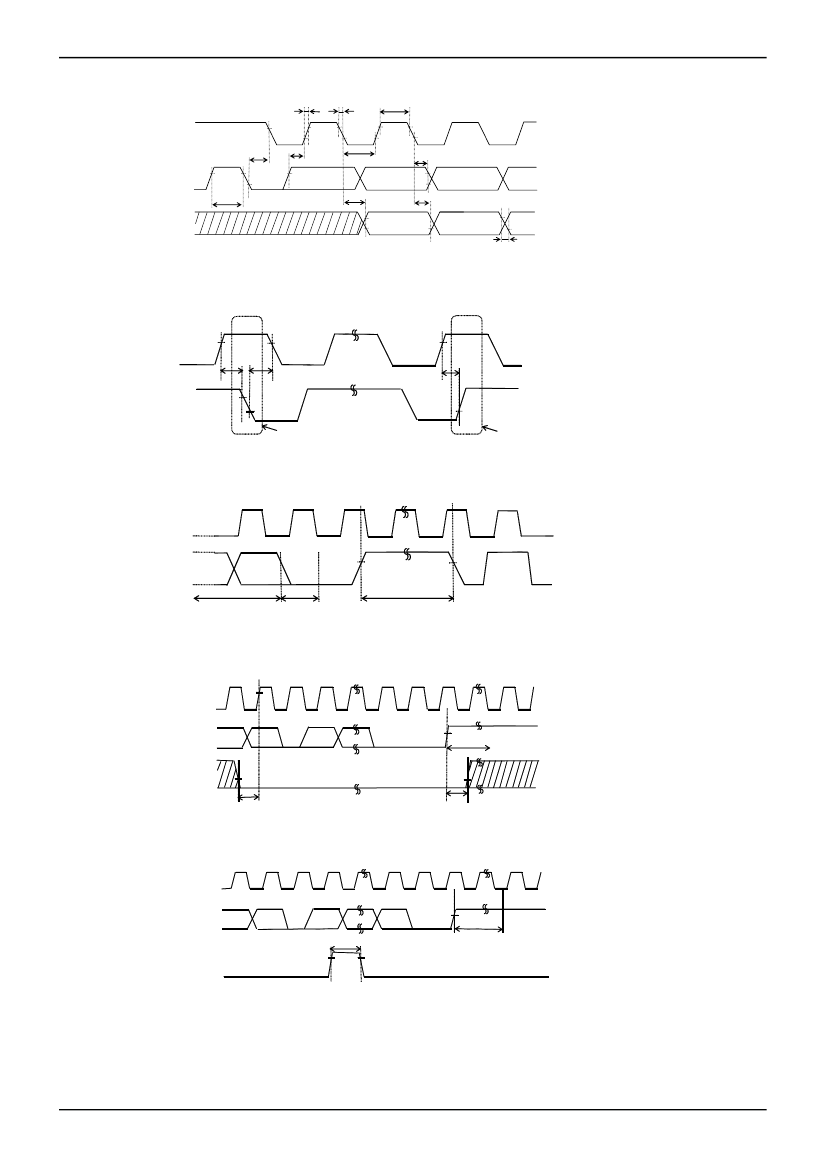

BR24G64FV-3AE2 Related Products

	BR24G64FV-3AE2	BR24G64FVT-3AE2	BR24G64F-3AE2	BR24G64FJ-3AE2
Description	EEPROM, 8KX8, Serial, CMOS, PDSO8,	EEPROM, 8KX8, Serial, CMOS, PDSO8,	EEPROM, 8KX8, Serial, CMOS, PDSO8,	EEPROM, 8KX8, Serial, CMOS, PDSO8,
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	SSOP-8	TSSOP-8	SOP-8	SOP-8
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum clock frequency (fCLK)	1 MHz	1 MHz	1 MHz	1 MHz
Data retention time - minimum	40	40	40	40
Durability	1000000 Write/Erase Cycles	1000000 Write/Erase Cycles	1000000 Write/Erase Cycles	1000000 Write/Erase Cycles
I2C control byte	1010DDDR	1010DDDR	1010DDDR	1010DDDR
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
length	4.4 mm	4.4 mm	5 mm	4.9 mm
memory density	65536 bit	65536 bit	65536 bit	65536 bit
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	8	8	8	8
word count	8192 words	8192 words	8192 words	8192 words
character code	8000	8000	8000	8000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
organize	8KX8	8KX8	8KX8	8KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	TSSOP	SOP	LSOP
Encapsulate equivalent code	TSSOP8,.25	TSSOP8,.25	SOP8,.25	SOP8,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, LOW PROFILE
Parallel/Serial	SERIAL	SERIAL	SERIAL	SERIAL
power supply	1.8/5 V	1.8/5 V	1.8/5 V	1.8/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.35 mm	1.2 mm	1.71 mm	1.65 mm
Serial bus type	I2C	I2C	I2C	I2C
Maximum standby current	0.000002 A	0.000002 A	0.000002 A	0.000002 A
Maximum slew rate	0.0025 mA	0.0025 mA	0.0025 mA	0.0025 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	1.7 V	1.7 V	1.7 V	1.7 V
Nominal supply voltage (Vsup)	2.5 V	2.5 V	2.5 V	2.5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	3 mm	3 mm	4.4 mm	3.9 mm
Maximum write cycle time (tWC)	5 ms	5 ms	5 ms	5 ms
write protect	HARDWARE	HARDWARE	HARDWARE	HARDWARE
